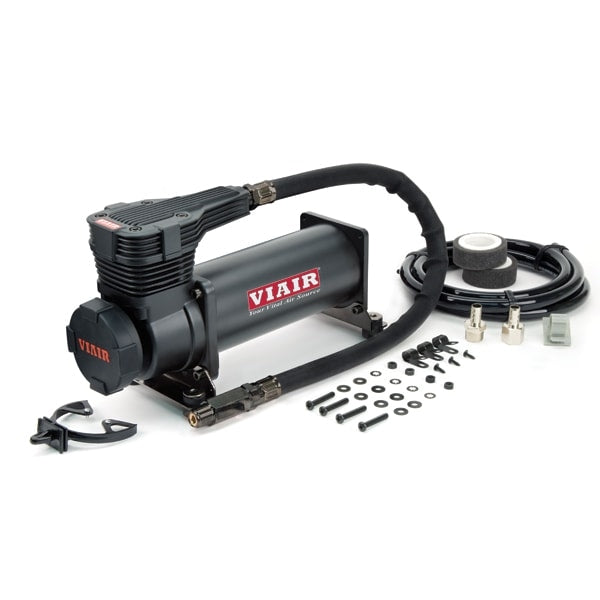

VIAIR 485C Gen. 2 Compressors Single Black
VIAIR 485C Gen. 2 Compressors Single Black
Product Description
VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.
The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.
FEATURES
- – Thermal Overload Protector
- – 485C (Platinum or Stealth Black) Compressor
- – Air Filter Assembly
- – VIAIR Removable Filter Cover
- – Replacement Air Filter Elements
- – Remote Mount Filter Assembly
- – Leader Hose Clip
- – Air Line Clip with Included Hardware
- – Mounting Hardware
- – Stainless Steel Braided Leader Hose with Inline Check Valve
- – Air Line (For Remote Mount Filter Installation)
SPECIFICATIONS
- – 12-Volt
- – Permanent Magnetic Motor
- – Duty Cycle: 100% @ 200 PSI
- – Max. Working Pressure: 200 PSI
- – Max. Air Tank Size: 5.0 Gallon
- – Combined Max. Amp Draw: 23 Amps
- – Ingress Protection Rating: IP67
- – Dimensions: 10.63″L x 4.1″W x 6.44″H
- – Net Weight: 11.10 lbs.
PERFORMANCE DATA
|
PSI |
CFM |
A |
BAR |
LPM |
A |
|
0 |
2.24 |
12 |
0 |
70.0 |
12 |
|
10 |
1.84 |
14 |
1.0 |
51.0 |
15 |
|
20 |
1.75 |
16 |
2.0 |
47.0 |
16 |
|
30 |
1.67 |
17 |
3.0 |
44.0 |
18 |
|
40 |
1.61 |
18 |
4.0 |
41.0 |
20 |
|
50 |
1.54 |
19 |
5.0 |
38.0 |
21 |
|
60 |
1.47 |
20 |
6.0 |
35.0 |
21 |
|
70 |
1.42 |
21 |
7.0 |
32.0 |
22 |
|
80 |
1.36 |
21 |
8.0 |
29.0 |
22 |
|
90 |
1.30 |
22 |
9.0 |
27.0 |
22 |
|
100 |
1.23 |
22 |
10.0 |
25.0 |
23 |
|
110 |
1.17 |
22 |
11.0 |
22.0 |
22 |
|
120 |
1.11 |
22 |
12.0 |
21.0 |
21 |
|
130 |
1.06 |
22 |
13.0 |
21.0 |
21 |
|
140 |
1.01 |
23 |
13.8 |
21.0 |
21 |
|
150 |
0.97 |
22 |
|||
|
160 |
0.92 |
22 |
|||
|
170 |
0.88 |
22 |
|||
|
180 |
0.84 |
21 |
|||
|
190 |
0.77 |
21 |
|||
|
200 |
0.73 |
21 |
FILL RATES
|
2.5 Gallon Tank |
Fill Rate |
|
0 to 200 PSI |
4 min. 50 sec. (± 10 sec.) |
|
165 to 200 PSI |
1 min. 15 sec. (± 05 sec.) |
|
5.0 Gallon Tank |
Fill Rate |
|
0 to 200 PSI |
9 min. 45 sec. (± 15 sec.) |
|
165 to 200 PSI |
2 min. 25 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
