Viair 310 SS Stealth-Series Single Compressor
Viair 310 SS Stealth-Series Single Compressor
SPECIFICATIONS
- – 12-Volt
- – Permanent Magnetic Motor
- – Duty Cycle: 100% @ 100 PSI
- – Duty Cycle: 50% @ 200 PSI
- – Max. Working Pressure: 200 PSI
- – Max. Air Tank Size: 10.0 Gallon
- – Max. 12V Amp Draw: 46-Amps
- – Ingress Protection Rating: IP67
- – Max Ambient Temp: +158°F
- – Min Ambient Temp: -40°F
- – Dimensions: 10.7″L x 4.4″W x 7.3″H
- – Net Weight: 19.5lbs.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Product Description

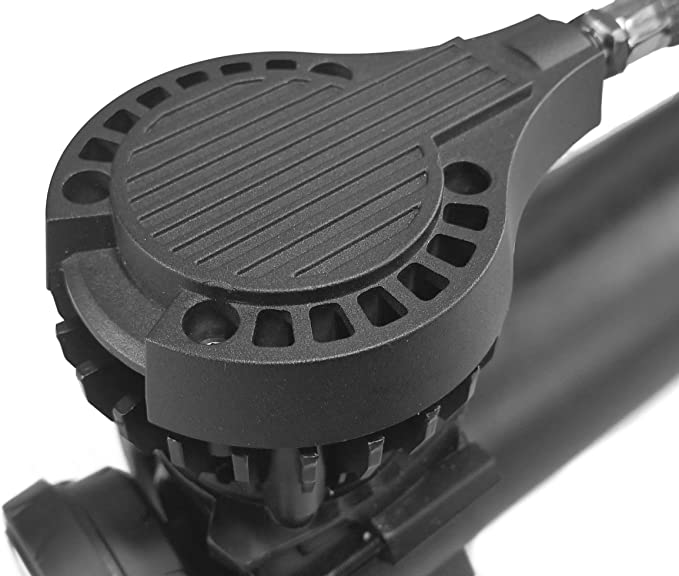

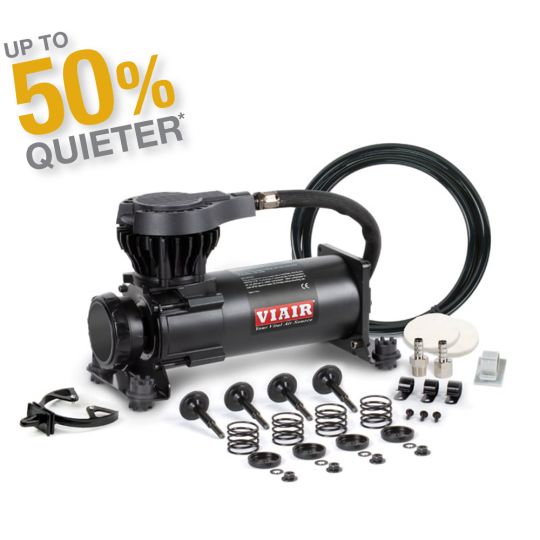

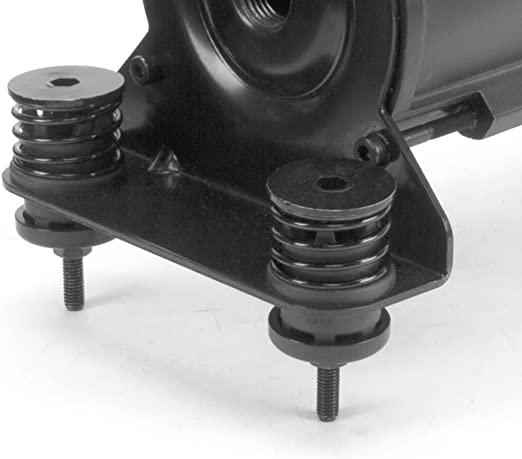

VIAIR’s all-new 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors*. Additionally, the 310 Stealth-Series compressors are RoHS/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves that eliminate the possibility of high amperage restarts.
