Description

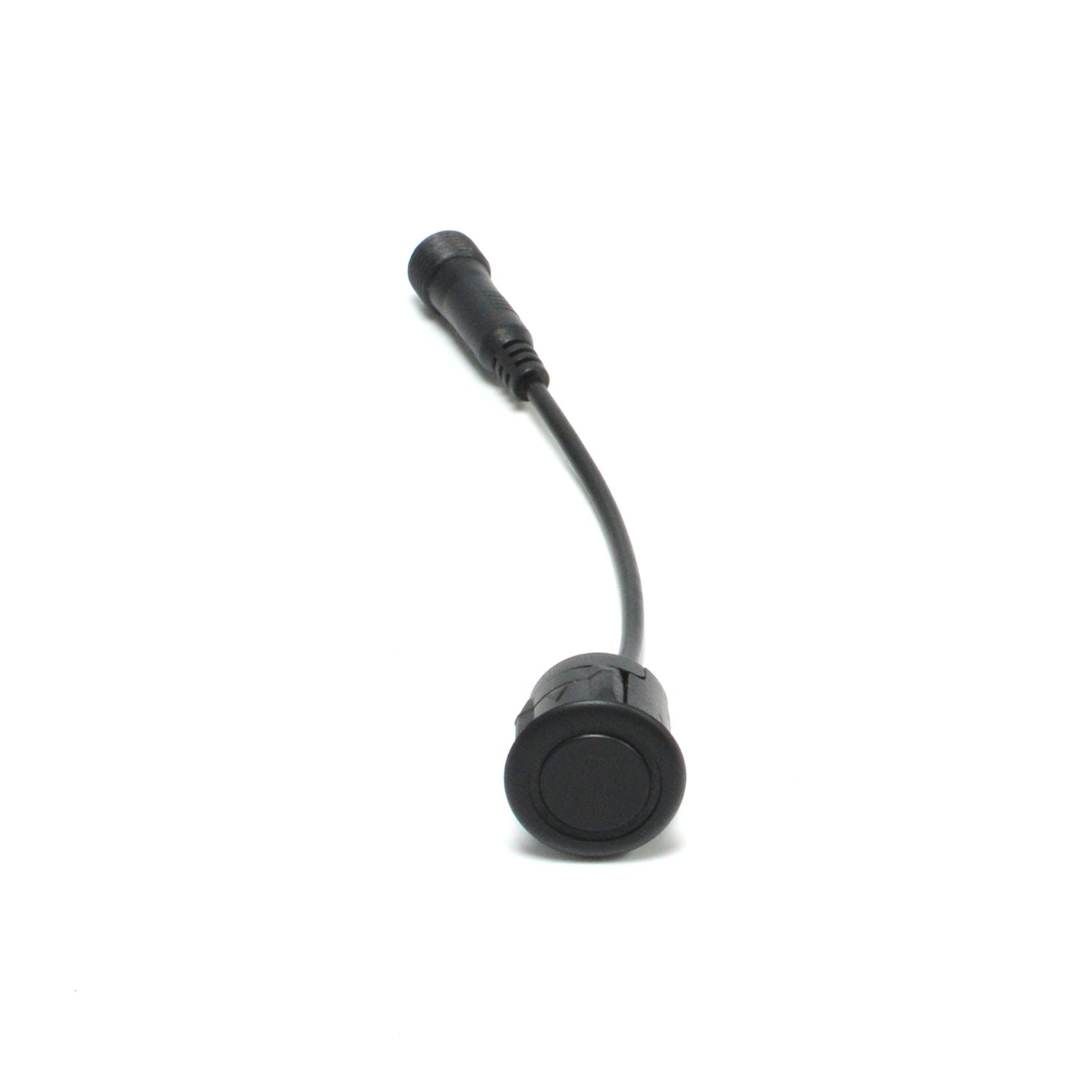

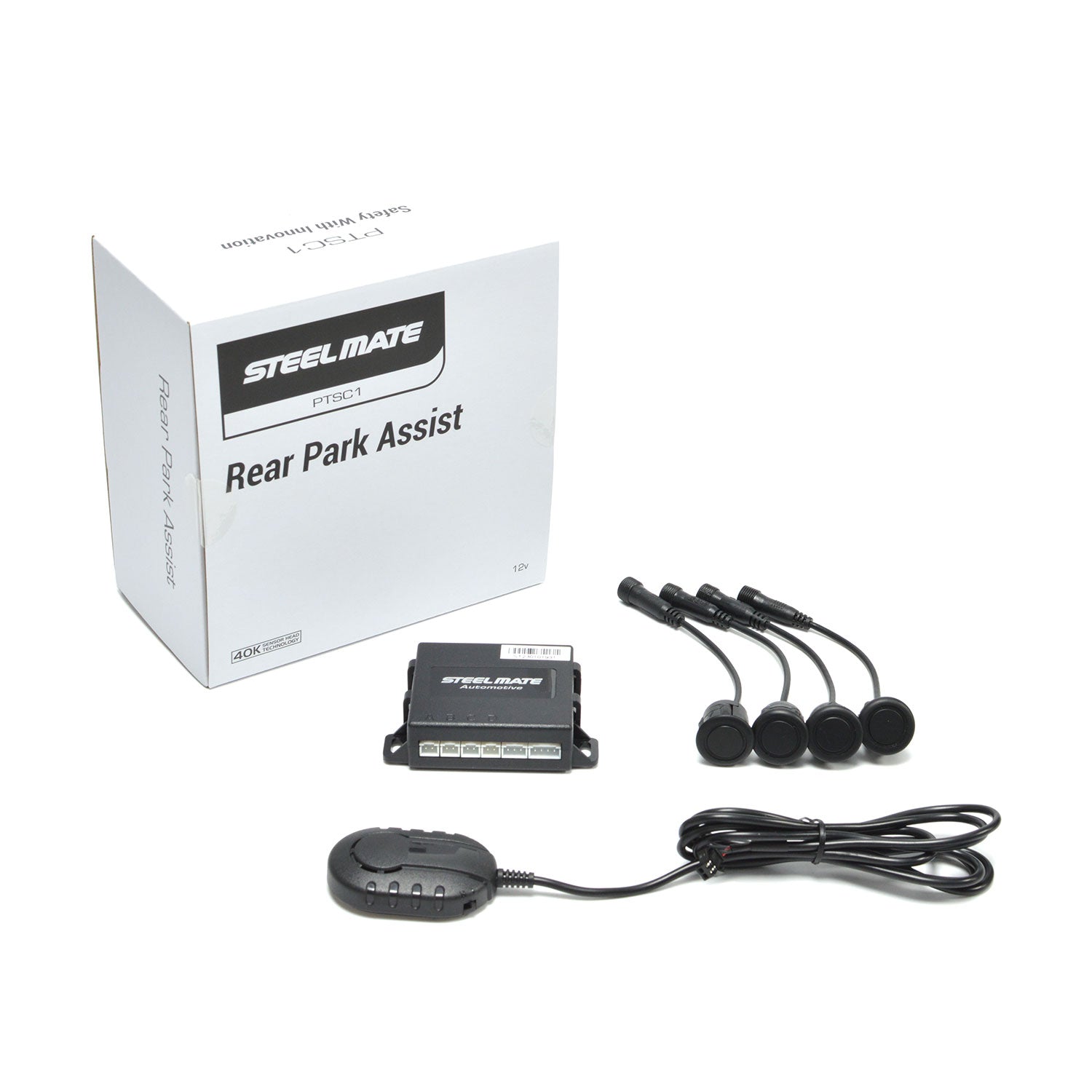

The Steelmate PTSC1 is our entry level 4 head rear parking sensor kit. The system can be programmed to ignore tow bars or spare wheels and has the option to add a visual display. The sensor hole size is 18.8mm in diameter. The visible external diameter of the sensor head is 22.9mm with a depth of 20.1mm and they have detachable cables and a 4-degree angle of tilt. The power loom and buzzer are a one-piece cable. A hole cutter is included in the kit.

Main Features

• Rear 4 sensors for full rear coverage
• 4-stage audible warning buzzer
• Heavy rain proof design
• All weather design (-40°C>+80°C)
• Anti-false alarm patent
• Easy installation

Technical Parameters

• Voltage: 9>16V
• Temperature: -40>+80°C
• Input: <4W
• Beep volume: 70>90dB
• Range (Rear): 0.3>1.5m

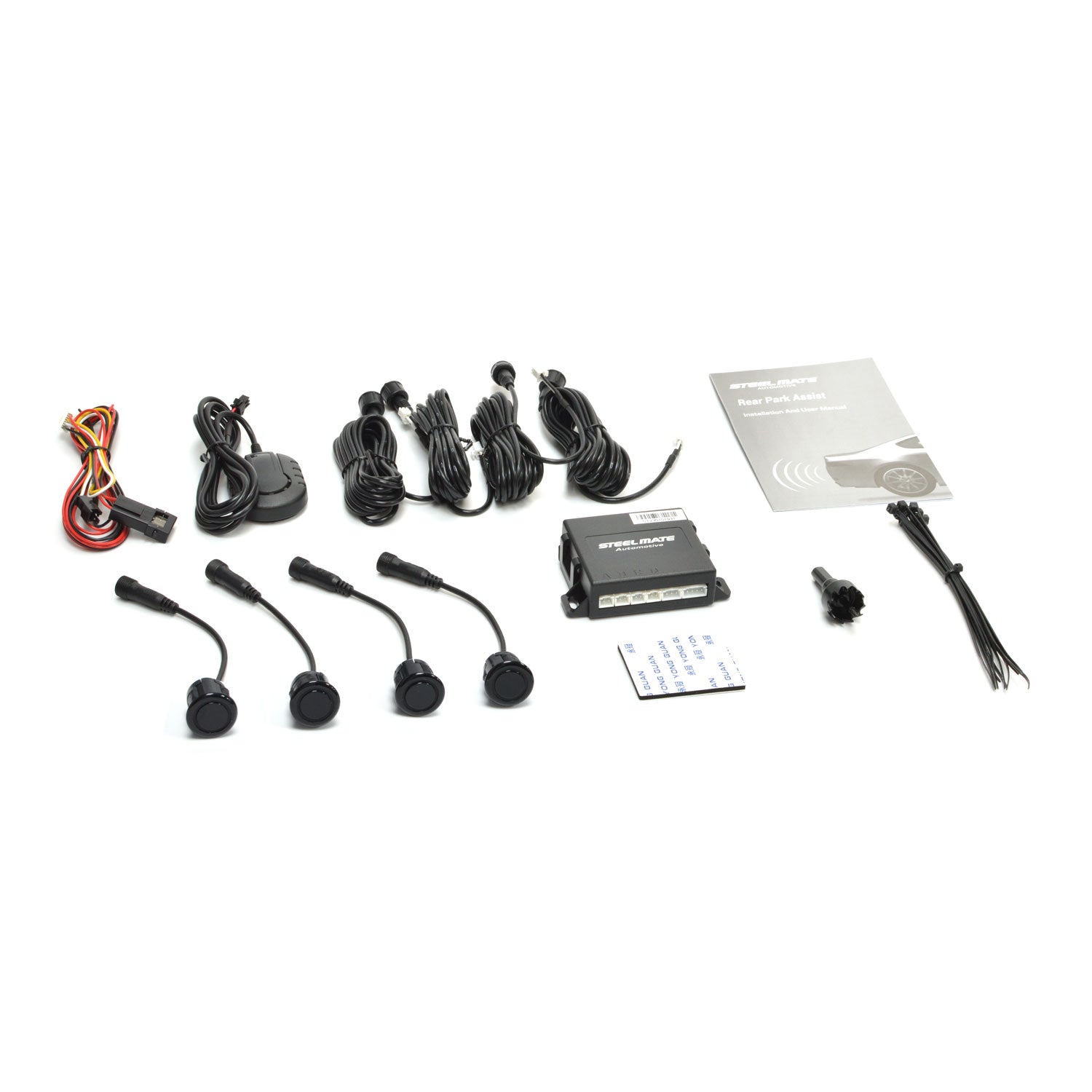

Included in the Kit

• 4 x 14D-12 sensor heads
• 4 x 2.3m sensor cables
• 1 x ECU
• 1 x Power Loom & Buzzer
• 1 x 18.8mm hole saw
• 1 x User/installation manual
