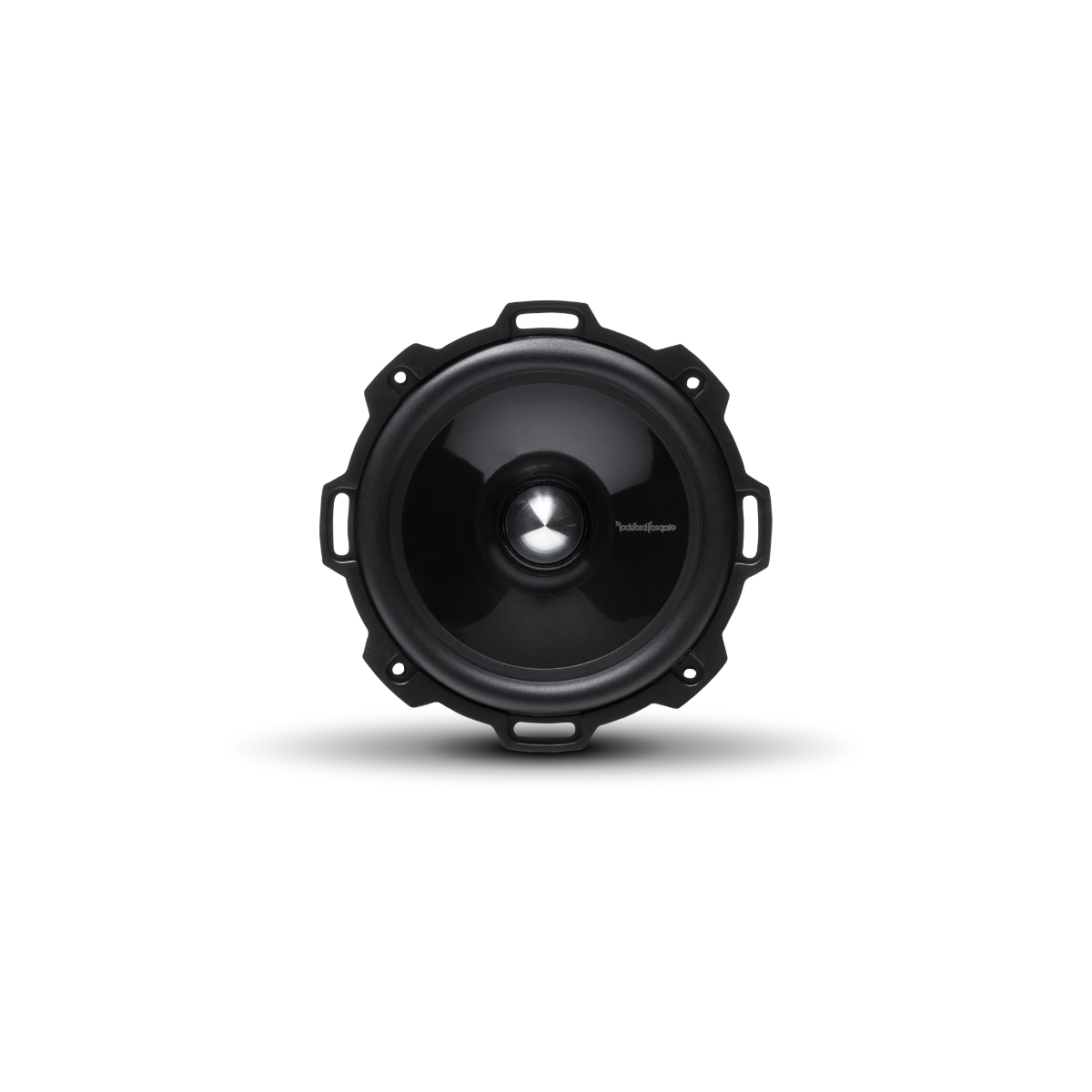

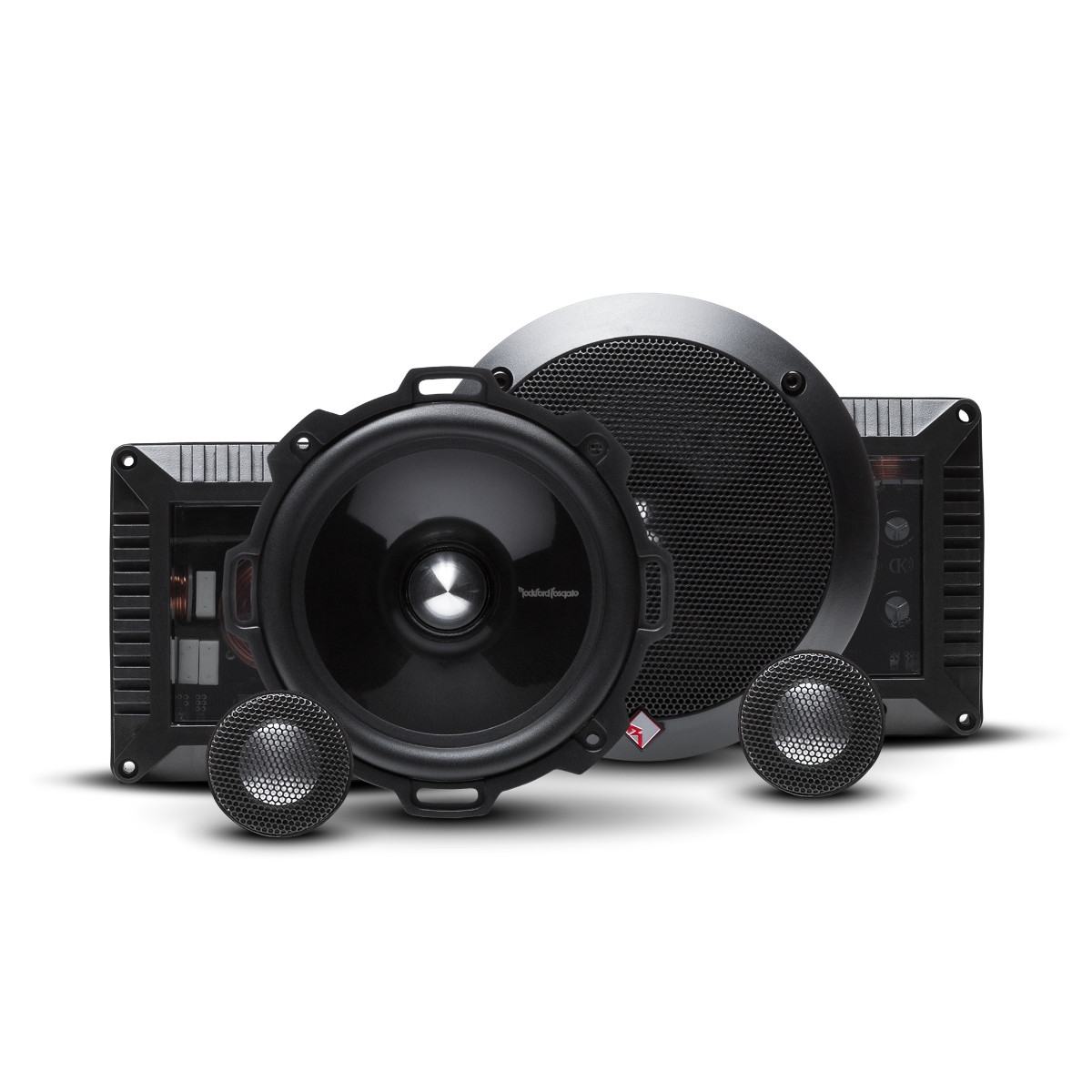

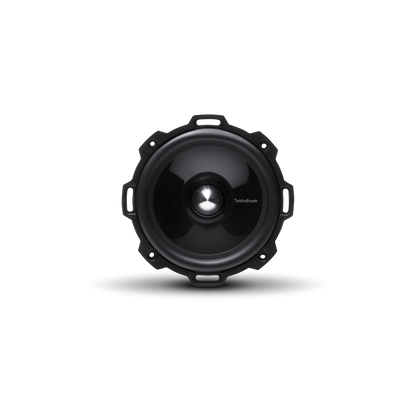

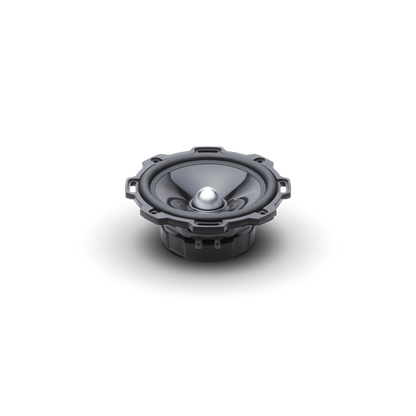

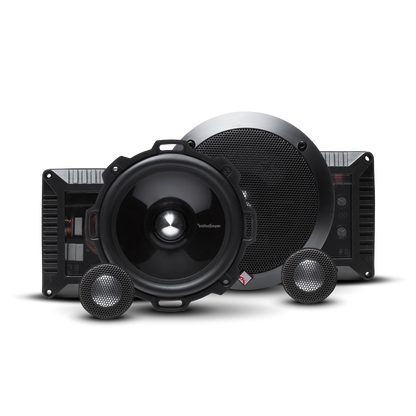

The T252-S 5.25" is an alternative component system to the T1 with a major difference being a Billet aluminium phase plug to enhance cooling. The woofer features the same VAST surround having up to 25% increased cone area and a Flex Fit Basket for easy mounting. Another difference is the Aluminium Dome Neo-Tweeter for Fanatics who prefer this type of tonal quality over the T1. The same external audiophile crossover is used, configurable for single or bi-amp configurations.

Features

• Internal tweeter mylar phase plug

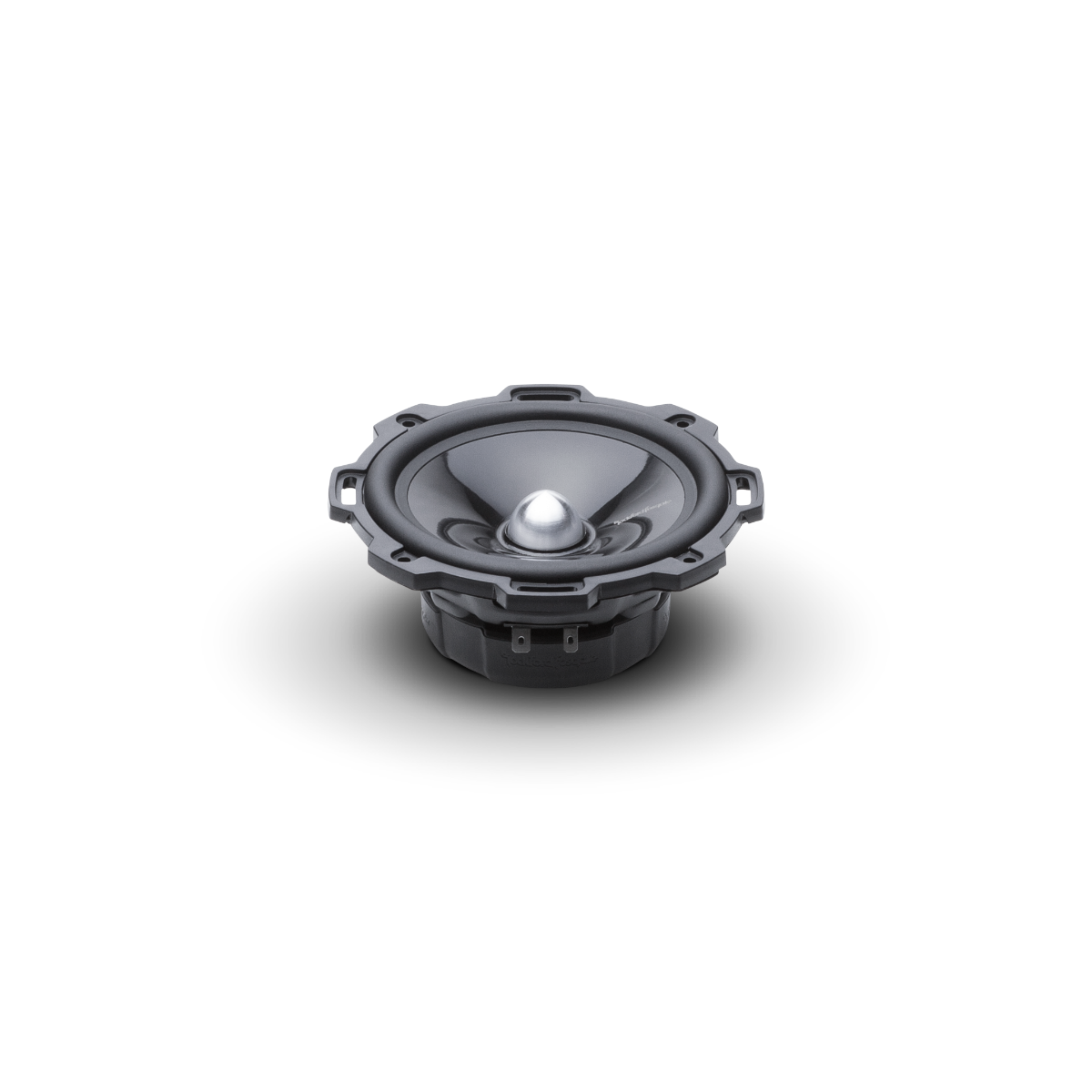

• Billet machined aluminium phase plug

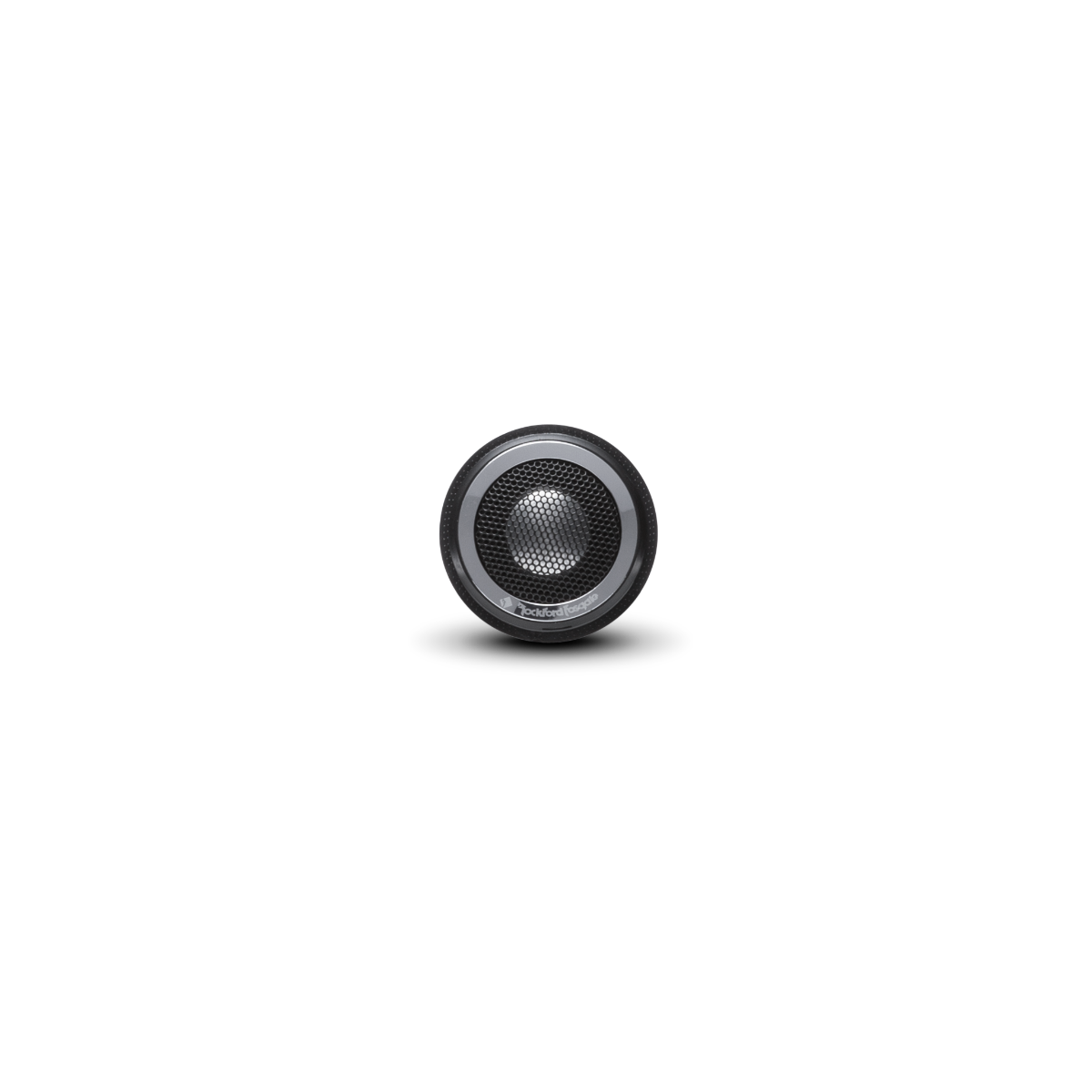

• Aluminium dome neo-tweeter with integral suspension

• OEM adapter plate included

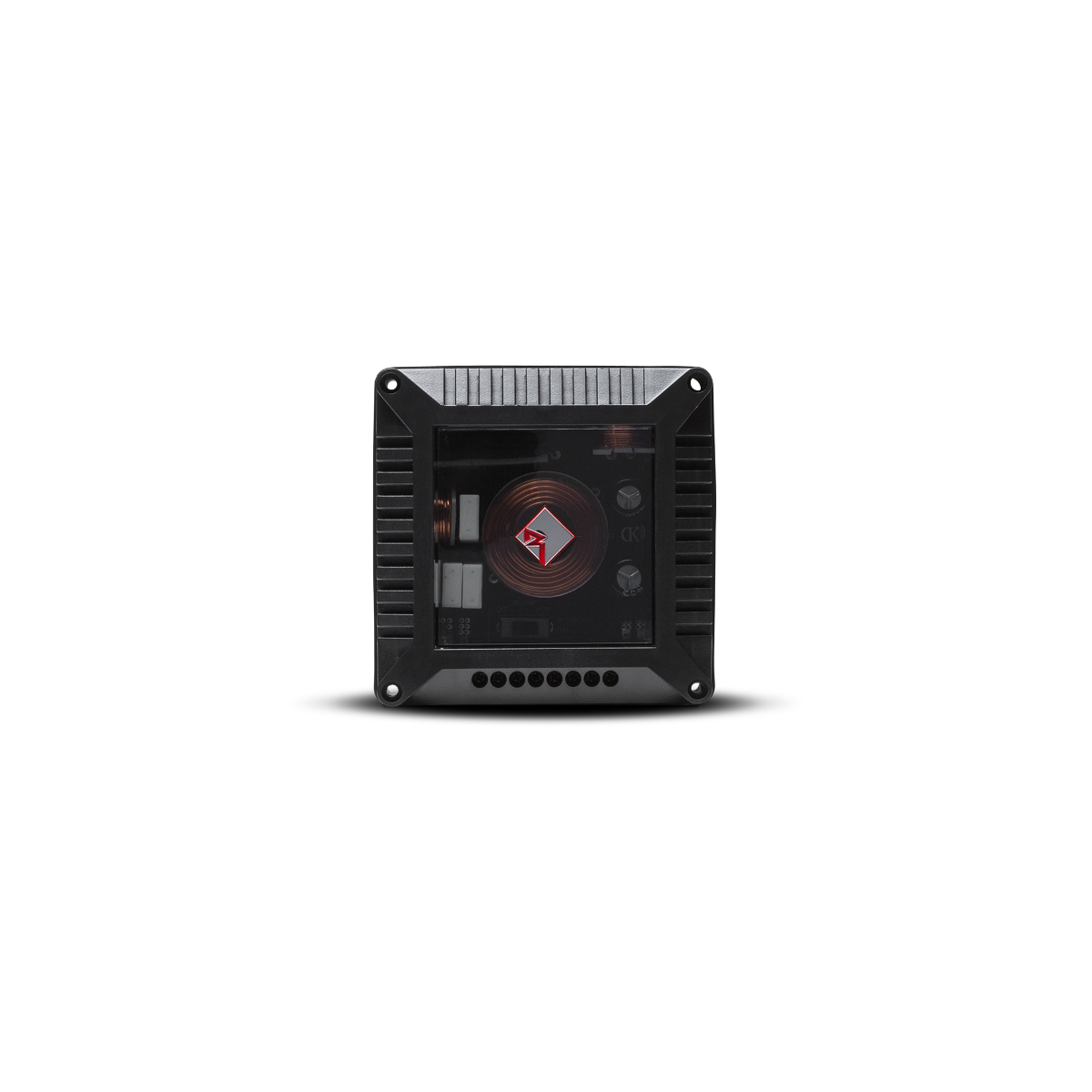

• External audiophile grade component crossover

• Flex Fit basket design

• 3 levels of tweeter attenuation

• On-axis/off-axis tweeter configuration

• Recessed tweeter mount uses standard 1-3/4" hole saw

• Butyl midrange rubber surround

• Bi-amp on/off capability

• Carbon fibre & polypropylene injection moulded cone

• 5% tolerance high quality poly-capacitors and air-core inductors

Specifications

• Speaker Type - Component System

• Midrange Size (Nominal Diameter) - 5.25"

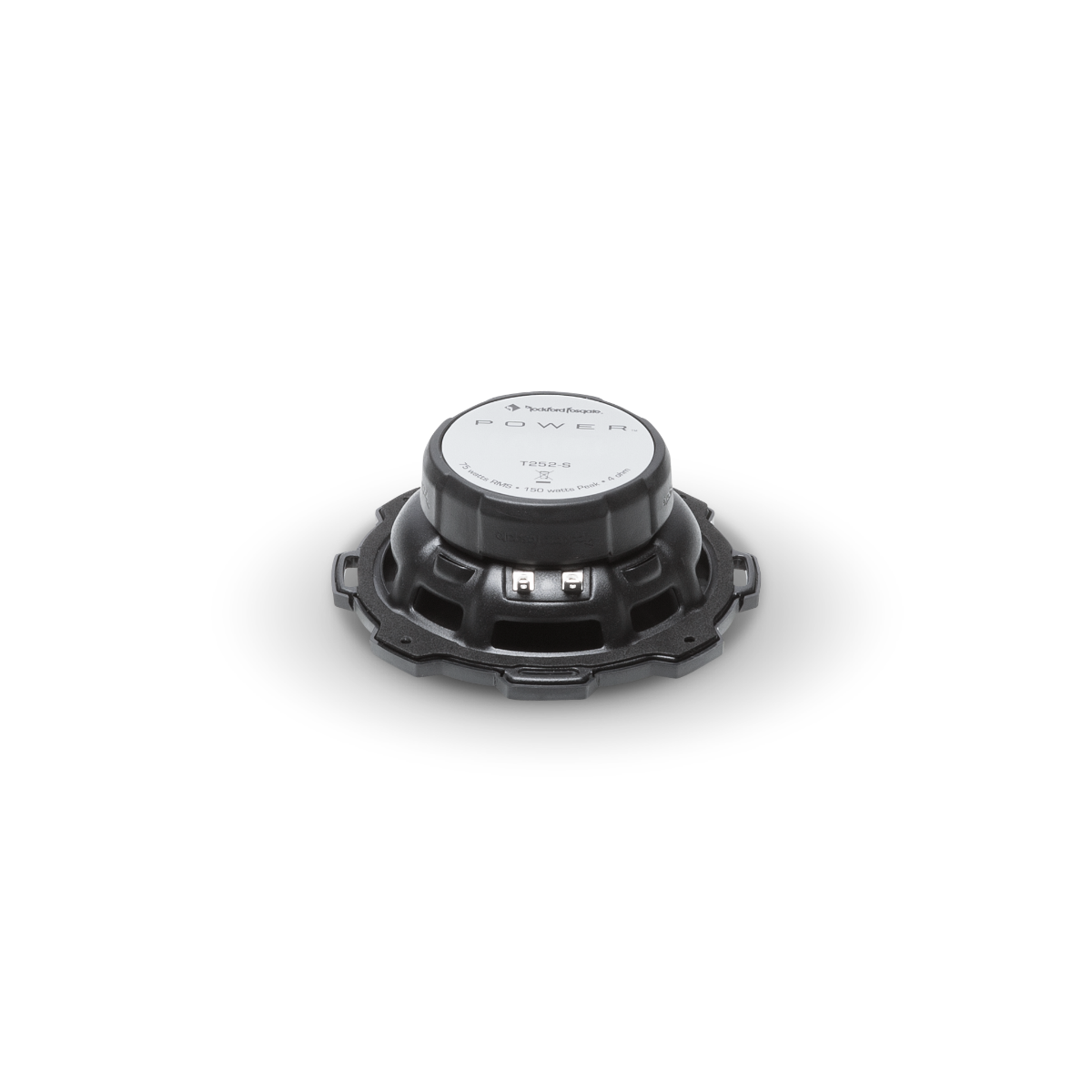

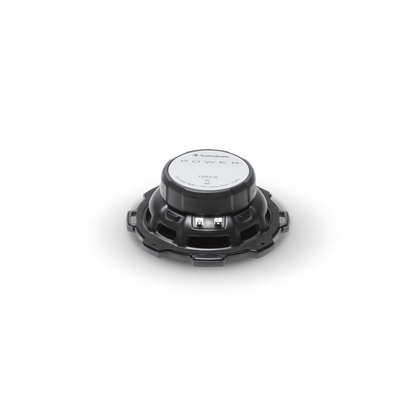

• Midrange Mounting Depth - 2.03" (52 mm)

• Tweeter Size (Nominal Diameter) - 1.0" (25.4 mm)

• Tweeter Mounting Depth - 0.50" (13 mm)

• Nominal Impedance (Ohms) - 4-Ohm

• Frequency Response (Hz) - 65Hz - 20kHz

• Sensitivity (dB @ 1W/1M) - 87

• Crossover High-Pass (HP): 3.5kHz @ 18dB/octave Butterworth / Low-Pass (LP): 3.5kHz @ 12dB/octave Butterworth

• Power Handling - 75 Watts RMS

• Power Handling - 150 Watts Peak

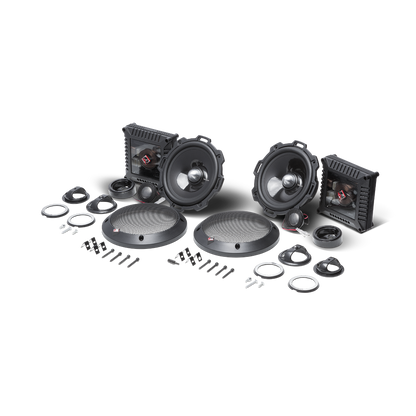

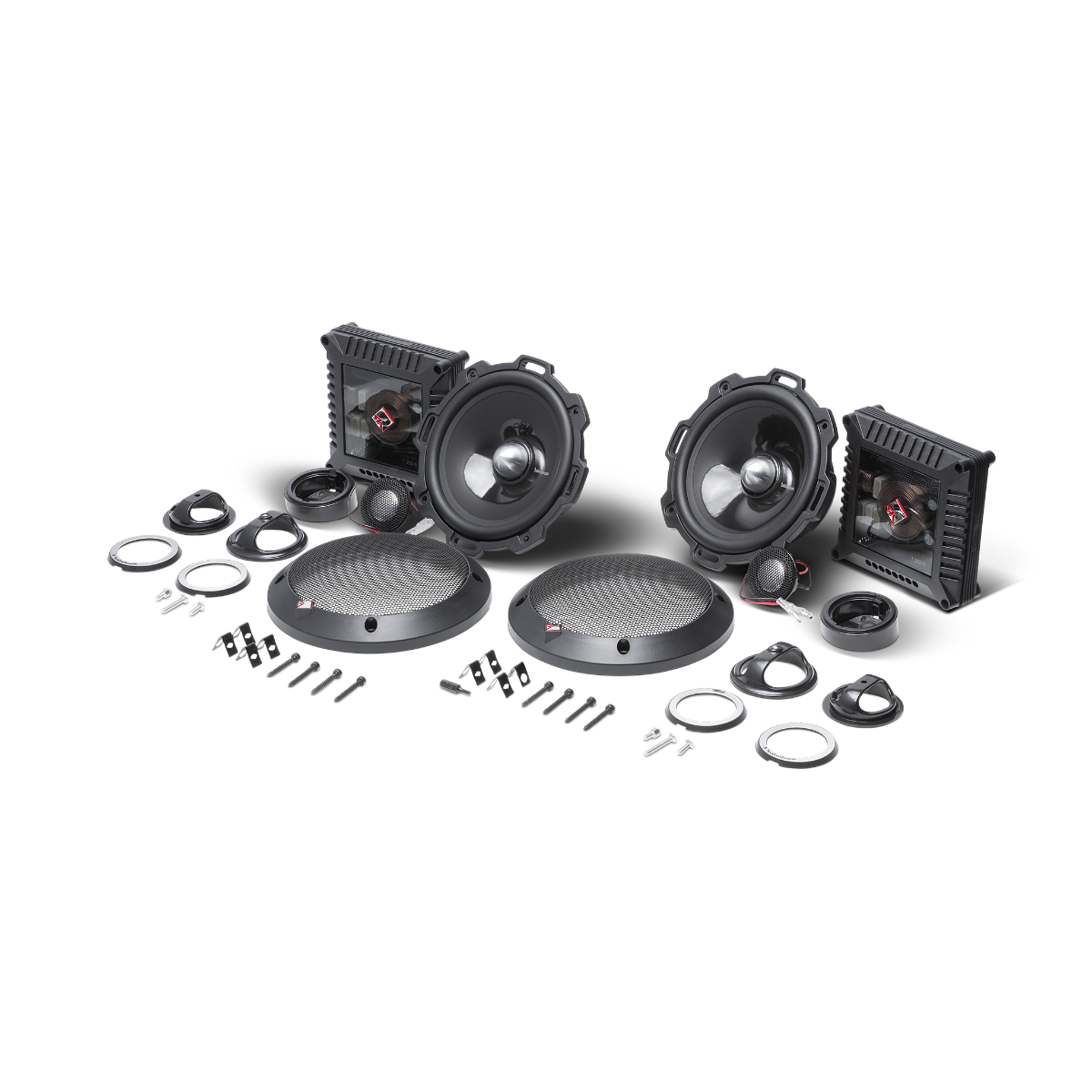

• Grille/Trim Ring Included

• Mounting Hardware Included

• Shipping Weight - 7.38 Lbs. (3.35 kg.)
