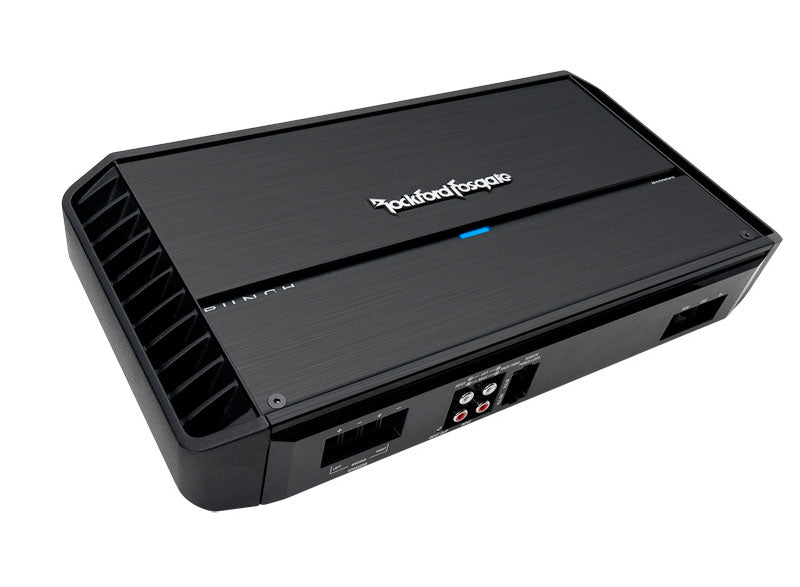

Rockford Fosgate Punch P1000X2 - 2 Channel Amplifier

Rockford Fosgate Punch P1000X2 - 2 Channel Amplifier

The Punch P1000X2 is a 2-channel stereo amplifier capable of producing 500 Watts into each channel at 2-Ohms. The P1000X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
View full details

Product Description

The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.

  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz.
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminium heatsink
  • Short circuit protection
  • Over current protection


Specification:Number of Channels:2

  • Number of Channels 1
  • Rated Power (RMS Continuous Power):
  • 300 Watts x 2 @ 4-Ohm
  • 500 Watts x 2 @ 2-Ohm
  • 1000 Watts x 1 @ 4-Ohm Bridged
  • Total Power (Sum of Rated Power): 1000 Watts RMS
  • Dynamic Power (PVC/PowerCube® Measurement):
  • 401 Watts x 2 @ 4-Ohms 0° Res
    656 Watts x 2 @ 2-Ohms 0° Res
  • Bridgeable: Yes
  • Efficiency (average):
  • 69% @ 4-Ohm
  • 64% @ 2-Ohm
  • Total Harmonic Distortion:
  • 4-Ohm: <1.0%
  • 2-Ohm: <1.0%
  • Crossover Controls:
  • High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
  • Tone Controls:
  • Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
  • Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
  • Function depends upon LP/AP/HP switch position
  • Signal Input: Low level: Hi/Low level: 1 RCA pair
  • Signal Output Low level: Low level: 1 RCA pair
  • Power Input Connector: Captive C-Clamp
  • Power Wire Gauge: 4 AWG
  • Speaker Output Connector: Captive C-Clamp
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Heat Sink Type: Cast aluminum
  • Cooling: Convection
  • Remote Controls: Optional Punch Level Control (PLC2) Ready
  • Visual Indicators:
  • Power/Protect/Thermal LED
  • Input Clip LED
  • Output Clip LED
  • Circuit Topology Class: Class A/B
  • Frequency Response: 20Hz to 250Hz +/- 1.0dB
  • Shipping Weight: 15 Lbs. (6.80 Kg.)
  • Dimensions (HxWxL): 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm))
