Punch Marine 500 Watt Class-bd Mono Amplifier
The PM500X1bd is a 500 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz.
- Muted turn on

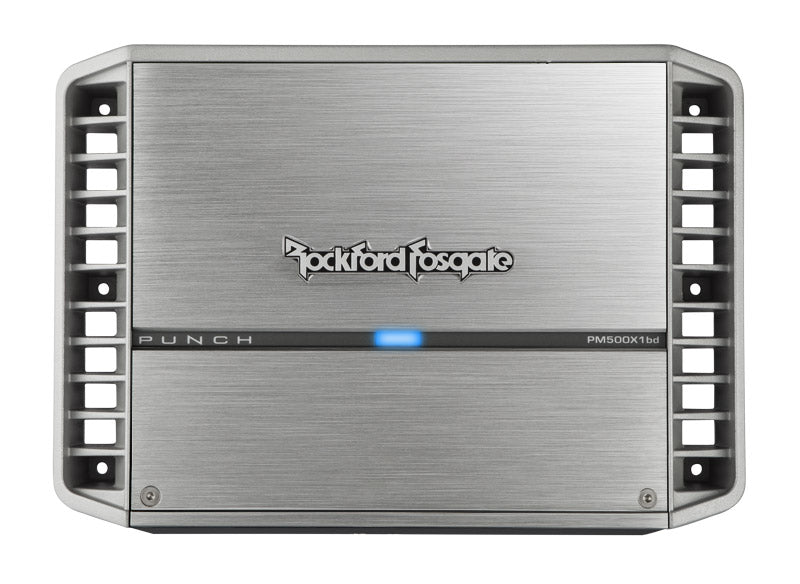

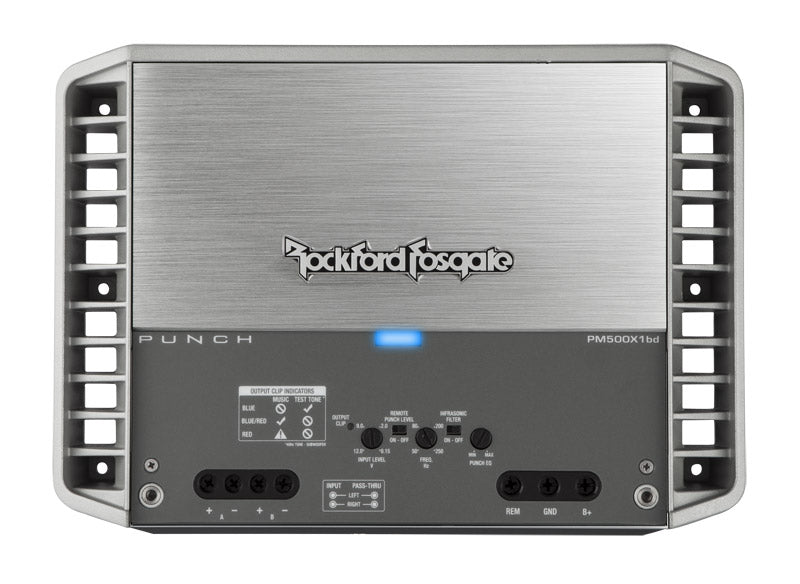

- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Infrasonic filter

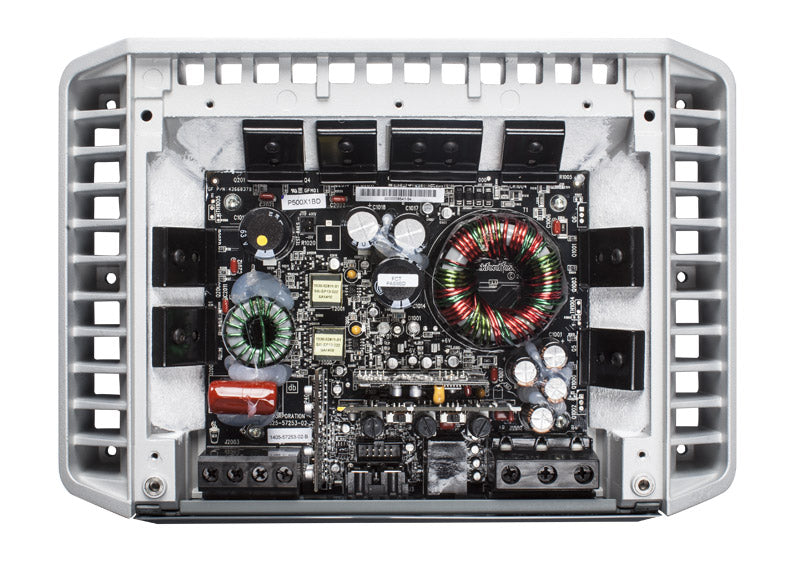

- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- 1 Year Standard Warranty
*PLEASE CHECK AVAILABILITY
Product Description
With its super efficient Class-bd circuit topology, the PM500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
- 150W x 1 @ 4Ω
- ≤1.0% THD+N
Rated Power (RMS Continuous Power):
- 150 Watts x 1 @ 4-Ohm
- 300 Watts x 1 @ 2-Ohm
- 500 Watts x 1 @ 1-Ohm
Dynamic Power (PVC/PowerCube®):
- 224 Watts x 1 @ 4-Ohm
- 410 Watts x 1 @ 2-Ohm
- 787 Watts x 1 @ 1-Ohm
Total Harmonic Distortion (THD+Noise):
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
- 1-Ohm: <1.0%
Visual Indicators:
- Power/Protect/Thermal LED
- Input Clip LED
- Output Clip LED
- Frequency Response: 20Hz to 250Hz +/- 1.0dB
- Efficiency (average): 86% @ 4-Ohm
- Number of Channels: 1
- Total Power (Sum of Rated Power): 500 Watts
- Crossover Controls: Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
- Infrasonic Filter (IF): 28Hz @ 12dB/Octave
- Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz
- Input Sensitivity: 150 mV - 12 V

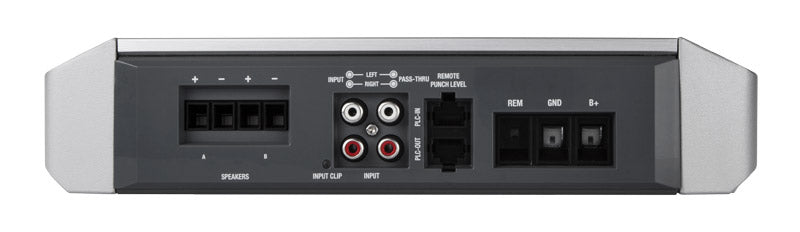

- Signal Input: Hi/Low level: 1 RCA pair
- Signal Output: Low level: 1 RCA pair
- Power Input Connector: Captive C-Clamp
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Captive C-Clamp
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Punch Level Control (PLC2) Ready
- Circuit Topology Class: Class-BD
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 80 A
- Max. Current Draw (13.8V Sinewave): 70 A
- Average Current Draw (13.8V Music): 35 A
- Suggested Alternator: 75 A
- Shipping Weight: 10.8 Lbs. (4.89 Kg.)
- Dimensions (H x W x D): 2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm)
