ROCKFORD FOSGATE PP4NT
ROCKFORD FOSGATE PP4NT
Punch Pro 1" 4-Ohm Neodymium Tweeter
The PP4-NT is a Punch Pro 1" neodymium 4-ohm tweeter designed for SPL systems. Its smaller size allows for use in compact areas while still producing very loud output.
- High efficiency horn tweeter
- Aluminum diaphragm
- Aluminum phase plug
- High temp Nomex former voice coil
- Die cast aluminum frame
- All Metal Input Spring Terminal Connection
- Neodymium motor structure
- Built-in 6dB/Octave crossover

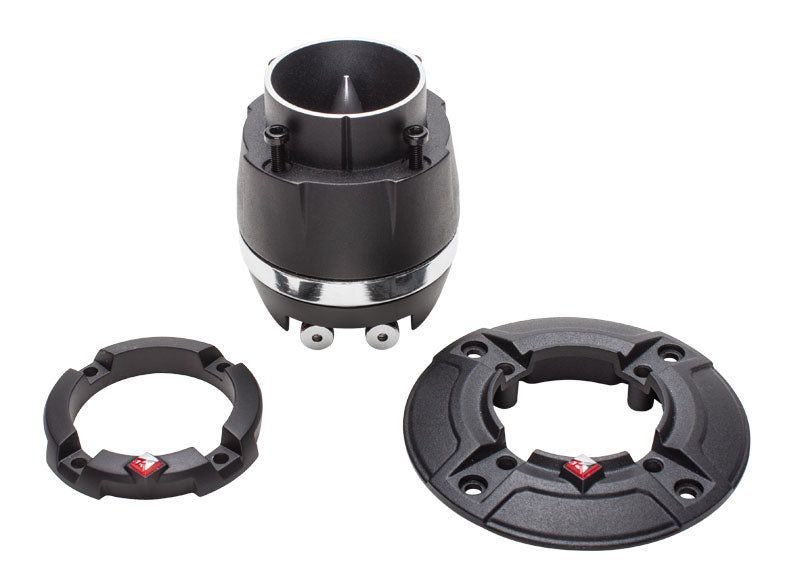

- Removable mounting flange
- Mounting hardware included
- PP4-X and PP8-X crossover compatible
- Sold as individual units (not in pairs)
Product Description
The PP4-NT Punch Pro is a 1" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The neodymium motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.
- CEA-2031 Compliant: CEA-2031 Guidelines
- Configuration: Tweeter
- Nominal Impedance (Ohms): 4-Ohm
- Frequency Response (Hz): 4kHz - 20kHz
- Midrange Nominal Diameter (cone/diaphragm): —
- Midrange Mounting Diameter: —
- Midrange Mounting Depth: —
- Tweeter Nominal Diameter (dome/diaphragm): 1.0"
- Tweeter Mounting Diameter: Large Trim Ring: 2.52" (64 mm)
- Small Trim Ring: 1.79" (45.5 mm)
- Tweeter Mounting Depth: 2.57" (65.8 mm)
- Voice Coil Diameter (in/mm): 1" (25 mm)
- Power Handling (RMS): 50 Watts RMS 100 Watts MAX
- Crossover: 4kHz @ 6dB/Octave
- Sensitivity (dB @ 1W/1M): 105
- Grille/Trim Ring Included: No
- Mounting Hardware: Yes
