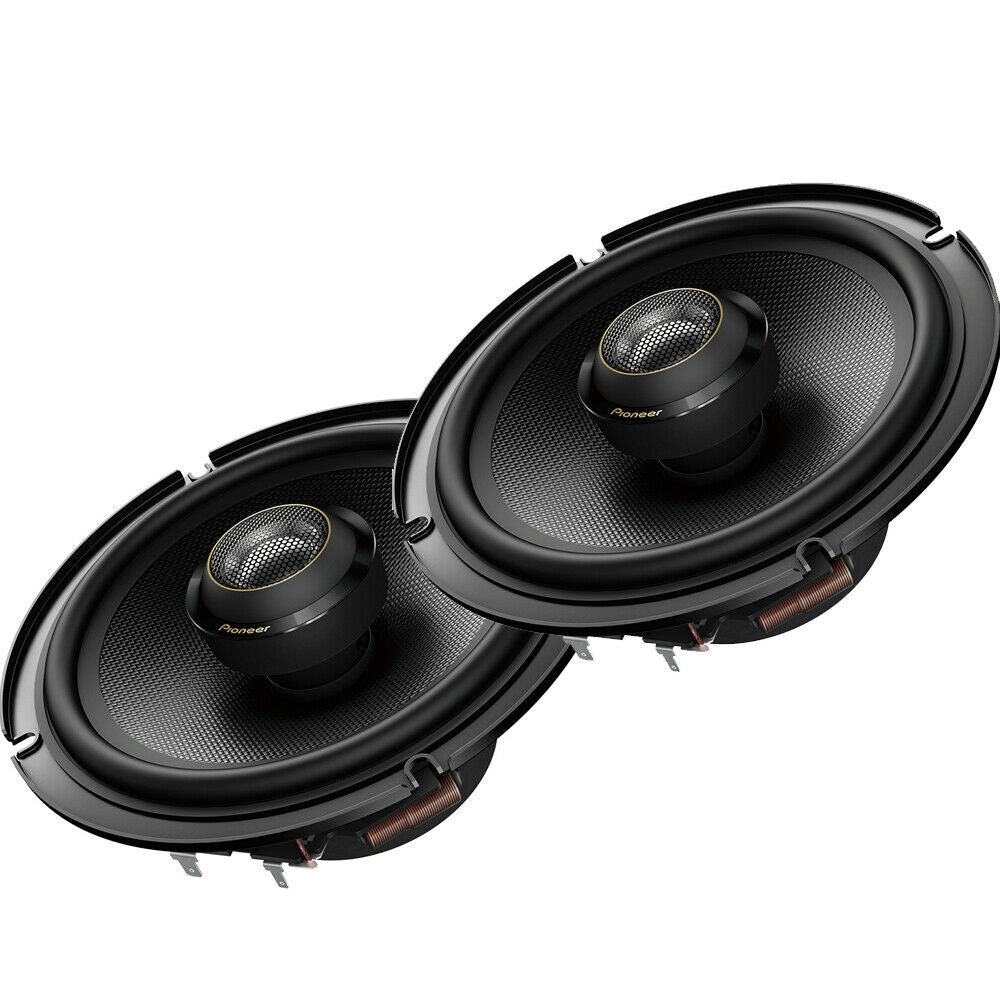

Pioneer TS-Z65F - 6.5” 2-Way Coaxial Speaker
Pioneer TS-Z65F - 6.5” 2-Way Coaxial Speaker
Specification
- System Type 2-way Component
- Sound Pressure Level (Sensitivity) 85 dB (± 1.5dB)
- Frequency Range 30 Hz to 96 kHz
- Hi-Res Certified
- Continuous Power Handling (RMS) 110 Watts
- Maximum Peak Power Handling 330 Watts
- Nominal Impedance 4Ω
- Tweeter Level Adjustability -3dB / 0dB / +3dB
- Crossover Frequency 2000 Hz
Product Description
The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability.
Following Pioneer’s OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers feature smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car.
Features
- 29mm aluminum alloy dome tweeter with Vertex Drive System
- Twaron® aramid fiber + cellulose fiber dual layer cone construction
- Oversized magnet and powerful motor assembly for accurate bass
- Designed for Hi-Res Audio
System
- System Type 2-way Component
- Sound Pressure Level (Sensitivity) 85 dB (± 1.5dB)
- Frequency Range 30 Hz to 96 kHz
- Hi-Res Certified
- Continuous Power Handling (RMS) 110 Watts
- Maximum Peak Power Handling 330 Watts
- Nominal Impedance 4Ω
- Tweeter Level Adjustability -3dB / 0dB / +3dB
- Crossover Frequency 2000 Hz
Tweeter
- Type Balanced Dome
- Diameter 29mm
- Diaphragm Material Aluminum
- Magnet Material Neodymium
- Magnet Weight 6.4 g
- Swivel Type
Woofer
- Diameter 6.5”
- Cone Material Twaron aramid fiber + cellulose fiber dual layer
- Center Cap Material Twaron aramid fiber
- Surround Material Butyl Rubber
- Basket Material Stamped Steel
- Magnet Material Ferrite
- Magnet Weight 15.2 oz
- Mounting Depth 2.6”
