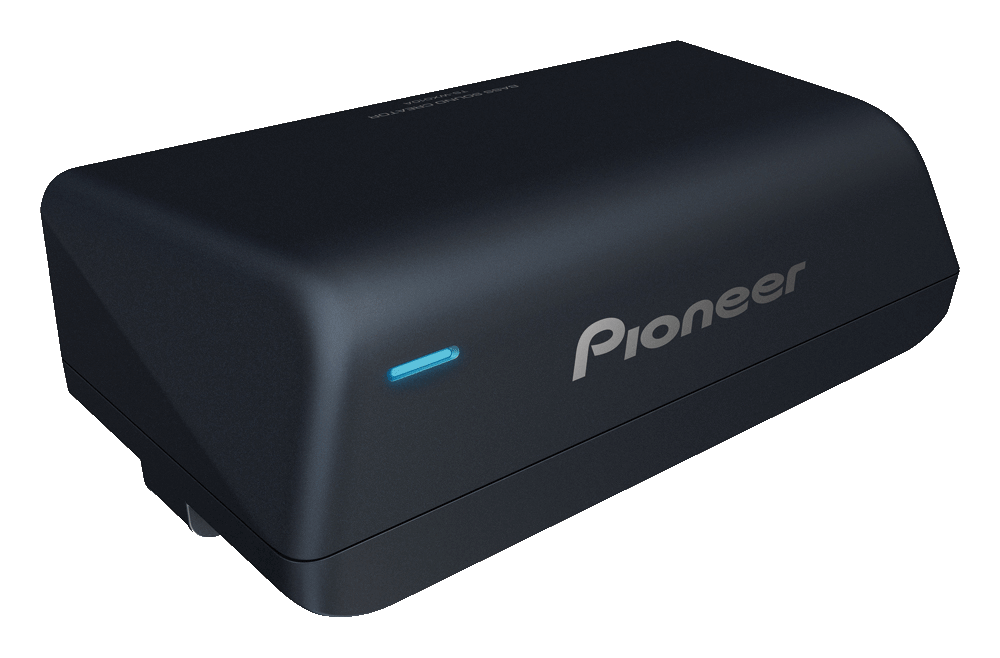

Pioneer's TS-WX101A is the smallest Active Subwoofer in its Active Subwoofer category. Designed to be installed in the passenger foot space area, TS-WX010A uses a Symbolic Trapezium design that can be easily installed vertically or horizontally.

 TS-WX010A gives a new sound experience, thanks to Pioneer's BASS SOUND CREATOR feature that offers impactful and high quality bass sound, a built-in CLASS-D amplifier and a down firing subwoofer for effective reproduction of low frequencies, so you can really feel the bass.

 Furthermore, by installing in the passenger foot space area, it can improve the front sound imaging, by creating a natural sound connection with the front speakers, allowing you to experience a new sound experience.

 Pioneer’s TS-WX010A delivers 160 W Maximum Power and 50 W RMS Power.

General Features:

• RMS 50W / MAX 160W Class D Amplifier
• 2- Way Easy Installation (Vertical / Horizontal)
• Down Firing Subwoofer System
• Compact Design

KEY FEATURES

• System Type: Powered
• Sensitivity: (1W/1m)98 dB (In car, installed at the foot space)
• Frequency Range: 20 Hz to 200 Hz
• CTA-2031 Compliant:  Yes
• Continuous Power handling (RMS) - Watts 50 Watts
• Maximum Peak Power Handling - Watts160 Watts
• Built In Amp: Yes
• Amp Max Power Output : 160 Watts
• Amp DIN: 50 Watts
• Input Level (@ Gain Max) RCA :70mV+70mV/22kOhm
• Input Level (@ Gain Max) Speaker Line: 1.4V+1.4V/5KOhm
• Power Source: DC 14.4V
• Amp Max Current Consumption: 4.2 A
• Amp Grounding: Negative

BUILD

• Shape: Oval
• Size: 6-5/8" x 3-1/8"
• Cone Material: Cellulose fiber
• Drive Cone Material: Alminium
• Surround Material: Urethane
• Surround Type" Rolled
• Basket Material: Stamped Metal
• Magnet Material: Ferrite
• Magnet Weight 9.5 oz
• Voice Coil Type Single Voice
• Voice Coi lBobbin: Glass imide
• Voice Coil wire: Copper
