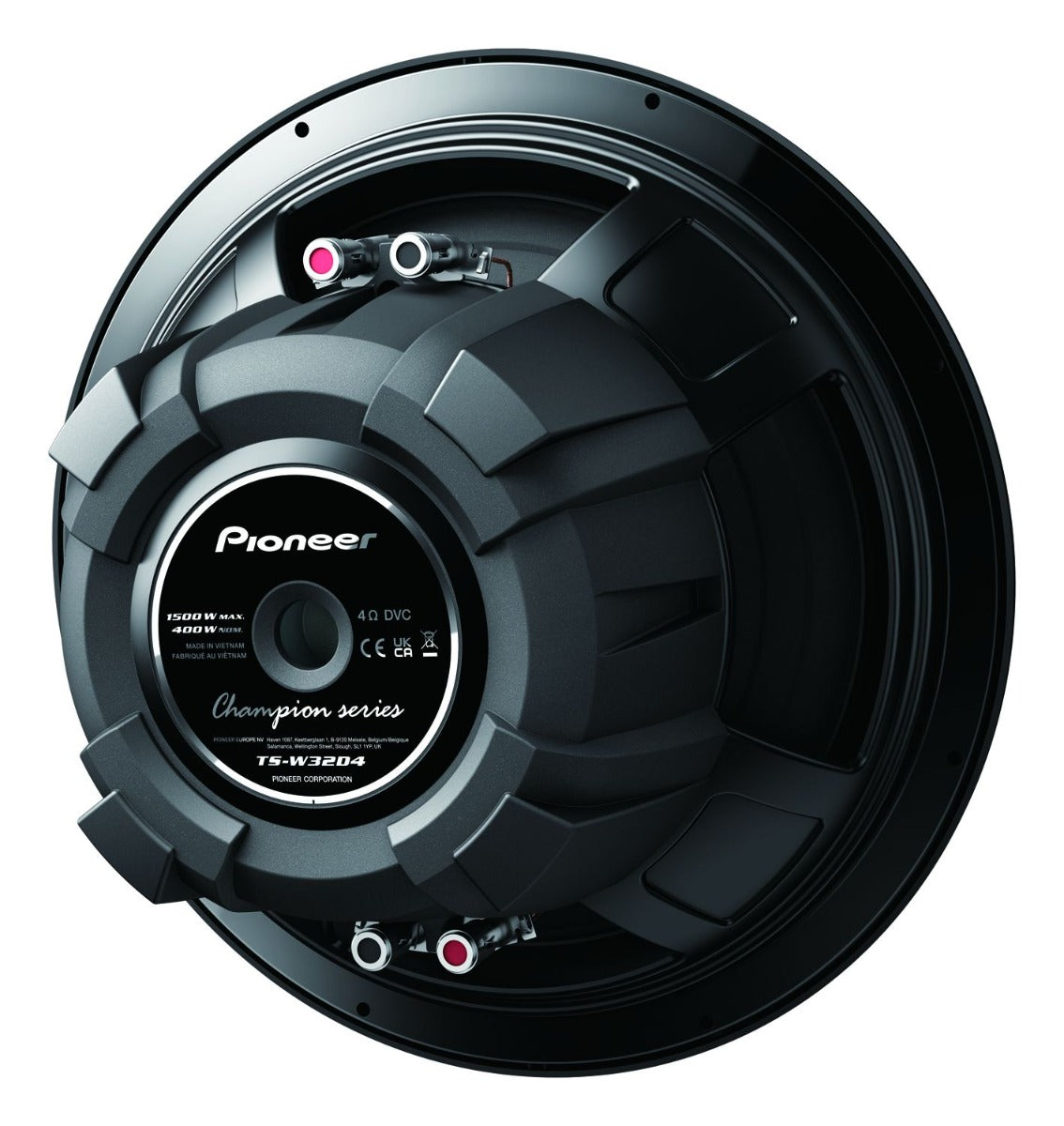

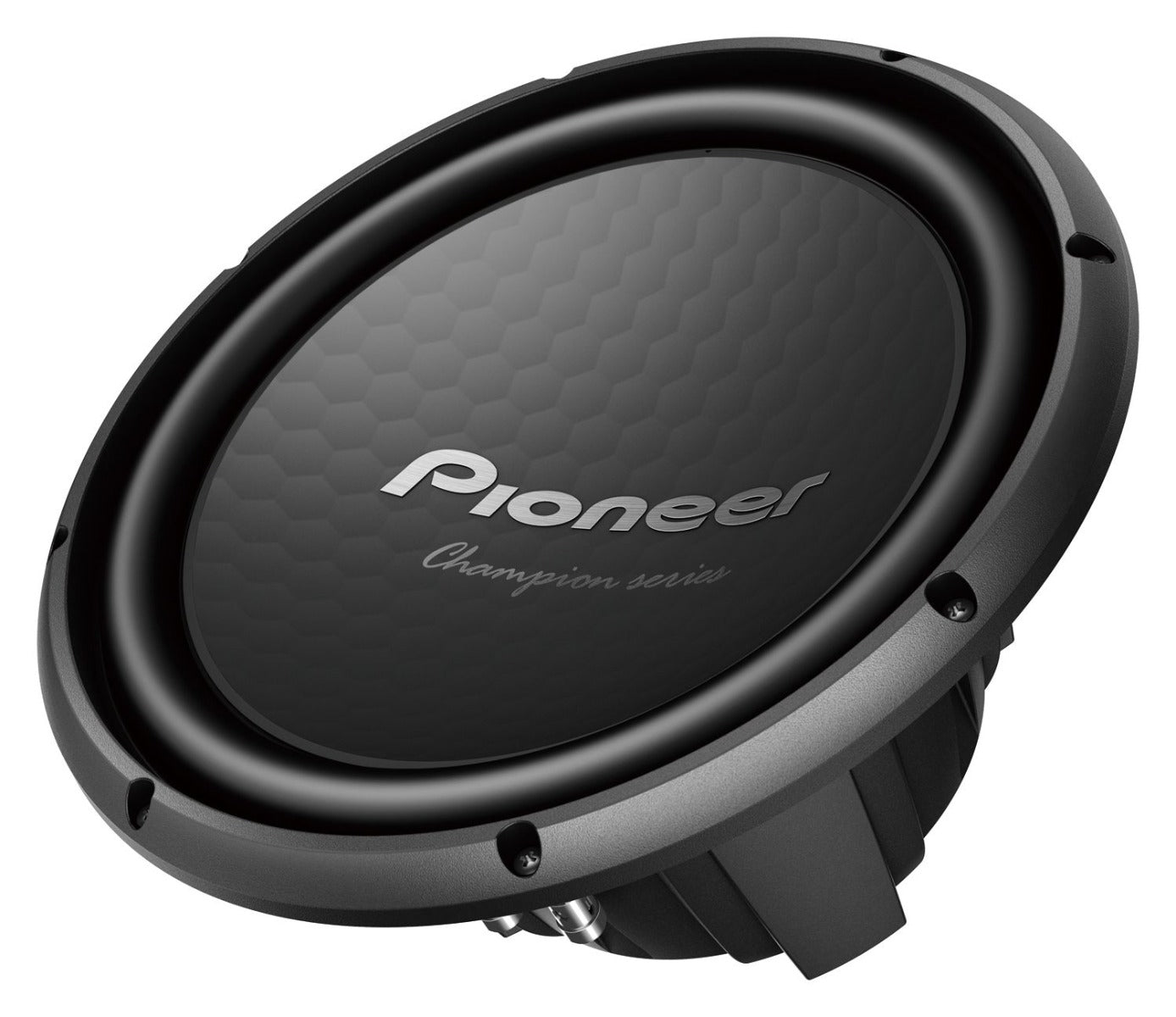

The Pioneer TS-W32D4 is a 12-inch Champion Series car subwoofer known for deep, powerful bass, featuring a dual 4-ohm voice coil (DVC) for wiring flexibility, handling up to 1500W max power (400W RMS).

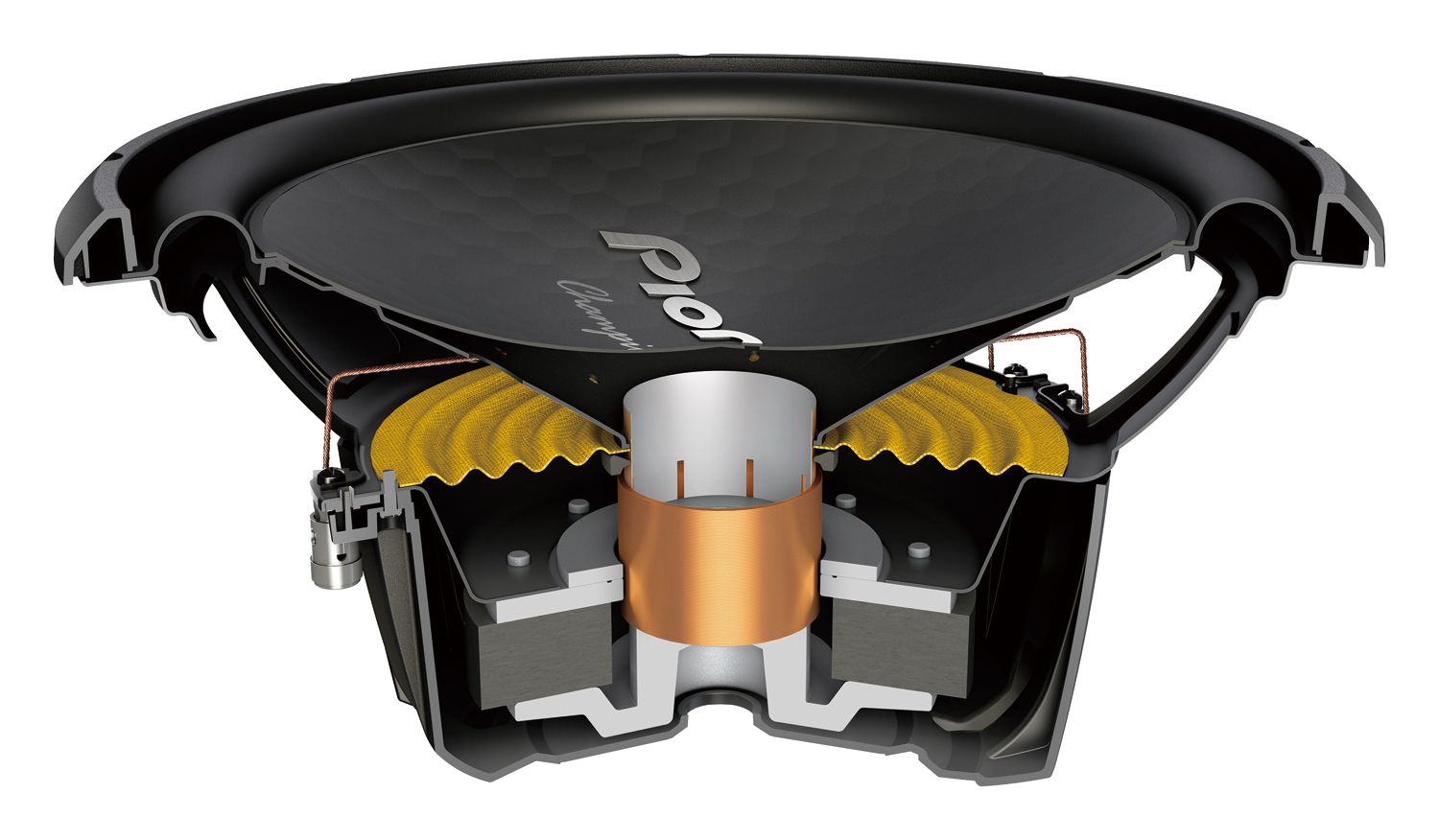

IMPP™ Cone - Pioneer’s rigid and lightweight Injection Moulded Polypropylene Composite (IMPP™) Cone for improved clarity and reduced distortion.

Key Features

• Frequency response - 22 Hz - 1600 Hz

• Impedance - 4 Ω Dual Voice Coil (DVC)

• Maximum input power - 1500W

• Nominal input power - 400 W

• Sensitivity - 90 dB

• Diameter Size - 30 cm

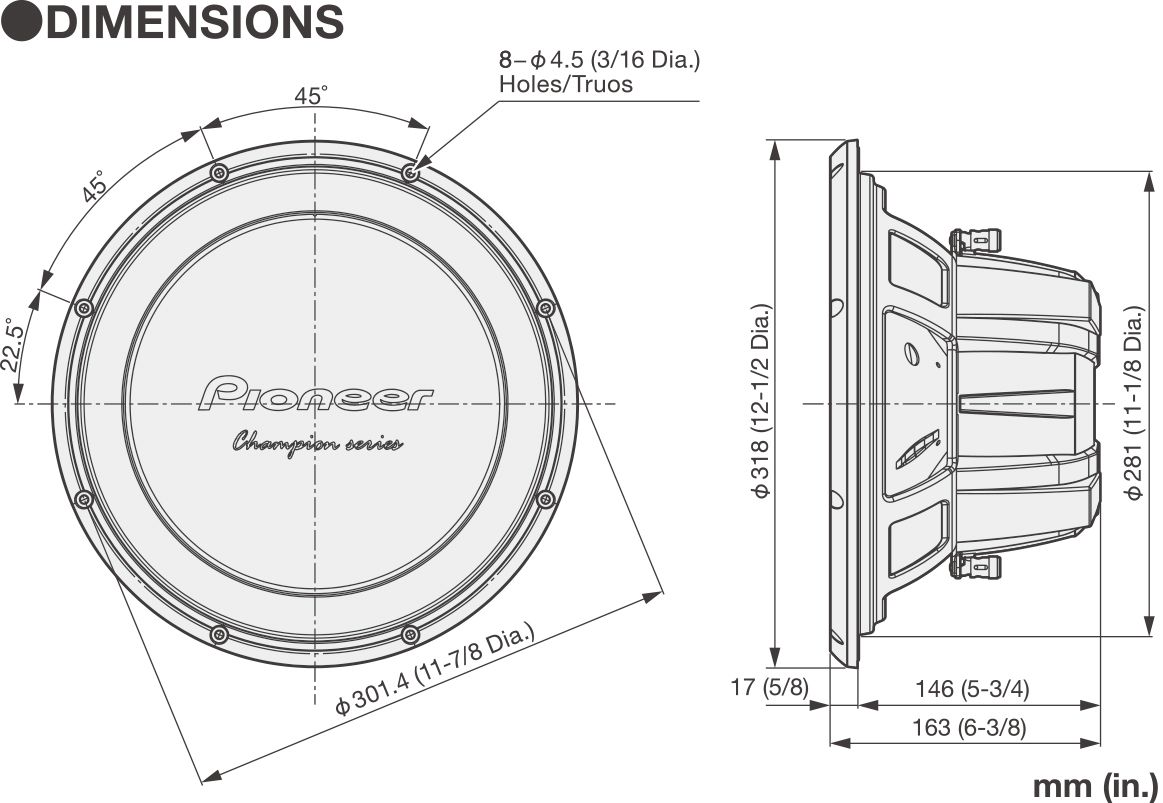

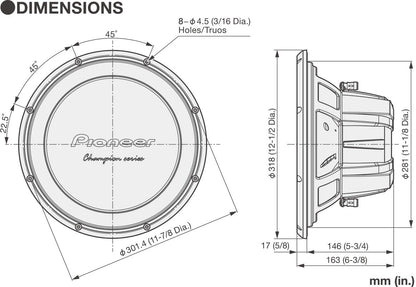

• Dimensions - 318 mm x 163 mm

• IMPP™ Composite Cone

• Magnets - Ferrite

• Woofer material - IMPP™

Other Specifications

• Cut-out Hole - 281 mm

• Mounting Depth - 146 mm

• Recommended Enclosure (ft³/litre) - 1.25 / 35.4

• Speaker Grill - Not Included

• Weight - 3.82 kg
