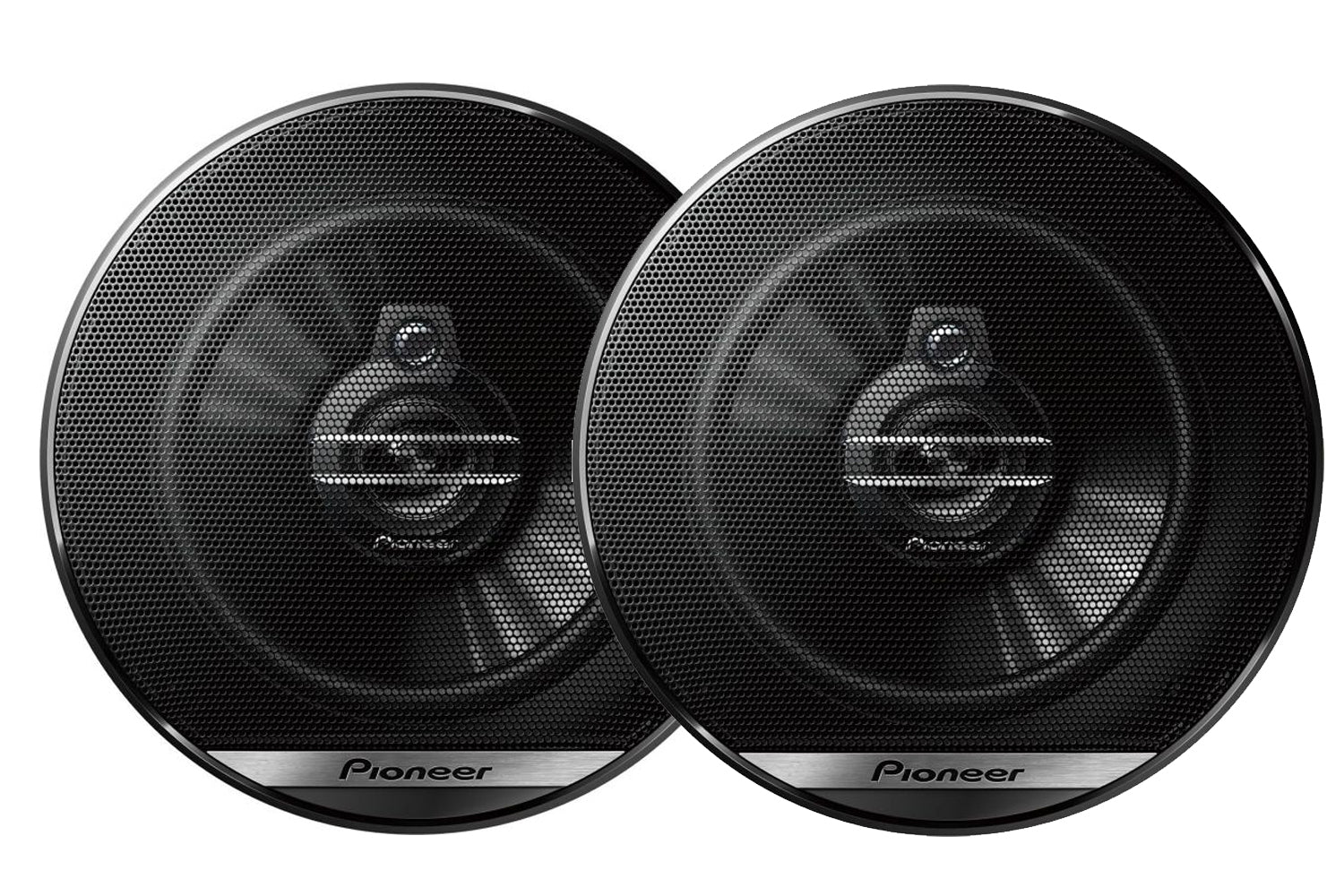

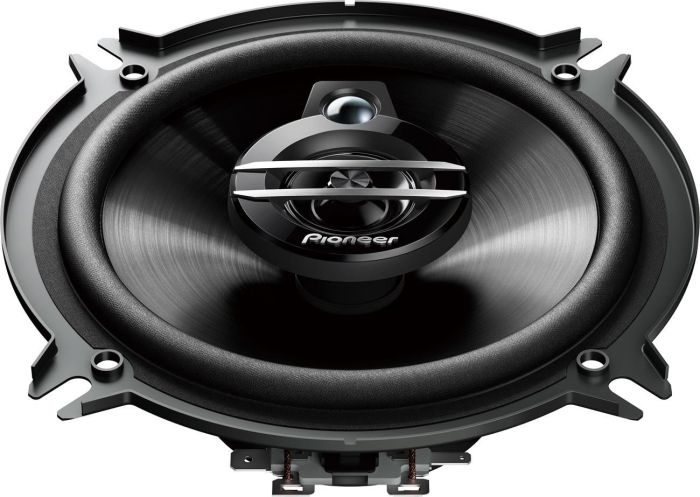

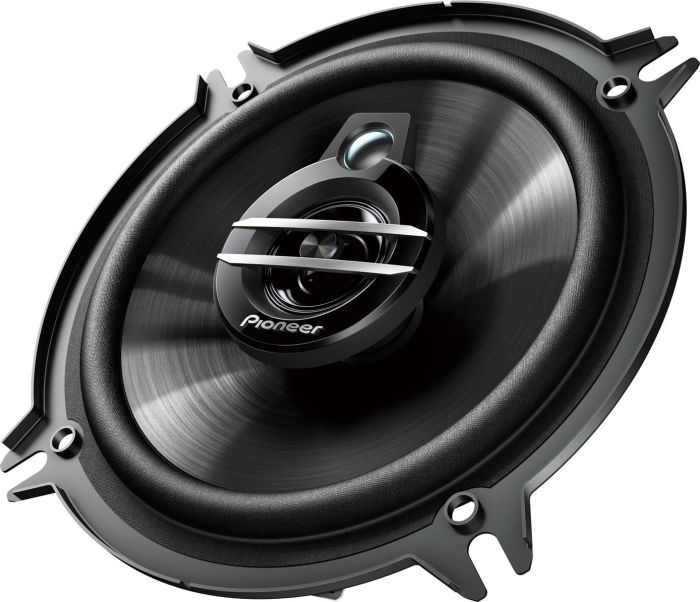

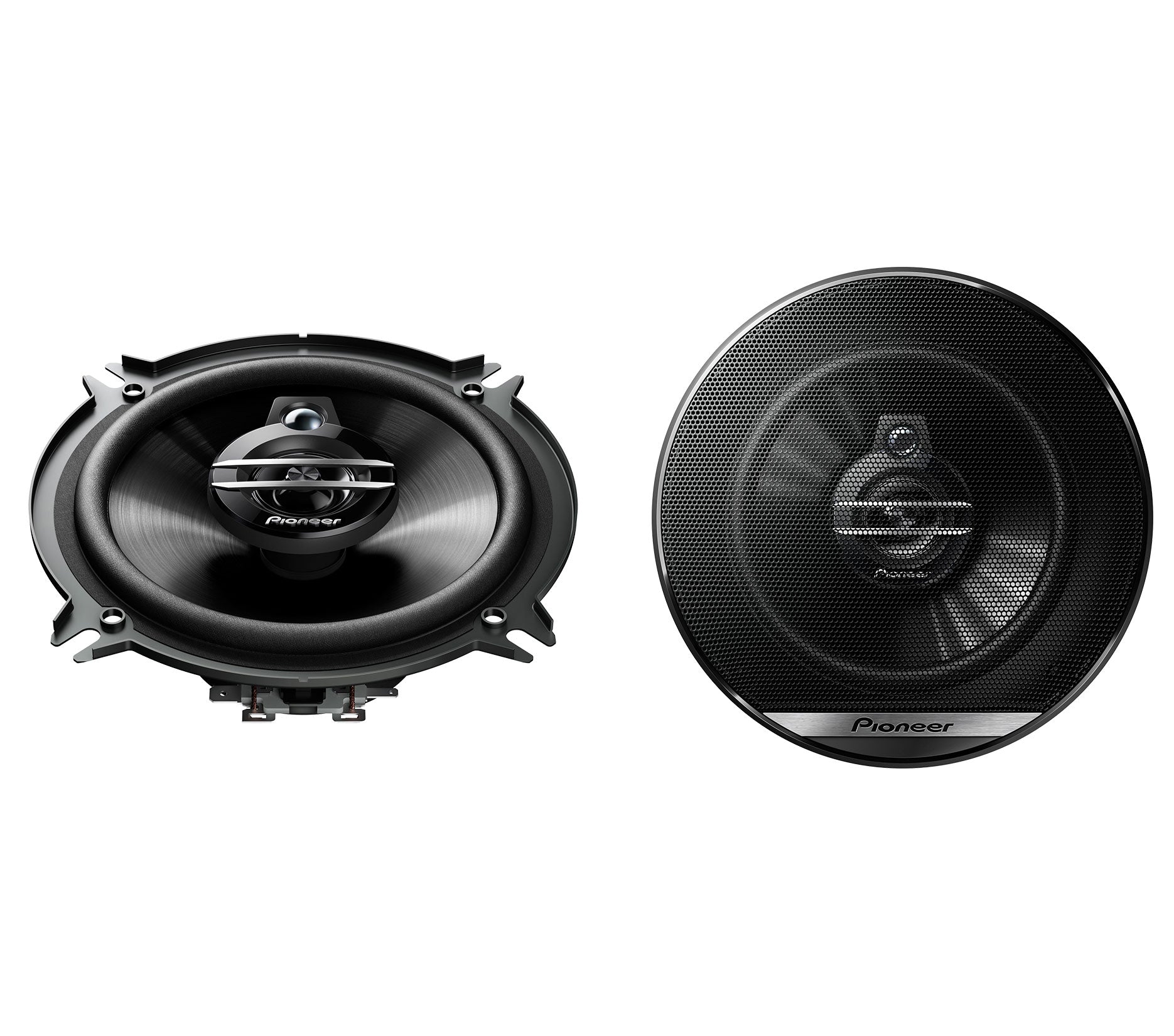

PIONEER TS-G1330F

PIONEER TS-G1330F

The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money.

Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car.

Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.

View full details

Product Description

  • Coaxial Speakers
  • Size     13 cm
  • 3 way
  • Impedance     4 Ω
  • Frequency response 33 - 24,000 Hz
  • Sensitivity      88 dB
  • Lowest resonance frequency           101 Hz
  • Maximum power input        250 W
  • Nominal input power           35 W
  • Woofer material        IMPP Composite Cone
  • Midrange size            30 mm
  • Midrange material    PET
  • Tweeter size  10 mm
  • Tweeter material      PET
  • Voice Coil type           Copper
  • Voice Coil bobbin type          KAPTON
  • Magnets         Y35
  • Weight            0.39 kg
  • Cut-out Hole  121 mm
  • Mounting Depth        44 mm
