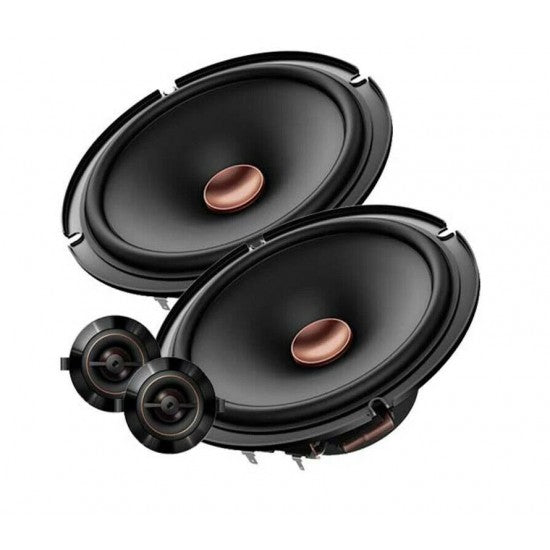

Pioneer TS-D65C - 6.5” 2-Way Component Speaker
Pioneer TS-D65C - 6.5” 2-Way Component Speaker
Specification
- System Type 2-way Component
- Sound Pressure Level (Sensitivity) 84dB (± 1.5dB)
- Frequency Range 32 Hz to 49 kHz
- Continuous Power Handling (RMS) 90 Watts
- Maximum Peak Power Handling 270 Watts
- Nominal Impedance 4Ω
- Crossover Frequency 3000 Hz
Product Description
The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.
Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loudspeakers provide broad and balanced frequency response with a wide sound stage and ambience.
Features
- 26mm polyester soft dome tweeter with swivel capability
- Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) cone construction
- Unique Tri-position, swivel tweeter mounting kit expands installation flexibility
System
- System Type 2-way Component
- Sound Pressure Level (Sensitivity) 84dB (± 1.5dB)
- Frequency Range 32 Hz to 49 kHz
- Continuous Power Handling (RMS) 90 Watts
- Maximum Peak Power Handling 270 Watts
- Nominal Impedance 4Ω
- Crossover Frequency 3000 Hz

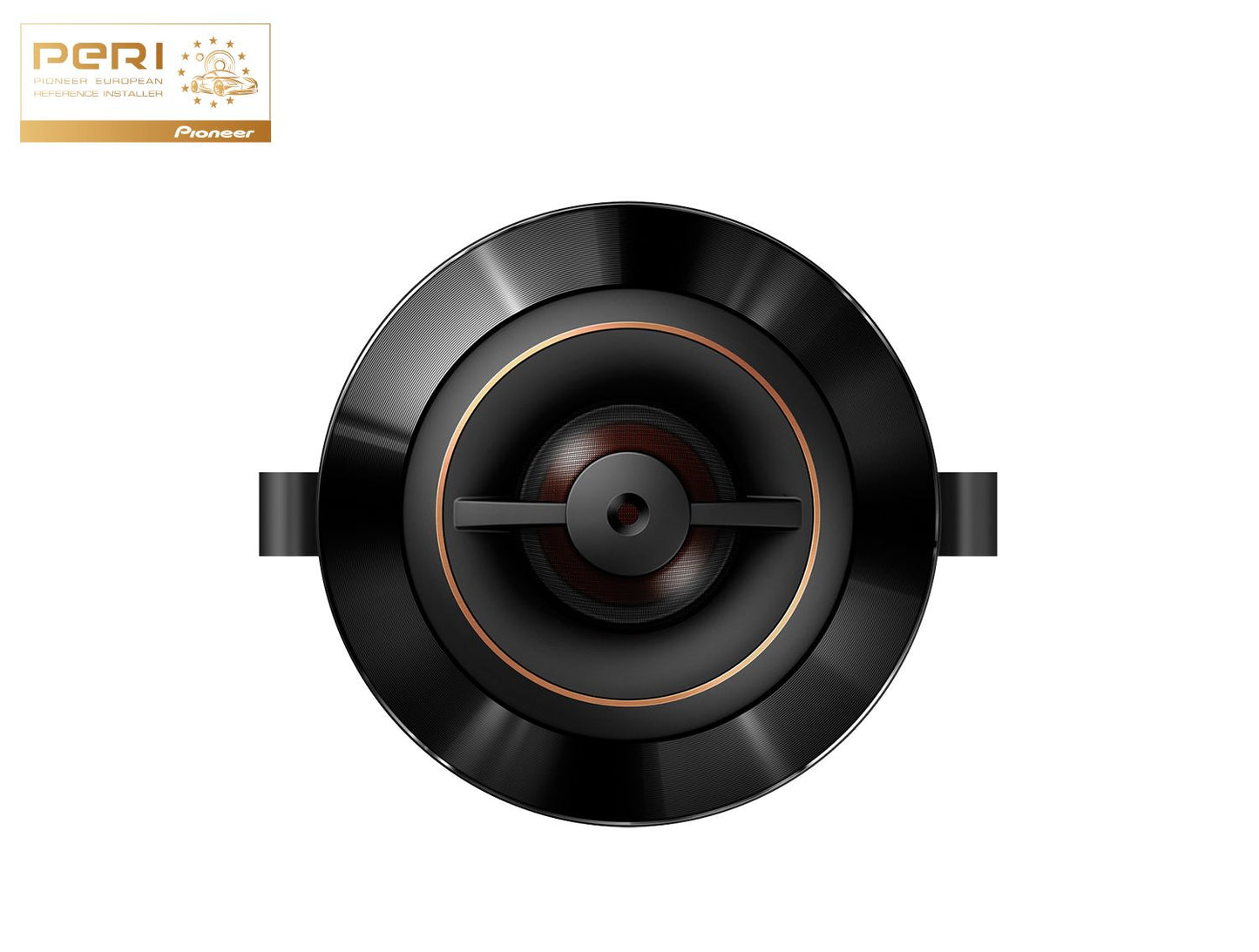

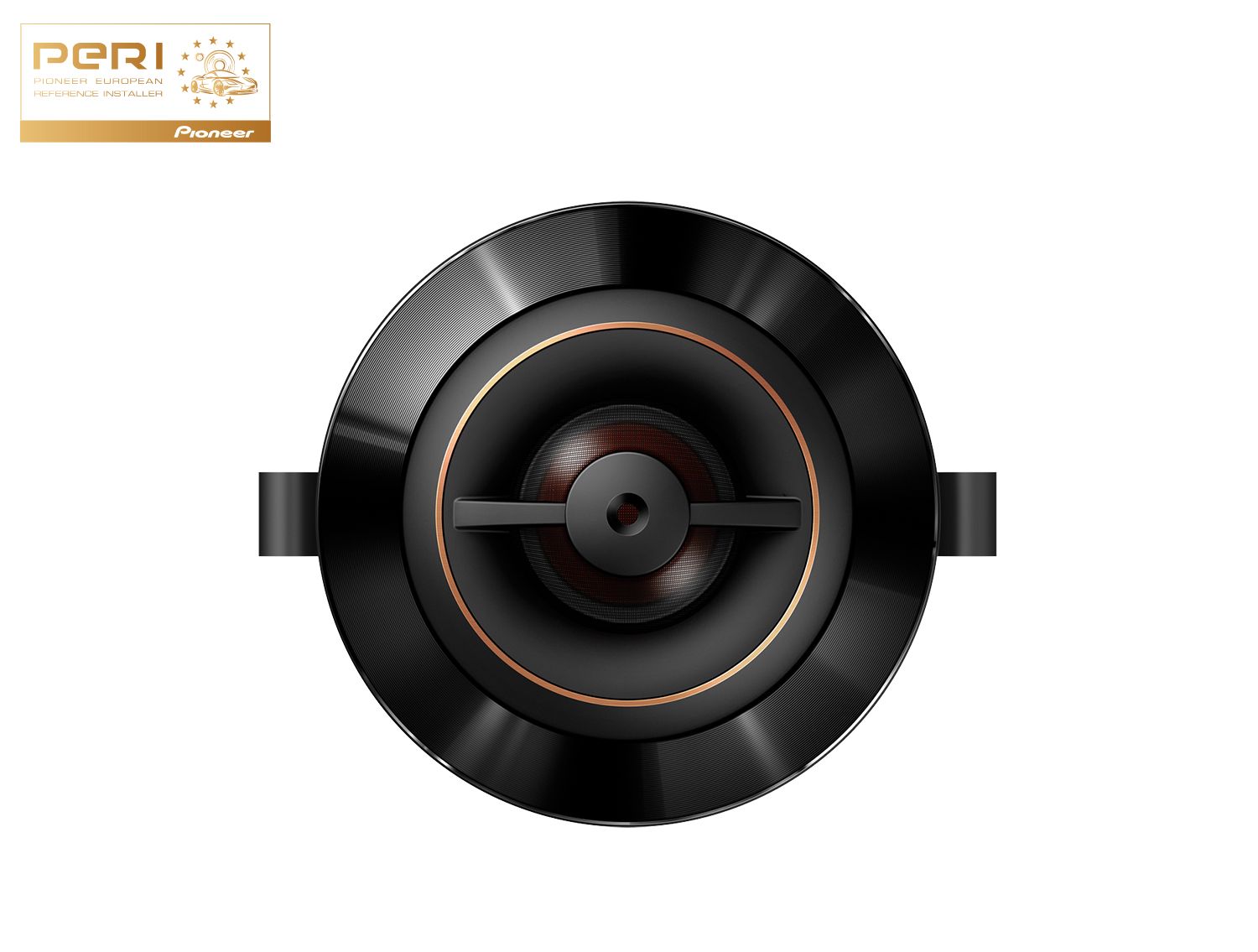

Tweeter
- Type Soft Dome
- Diameter 26mm
- Diaphragm Material Polyester
- Magnet Material Neodymium
- Magnet Weight 6.4 g
- Swivel Type
Woofer
- Diameter 6.5”
- Cone Material Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
- Center Cap Material Polyethylene Terephthalate (PET)
- Surround Material Butyl Rubber
- Magnet Material Ferrite
- Magnet Weight 11.3 oz
