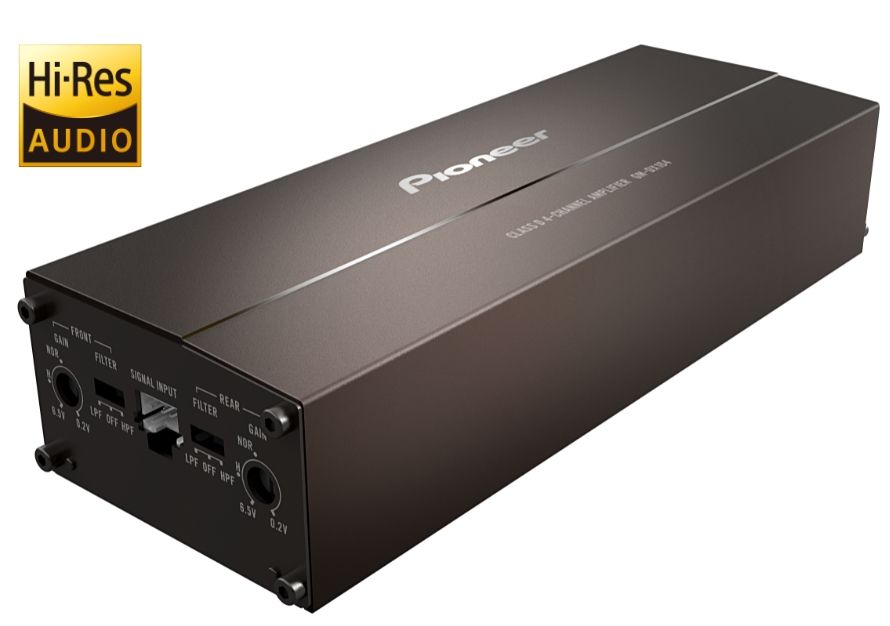

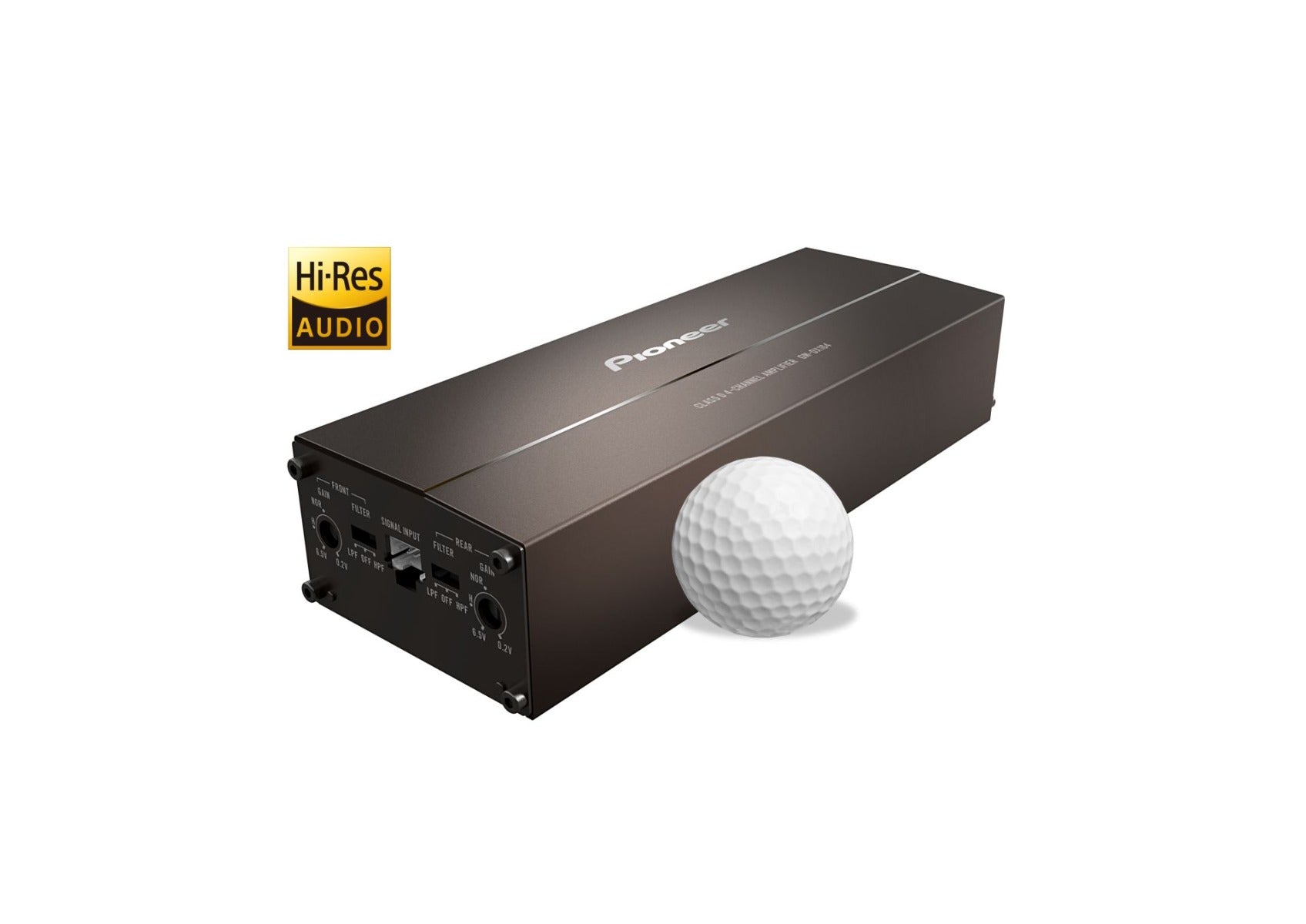

Compact, space saving, easy to install micro 4-Channel amplifier (400 W) featuring High Resolution Audio, Class-D Technology and compatible with OEM/Original (or aftermarket) stereos systems, including Electric Vehicles! (EV).

Step up Logic (Amp)

• High Resolution Audio Certified

Key Features amp

• Channel(s): 4-Channel
• High Resolution Audio Certified
• Continuous Output Power: 45 W x 4 (4 Ω), 45 W x 4 (2 Ω), 90 W x 2 (4 Ω)
• Class D Technology
• Frequency Response: 10 Hz - 40 kHz
• Distortion: < 0.05 % >
• S/N Ratio: > 93 dB
• Load Impedance Capability: 2-8 ohm
• High Pass Filter
• Low Pass Filter

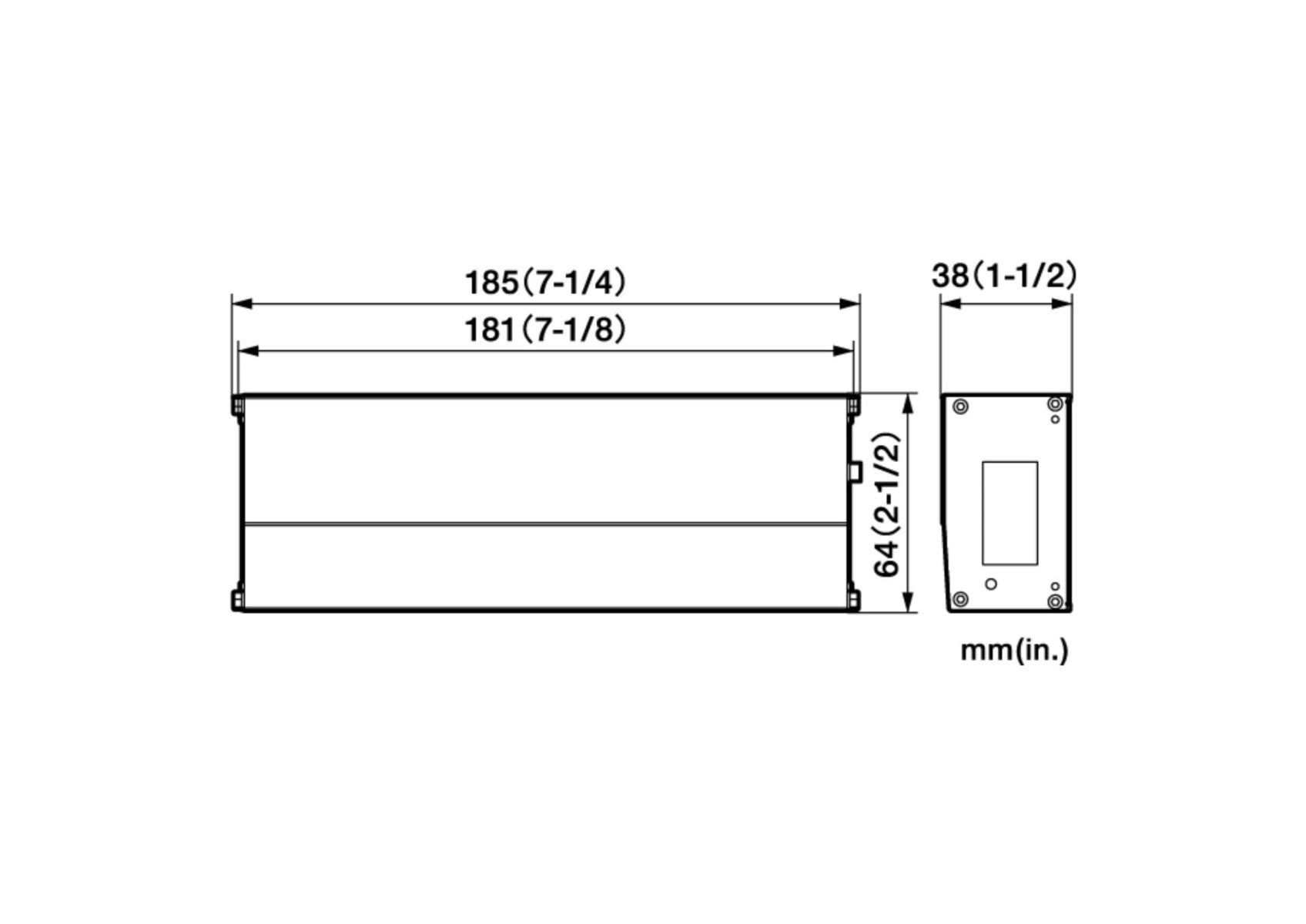

• Size: 181 mm (W) x 38 mm (H) x 64 mm (D)

Other Specifications amp

• Speaker Terminals: ISO-Type
