Pioneer

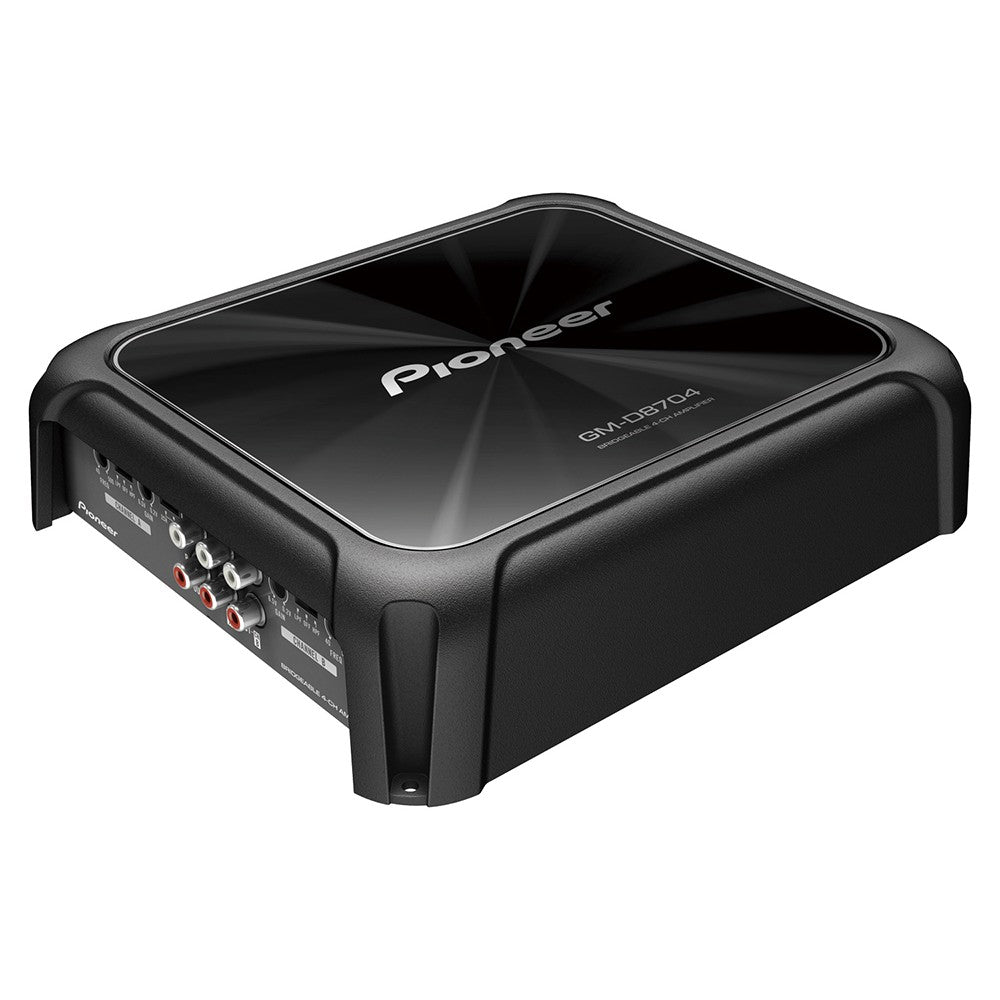

Pioneer GM-D8704 - Class FD 4-Channel Bridgeable Amplifier

Pioneer GM-D8704 - Class FD 4-Channel Bridgeable Amplifier

Main Features

  • Number of channels 4
  • Wattage RMS (4Ω) 4 x 100w
  • Wattage RMS (2Ω) 4 x 150w
  • Wattage RMS Bridged(4Ω) 2 x 300w
  • RCA Outputs (Pass-Through) 2 Ch
  • Speaker Level Input 4 Ch
  • Automatic Signal Sensing & Turn On
  • Crossover Type Variable HPF / Variable LPF
  • Crossover Frequency 40Hz to 500 Hz
  • Dimensions 252 x 215 x 60 (mm)
View full details

Product Description

An amplifier shouldn’t take up too much space, especially in your car. The GM-D8704 might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

Main Features

  • Number of channels 4
  • Frequency Response 10 Hz - 50 kHz
  • Wattage RMS (4Ω) 4 x 100w
  • Wattage RMS (2Ω) 4 x 150w
  • Wattage RMS Bridged(4Ω) 2 x 300w
  • Total Harmonic Distortion (1 kHz, 4Ω) <0.05%
  • Signal-to-Noise ration (IHF-A Weighted) >95dB
  • RCA Outputs (Pass-Through) 2 Ch
  • Speaker Level Input 4 Ch
  • Automatic Signal Sensing & Turn On
  • Crossover Type Variable HPF / Variable LPF
  • Crossover Frequency 40Hz to 500 Hz
  • Dimensions 252 x 215 x 60 (mm)
