The ZP5000.1 is designed for high-power and SPL applications, this 5000W fullrange amplifier delivers exceptional performance for subwoofers, midbass and midrange speakers. Whether you’re pushing your system to its limits in high-power or SPL applications, the ZP5000.1 delivers unwavering stability and relentless performance, making it a reliable choice for demanding audio setups.

Specification

• Power (MAX): 10000W
• Power Ratings (RMS):
• 5000W x 1 @ 1Ohm
• 3250W x 1 @ 2Ohm
• 1700W x 1 @ 4Ohm
• Frequency Response: 12Hz - 17kHz
• Signal to Noise Ratio (Full Power): -87dB
• High Pass Filter: 15Hz - 1000Hz (12dB/Oct)
• Low Pass Filter: 50Hz - 15kHz (12dB/Oct)
• High- & Low-level Inputs
• Efficiency (Full Power @ 4Ohm): 84%
• Operating Voltage: 7.9V - 18V
• Dimensions (LxWxH): 293.4 x 206.4 x 63.3mm

Key Features

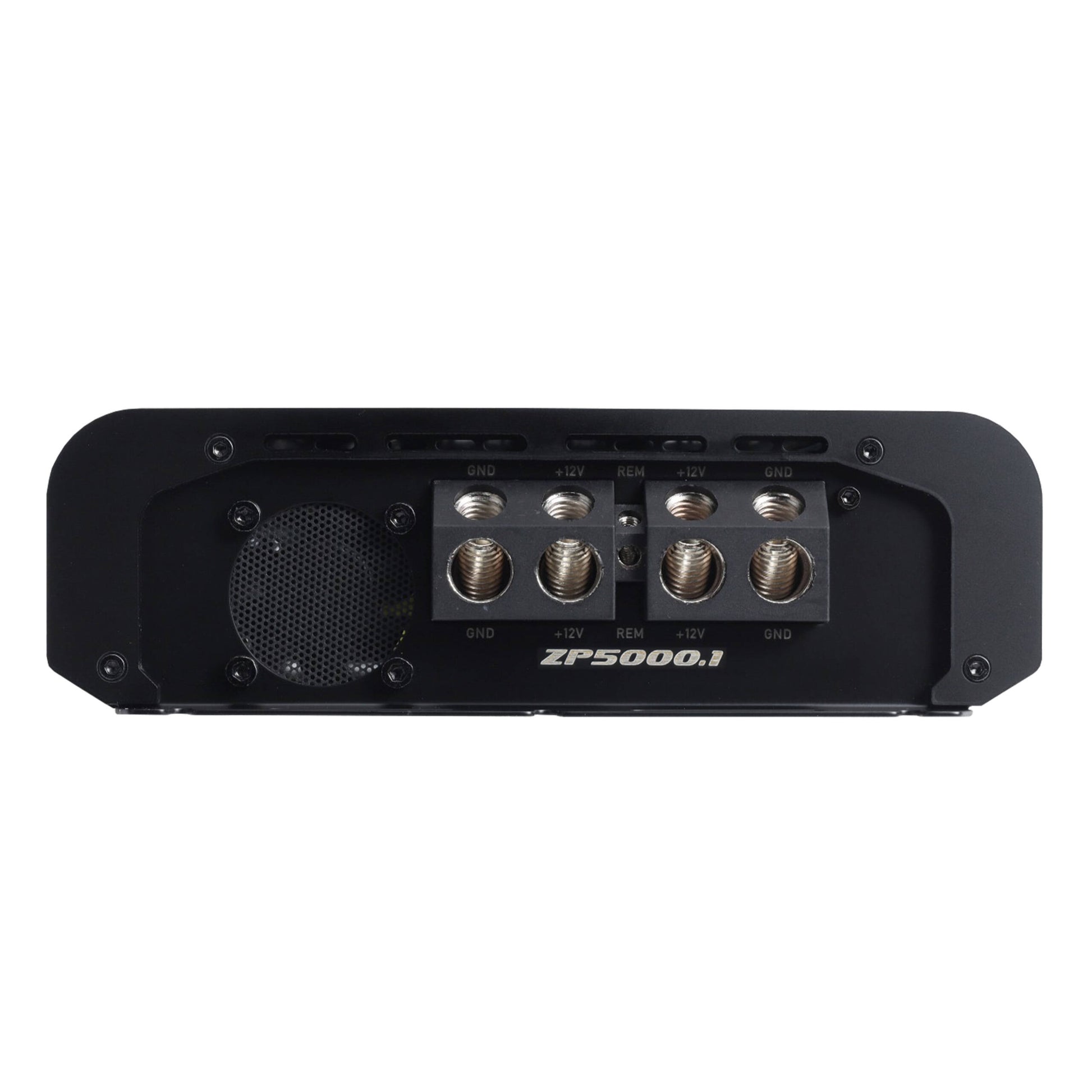

• 2x 50mm² Power and Ground Terminals
• Included Bass Remote for On-the-Go Adjustments
• Adjustable High-Pass and Low-Pass Filters
• Class D High-Efficiency Design
• Full Bridge Technology
• Fullrange Amplifier with 5000W RMS in 1 Ohm
• Integrated Clip LED for Easy Gain Setting
• Comprehensive Protection Circuits
• High-Current PCB with Enhanced Stability
• Premium Tiffany RCA Connectors
