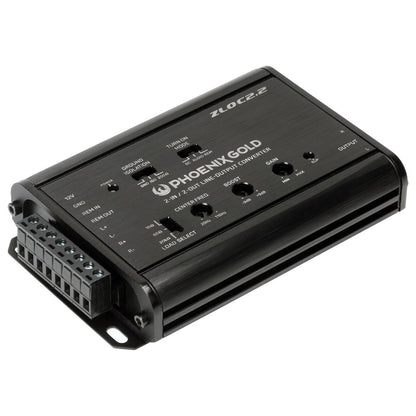

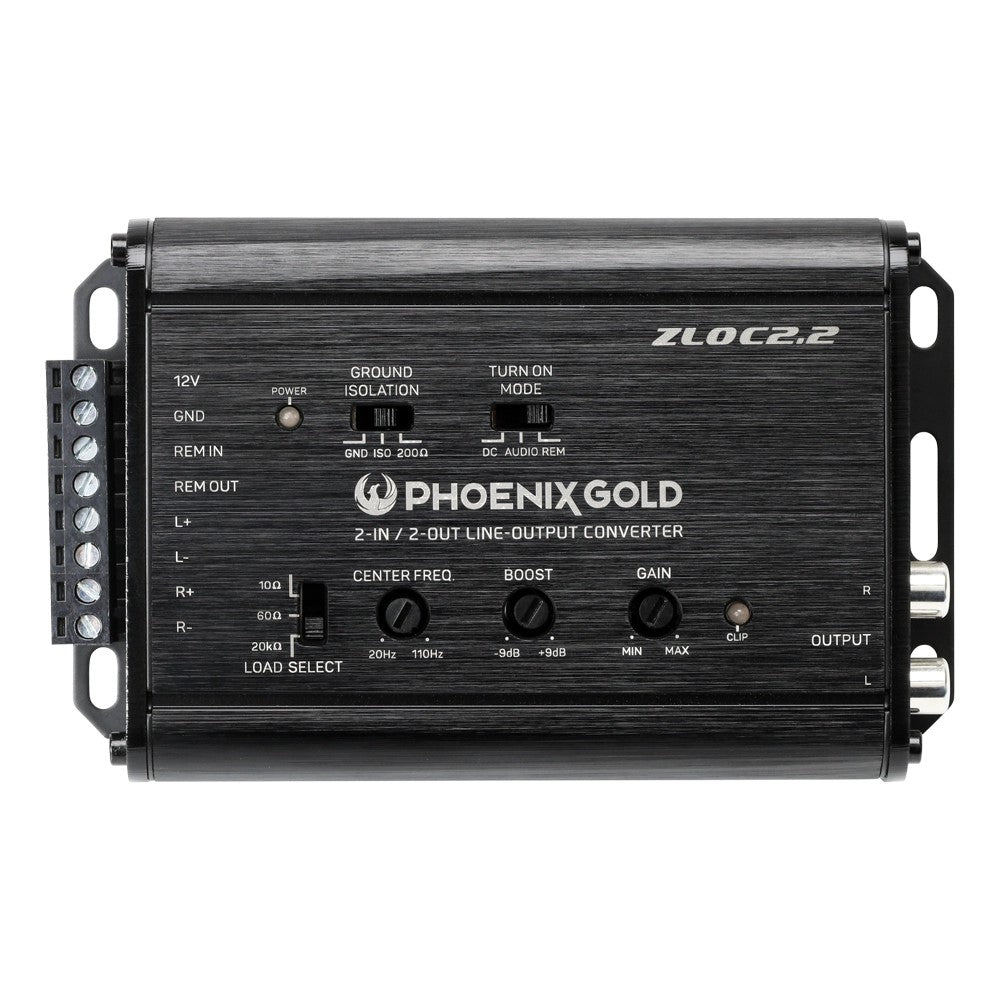

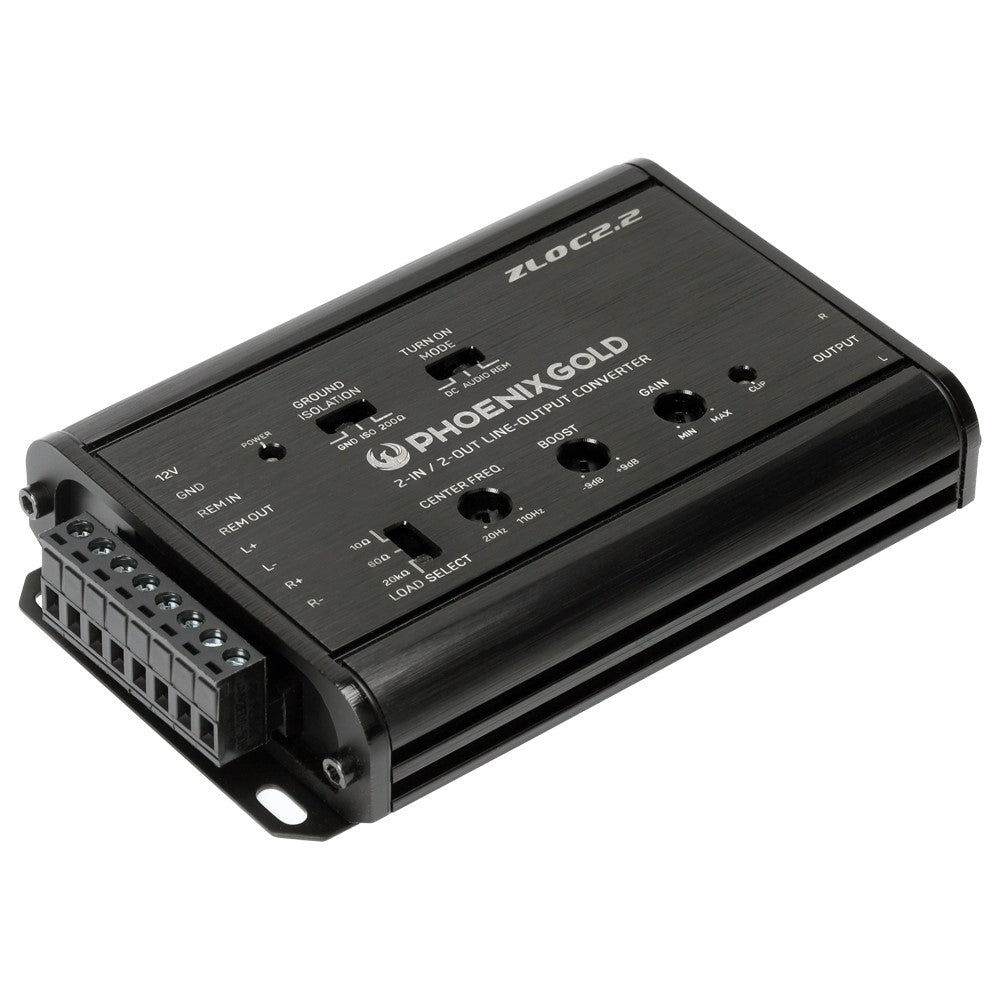

The 2 Channel ZLOC2.2 Converter emerges as a game-changing solution, bridging the gap between OEM systems and aftermarket audio components seamlessly.

Its primary mission is to address the inherent constraints of factory-installed audio configurations. While vehicles nowadays boast built-in amplifiers, the original setup often falls short in delivering the desired sound.

The 2 Channel ZLOC2.2 Converter circumvents these limitations by bypassing OEM resistance whilst eradicating unwanted system noise, opening avenues for enhanced audio performance without compromising your vehicle’s factory settings.

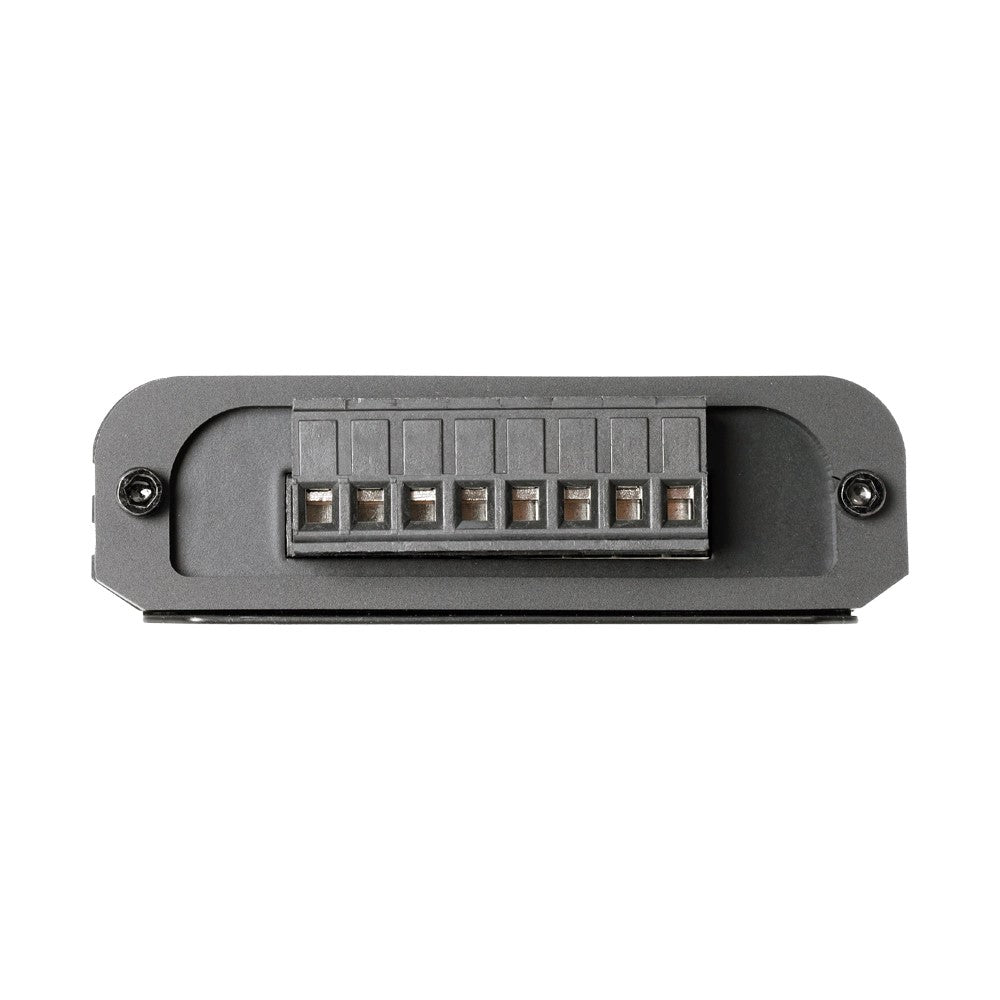

At its core, the 2 Channel ZLOC2.2 Converter operates through two high-level inputs meticulously engineered to capture speaker signals originating from your OEM head unit or amplifier.

Specifications

• Speaker Input: 2CH

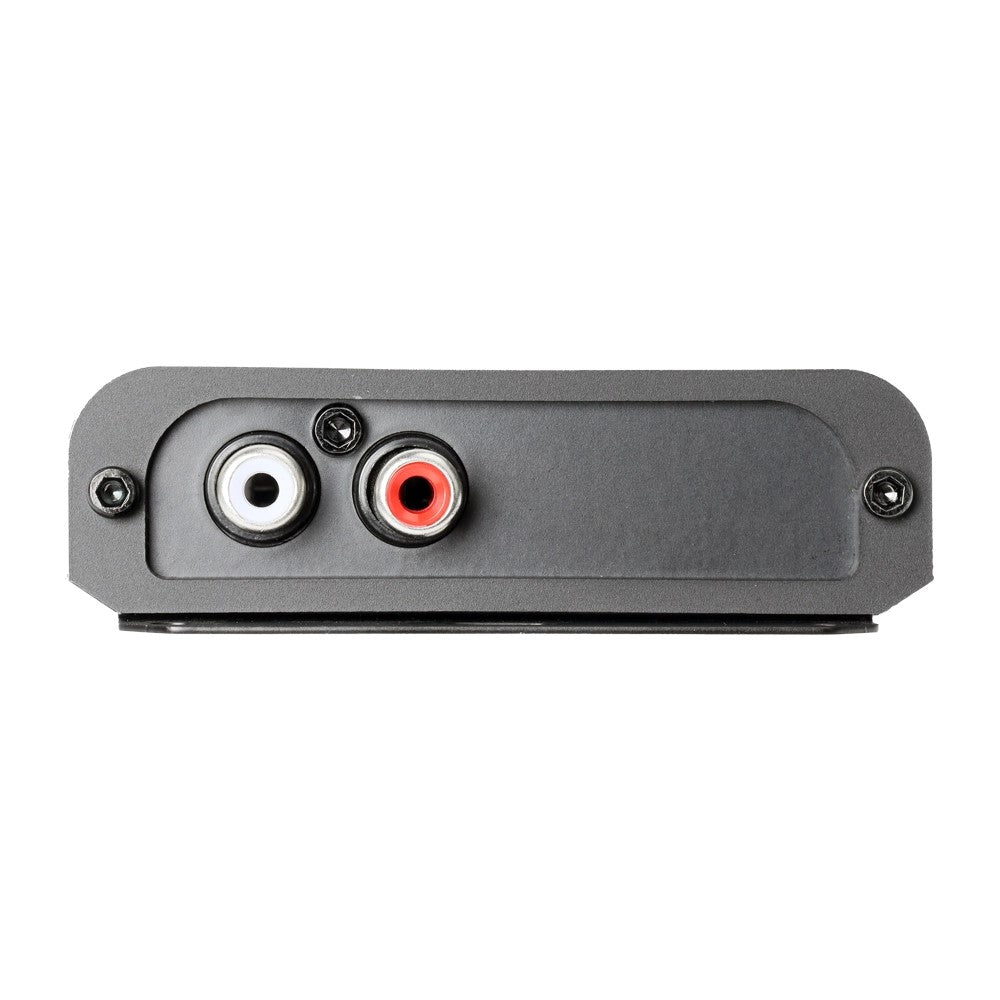

• Outputs: 4CH
• REM In: Yes
• REM Out: Yes
• Load Select: 10-Ohm / 60-Ohm / 20K-Ohm
• Ground Isolation: GND/ISO/200-Ohm
• Gain: Yes, X1
• Clipping: Yes, X1
• Center Frequency: 20Hz-110Hz
• Bass Level: -9 ~ +9dB
• Turn On Mode: REM/DC/AUDIO
• Input Mode: 2CH
• Remote: None
• Dimensions: (LxWxH)mm 130.6x82x24.8mm
• Chassis Body: Aluminum
• Operating Voltage: 8 to 32V
• Input Sensitivity: 0.5 to 32V
• Output Voltage Max: 7.5V @ 14.4V
• Max: 40V as Input Must be 20K-ohm load
• Signal to Noise: >100dB @6.4V output
• Input Impedance: 10-Ohm / 60-Ohm / 20K-Ohm
• Frequency Response: 10-30kHz
• THD+N: <0.01%
• Output Impedance: <120-ohm
• Max Current Draw: 120-150 mA
• Turn-On Trigger: DC 3 to 7V
• Gain: -28 to 0dB
• Terminal Gauge: Quick Connect / 16 AWG
