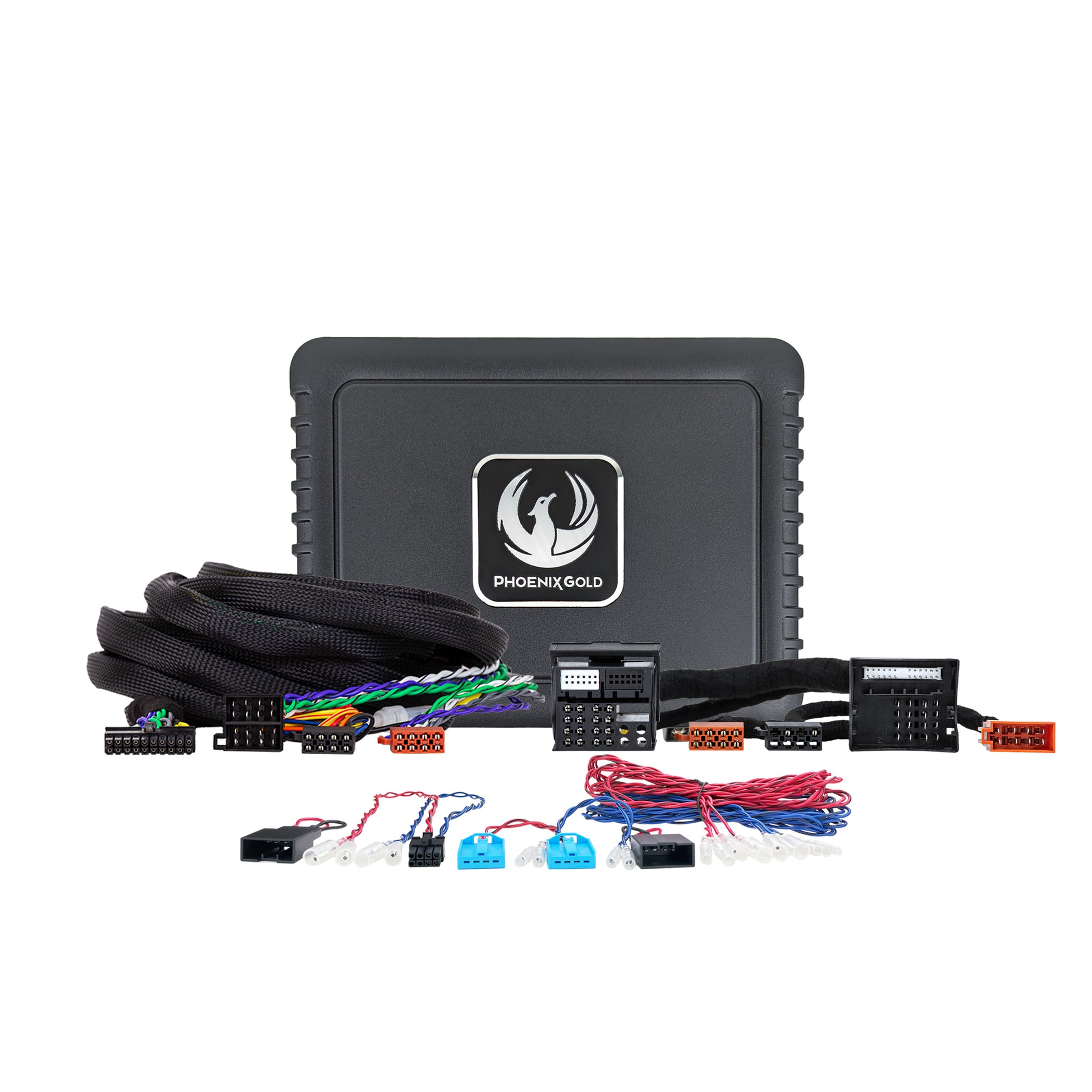

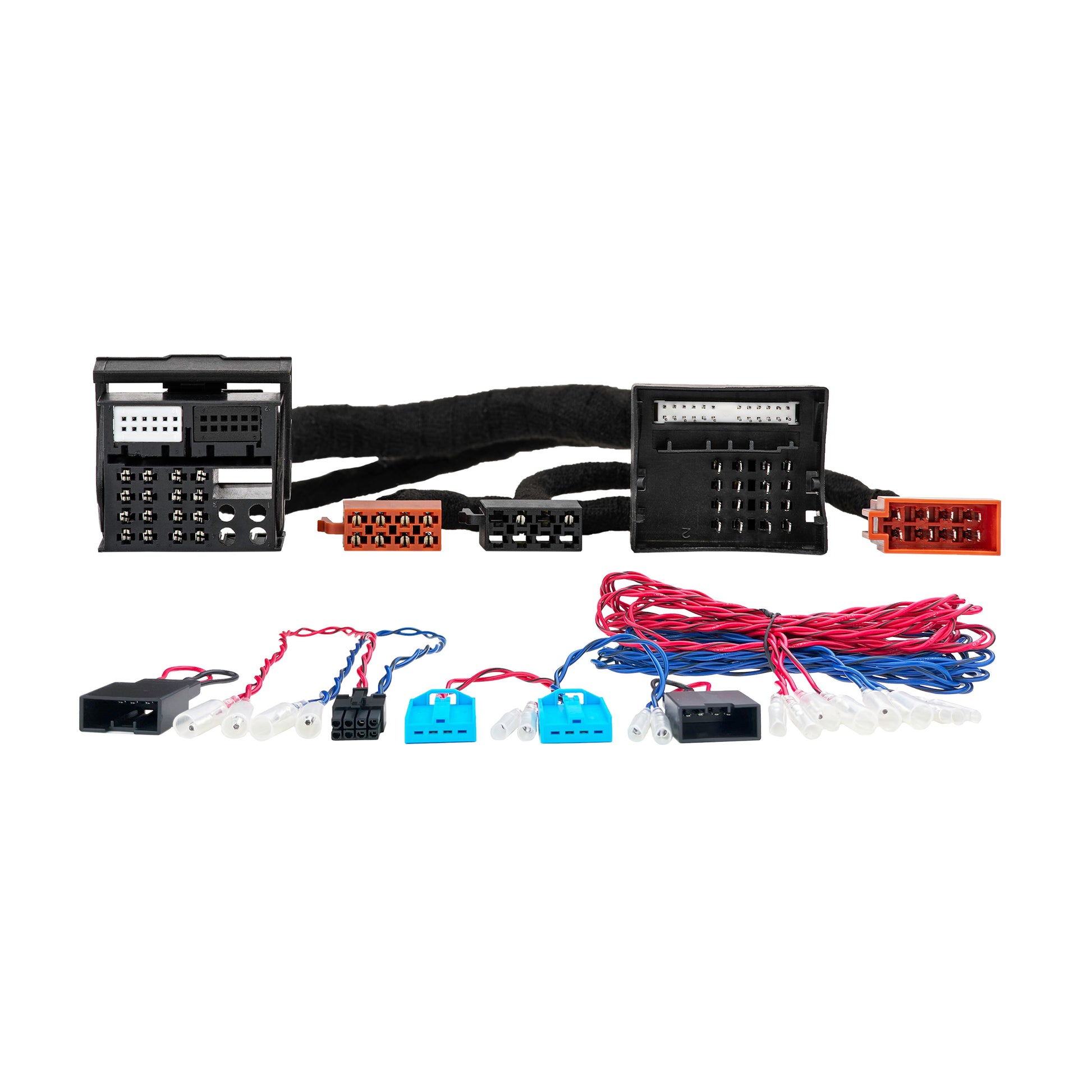

The ZDAP-BMW2 is Our plug-and-play solution which makes it easy to upgrade your audio by integrating seamlessly with our ZD amplifiers. Built for a hassle-free installation, with everything you need included, no cutting or splicing required.

Full Active DSP Plug & Play Power-Up Kit for BMW with Basic Sound System.

For Vehicle Application click here

Specification

• Type - DSP Amplifier
• Amplifier Class - A/B
• Amplified Channels - 6
• DSP Channels - 8
• Frequency Response (-3dB) - 15Hz ~ 23kHz
• MAX Power Rating - 520W
• RMS Power Rating (2Ω) - N/A
• RMS Power Rating (4Ω) - 2 x 70W + 4 x 30W
• RCA Voltage Output - 4V
• DAC - Burr Brown PCM1681
• DSP Resolution - 24 Bit
• Sampling Rate - 48kHz
• SNR (Analogue/Digital Input) - 90dB
• THD - 0.1%
• Crosstalk - 60dB
• Damping Factor - 120
• High-Level Input - Yes
• Auto Turn-On - Yes
• Input Sensitivity (High-Level) - 0.2V – 20V
• Input Sensitivity (Low-Level) - 0.2V – 5V
• Operating Voltage - 9V – 16V
• Start-Stop Compatible - Yes
• Idle Current - 1.5A
• Current Draw (MAX) - 30A
• Total Efficiency (4Ω) - 60%
• Power Terminal - 10mm²
• Remote (Optional) - ZDAWCT
• Low-Level Outputs (RCA) - 8
• Analogue Inputs - 6 x High-Level / 2 x Low-Level
• Digital Inputs - Bluetooth / Coaxial / USB / SPDIF
  Remote Input - Yes
• Remote Output - Yes
• PC Connection Input - USB-B
• APP Control (Coming Soon) - Yes
