Description

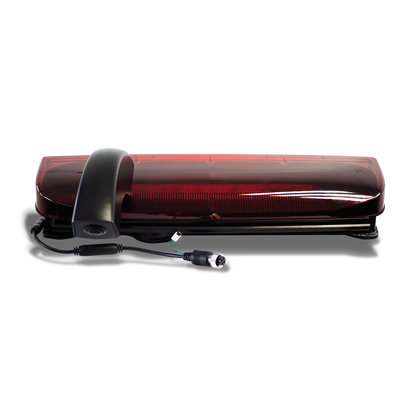

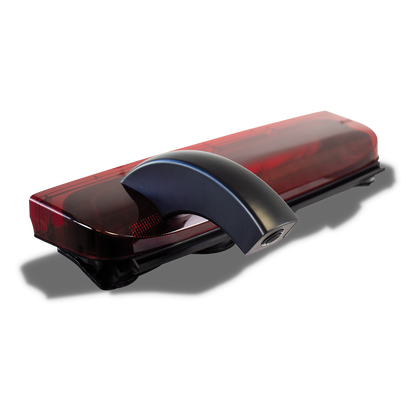

Ford Transit Connect Integrated Brake Light Camera, 2014 to Present.

Specification

• 1/3″ COLOR Super CMOS
• Voltage: 12V DC
• IP Rating: IP68
• Viewing Angle: 160º
• NTSC & PAL Switchable
• Features: Parking Lines On/Off
• IR: 8 LED’s (8-10m Distance)
• Mounting Methods: Brake Light
• Connection: 4 Pin (4 pin – RCA Fly lead included)
• Resolution: 976 (H) x 592 (V) TV Line: 700
• Power Consumption: 0.3A
• AGC / WB / BLC / Shutter: Auto
• Working temperature: -20°c ~ +70°c
• Extension Cable Length: 10M

Approvals & Certifications: E Mark, CE, UKCA
