Description

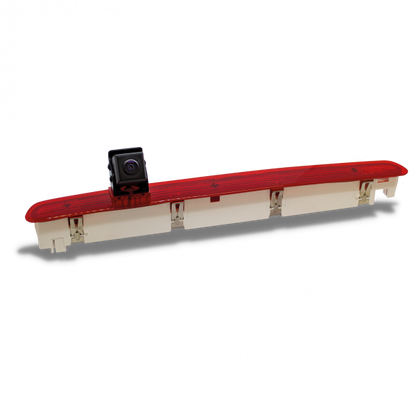

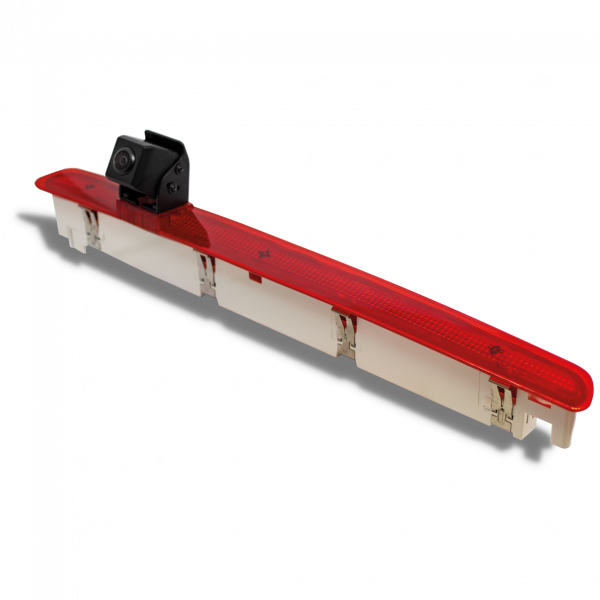

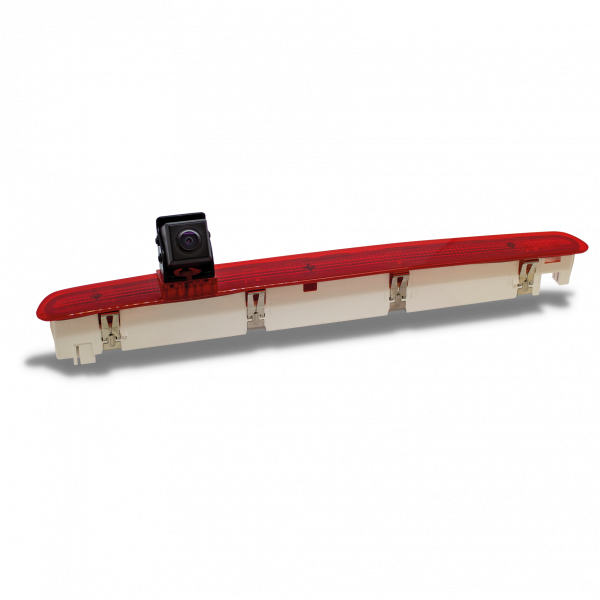

Brake Light D1 resolution camera for:

• Volkswagen Transporter T6 2016 – Present (Tailgate)

Specification

• Image Sensor: 1/3” Colour CMOS
• IP Rating: IP69K
• Viewing Angle: 170°; Adjustable 20° Up or Down
• Voltage: 12V DC
• Mounting Method: Brake Light
• Connection: 4-pin
• Minimum Illumination: 0.1 lux (Day)
• Extension Cable Length: 10M 4pin – RCA
• Format: PAL / NTSC Switchable
• Features: Guidelines On / Off
• WB / BLC: Auto
• Working Temperature: -20°C ~ +70°C

Approvals & Certifications: E Mark, CE, UKCA
