Description

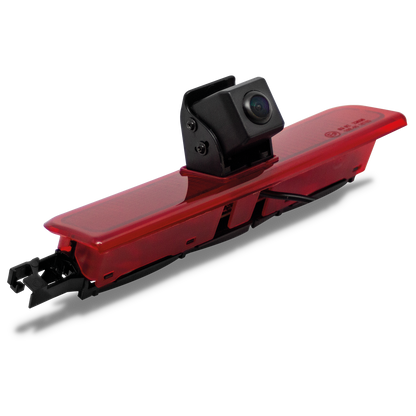

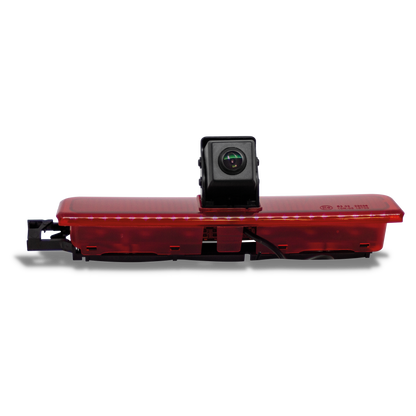

Brake Light D1 resolution camera for Volkswagen Caddy 2013 - 2020 (Barn Door & Tailgate)

Specification

• Voltage: 12V DC
• IP Rating: IP69K
• Viewing Angle: 170º
• NTSC & PAL Switchable
• Features: Parking Lines On / Off
• Mounting Methods: Brake Light
• Connection: 4 Pin
• Resolution: 976(H) x 592(V) TV Lines: 700
• Minimum Illumination: 0.1 lux (Day)
• Camera Head: Adjustable 20° Up or Down
• Extension Cable Length: 10M 4pin – RCA
• Power Consumption: 0.3A
• Working temperature: -20ºC ~ +70ºC
• AGC / WB / Shutter: Auto

Approvals & Certifications: E Mark, CE, UKCA
