Description

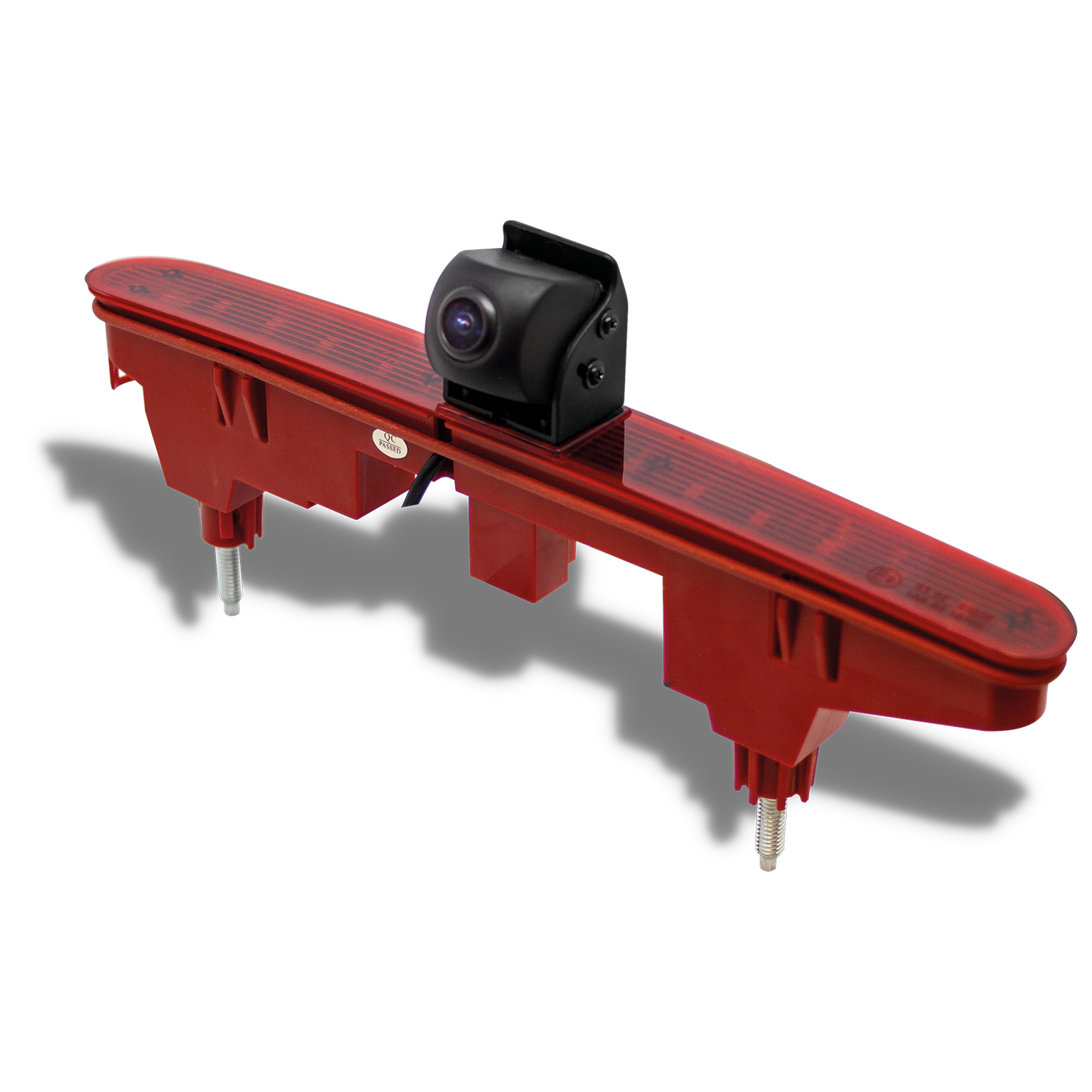

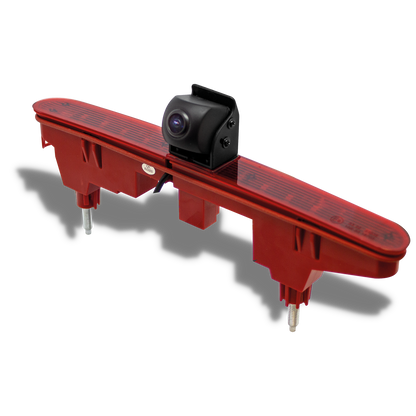

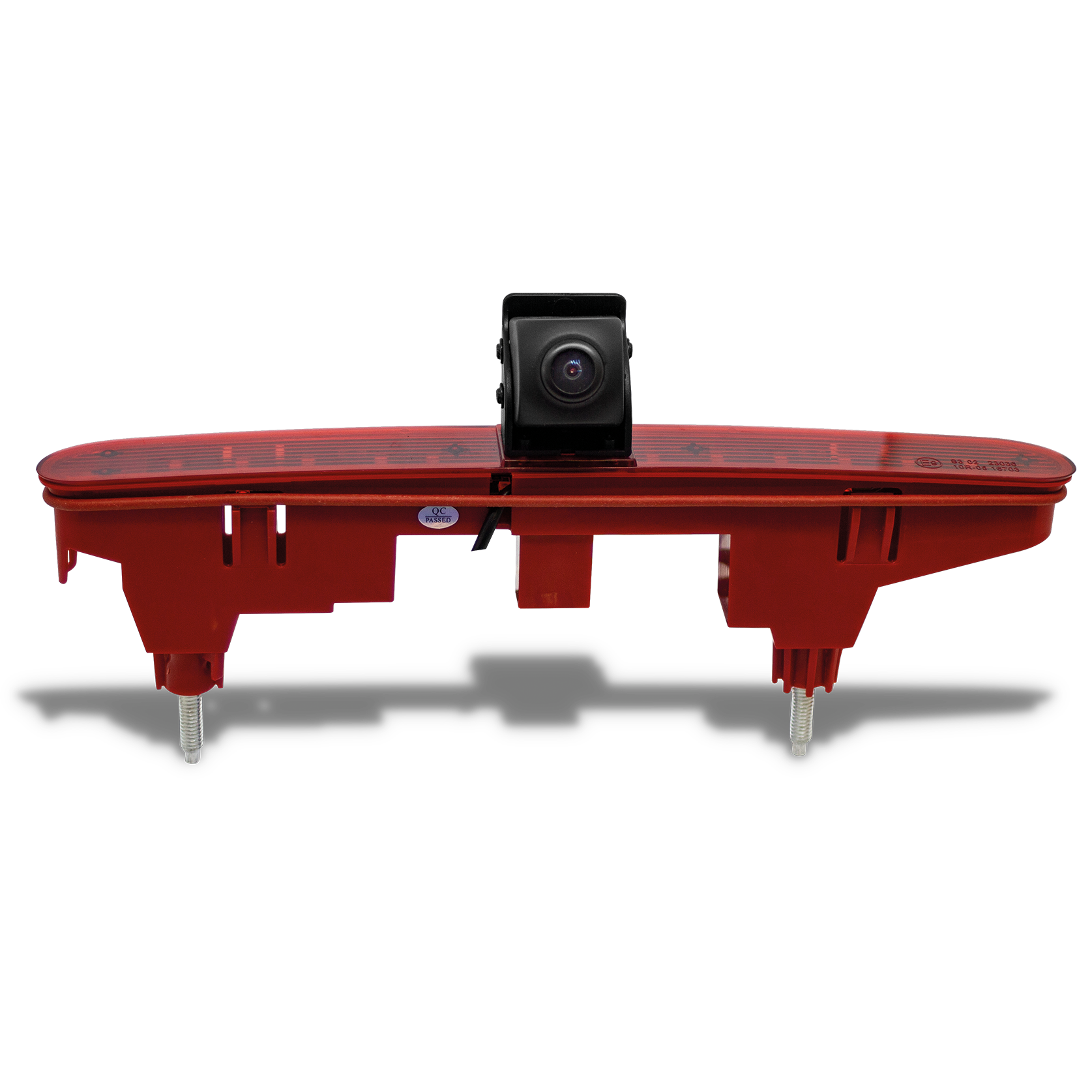

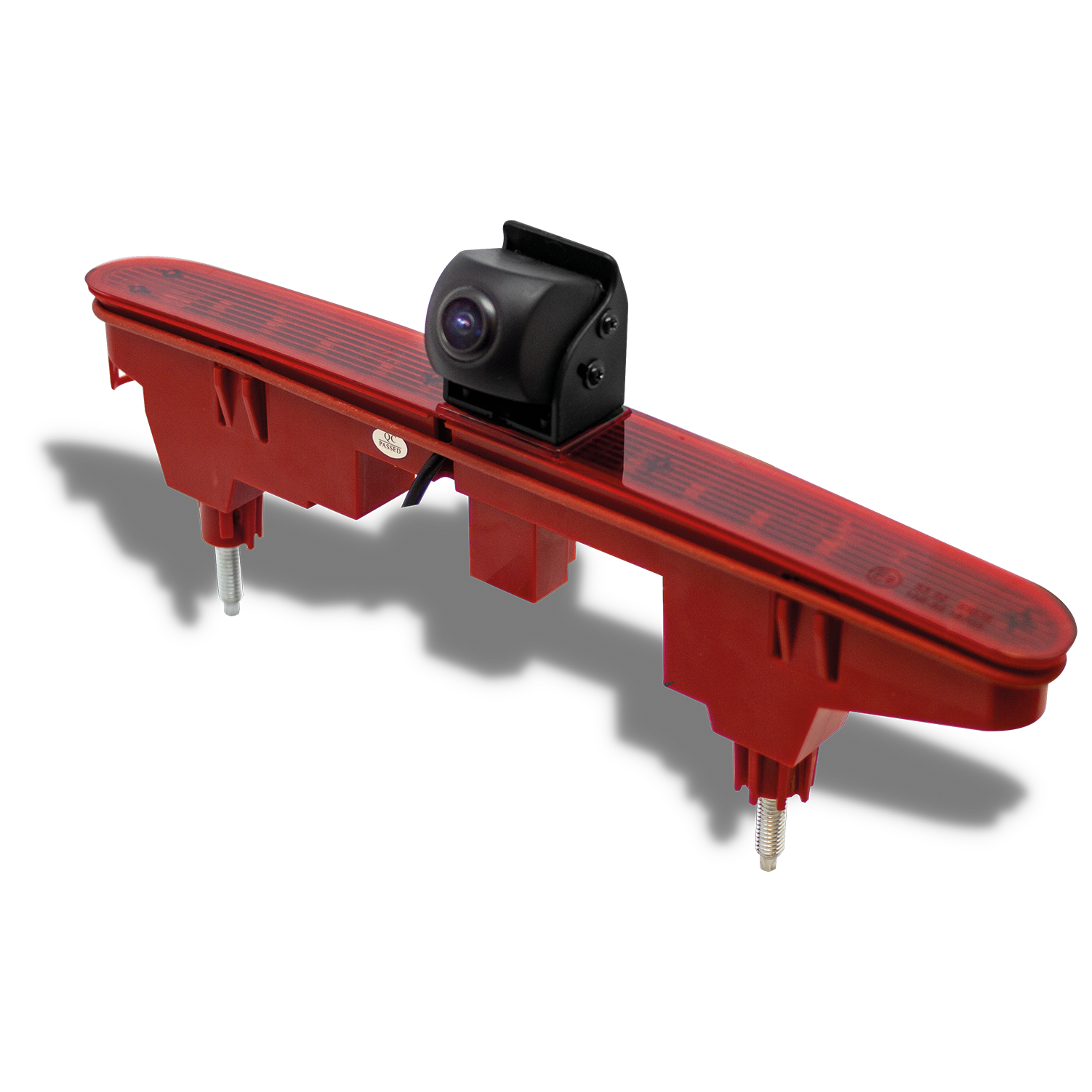

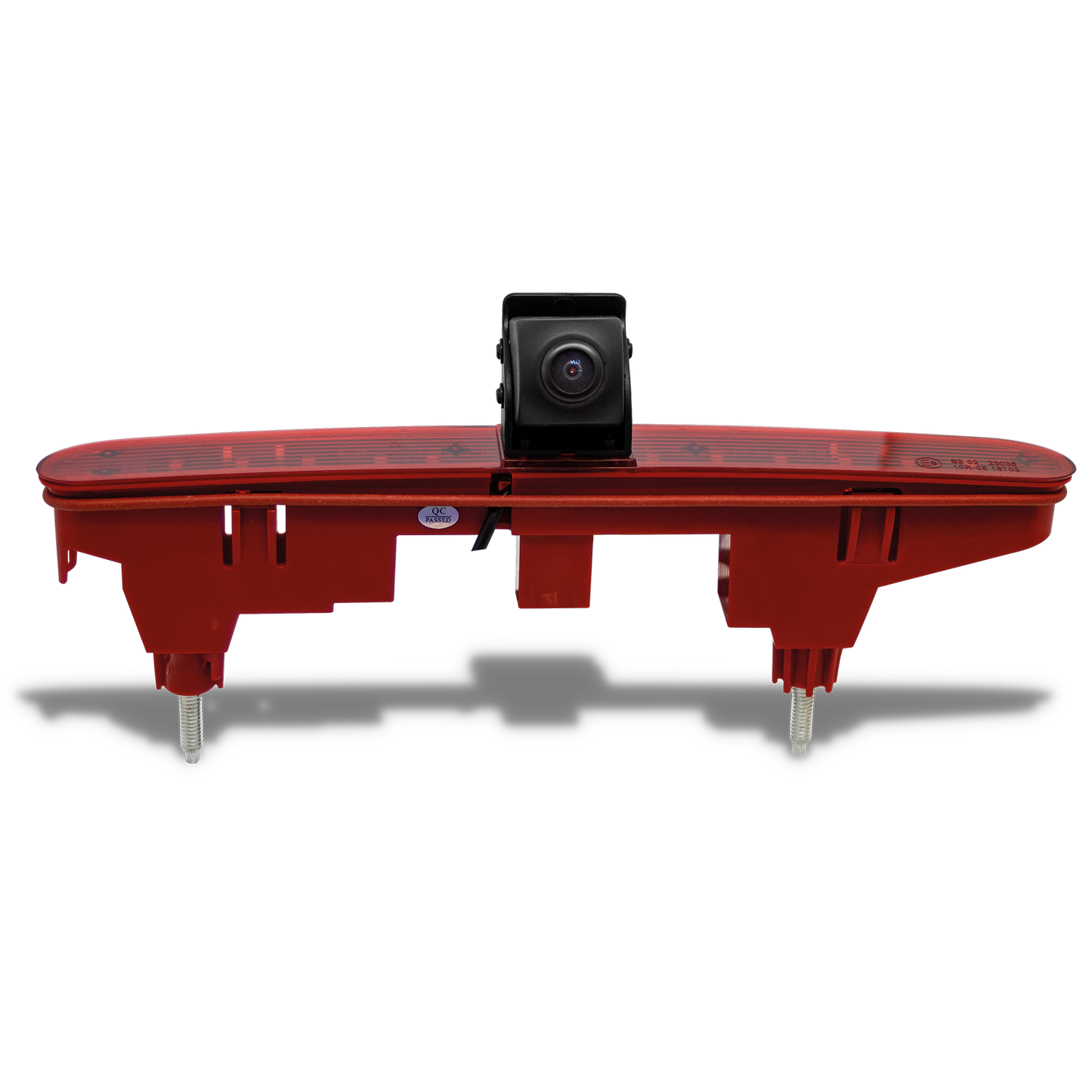

Brake Light D1 resolution camera for:

• Citroen Berlingo 2008 – Present day
• Peugeot Partner 2008 – Present day
• Vauxhall Combo 2008 – Present day

Specification

• Voltage: 12V DC
• 1/3″ Colour Super CMOS
• IP Rating: IP69K
• Viewing Angle: 170º
• NTSC & PAL Switchable
• Features: Parking Lines On / Off
• Camera Head: Adjustable 20° Up or Down
• Mounting Methods: Two Bolt Brake Light
• Minimum Illumination: 0.1 Lux (Day)
• Connection: Micro 4 pin (Adaptor included)
• Resolution: 976 (H) x 592 (V) TV Lines: 700
• Extension Cable Length: 10M
• WB, Shutter, AGC: Auto
• Working temperature: -20ºC ~ +70ºC

Approvals & Certifications: E Mark, CE, UKCA
