Description

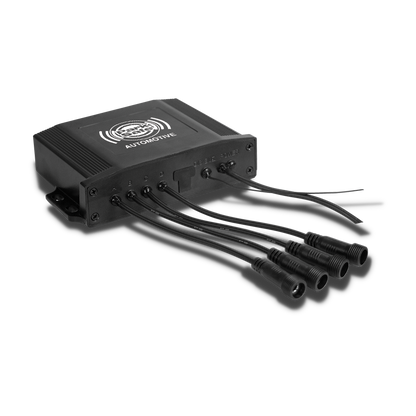

Wireless rear parking sensor system for commercial vehicles with under hung brackets and LED display.

Key Specifications

• Voltage: 9 ~ 35V
• Operating temperature: -20°c ~ +80°c
• Detection range: up to 2.5m
• Frequency: 39.3 ~ 40.7 Khz
• Operating current: 150mA
• RF Frequency: 433 Mhz

Additional Specifications

• 2.4m (Male to male) sensor cable(s)
• Display cable: 1.5m
• Sensor colour: Matt black
• Sensor mounting height: 40 ~ 60 cm
• Detection angle: Vertical 60° & Horizontal 120°
• IP Rating: IP68
• E-Marking

Approvals & Certifications: EMark CE

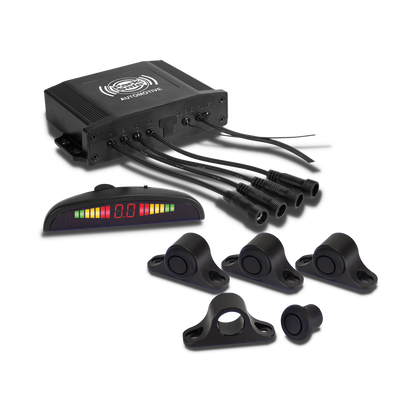

Box Contents

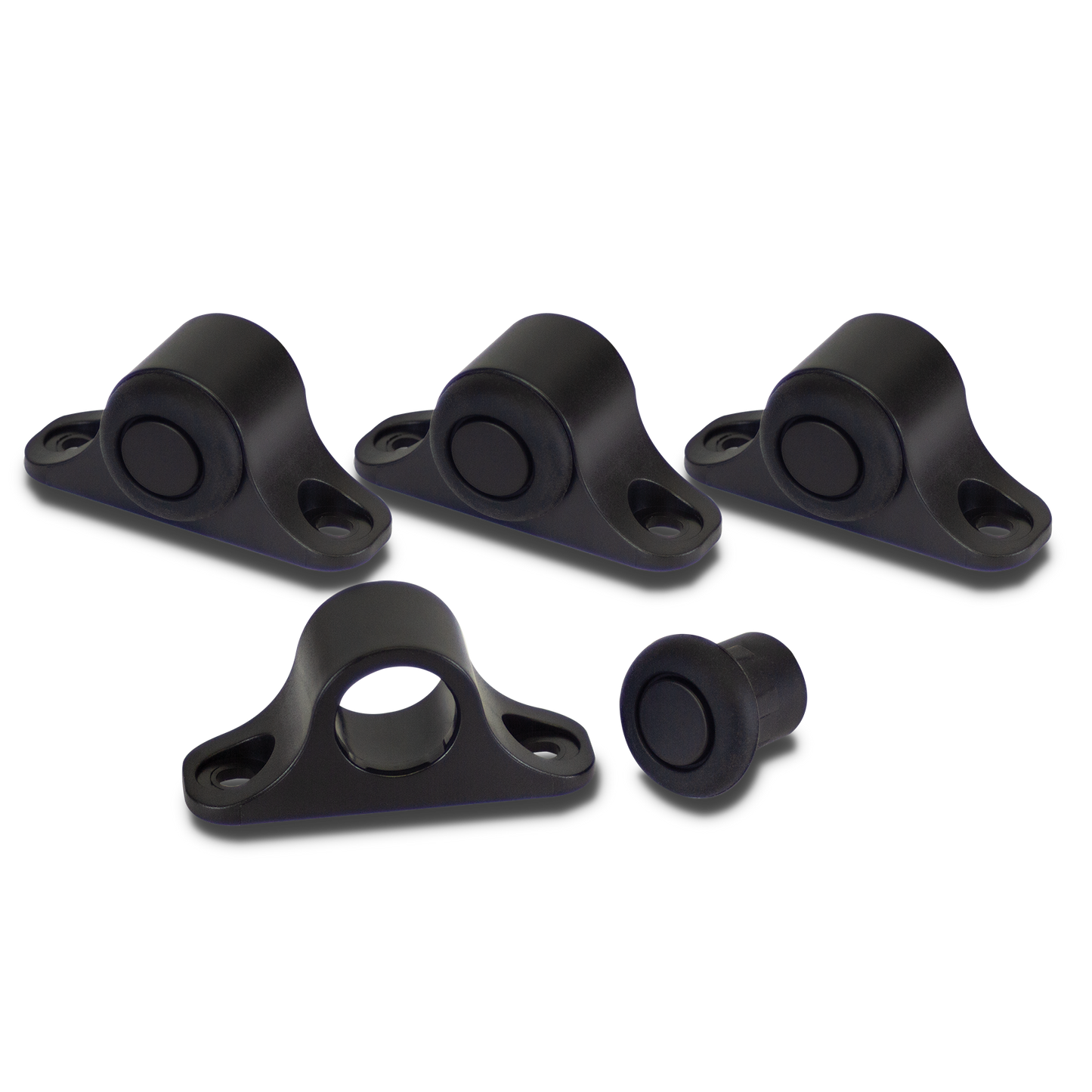

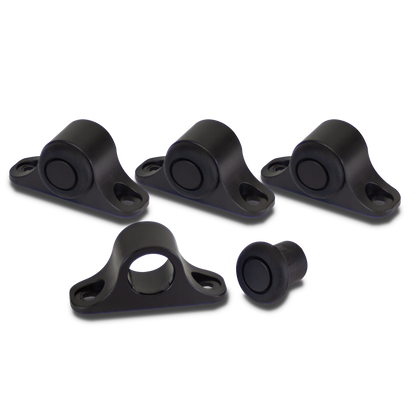

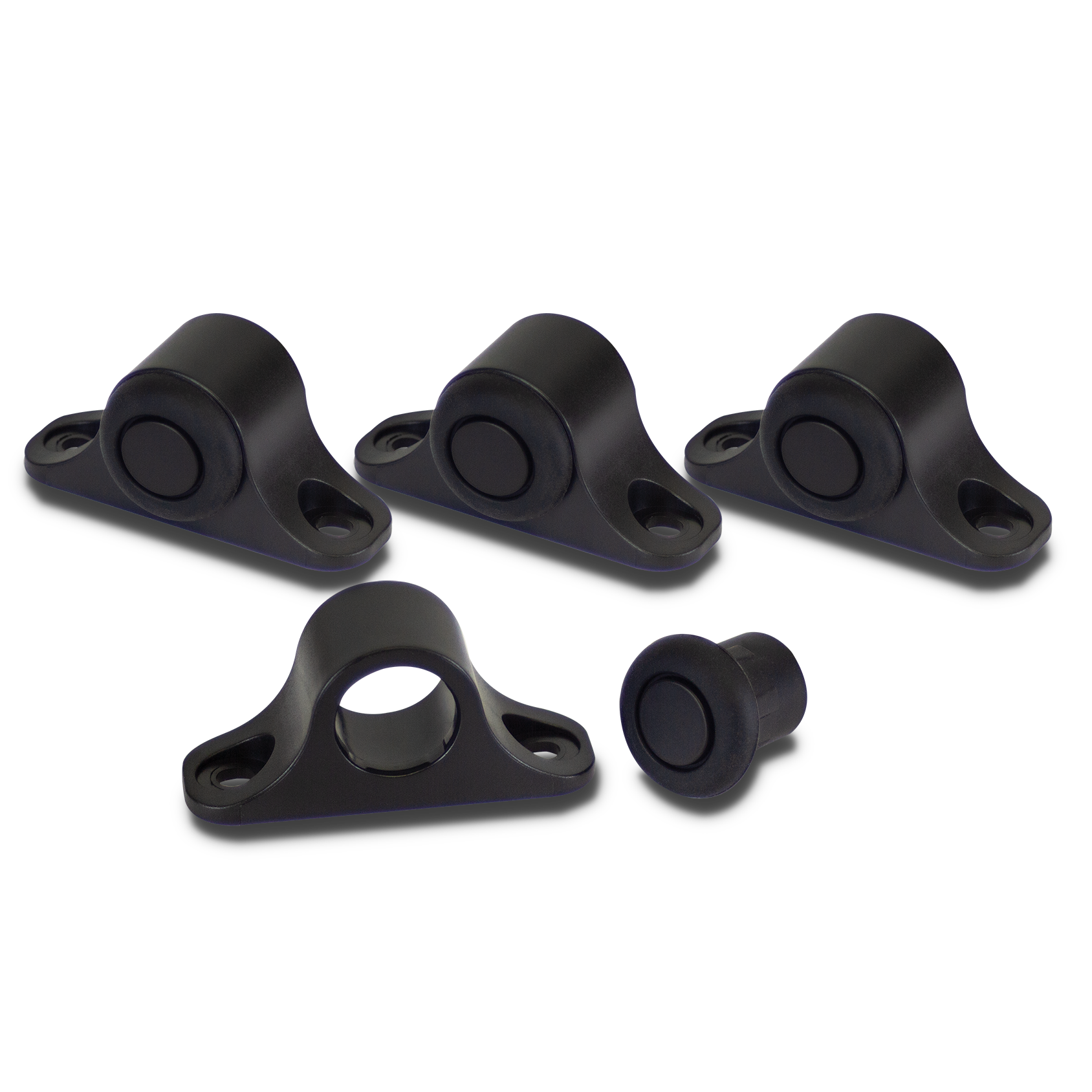

• 4 x 18.8mm Low profile angled sensor heads
• 4 x Rubber sensor heads; 4 x Under hung brackets

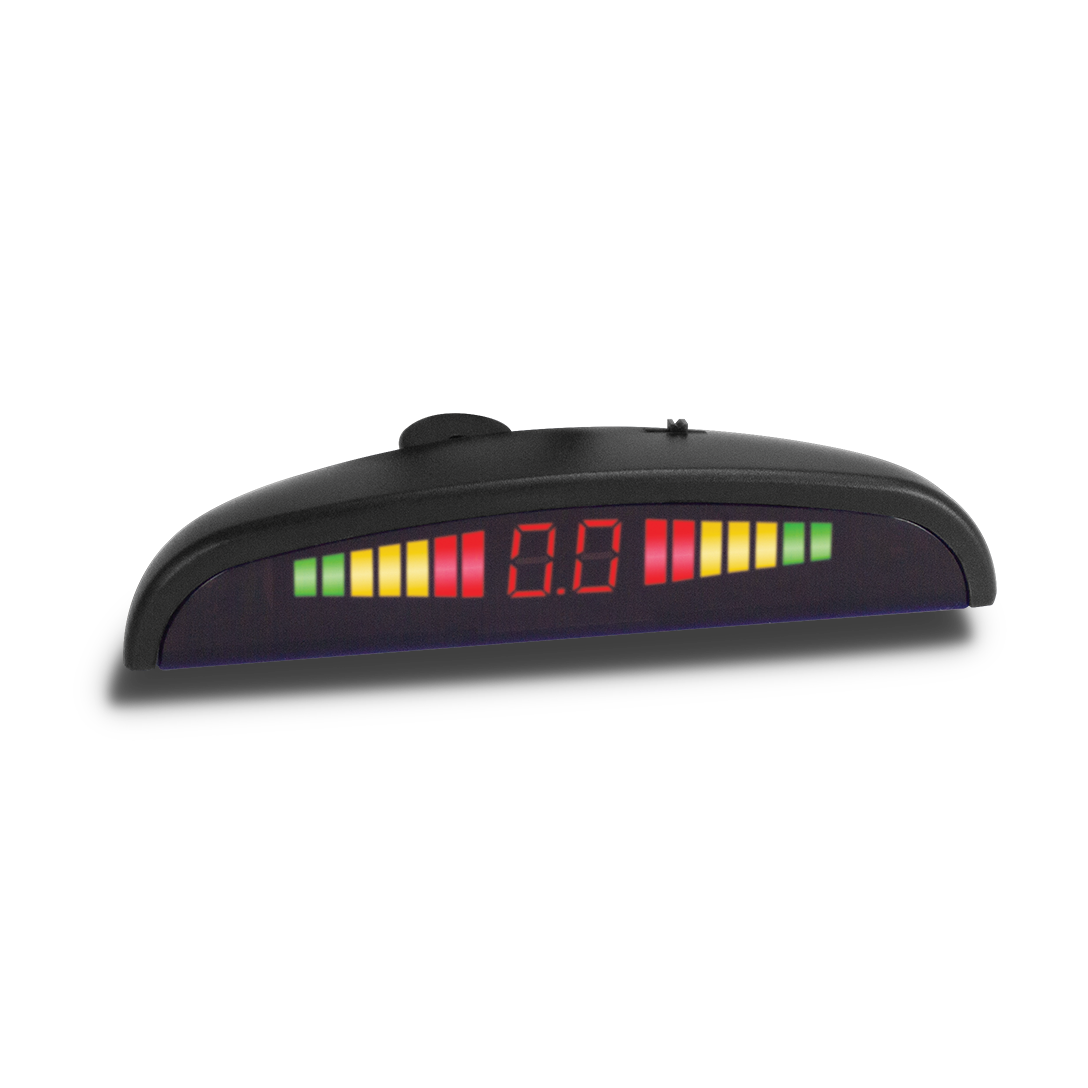

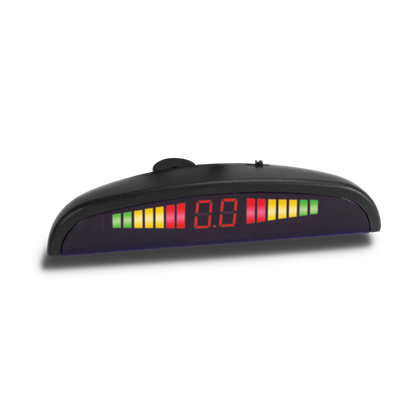

• 3 Colour LED display with Buzzer & mute function
• 2 Volumes & off
• Self-test function
