Description

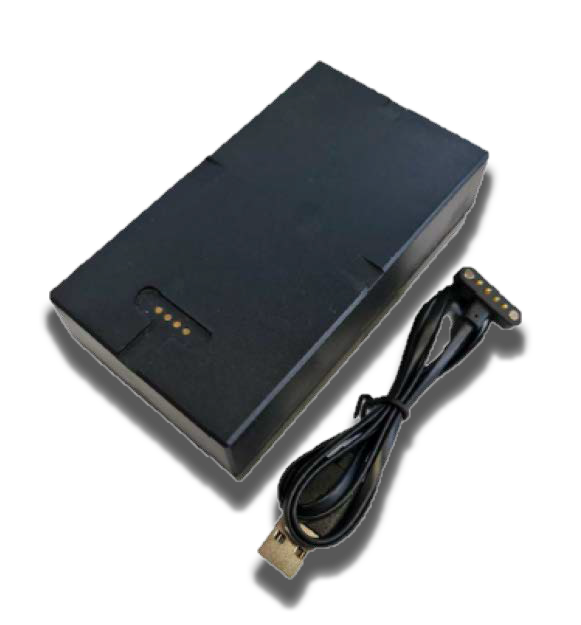

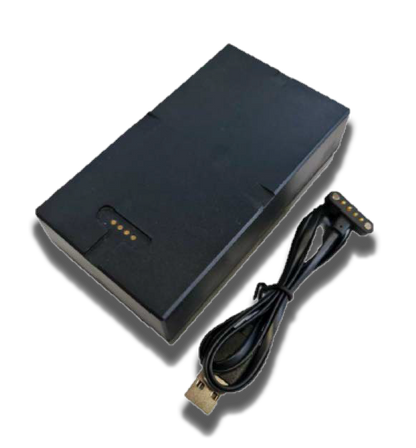

Battery-powered, magnetic assist recovery device. Easy to self-install, waterproof and designed to last up to 5 years on a single charge (2 years MagTrack+), MagTrack solves the traditional problem of tracking devices being easy to find and remove, by magnetically attaching anywhere on a vehicle or asset.

Key Specifications

• Sends GPS Location to On Demand platform & mobile phone app
• Alert notification on Movement and unauthorised removal
• Thatcham S7 approved
• Battery: 7800/10200mAhr
• Possibility to store up to 1000 messages with loss of coverage
• Using embedded light sensor to detect the drop/detach from asset
• IP65 waterproof

Additional Specifications

• Optional feature which the device will automatically wake up when it senses moving of the asset and power down itself when it is stationary When battery level is low, it will send ‘low- battery’ alarm
• The device’s configuration, setting and firmware can be remotely upgraded
• Physical Dimensions: 86mmx62mmx33mm Weight: 286g
• Rechargeable Battery capacity: 7800mAh
• Power Consumption: – Active mode: < 85mA @ 3.8VDC – Sleep mode: < 5mA @3.8VDC – Deep sleep mode: < 15uA @3.8VDC
• Operation temperature: -20°C to 65°C
• USB charging port (equipped with USB charger)
• Built-in Cellular and GPS antenna -162 dBm Tracking Sensitivity
• Location Technology (56 channel GPS)
• Location Accuracy (2.5-metre CEP)
• Quad-Band: GSM/GPRS 850/900/1800/1900 MHZ
• GPRS multi-slot class 12
• Output Power: – Class 4 (2W @850/900MHZ) – Class 1
• (1W @1800/1900MHZ) Protocol: TCP/UDP/SMS

Approvals & Certifications: Thatcham S7 Approved
