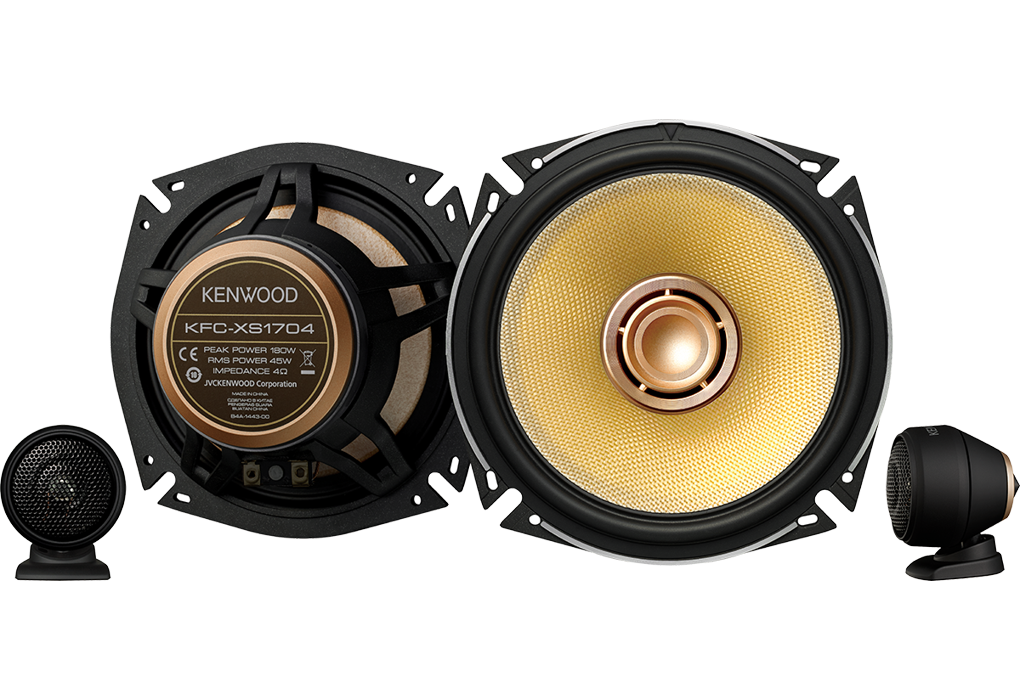

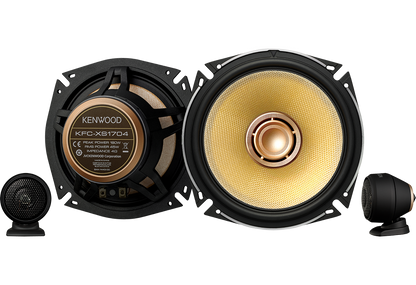

XS-series ultra-high grade speaker that deliver high density realistic sound and a spatial sound impression. The new 17cm component speaker KFC-XS1704 are precisely designed for High-Resolution Audio by using High Rigid Glass Fiber Diaphragm, Magnetic Circuit with Aluminium Ring and Phase Correcting Diffuser. High-Res Sound is Refined Further with 2-Way Tweeter. This unique 2-way tweeter creates a wide range of sound as each of the 2 tweeters reproduces a different frequency band delivering clarity and fullness.

Speaker Features

• Speaker System 2-way component
• Speaker Type Component
• High-Resolution Audio certified
• Peak Input Power 180W
• Rated Input Power 45W
• Speaker Size 170mm
• Speaker Cone Design
• Carbon-Glass Fibre Cone
• Magnet Type Ferrit
• Terminals Slide types
• Silver plated Terminals
• Swifel Capability

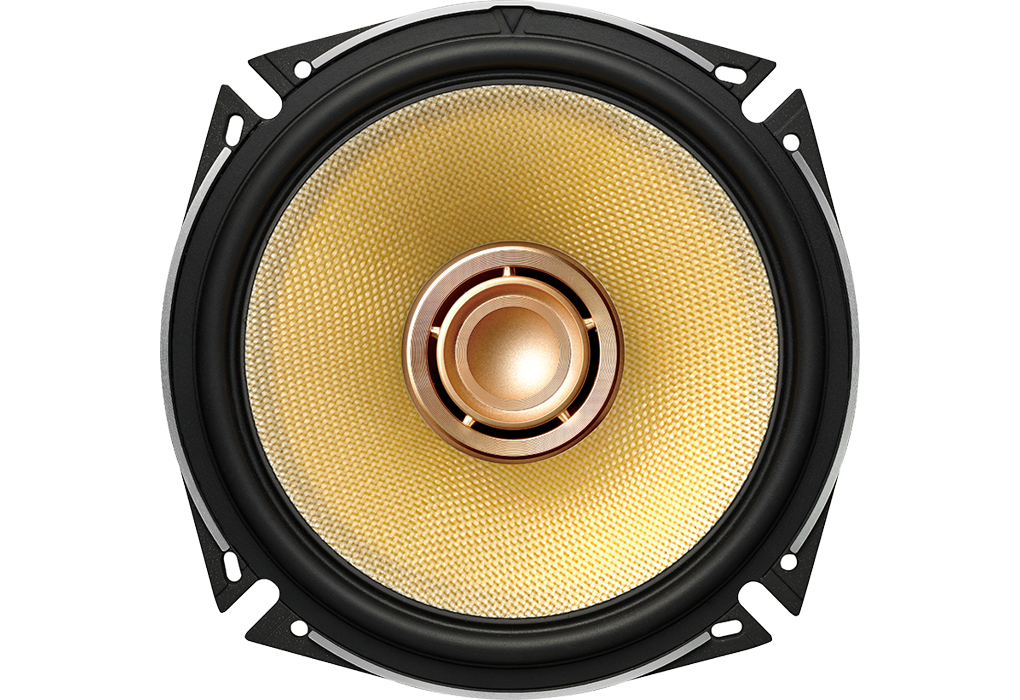

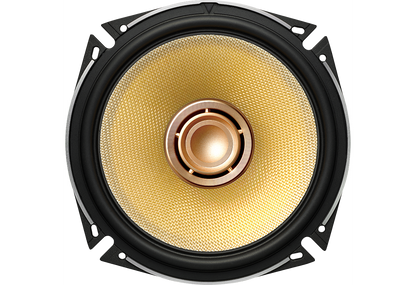

Speaker/Woofer Specifications

• Peak Input Power 180W
• Rated Input Power 45W
• Woofer Cone material Glass Fiber Cone
• Woofer cone dimensions 156mm ø
• Centre Cap Type Optimized Phase Plug
• Speaker Basket Aluminium Diecast
• Speaker Surround Rubber
• Spider Type AFC, Tornado shape
• Sensitivity 83dB/W/m
• Frequency Response 34Hz ~ 56Hz
• Speaker Impedance 4Ω
• Dimensions (W x H x D) 156 x 156 x 65.8mm
• Mounting Depth 57mm
• Mounting Hole Diameter Ø 142mm
• Speaker Weight 810gr

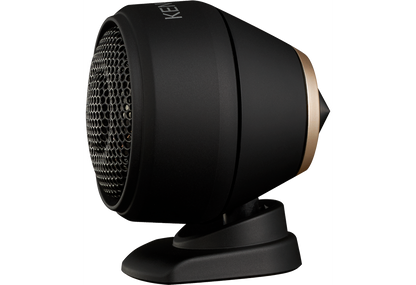

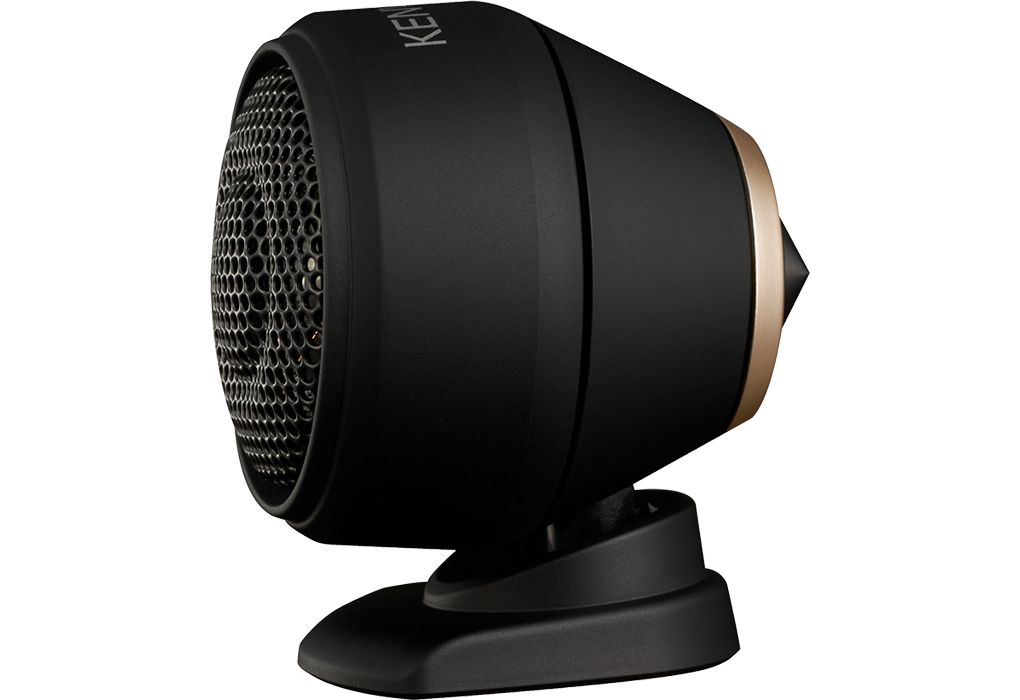

Tweeter Specifications

• Dimensions 51.7 x 42.6 x 67.5mm
• Cone Material Titanium Hard Dome + Soft dome
• Magnet Type   Neodymium
• Speaker Weight 80gr

Accessories

• Bracket for Mitsubishi
• Connection cable for Nissan
• Connection cable for Toyota & Mitsubishi
• Connection tap (4 pcs)
• Speaker cable (2pcs)
• Tweeter Spacer (2 pcs)
• Tweeter bracket (2 pcs)
• Screws (Parker-type) Ø 4 x 16mm, 8 pieces
• Screws (Parker-type) Ø 5 x 20mm, 8 pieces
• Screws (Parker-type) Ø 6 x 20mm, 8 pieces
• Screws (Parker-type) Ø 3 x 12mm, 4 pieces
• Screws (M-type) M5 x 16mm, 8 pieces
• Speed nut φ 3, 4 pieces
• Installation brackets 2 pieces
• Butyl rubber
• Weight  2700 gr.
