Key Features

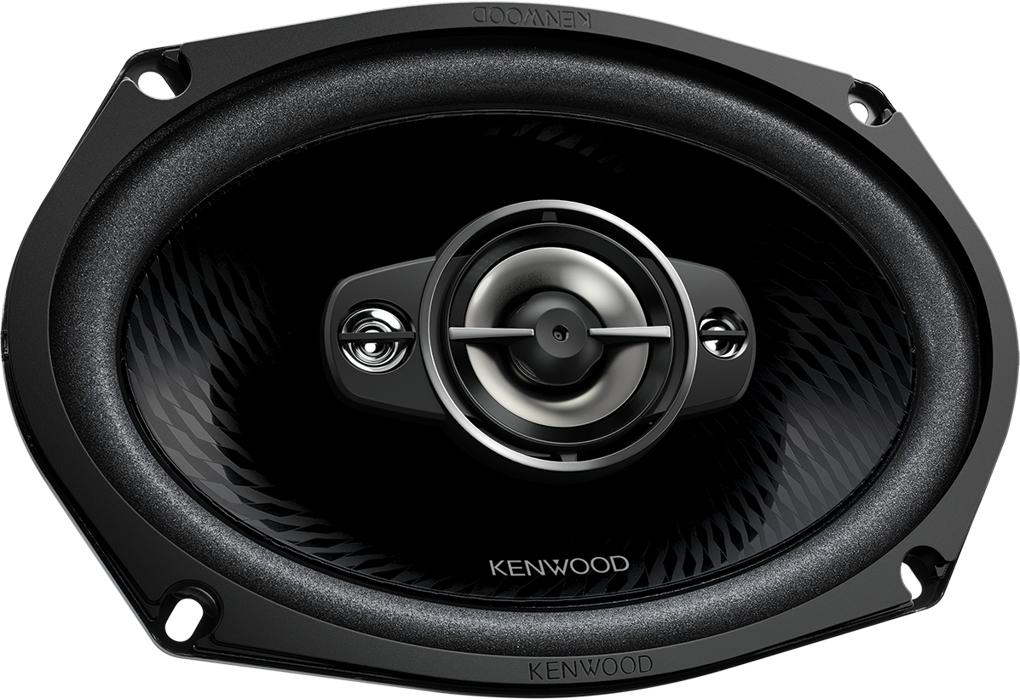

• 6x9" 4-Way Performance Standard Speaker System
• Woofer cone with Diamond Array Pattern Sound Tune Up Technology
• Black Coloured Elegant Design with Silver Accents
• Acoustic Sound Harmonizer Technology
• Sound Field Enhancer Technology
• 3 types of Tweeters: 44, 20 and 12mm
• 670W Peak Input Power / 140W RMS Input Power
• Low Tweeter Height Design for Shallow Install Space

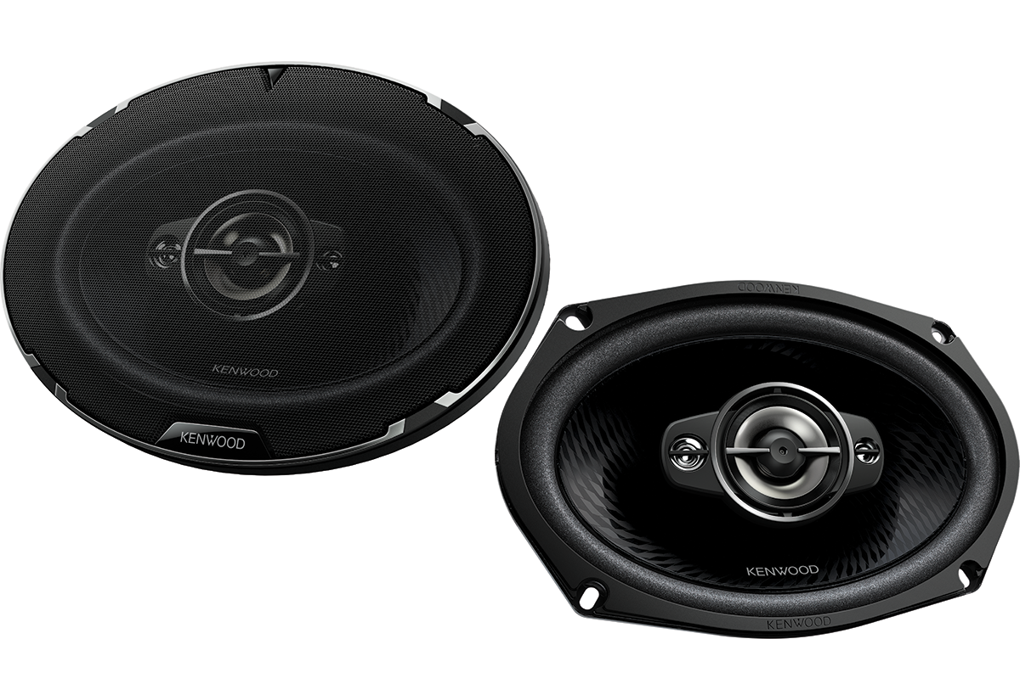

• Grille assembly included

Speaker Features

• Speaker System - 4-way speaker System
• Speaker Type - Coaxial
• Diamond Array Pattern Woofer Cone - Yes
• Sound Field Enhancer - Yes
• Acoustic Sound Harmonizer - Yes
• Black-painted Woofer Yoke Plate - Yes

Speaker/woofer Specifications

• Peak Input Power - 670W
• Rated Input Power - 140W
• Woofer Cone material - Black Polypropylene (PP) Cone
• Woofer cone dimensions - 153 x 229mm
• Speaker Basket - Steel (Black painted)
• Magnet type - Ferrit (Ø90 x t15)
• Speaker Surround - Urethane
• Sensitivity - 88dB/W/m
• Frequency Response - 60Hz ~ 22000Hz
• Speaker Impedance - 4Ω

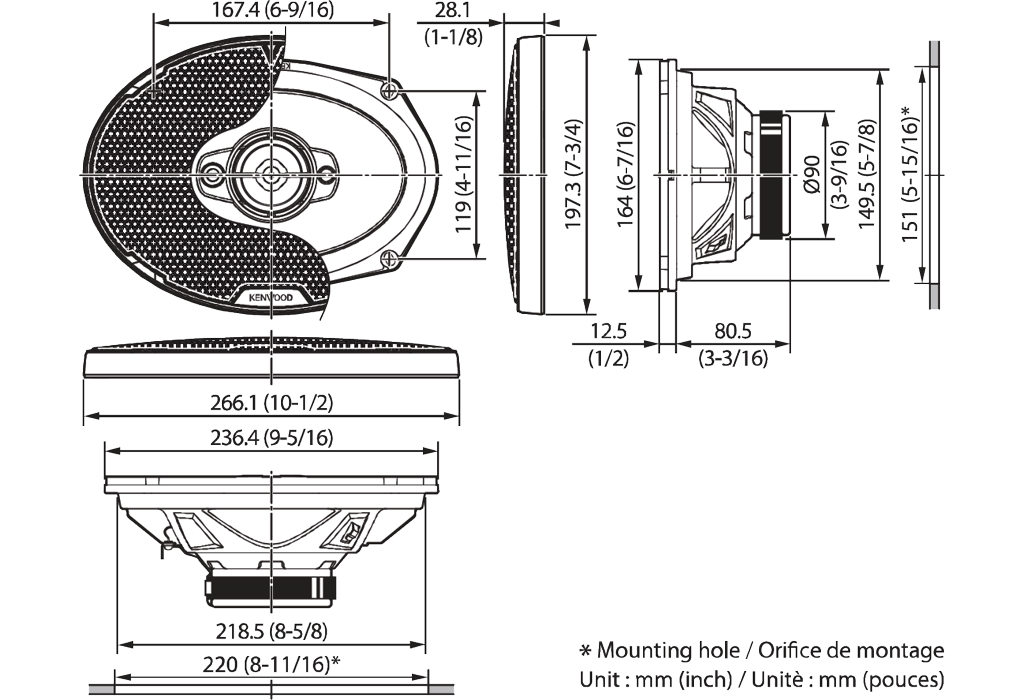

• Dimensions with Grill (WxHxD) - 266.1 x 197.3 x 100.1mm
• Dimensions w/o Grill (WxHxD) - 236.4 x 164 x 93mm
• Mounting Hole Diameter - 218.5mm x 149.5mm
• Mounting Depth - 80.5mm
• Tweeter Height - 12.5mm

Midrange Speaker Specifications

• Cone Size - 44mm
• Cone Type - Silver Balanced Dome
• Magnet Type-  Ferrite

Tweeter Specifications

• Cone Size-  20mm
• Cone Material - Balanced dome / Ceramic

Super-Tweeter Specifications

• Cone Size - 12mm
• Cone Material - Ceramic

Accessories

• Screws (Parker-type) - Ø 4 x 40mm, 8 pieces
• Washer Ø 4, 8 pieces
• Adhesive tape pad - 1 piece(s)
• Grille assembly included - Yes
• Speaker cable - 4.5m
