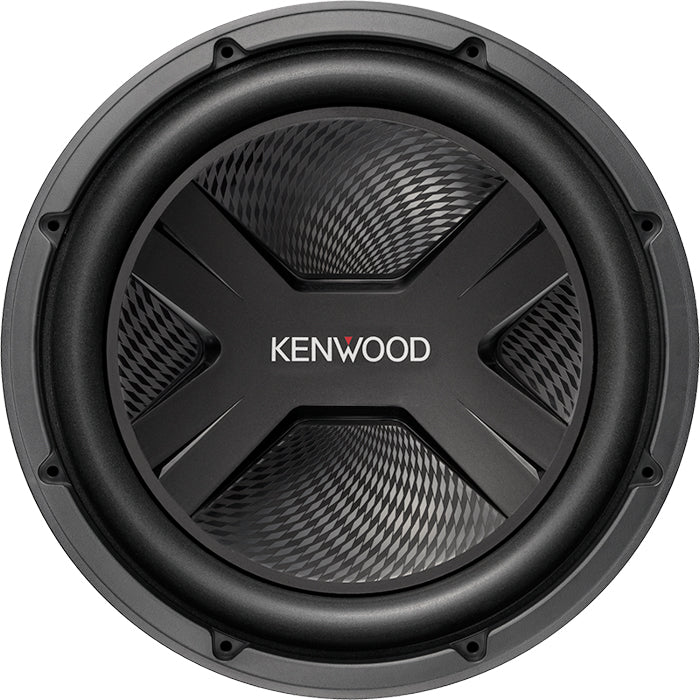

12" Car Subwoofer 2000 Watts

This 30cm Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control. The X-Motif Cap (Injection Molded Polypropylene) controls resonance frequency and cut away unnecessary high frequency sound to deliver powerful, solid bass.

Features

• 300mm Polypropylene Cone (PP Cone)
• 400 Rated/RMS Input Power
• High-ridged Two-piece Diaphragm for solid bass
• X-motif cap Technology for resonance control
• Single, multi-layered, voice coil.
• Aluminum bobbin for better thermal conductivity
• Airflow control for optimal heat radition
• Stress controlled spider
• Push-terminals for easy connection
• Sealed/Ported installation capabillity

Speaker Features

• Speaker Size    300mm
• Oversized Dimension
• Speaker Cone Design
• Diamond-Array pattern
• Magnet Type   Ferrit
• Voice-coil  single, multi-layer voice coil
• Terminals Push Type
• Spider Stress controlled spider
• Bottom-Yoke Fully closed bottom yoke
• Heat dissipation technology Airflow control
• Installation Capabillity Sealed / Ported

Speaker/woofer Specifications

• Peak Input Power 2000W
• Rated Input Power 400W
• Woofer Cone material Polypropylene (PP) Cone
• Center Cap Type x-motif cap
• Speaker Basket  Steel
• Speaker Surround Foam
• Spider Type Stress controlled Spider
• Sensitivity 85dB/W/m
• Frequency Response  29Hz ~ 300Hz
• Speaker Impedance    4Ω
• Dimensions (W x H x D)  326 x 326 x 155.4mm
• Mounting Depth 137mm
• Mouting Hole Diameter Ø 280mm
• Speaker Weight  4200gr
