Main Features

• 13cm 2-Way Performance Standard Speaker System

• Woofer cone with Diamond Array Pattern Sound Tune Up Technology

• Black Coloured Elegant Design with Silver Accents

• Acoustic Sound Harmonizer Technology

• Sound Field Enhancer Technology

• 25mm Balanced Dome Tweeter with Neodymium Magnet

• 330W Peak Input Power / 75W RMS Input Power

• Low Tweeter Height Design for Shallow Install Space

• Grille assembly included

Speaker Features

• Speaker System 2-way 2-speaker

• Speaker Type Coaxial

• Diamond Array Pattern Woofer Cone

• Sound Field Enhancer

• Acoustic Sound Harmonizer

• Black-painted Woofer Yoke Plate

• Factory Location Fit

Speaker / Woofer Specifications

• Peak Input Power 330W

• Rated Input Power 75W

• Woofer Cone material Black Polypropylene (PP) Cone

• Woofer cone dimensions 130mm Ø

• Speaker Basket Steel (Black painted)

• Magnet type Ferrit (Ø70 x t10)

• Speaker Surround Rubber

• Sensitivity 85dB/W/m

• Frequency Response 82Hz ~ 21000Hz

• Speaker Impedance 4Ω

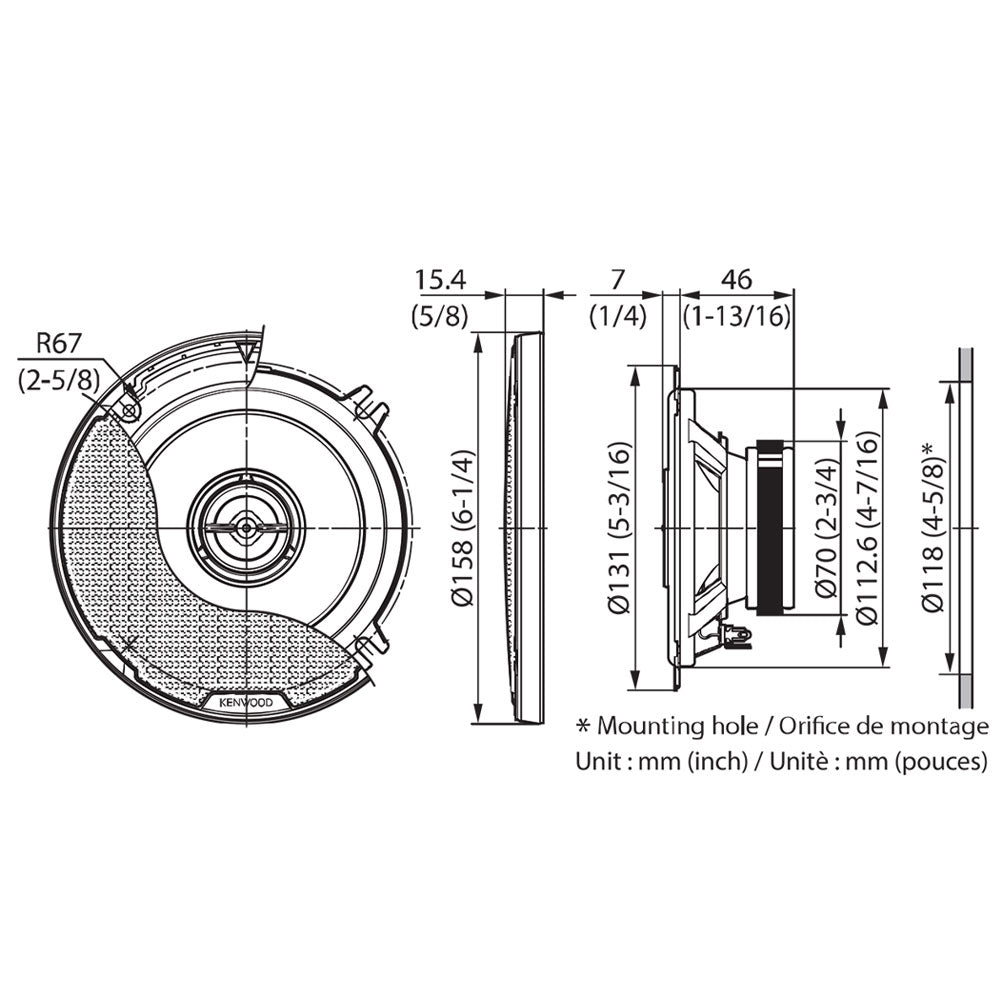

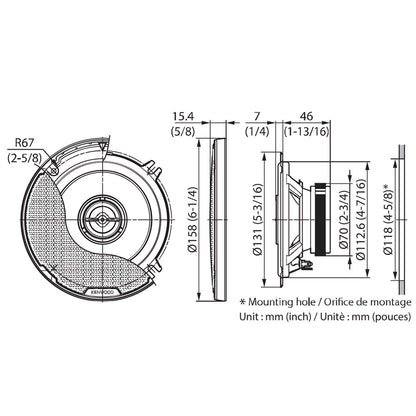

• Dimensions with Grill (WxHxD) 158 x 158 x 61.9mm

• Dimensions w/o Grill (WxHxD) 131 x 131 x 53mm

• Mounting Hole Diameter Ø 112.6mm

• Mounting Depth 46mm

• Tweeter Height 7mm

Tweeter Specifications

• Cone Size 25mm

• Cone Material Silver Balanced Dome

• Magnet Type Neodymium

Accessories

• Screws (Parker-type) Ø 4 x 25mm, 8 pieces

• Speed nut φ 4, 8 pieces

• Adhesive tape pad 1 piece(s)

• Grille assembly included

• Speaker cable 0.5m
