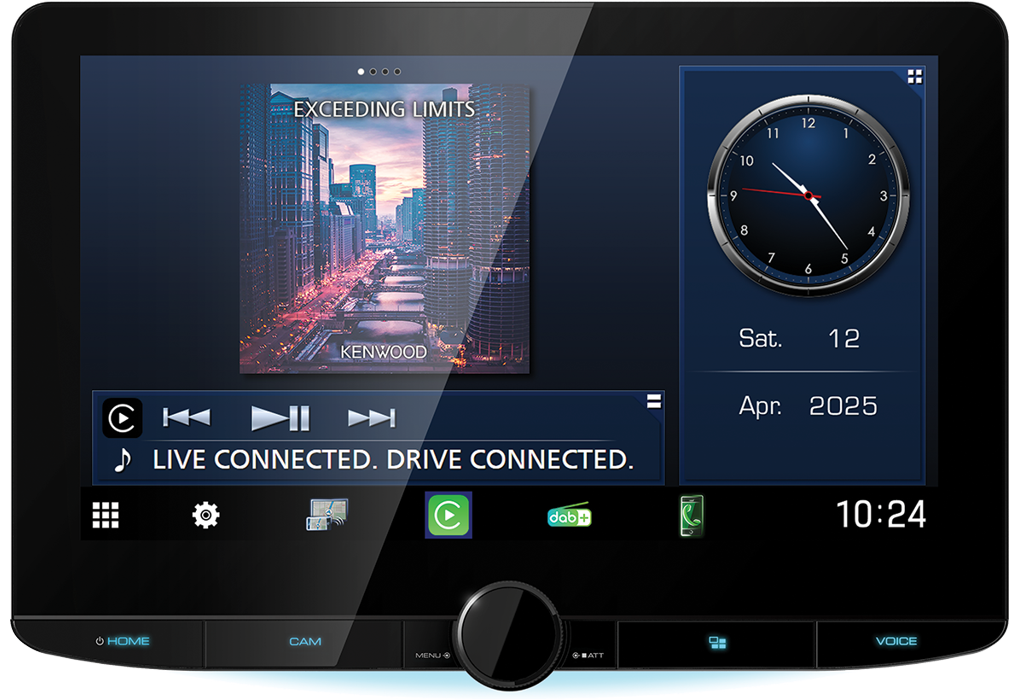

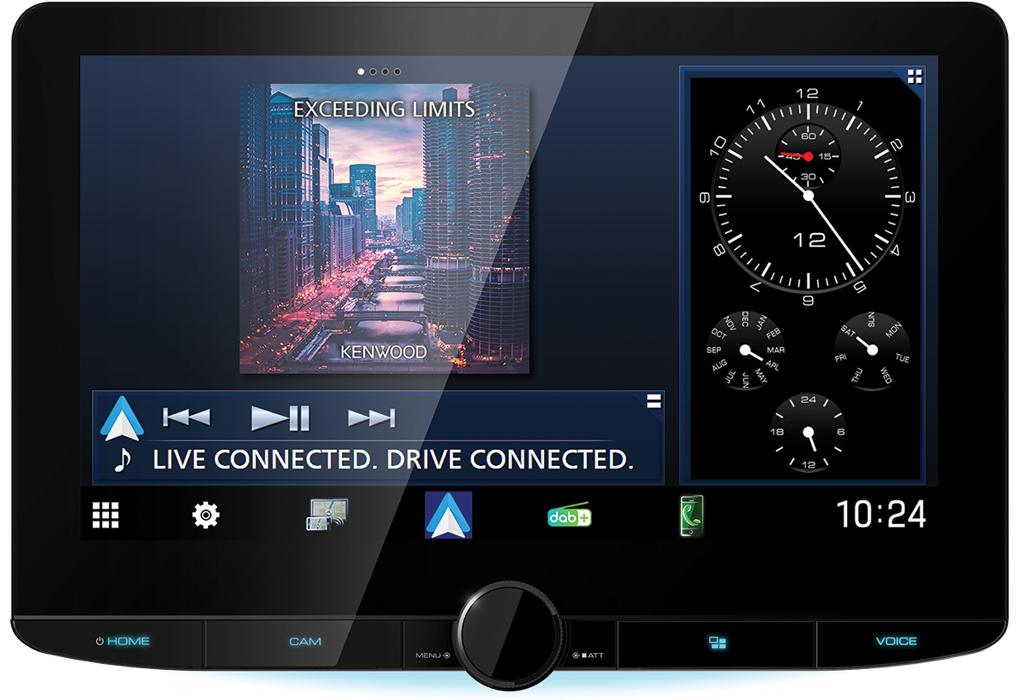

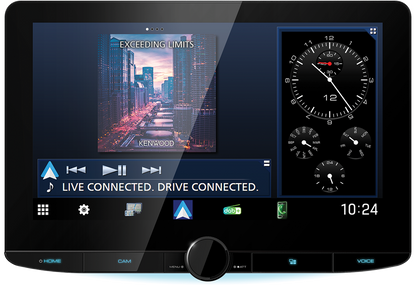

The DMX9724XDS is a 1DIN body digital multimedia receiver with floating, 10.1" high definition display panel & enhanced wireless smartphone connections for iPhone and Android. The unit features wired and wireless Hi-Res audio which allows for the best quality output via the on board amp or the 5V pre-outs.

Key Features

• Large 10.1" High Definition Monitor with Capacitive Touch Panel

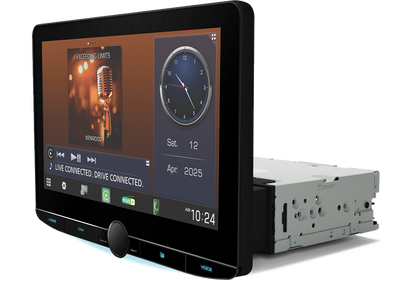

• Floating Panel Mechanism with 4-way Position Adjustment

• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.

• Apple CarPlay® & Android Auto™ – Split Screen Support

• Wireless Mirroring for Android

• Bluetooth Hands Free & Audio Streaming

• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,

• HDMI Input & 4 Camera Inputs: HD Front/Rear Camera Ready + DashCam Link Ready

• 3 RCA high power (5V) pre-outs • Digital Optical Output

• DSP for optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

• High Quality Audio Parts Supporting High-Resolution Audio Reproduction

• Monitor panel and chassis can be separated, allowing flexible installation in a variety of vehicles.

General Features

• DIN Size - 2 DIN

• Security Code Function ( user set) - Yes, (4 digits)

• Selectable GUI Background Wallpaper

• Key Illumination Variable colour

• Installer Memory

• Back-up Memory

• Attenuator with Smooth Volume Return

• Optional IR remote controller - KNA-RCDV340

• Digital Clock (24H)

• Built-in Bluetooth

• DAB Tuner Built-in

• Wifi built-in

• Made for iPhone

• Apple CarPlay – Connect Wirelessly or via USB

• Android Auto™ – Connect Wirelessly or via USB

• Wireless Mirroring for Android

• Firmware upgradable

• HDMI input - for video playback

• Dashcam Link

Monitor Features

• Screen Type - 10,1" HD

• Display film - Anti-Fingerprint / Anti-Reflection / Anti-Glare)

• High Definition Display

• Touch Panel - Capacitive

• Display Mode - 3 Mode (Full(default)/Auto/Normal)

• Screen Adjustments - ► Noon & Night Memory. ► Brightness. ► Tint. ► Colour. ► Contrast. ► Black Level. ► Backlight.

• Dimmer function - Manual/Sync

• Dimmer Level - Sync / On / Off

• Visual Source Mode - Mirroring / CarPlay / Android Auto.

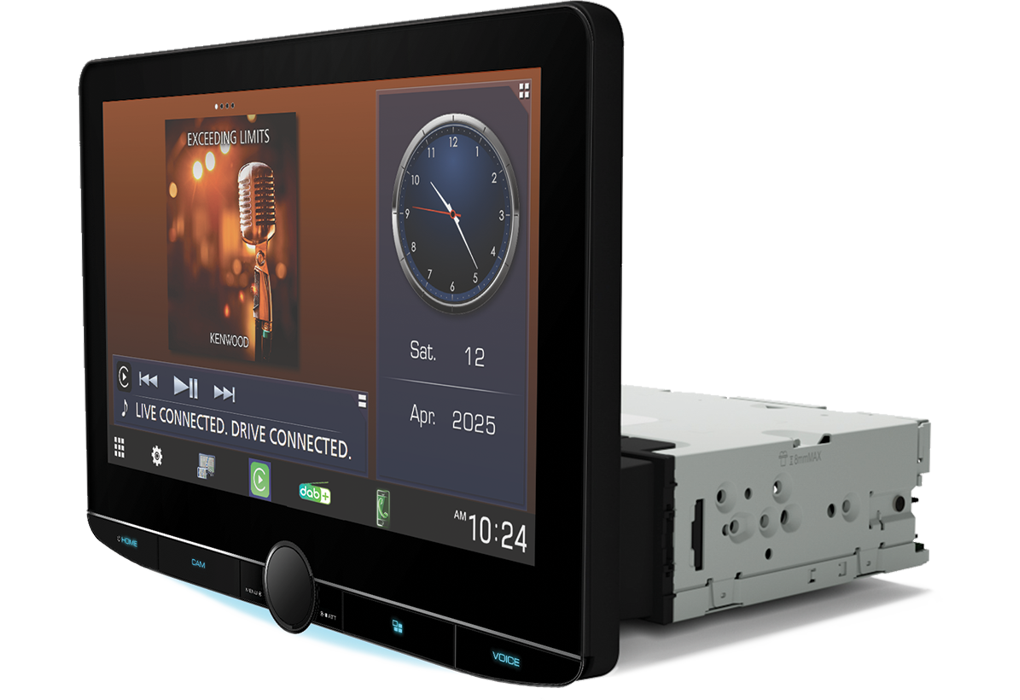

• Mechanism type - Floating panel with 4-way position adjustment

• Panel Tilt Adjustment  - -10° ~ +45°

• Panel Depth Adjustment - 2 steps: 0 / 19mm

• Panel Height Adjustment - 4 steps: 0 / 15 / 30 / 45mm

• Panel Left/Right Adjustment - 3 steps: -30 / 0 / 30mm

• LCD viewing angle control - "0" (Default) / "-1" / "-2" / "-3"

• NTSC/PAL judge

• Display Off Mode

Multimedia GUI Features

• Menu text - 22 languages:

• ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chinese (Traditional) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian

• Software updates (SoC) - via USB

• Graphics Type - Graphics

• Spectrum Analyzer

• Demonstration Mode

• Top Menu Customize

• Opening Screen Type - standard

• Preset Wallpaper Type - Yes, 5 presets, 1x user, 1x Sync Album Art, 1x colour customize.

• Wallpaper colour change

• Multi Widgets - Driving Widget / Full Screen Widget

• Animation

• R-CAM interrupt

• R-CAM Caution On Screen Display

• R-CAM Parking Guide Lines

• Front view camera mirror

• DashCam Control (DashCam Link)

• Rapid charge indicator

Network & Wifi features

• WiFi built-in - built-in
• Frequency Range - Dual Band (2.4GHz / 5GHz)
• IEEE standard - 802.11a/b/g/n/ac
• Wireless connection for Apple CarPlay
• Wireless connection for Android Auto
• Wireless connection for Android Mirroring

Tuner Features

• Tuner Type - Eagle
• FM(RDS) + AM(MW/LW) Tuner
• FM Stereo / Mono Selector
• Tuning mode - Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Station Select - Manual / Preset (List)
• Tuner Presets - (FM/AM) 20 Presets (15FM / 5AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional - Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB tuner features

• DAB+ tuner built-in
• DAB/DAB+ Band-  Band III
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• Tuning mode / Seek mode - Auto1/Auto2/Manual
• Service preset - 15 ch * 1 bank presets,
• Alphabet Search
• Service list by alphabet order
• Intelligent seek - Yes, (Service, Ensemble & Component)
• Ensemble seek
• Announcement Switching (ASW) Select
• DLS (Dynamic Label)
• DMB Audio (Digital multimedia broadcasting)
• PTY (Programme Type) search
• PTY (Programme Type) watch
• Slide Show
• Soft linking
• Antenna power supply on/off switch
• Digital Radio Certification Mark

Bluetooth General Features

• Module Shinwa

• Hands Free Profile with High Sound Quality - HFP V1.7

• 2 phones full time connection

• Audio Streaming (A2DP) - Yes, (LDAC / SBC / AAC)

• LDAC - High Resolution Audio Streaming

• Max num. of registered. units for A2DP - 5 units

• Serial Port Profile (SPP)

• Simple Secure Pairing (SSP)

• Phonebook Access Profile (PBAP)

• Audio/Video Remote Control Profile (AVRCP) - Yes, V1.6

• Multi Profile Support

• iPhone & Android automatic pairing via USB

• KENWOOD Remote App Ready

• KENWOOD Portal App Ready

• KENWOOD Music Mix Support

• Catchphone / Call Waiting

• Private mode

• Noise Canceller

• Echo Canceller

• High-quality noise cancelling microphone - Included (rear wired)

Playable Audio File

• AAC (*.m4a) files are playable - USB

• AAC (*.aac) files are playable - USB

• MP3 files are playable - USB

• WMA (.wma) files are playable - USB

• WAV (.wav) files are playable - USB

• FLAC files are playable - USB

CE_Playable Video file

• MPEG1/2 files are playable - USB

• MPEG4 files are playable - USB

• WMV files are playable - USB

• H.264 files are playable - USB

• mkv files are playable - USB

USB Features

• USB Type - 1x Type C

• USB extension cable supplied - 1m

• Drive Change

• Works with Android Auto

• Works with Apple CarPlay

• Tag Information Display

• Album Art Display

• Repeat/Scan/Random search

• Repeat Play - Folder/File/All

• Random play - Folder

• Category search

• Link Search

• Last Position Memory / Resume

• Time code display

• USB ports maximum output current - 5V / 3.0A

iPhone Features

• Connection via: USB / BT / Wifi

• Plug & Play

• Made for iPhone

• Tag Information Display

• List Access

• Album art support

• Music library search

• Alphabet search

• Skip search

• Random Play

• Repeat Play

• Skip

• iPod Accessory Protocol (iAP) - iAP2

• iAP over Bluetooth

• Works with Apple CarPlay - Wireless or Wired via USB

• Reverse browsing

• Voice Control using Siri.

• Bluetooth Auto Paring for iPhone

• Battery charge + power control

• * Always update to latest Apple firmware

Android Phone Control

• Connection via - USB/Wifi/Bluetooth

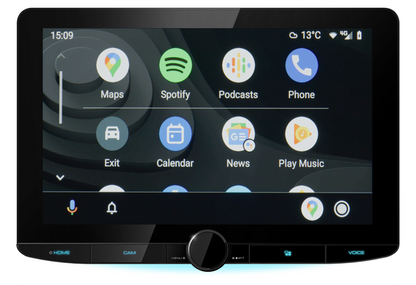

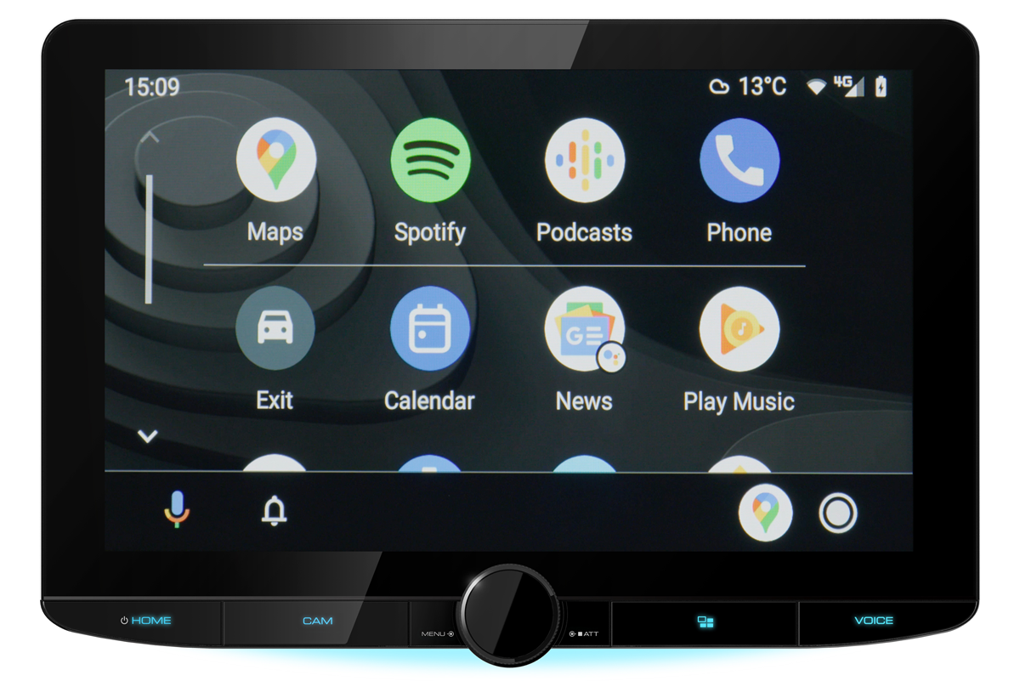

• Works with Android Auto - Wired & Wireless

• Android Open Accessory Protocol - Yes (For Android Auto)

• Kenwood Smartphone Control

Audio features

• Max. Output Power (MOSFET Power IC) - 4 x 50W

• Primary Power Output - 4 x 22W

• Pre-out 3RCA: Front/Rear/Subwoofer

• Pre-out Output Level - 5V

• Volume Offset

• Balance/Fader Control - Yes, (via DSP)

• Loudness Control - Yes, By DSP

• Bass Boost - Yes, (Via DSP)

• Att.(-20dB) with smooth Volume Return

• Equalizer - Yes, 13 Band Graphic EQ

• Digital Sound Processor (DSP)

• Digital Time Alignment (DTA)

• Beep On/Off

Multimedia DSP Features

• Car type control - Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van

• Speaker Size & Location Control

• X'over network - 3-Way / 2-way X'over / HPF / LPF

• Listening postion control / Time Alignment

• Equalizer type - Graphical

• Equalizer - 13-Bands

• Equalizer presets / User set - 8 presets / 4 User set

• Balance & Fader Control

• Source Volume Offset - source independent

• Sound Effects - ► Bass Boost ► Supreme ► Loudness ► Sound Realizer ► Drive Equalizer ► Stage EQ ► Space Enhancer

• Audio Setup Memory

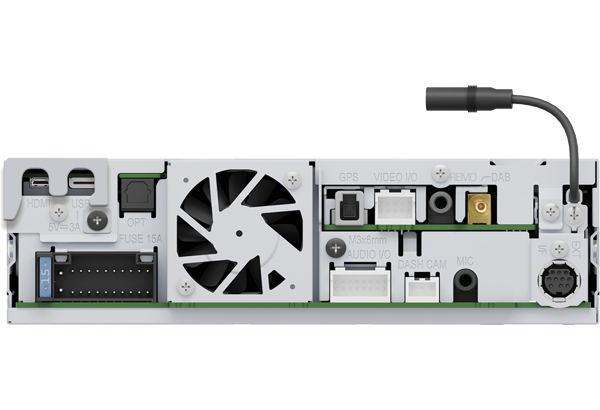

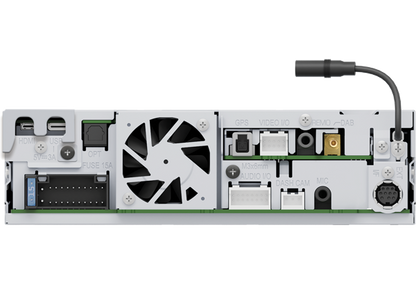

Connectivity

• USB interface - Rear Side
• DC-Cord - 20pin (New Type) to ISO
• Reverse sensor wire
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• 2-way (Tel/Navi) mute wire
• Dimmer control wire
• Speed pulse input wire
• Amplifier pre-out - 3 x RCA: Front/Rear/Subwoofer
• Digital Optical Output
• AV-Input - 1x mini-jack (selectable: AV-in / Camera-in)
• AV Output - Video: RCA / Audio: mini-jack
• Available AV-Out source - AV-in / Off
• Camera inputs - up to 4 camera's
• Rear View Camera Input - NTSC or HD-TVI input
• Front View Camera Input - selectable: Front (NTSC or HD-TVI) or DashCam (NTSC)
• Front Camera / DashCam selectable
• HD camera input - Front & Rear camera input are HD Camera ready
• HDMI input - Type-D
• Dashcam Link
• GPS Aerial Input - GPS antenna included
• FM Antenna Input -  JASO connector
• DAB Aerial input - SMB connector
• External microphone input - 3,5mm mini-jack
• OEM Wired Remote Control ready - Yes, Optional interface needed
• OEM Display Control ready - Yes, Optional interface (KIM) needed
• Learning Steering Remote Function
• Display input/output control

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)

• FM Usable Sensitivity - 0.8μV/75ohm (S/N 30dBf)

• FM Quieting Sensitivity - 1.6μV/75ohm (S/N 15.2dBf)

• FM Frequency Response - 30Hz ~ 15kHz (± 3dB)

• FM Signal to noise ratio (Mono) - 65dB

• FM Selectivity(DIN) - over 80dB (±400kHz)

• FM Stereo Separation (1kHz) - 45dB

• MW range: 531kHz - 1611kHz (9kHz step)

• MW Usable Sensitivity - 45μV

• LW range: 153kHz - 279kHz (9kHz step)

• LW Usable Sensitivity - 25μV

DAB Tuner specifications

• Band III - Frequency range - 174.928 MHz - 239.2MHz

• Mode - I, II, III, IV

• Sensitivity - 100dBm

• Signal to noise ratio - 90dB

• Audio format - MPEG1 Audio Layer II, MPEG4 HE-AAC v2

• DAB Aerial Connector Type - SMB

• Output Voltage - 14.4V (11V to 16V allowable)

• Maximum Current - < 100 mA

Bluetooth specifications

• Technology - Bluetooth V5.0
• Frequency - 2.402 - 2.48 GHz
• Output power - +4dBm(max), power class 2
• Maximum range - Line of sight approx. 10 meter
• Handsfree profile (HFP) - Yes, V1.7
• Serial port profile (SPP)
• Advanced audio distribution profile (A2DP)
• Audio Codec - SBC/AAC/LDAC
• Audio/Video remote control profile (AVRCP) - Yes, V1.6
• Phonebook access profile (PBAP
• Multi Profile Support

USB Specifications

• USB Version compatibility - USB 2.0 High Speed
• File System - FAT 16/32 / exFAT / NTFS
• Maximum Supply current - 1500mA
• D/A Converter - 24/32 bit
• Video Decoder - MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
• Audio Decoder - MP3/WMA/AAC/WAV/FLAC/Vorbis
• S/N Ratio - 98.5 dB (1kHz)
• Dynamic Range - 89dB

Audio Specifications

• Maximum Power - 50 W x 4
• Output Power (DIN45324,+B=14.4v) - 22 W x 4
• Output frequency band - 20 Hz ~ 88 kHz
• Preout Level - 5000 mV / 1 kOhm,
• Preout Impedance - ≤ 300 Ohm
• Speaker Impedance - 4 Ohm ~ 8 Ohm

DSP Specifications

• Frequency band - 62.5/100/160/ ~ /6.3k/10k/16k Hz

• Equalizer Gain - –9db ~ +9db

• Time Alignment - 0 — 610cm(1 cm step)

• Speaker type - Center ► NONE ► 40mm X 70mm ► 5cm ► 10cm ► 13cm ► 16cm OVER

• Speaker type - Front ► O.E.M. ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10"

• Speaker type - Rear ► NONE ► O.E.M ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10"

• Speaker type - Sub woofer ► NONE ► 16cm ► 20cm ► 25cm ► 30cm ► 30cm over

• 2-Way X'over / Front/Rear (HPF) / Frequency - Through, 30/40/50/ ~ /220/250 Hz

• 2-Way X'over / Front/Rear (HPF) / Slope - -6/-12/-18/-24 (dB/oct)

• 2-Way X'over / Subwoofer (LPF) / Frequency - 30/40/50/ ~ /220/250 Hz, Through

• 2-Way X'over / Subwoofer (LPF) / Slope - -6/-12/-18/-24 (dB/oct)

• 3-Way X'Over / High Pass Filter Frequency - Through, 30/40/50/ ~ /220/250 Hz

• 3-Way X'Over / High Pass Filter Slope - -12/-18/-24 (dB)

• 3-Way X'Over / Low Pass Filter Frequency - 30/40/50/ ~ /220/250 Hz, Through

• 3-Way X'Over / Low Pass Filter Slope - -12/-18/-24 (dB/Oct

• Subwoofer Level  - -50dB ~ 10dB

• Car type control ► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUV ► Passenger Van

Video Specifications

• Colour System of External Video Input - NTSC/PAL

• External video input level (mini-jack) - 1 Vpp / 75 Ohm

• External audio max. input level (mini-jack) - 2 Vpp / 25 kOhm

• Video input level (RCA) - 1 Vpp, 75 Ohms

• Video Output Level (RCA) - 1 Vpp / 75 Ohm

• Audio Output Level (mini-jack) - 0.9 Vpp / 10 kOhm

• HDMI - VGA input resolution - 640x480p @59.94Hz/60Hz

• HDMI - 480p input resolution - 720x480p @59.94Hz/60Hz

• HDMI - 720p input resolution - 1280x720p @59.94Hz/60Hz

• HDMI - input Audio type - 16/20/24-bit Linear PCM

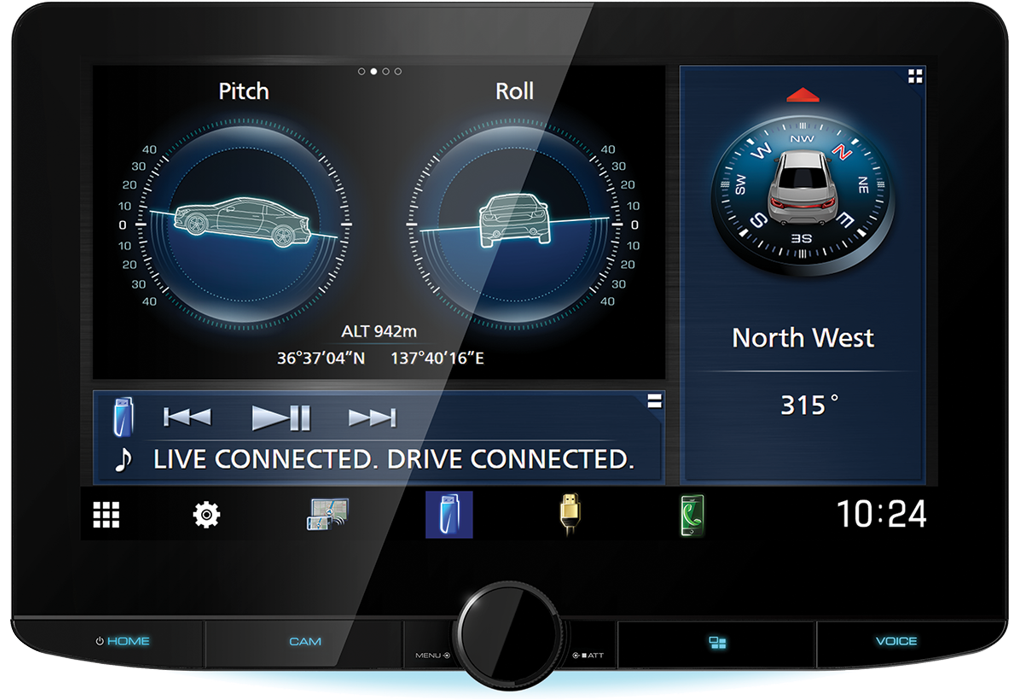

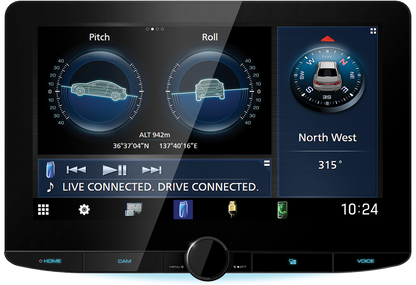

Monitor Specifications

• Screen size (Diagonal) - 10.1 Inches Wide

• Screen Size (WxH) - 223.7 x 125.8mm

• Display system - AAS (Azimuthal Anchoring Switch) LCD panel

• Drive system - TFT Active Matrix System

• Number of Pixels - 2764800pixels (1280(H) x 720(V) x RGB)

• Effective pixels - 99.99%

• Pixel arrangement - RGB Striped

• Back lighting - LED (Light Emitting Diode)

General Specifications

• Operating voltage - 14.4V (11 ~ 16V Allowable)

• Dimensions Monitor - 262 x 181 x 52mm

• Weight Monitor - 1.1 kg

• Dimensions Chassis (WxHxD) - 178 x 50 x 158mm

• Weight Chassis - 1.3 kg.

• Weight Chassis + Monitor - 2.4 kg.

Accessories

• Bracket - Arm bracket for the monitor unit

• DC cord - 25 cm

• RCA Audio-In/Out Connection Cable

• RCA Video-In/Out Connection Cable

• usb extension cable - Type-C, 1 meter

• USB Adaptor - Type-C to Type-A

• Screws (Parker-type) - Ø 3 x 6mm, 3 pieces

• Pan Head Screw (M-Type) - M4 x 8mm, 8 pieces

• Hex Head Screw (M-Type) - M4 x 12mm, 4 pieces

• GPS antenna - with 3.5 m cable

• GPS Antenna Ground Plane Mount (Adhesive Metal Pad)

• Handsfree Microphone - with 3 m cable

• Multi-Language Instruction Manual Included - Quick-Guide + Instruction manual

• Manuals Downloadable
