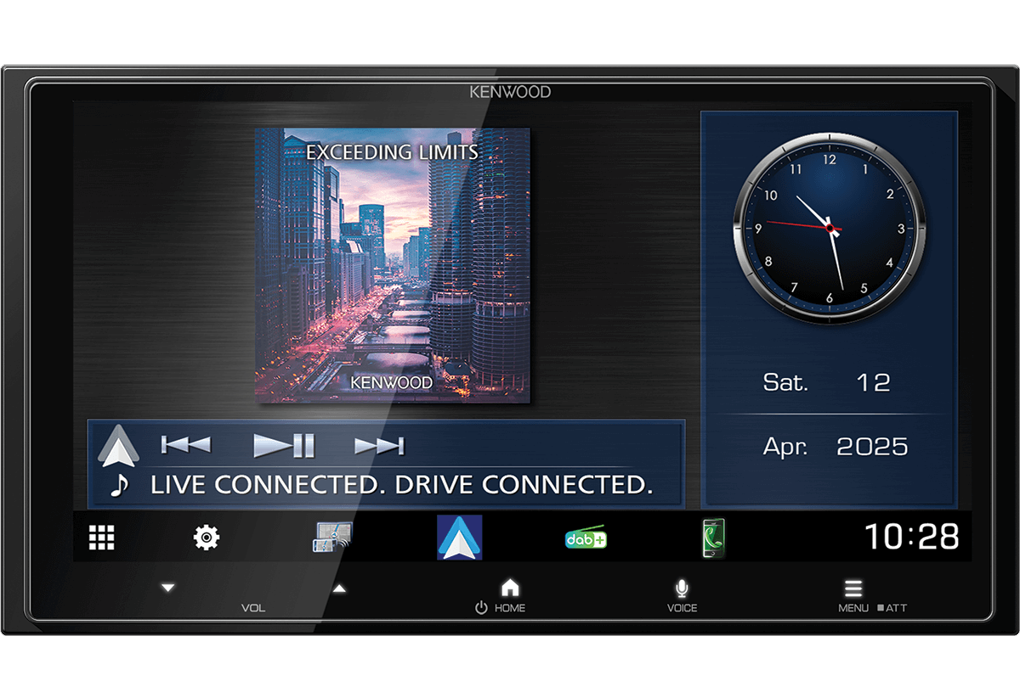

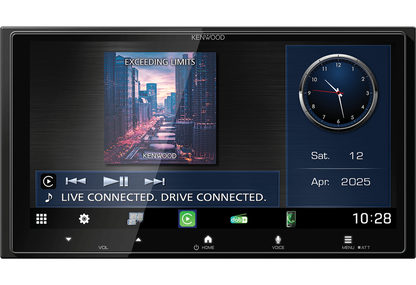

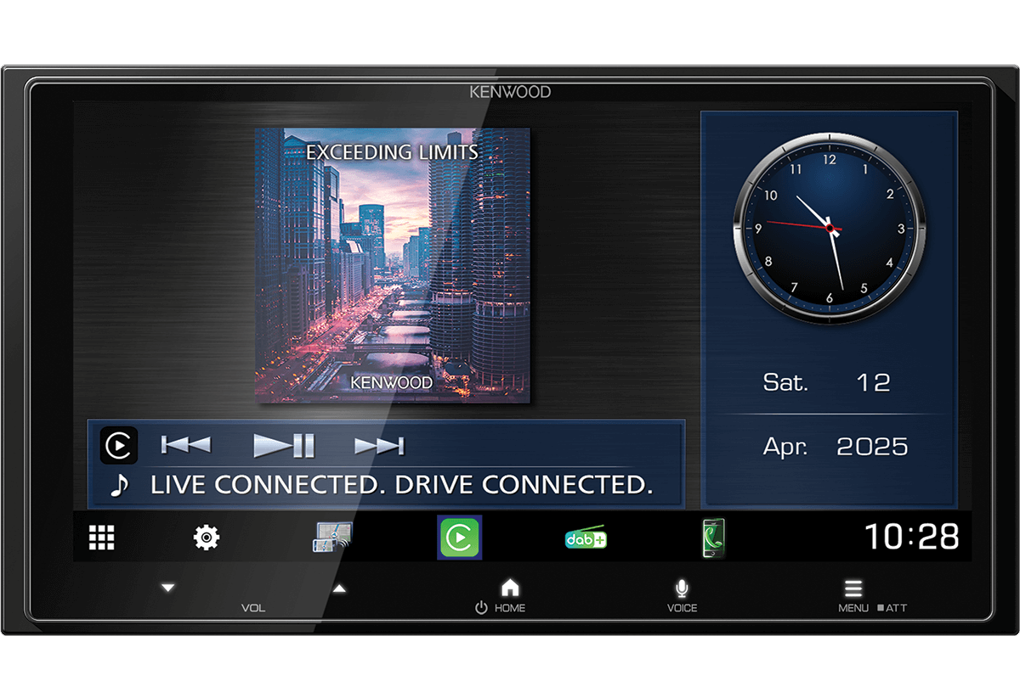

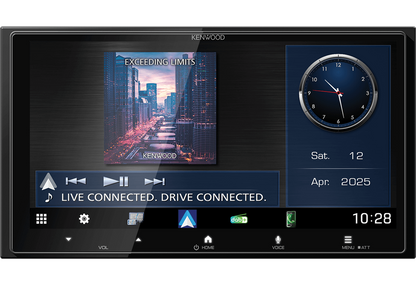

With a bright 6.8″ high-definition capacitive touchscreen, this unit delivers an intuitive and responsive user experience, making every drive more enjoyable.

Key Features

• 6.8" High Definition screen with high luminance LED backlight and superior wide viewing angles.

• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.

• Wireless & Wired iPhone & Android Screen Mirroring with Car-EasyConnection app (Touch control via USB wired Android only)

• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,

• Built-in Bluetooth® Hands-free calling & Audio Streaming.

• High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)

• 3 Preouts (3.0V) to customise & upgrade your audio system

• 13 Band EQ & Digital Time Alignment to optimise the sound performance

• Rear View Camera Input with Parking Guidelines, compatible with HD camera

• 2DIN Short Chassis Design for more flexible installation

General Features

• DIN Size - 2 DIN

• Smooth GUI

• Selectable GUI Background Wallpaper

• Key Illumination White colour

• Attenuator with Smooth Volume Return

• Touch Sensor Tone

• Optional IR remote controller - Yes, (KNA-RCDV331)

• Digital Clock (24H)

• Built-in Bluetooth

• DAB Tuner Built-in

• Wifi built-in

• Made for iPhone

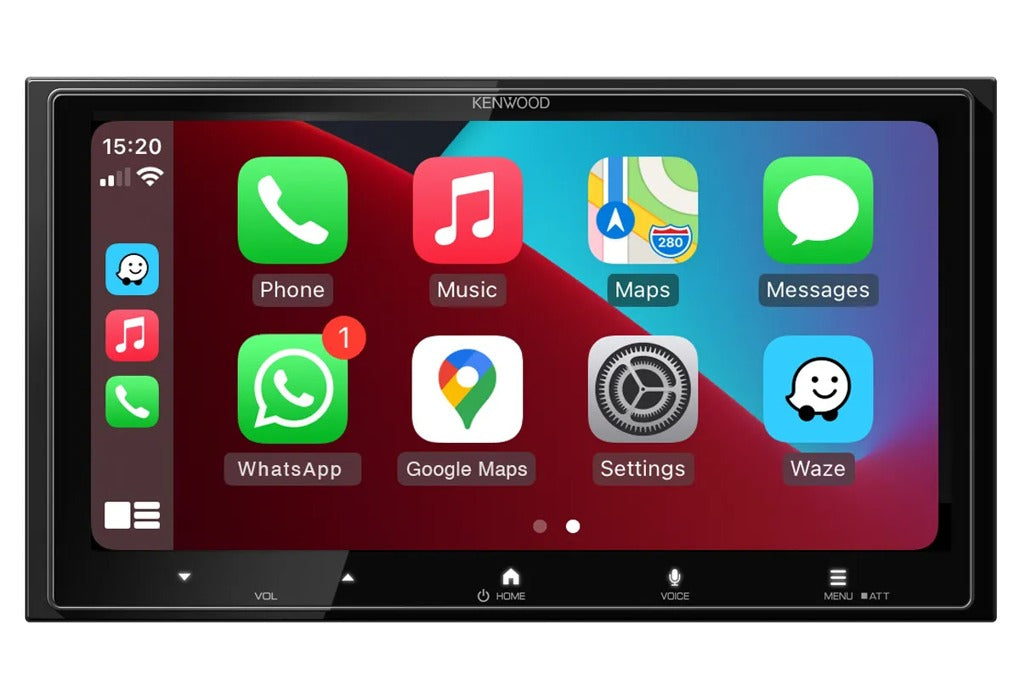

• Apple CarPlay – Connect Wirelessly or via USB

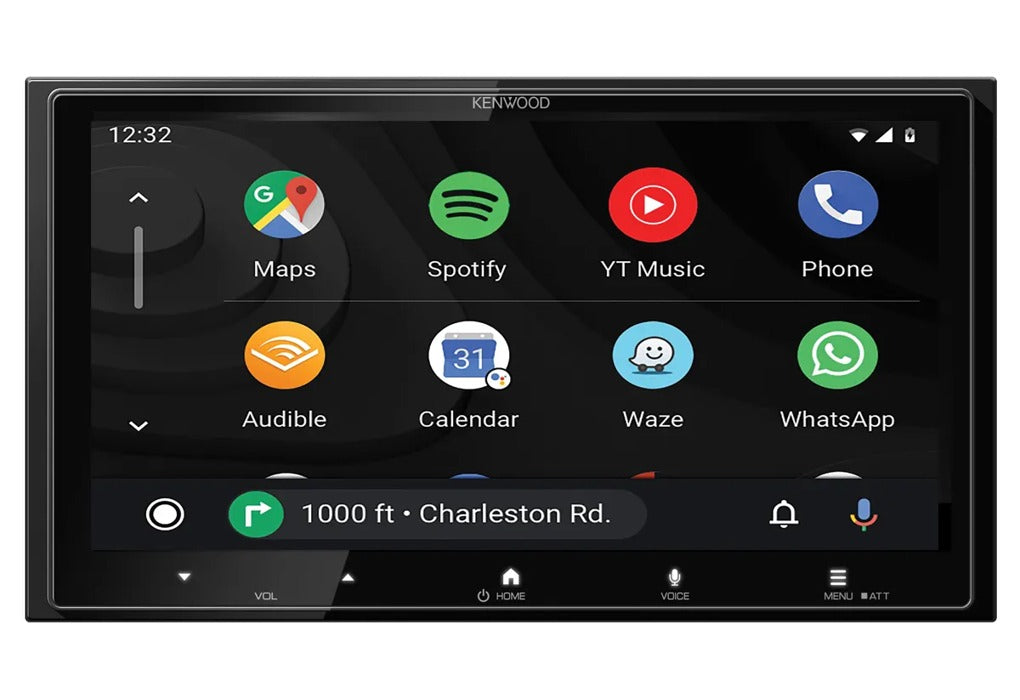

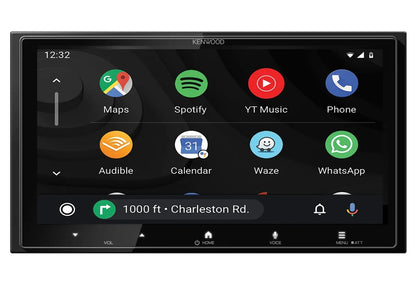

• Android Auto™ – Connect Wirelessly or via USB

• Wired & Wireless screen-mirroring for IOS & Android - with CarbitLink-Easy Connection app

• Firmware upgreadable

• Gyro Sensor Built-in

Monitor Features

• Screen Type - 6.92" High Definition

• Display Type - Glare

• Display Panel - Capacitive

• Display film - Anti Fingerprint

• High Definition Display

• LCD backlight - White LED

• Display Mode - 3 Mode (Full(default)/Auto/Normal)

• Screen Adjustments - Colour / Contrast / Backlight

• Dimmer function - SYNC by Illumination line

• Dimmer Level - Auto/On/Off

• Visual Source Mode - Mirorring / CarPlay / Android Auto.

• Mechanism type - Fixed

• NTSC/PAL judge - Yes (Auto)

• Display Off Mode

Multimedia GUI Features

• OSDC Type - Graphic

• Menu text - available languages:

• ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Greek ► Polish ► Czech ► Hungarian

• Demonstration Mode

• Top Menu Customize

• Opening Screen Type - KENWOOD

• Wallpaper customizable Preset x4

• R-CAM interrupt

• R-CAM Parking Guide Lines - Built-in, customizable

• Network & Wifi features

• WiFi built-in - built-in

• Frequency Range - 5 GHz (5,745– 5,825 GHz)

• Output Power - 5GHz / SISO: 13.78 dBm

• Wireless connection for Apple CarPlay

• Wireless connection for Android Auto

• Wireless connection for iPhone & Android Mirroring - with CarbitLink-Easy Connection app

Tuner Features

• FM Reception

• AM (MW/LW) Reception

• Tuning mode - Auto1/Auto2/Manual

• Up/Down Seek/Scan

• Tuner Presets (FM/AM) - 20 Presets (15FM / 5AM)

• Automatic Memory Entry (AME)

• Radio Data System

• Radio Text Plus

• Traffic Information

• Local search

• AF Regional - Selectable: AF/AF Reg/OFF

• Enhanced Other Networks Function (EON)

• Program Type Function (PTY)

CE DAB tuner features

• DAB+ tuner built-in

• DAB/DAB+ Band - Band III

• DAB-DAB/DAB-FM auto switch

• Seamless DAB-FM blending

• Tuning mode / Seek mode - Auto1/Auto2/Manual

• Service preset - 15 ch * 1 bank presets,

• Alphabet Search

• Service list by alphabet order

• Intelligent seek

• Announcement Switching (ASW) Select

• DLS (Dynamic Label)

• PTY (Programme Type) search

• Slide Show

• Soft linking

• Antenna power supply on/off switch

• Digital Radio Certification Mark

Bluetooth General Features

• Hands Free Profile (HPF) - V1.7

• 2 phones full time connection

• Audio Streaming (A2DP) - (SBC/AAC)

• Serial Port Profile (SPP)

• Simple Secure Pairing (SSP)

• Phonebook Access Profile (PBAP)

• PBAP call history - Up to 20 entries of dialed, received and missed calls

• Audio/Video Remote Control Profile (AVRCP) - V1.5

• Wireless Music Browsing (AVRCP)

• Private mode

• Interrupt call request

• Alphabet Search (Phonebook)

• Voice Control

• Noise Canceller

• Echo Canceller

• High-quality noise canceling microphone - Included (rear wired)

• Bluetooth firmware upgradeable - Yes, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable - USB

• MP3 files are playable - USB

• WMA (.wma) files are playable - USB

• WAV (.wav) files are playable - USB

• FLAC files are playable - USB

CE_Playable Video file

• MPEG1/2 files are playable - USB

• MPEG4 files are playable - USB

• WMV files are playable - USB

• H.264 files are playable - USB

• mkv files are playable - USB

USB Features

• USB Type - Type-A (2.0 High speed)

• Drive Change

• File System - FAT16 / FAT32 / exFAT / NTFS

• Works with Android Auto

• Works with Apple CarPlay

• USB Screen Mirroring - with CarbitLink-Easy Connection app

• Tag Information Display

• Album Art Display

• Repeat Play - Folder/File/All

• Random play - Folder

• Category search

• Link Search

• Last Position Memory / Resume

• Time code display

• USB ports maximum output current - 2.1A

iPhone Features

• Connection via: USB / Bluetooth

• Plug & Play

• Made for iPhone

• Tag Information Display

• Time Code Display

• List Access

• Album art support

• Random Play

• Repeat Play

• Skip

• iAP over Bluetooth

• Works with Apple CarPlay - Wired & Wireless

Android Phone Control

• Connection via - USB / Bluetooth

• Works with Android Auto - Wired & Wireless

• Android Open Accessory Protocol - Yes (For Android Auto)

Audio features

• Max. Output Power - 4 x 50W

• Primary Power Output - 4 x 22W

• Pre-out 3RCA: Front/Rear/Subwoofer

• Pre-out Output Level - 3V

• Volume Offset

• Volume Type - DSP

• Built-in Amplifier Off

• Balance/Fader Control

• Beep On/Off

Multimedia DSP Features

• Position Control

• Position Preset - 4 Presets

• Graphic Equalizer - 13 bands

• G-EQ manual setting

• G-EQ adjustable level - +9db / -9dB

• Time Alignment - 0 ~ 610cm

• HPF Cut Off Frequency - 14 steps

• HPF Cut Slope Level - 4 steps

• Low Pass Filter (LPF) - (Non-Fading)

• LPF Cut Off Frequency - 14 steps

• LPF Cut Slope Level - 4 steps

• X'over

• Speaker Size Control

• Channel Level Control

• Loudness

• Tweeter volume

• Bass Boost

• Source Volulme Offset - source independent

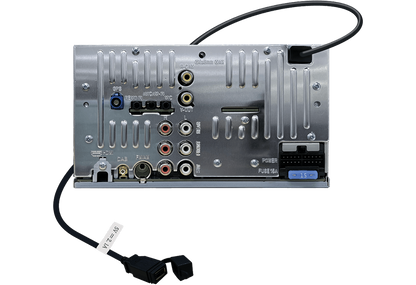

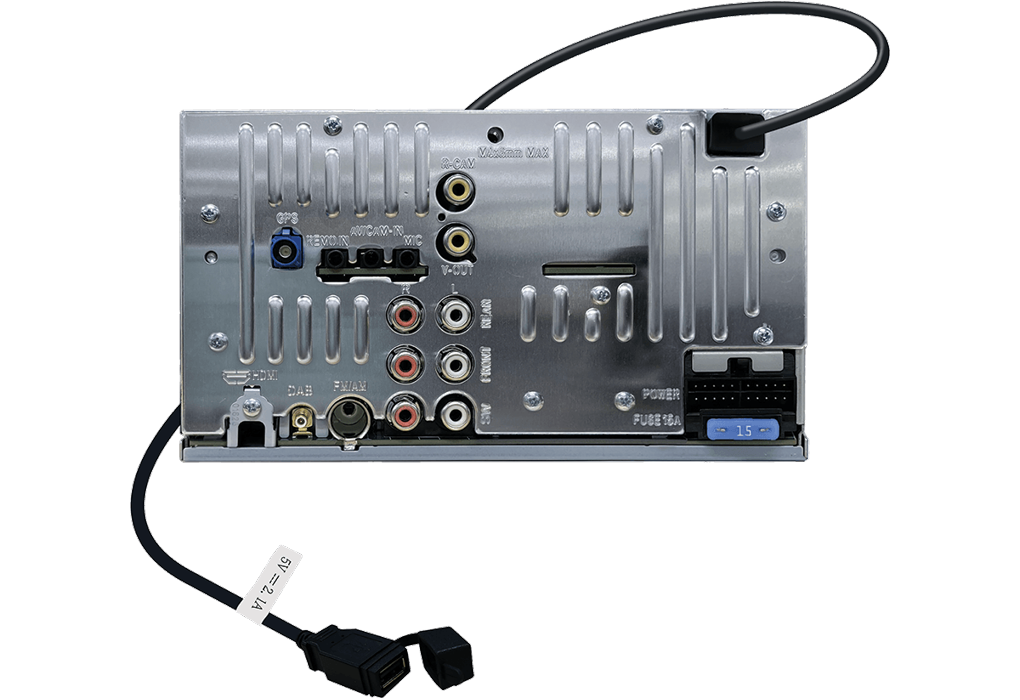

Connectivity

• DC-Cord - 22pin (New Type) to ISO

• Reverse sensor wire

• Parking sensor (handbrake) wire

• Power Control (P.CON) wire

• Dimmer control wire

• Preout  2 x RCA (Front/rear) + Sub (mono)

• AV-Input (Non Switchable) - (Mini-jack) audio & video

• Video Out - RCA x1 (Source: USB)

• Rear View Camera Input Dedicated RCA Video-in

• GPS Aerial Input - GPS antenna included

• FM Antenna Input - JASO connector

• DAB Aerial input - SMB

• External microphone input - 3,5mm mini-jack

• OEM Wired Remote Control ready - Optional interface needed

• Learning Steering Remote Function

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)

• FM Usable Sensitivity - 1.8μV/75ohm (S/N 30dBf)

• FM Frequency Response - 30Hz ~ 14kHz (± 3dB)

• FM Signal to noise ratio (Mono) - 75dB

• FM Stereo Separation (1kHz) - 40dB

• MW range: 531kHz - 1611kHz (9kHz step)

• MW Usable Sensitivity - 29μV

DAB Tuner specifications

• Band III - Frequency range - 174.928 MHz - 239.2MHz

• Mode - Band III

• Sensitivity - 97.7dBm

• Signal to noise ratio - 78dB

• Audio format - MPEG1 Audio Layer II, MPEG4 HE-AAC V2

• Output Voltage - 14V (10.5V to 16V allowable)

• Maximum Current - < 100 mA

Bluetooth specifications

• Technology - Bluetooth V5.3

• Frequency - 2.402 - 2.48 GHz

• Output power - +9 dBm (max), Power Class 1

• Maximum range - Line of sight approx. 10 meter

• Handsfree profile (HFP) - V1.7

• Serial port profile (SPP) - V1.2

• Advanced audio distribution profile (A2DP) - V 1.4

• Audio Codec - SBC/AAC

• Audio/Video remote control profile (AVRCP) - V1.6

• Phonebook access profile (PBAP) - V1.2

USB Specifications

• USB Version compatibility - USB 2.0 High Speed

• File System - FAT 16/32 / exFAT / NTFS

• Maximum Supply current - 2100mA

• D/A Converter - 24bit

• Video Decoder - MPEG1/2/4, WMV, H.264, mkv

• Audio Decoder - MP3, WMA, AAC, WAV, FLAC

Audio Specifications

• Maximum Power - 50 W x 4

• Output Power (DIN45324,+B=14.4v) - 22 W x 4

• Output frequency band - 20 Hz ~ 20 kHz

• Preout Level - 3000 mV / 10 kOhm,

• Preout Impedance - ≤ 1400 Ohm

• Speaker Impedance - 4 Ohm ~ 8 Ohm

Video Specifications

• Color System of External Video Input - NTSC/PAL

• External Video Input Level (RCA) - 1 Vpp / 75 Ohm

• Video Output Level (RCA) - 1 Vpp / 75 Ohm

Monitor Specifications

• LCD Type - High Definition screen

• Screen size (Diagonal) - 6.92 Inches Wide

• Screen Size (WxH) - 156.48 x 80.136mm

• Display system - Transparent TN LCD Panel

• Drive system - TFT Active Matrix System

• Number of Pixels - 2764800pixels (1280(H) x 720(V) x RGB)

• Effective pixels - 99.99%

• Pixel arrangement - RGB Striped

• Back lighting - LED (Light Emitting Diode)

General Specifications

• Operating voltage - 14.4V (8.5 ~ 16V Allowable)

• Maximum Current Consumption - 15A

• Dimensions (WxHxD) - 178 x 100 x 109mm

• Weight - 1140 gr.

Accessories

• DC cord ( to ISO) - 20-pin connector to ISO, 25 cm

• Flat Head Screw (M-Type) - M5 x 8mm, 4 pieces

• GPS Antenna Ground Plane Mount (Adhesive Metal Pad) Yes

• Handsfree Microphone with 3 m cable

• Multi-Language Instruction Manual Included
