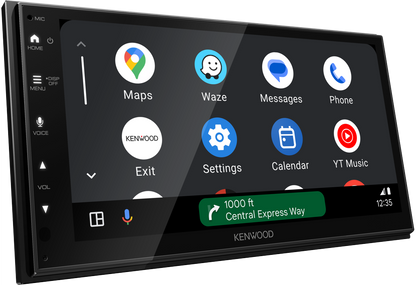

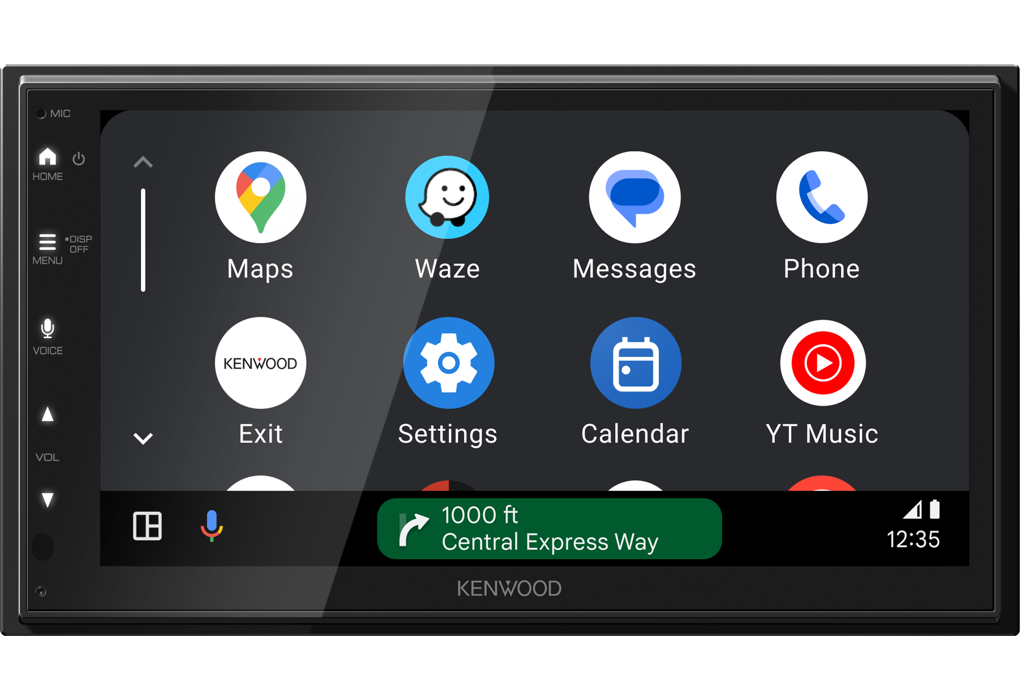

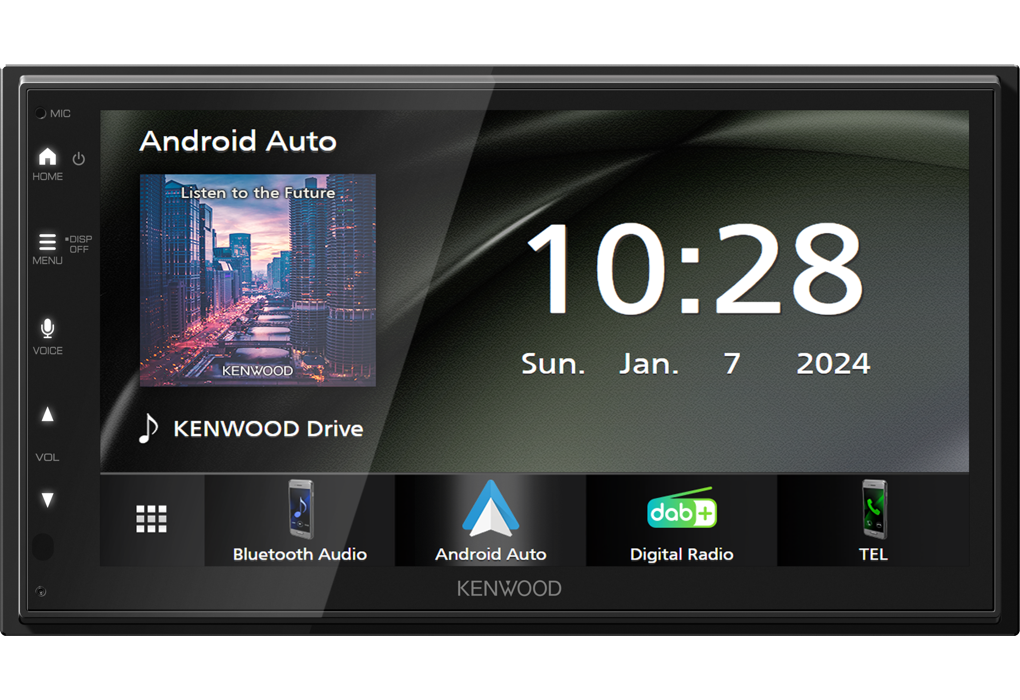

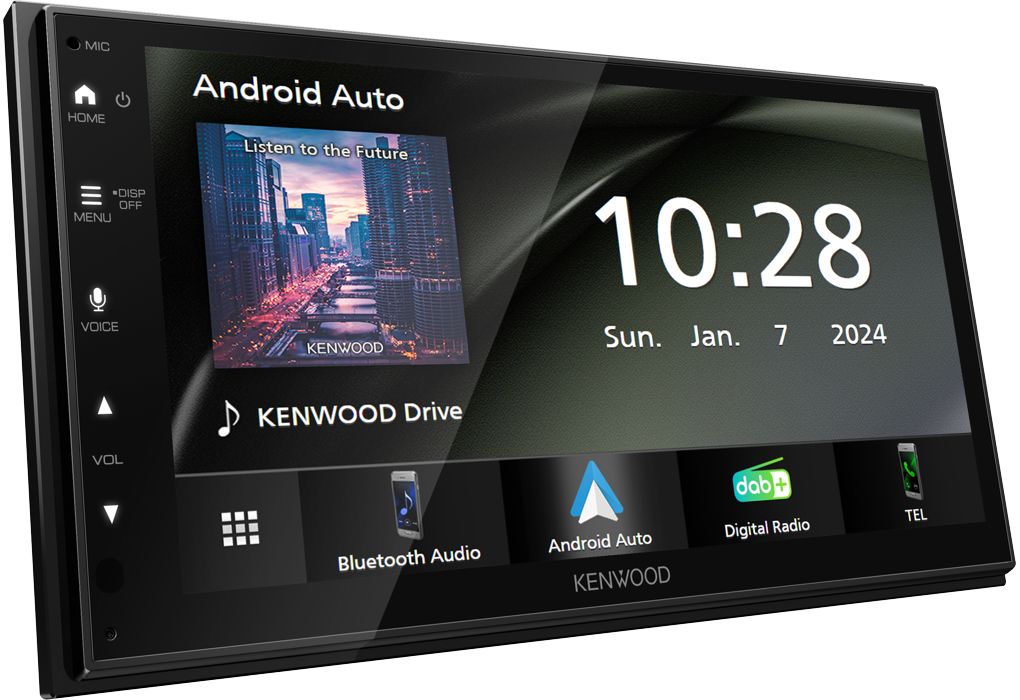

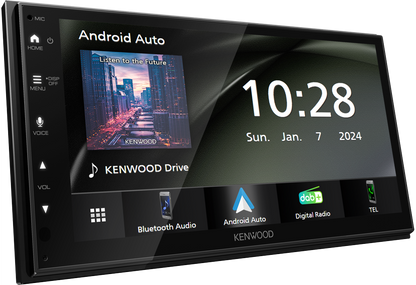

Kenwood DMX5023DABS 2DIN Digital Media AV Receiver with 6.8-inch High-Res WSVGA Display, DAB Tuner and Enhanced Smartphone Connections.

Key Features

• 6.8" WSVGA Display with Capacitive Touch Panel.

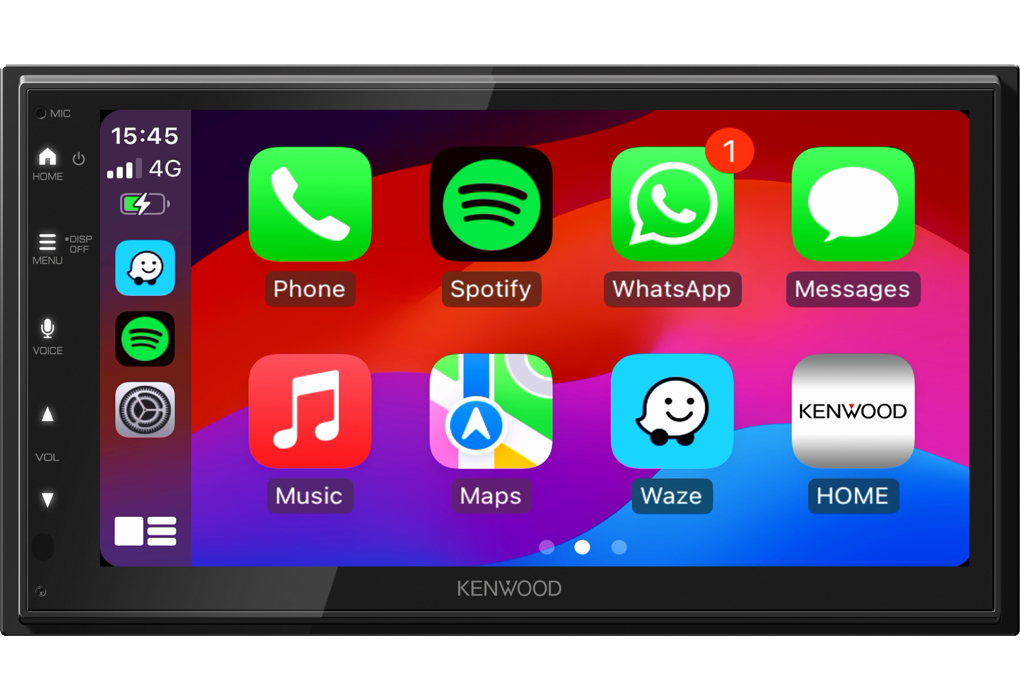

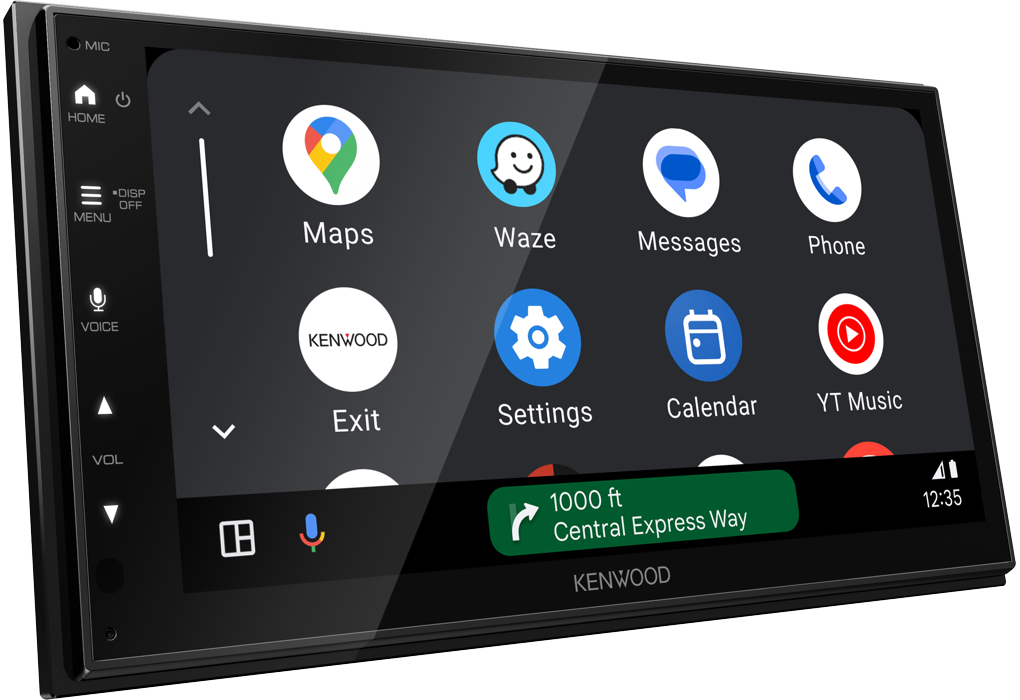

• Wired Apple CarPlay® & Android Auto™ - Connect via USB
• Wired iPhone / Android USB Mirroring.
• Built-in DAB+ Digital radio Tuner
• Built-in Bluetooth® technology for Handsfree calling & Audio Streaming.
• High Current 2.1A Charging USB port.
• Front & Rear + Subwoofer (Mono) Preouts - 2.5V
• 13 Band EQ & Digital Time Alignment
• Rear View Camera Input with Parking Guidelines

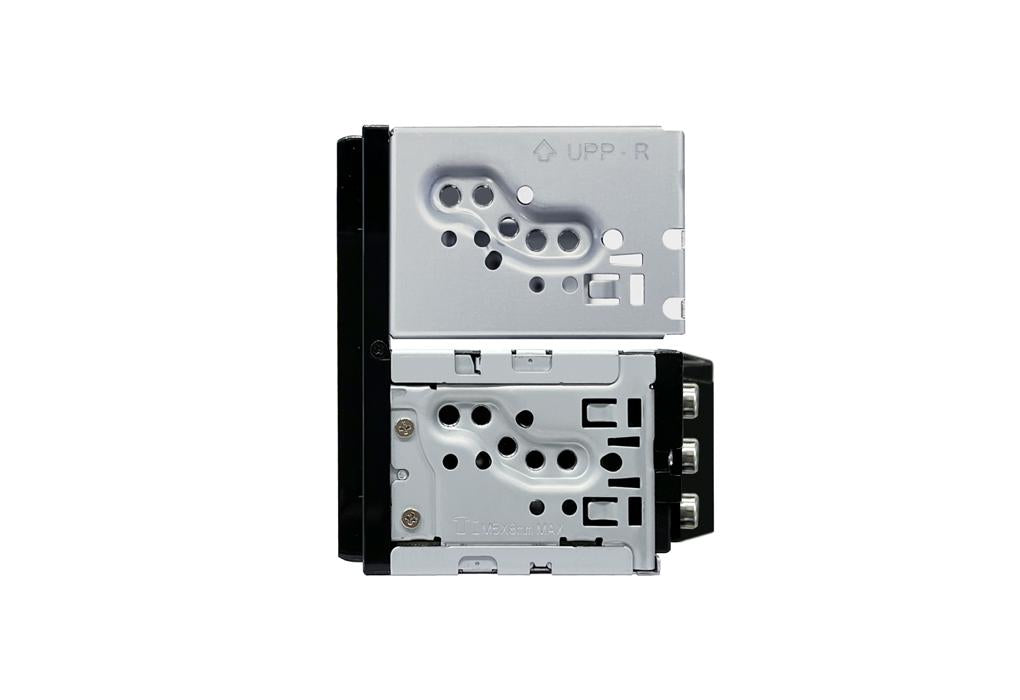

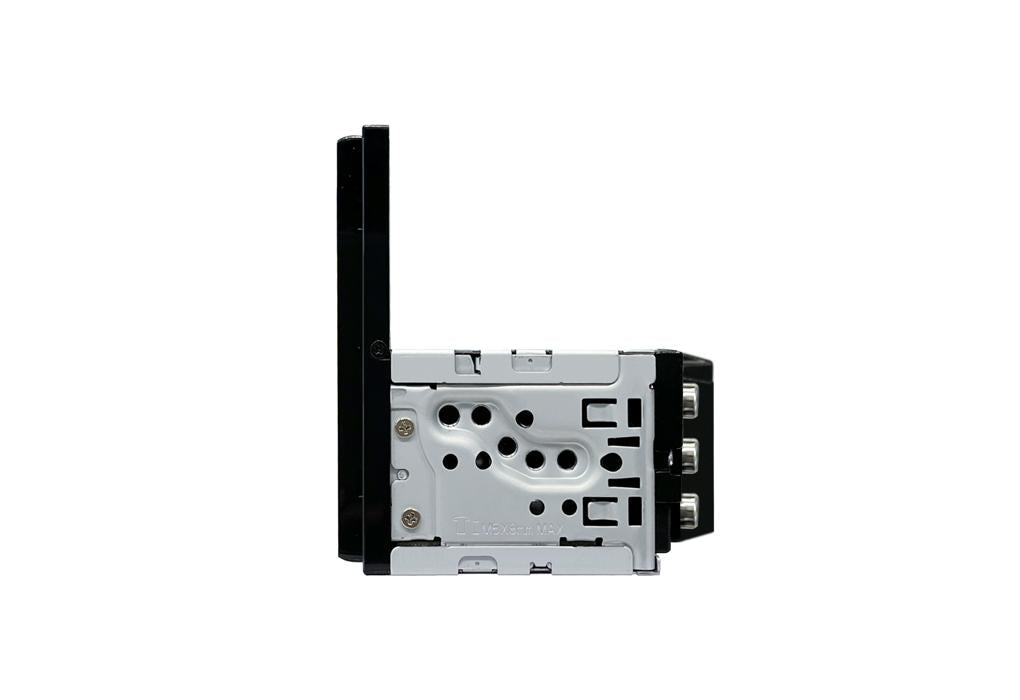

• Single DIN Short Chassis Design for easy installation

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White colour
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller Yes, (KNA-RCDV331)
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Made for iPhone
• Works with Apple CarPlay
• Works with Android Auto
• USB Mirroring for iPhone / Android
• Firmware upgradeable

Monitor Features

• Screen Type 6.8" Wide SVGA
• Display Type Glare
• Display Panel Capacitive
• Display film Anti Fingerprint
• High Resolution WSVGA Screen 1024 x 600 pixel
• LCD backlight  White LED
• Display Mode  3 Mode (Normal(default) / 16:9 / 4:3)
• Screen Adjustments Brightness / Tint / Colour / Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode Mirroring / CarPlay / Android Auto.
• Mechanism type Fixed
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text 14 languages:
• English (UK) (Default) ► English (US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Hebrew ► Greek ► Polish ► Czech ► Hungarian
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type  standard
• Background Customize 6 x presets + 2 x user set
• R-CAM interrupt
• R-CAM Parking Guidelines, Built-in, customizable

Tuner Features

• FM Reception
• AM (MW/LW) Reception
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets
• Service list by alphabet order
• Alphabet Search
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DLS (Dynamic Label)
• PTY (Programme Type) search
• Announcement Switching (ASW) Select
• Slide Show
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) Ver. 1.8
• Audio Streaming (A2DP), (SBC/AAC)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• PBAP call history Up to 20 entries of dialled, received and missed calls
• Audio/Video Remote Control Profile (AVRCP), V1.6
• iPhone & Android automatic pairing via USB
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise cancelling microphone built-in
• Bluetooth firmware upgradeable, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable  USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video file

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• USB terminal, rear side / 1m cable / fix
• USB Type 2.0 High speed
• Drive Change
• File System FAT16 / FAT32 / exFAT / NTFS
• Tag Information Display
• Album Art Display
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Last Position Memory / Resume
• Time code display
• USB ports maximum output current  2.1A

iPhone Features

• Connection via: USB / Bluetooth
• Plug & Play
• Made for iPhone
• Tag Information Display
• Time Code Display
• List Access
• Album art support
• Random Play
• Repeat Play
• Skip
• iAP over Bluetooth
• Works with Apple CarPlay via USB

Android Phone Control

• Connection via USB / Bluetooth
• Works with Android Auto Via USB
• Android Open Accessory Protocol (For Android Auto)

Audio Features

• Max. Output Power 4 x 50W
• Primary Power Output 4 x 22W
• Pre-out 2 RCA: FRONT/REAR + SUB (mono)
• Pre-out Output Level  2.5V
• Volume Offset
• Volume Type DSP
• Built-in Amplifier Off
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ manual setting
• G-EQ adjustable level, +9db / -9dB
• Time Alignment 0 ~ 610cm
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• X'over
• Speaker Size Control
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Source Volulme Offset source independent

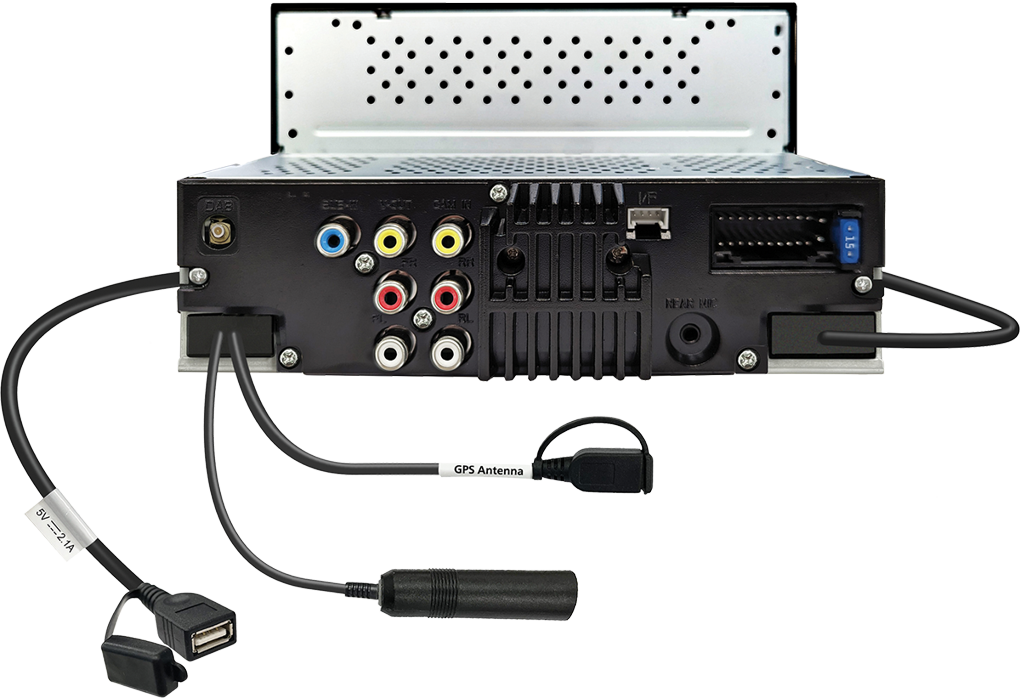

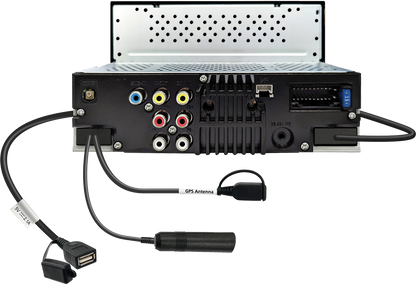

Connectivity

• DC-Cord 22pin to ISO
• Reverse sensor wire
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input (Non-Switchable) (Mini-jack) audio & video
• Video Out RCA x1 (Source: USB)
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input GPS antenna included
• FM Antenna Input JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
• OEM Wired Remote Control ready, Optional interface needed
• Learning Steering Remote Function

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity  1.8μV/75ohm (S/N 30dBf)
• FM Frequency Response 30Hz ~ 14kHz (± 3dB)
• FM Signal to noise ratio (Mono) 50dB
• FM Stereo Separation (1kHz)  35dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 99μV

DAB Tuner Specifications

• Band III - Frequency range 174.928 MHz - 239.2MHz
• Mode Band III
• Sensitivity - 98dBm
• Signal to noise ratio 82dB
• Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC V2
• Output Voltage 14V (10.5V to 16V allowable)
• Maximum Current < 100 mA

Bluetooth Specifications

• Technology Bluetooth V5.0
• Frequency 2.402 - 2.48 GHz
• Output power +9 dBm (max), Power Class 1
• Maximum range Line of sight approx. 10 metres
• Handsfree profile (HFP), V 1.8
• Advanced audio distribution profile (A2DP), V 1.3
• Audio Codec SBC/AAC
• Audio/Video remote control profile (AVRCP) , V1.6
• Phonebook access profile (PBAP), V1.2

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System FAT 16/32 / exFAT / NTFS
• Maximum Supply current 2100mA
• D/A Converter 24bit
• Video Decoder MPEG1/2/4, WMV, H.264, mkv
• Audio Decoder MP3, WMA, AAC, WAV, FLAC

Audio Specifications

• Maximum Power 50 W x 4
• Output Power (DIN45324,+B=14.4v)  22 W x 4
• Output frequency band 20 Hz ~ 20 kHz
• Preout Level 2500 mV / 10 kOhm,
• Preout Impedance ≤ 1400 Ohm
• Speaker Impedance 4 Ohm ~ 8 Ohm

Video Specifications

• Colour System of External Video Input NTSC/PAL
• External Video Input Level (RCA) 1 Vpp / 75 Ohm
• Video Output Level (RCA) 1 Vpp / 75 Ohm

Monitor Specifications

• Screen size (Diagonal) 6.8 Inches Wide
• Display system Transparent TN LCD Panel
• Drive system TFT Active Matrix System
• Number of Pixels 1843200pixels (1024(H) x 600(V) x RGB)
• Effective pixels 99.99%
• Pixel arrangement RGB Striped
• Back lighting LED (Light Emitting Diode)

General Specifications

• Operating voltage 14.4V (10.5 ~ 16V Allowable)
• Dimensions (WxHxD) 178 x 100 x 86mm
• Weight 1070 gr.
• Weight, inclu. sleeve & escutcheon 1.07 kg

Accessories

• Release keys 2 pieces
• Escutcheon
• Installation Sleeve
• DC cord 25 cm
• GPS Antenna Ground Plane Mount (Adhesive Metal Pad)
• Multi-Language Instruction Manual Included
