Camera Specifications

• Camera Type 1/3.6" colour CMOS sensor
• Colour type
• Effective number of pixels roughly 330000
• High sensitivity Pixels

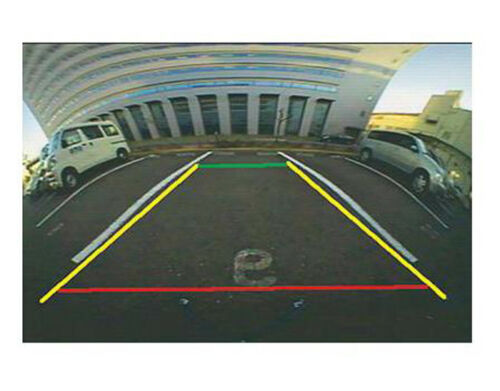

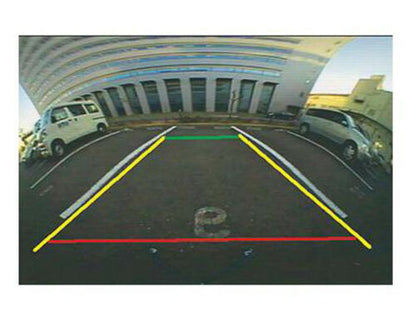

• Output video wide-angle mirror image
• Waterproof chassis
• Mounting system Flexible mount base
• Installation positions Rear
• Rear view switching Reverse line
• High voltage protection
• Wide angle lens
• Focal length f: 1.12mm, F value 2.2
• Horizontal Angle view +/- 128°
• Vertical Angle View +/- 103°
• Illumination range approx. 0.9 to 100000 lux
• Iris System Electronic
• White balance Automatically
• Scanning System    Interlace
• Synchronizing System Internal
• Video output level 1Vpp, 75O
• Video signal format NTSC (Mirror view)
• Connection cable (DC+video) 9 m

General Specifications

• Operating voltage 14.5V (9 ~ 16V Allowable)
• Maximum Current Consumption 0.05A
• Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
• Weight 22gr
• Operation Temperature Range -30°C ~ 70°C
• Storage Temperature Range -40°C ~ 80°C
