The JVC KW-Z900DBW delivers style, flexibility, and advanced connectivity in a sleek single-DIN design with a floating 9-inch HD display. Perfect for drivers who want a larger screen without sacrificing dashboard space, it offers crisp visuals, intuitive control, and powerful audio customization.

Features

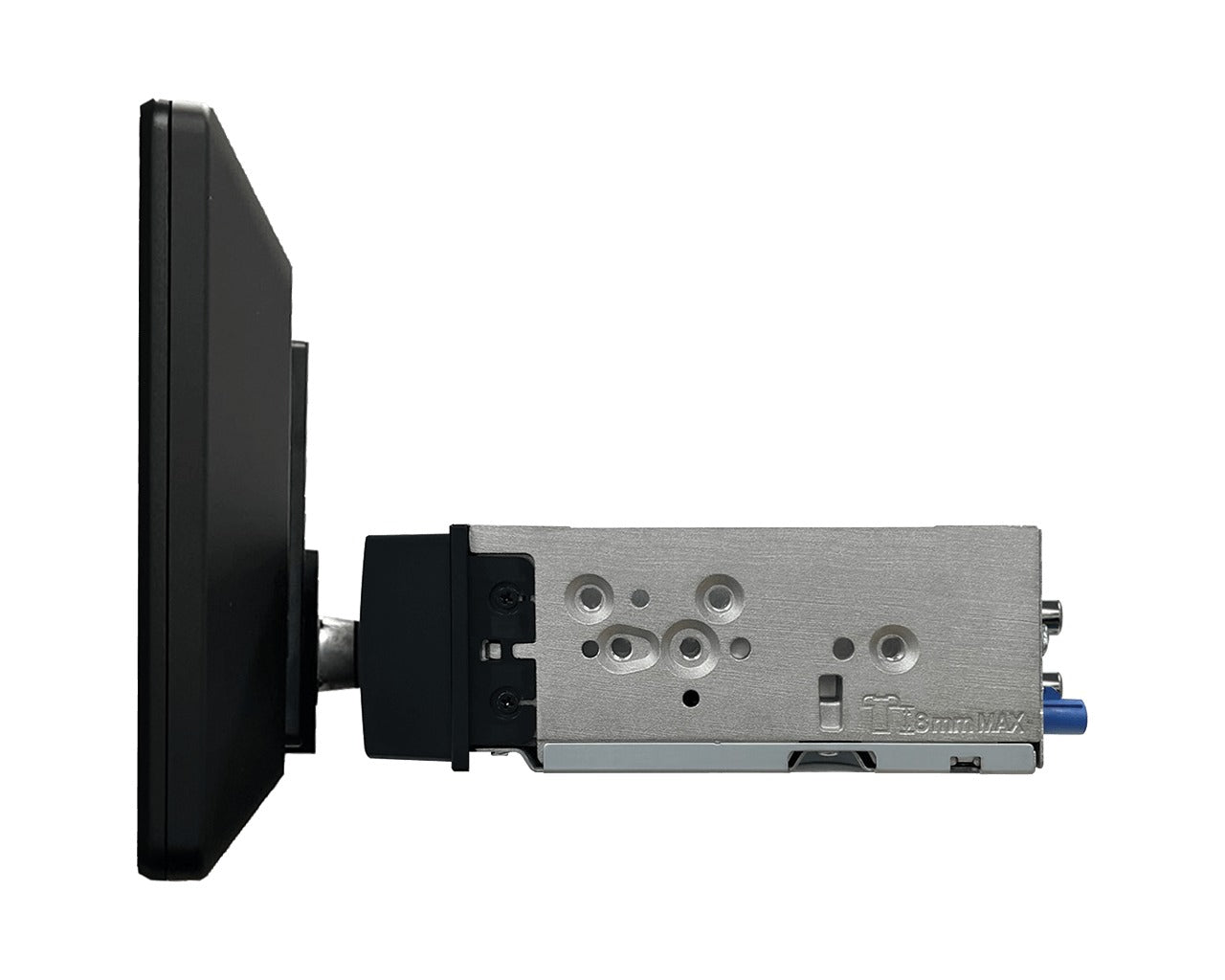

• 360° Fully Adjustable Floating Mechanism

• 9.0" Display with HD LCD screen, sharp & high-contrast images, vivid colours and wide viewing angles.

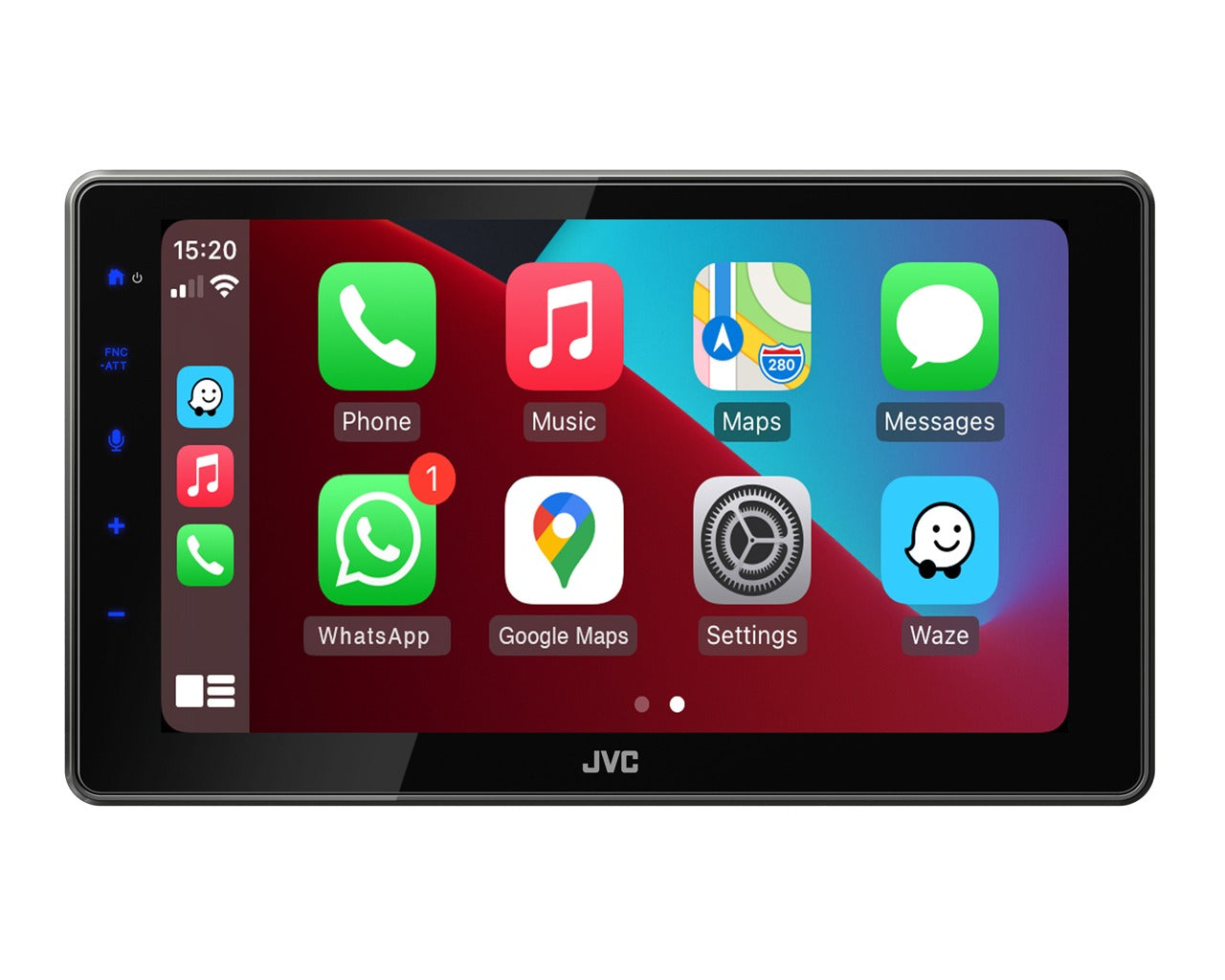

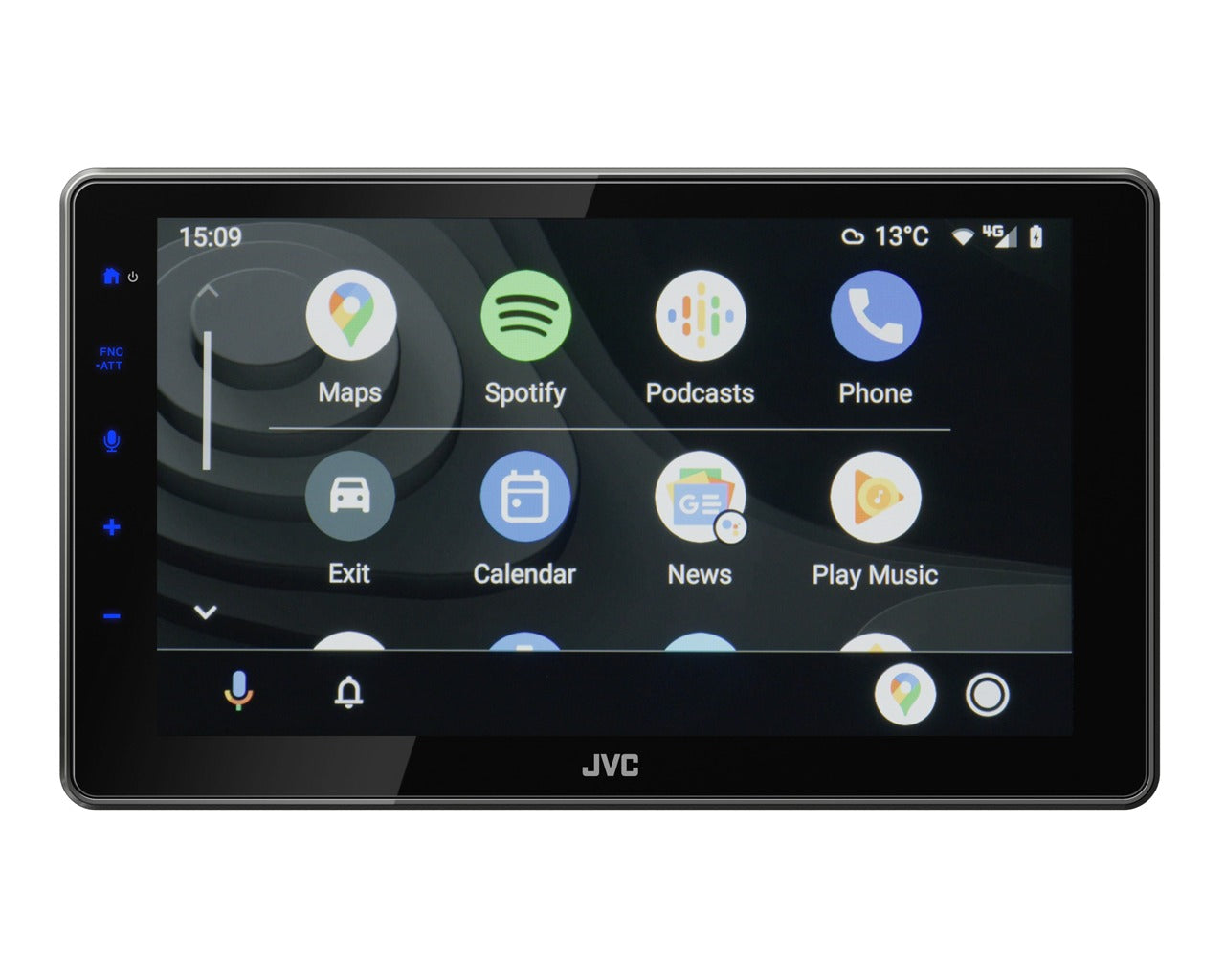

• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.

• Wired & Wireless Screen Mirroring with CarbitLink-EasyConnection app for IOS & Android

• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,

• Bluetooth(R) Wireless Hands-Free Calling (*Available functions depend on smartphone).

• High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)

• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.

• 1x AV input • 1x Video output • 1x Rear View Camera input • HD camera ready.

• 3 RCA line outs (3.0V) to upgrade your system with power amplifiers to create a more immersive audio experience.

Monitor

• Screen Size - 9 inches (diagonal) wide

• High Definition Monitor - 1280 x 720 px

• Touch Panel Type - Capacitive with Anti-finger Print film

• Display System - TN LCD panel

• Drive System - TFT active matrix system

• Number of Pixels - 1,152,000 (800 x 480 x RGB)

• Effective Pixels - 99.99 %

• Pixel Arrangement - RGB striped arrangment

• Back Lighting - LED

• Touch Control

• Gesture Touch Control

• Key Illumination Colour - Blue

• Dimmer - Illumination line Sync (Auto/On/Off)

• Customizable GUI

• Multilanguage Display - Yes, available languages:

• ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Greek ► Polish ► Czech ► Hungarian

Radio Tuner

• DAB+ Tuner:

• Digital Radio Certification Mark

• DAB+ Frequency Band III - 174.928MHz to 239.2MHz

• DAB-DAB / DAB-FM Auto Switch

• Seamless DAB-FM Blending

FM Tuner:

• Radio Data System (RDS) - (with Radio Text Plus)

• FM Frequency Range - 87.5 ~ 108.0MHz (50kHz step)

AM Tuner:

• AM Frequency Range - 531kHz ~ 1,611kHz (9kHz Frequency Step)

• Preset Stations  20 (FM:15ch, AM:5ch)

• Tuner Preset Back-up Memory

• Automatic Preset / SSM

Media Playback

Audio Decoder:

• MP3 Compatible with Tag

• WMA Compatible with Tag

• WAV Compatible with Tag

• AAC Compatible with Tag

• FLAC Compatible with Tag

Video Decoder:

• MPEG-1 / MPEG-2 Compatible

• MPEG-4 Compatible

• WMV Compatible

• H.264 Compatible

• MKV Compatible

USB

• USB Standard - High Speed 2.0

• Location - Rear

• File System - FAT16 / FAT32 / exFAT

• USB Mass Storage Class

• Drive Change Mode for Mass Storage Class

• Tag Information Display

• Album Art Display

• List Access

• Alphabet Search

• Category search

• Link Search

• Random / Repeat Play

• Skip

• Time Code Display

• Last Position Memory / Resume

Bluetooth

• Built-In Bluetooth [1] -  (Version 5.0)

• Supported profiles - Multi profile

• Hands Free Call (HFP) - (HFP1.8)

• Advanced Audio Distribution Profile (A2DP) - V1.3.2

• Audio/Video Remote Control Profile (AVRCP) - V1.6.2

• Phone Book Access Profile (PBAP)

• Alphabetical Search for Phone Book

• Serial Port Profile (SPP)

• 2 Phones Full-Time Connection

• Supported Audio Formats - AAC / SBC

• JVC Streaming DJ - with up to 5 Bluetooth devices

• Auto Pairing

• Noise Canceller

• Echo Canceller

• Wired Microphone included

Wi-Fi Control

• Built-in Wi-Fi

• IEEE Standard - 802.11 a/b/g/n/ac

• Frequency Range - Dual Band (2.4GHz/5GHz)

Android Control

Android Auto:

• Android Auto wired - (via USB)

• Android Auto wireless - (WiFi)

iPod/iPhone Control

Carplay:

• CarPlay wired - (via USB)

• CarPlay wireless - (WiFi)

Audio

• Maximum Power Output (Front & Rear) 50W x 4

• Full Bandwidth Power (at less than 1%THD) 22W x 4 (Front & Rear)

• Speaker Load Impedance 4 Ω ~ 8 Ω

• Output Frequency Band 20 Hz ~ 88.000Hz

EQUALIZER:

• 13-Band Graphic EQ

• Preset EQ-  Preset x8 + User x4 / Source

• Volume Link EQ

• 3-Way X'over

• High-Pass Filter/Low-Pass Filter

• Digital Sound Processor (DSP)

• Time Alignment

• Space Enhancement

• Sound Response

• Sound Lift

• Loudness Control

• Bass Boost (Hyper Bass System)

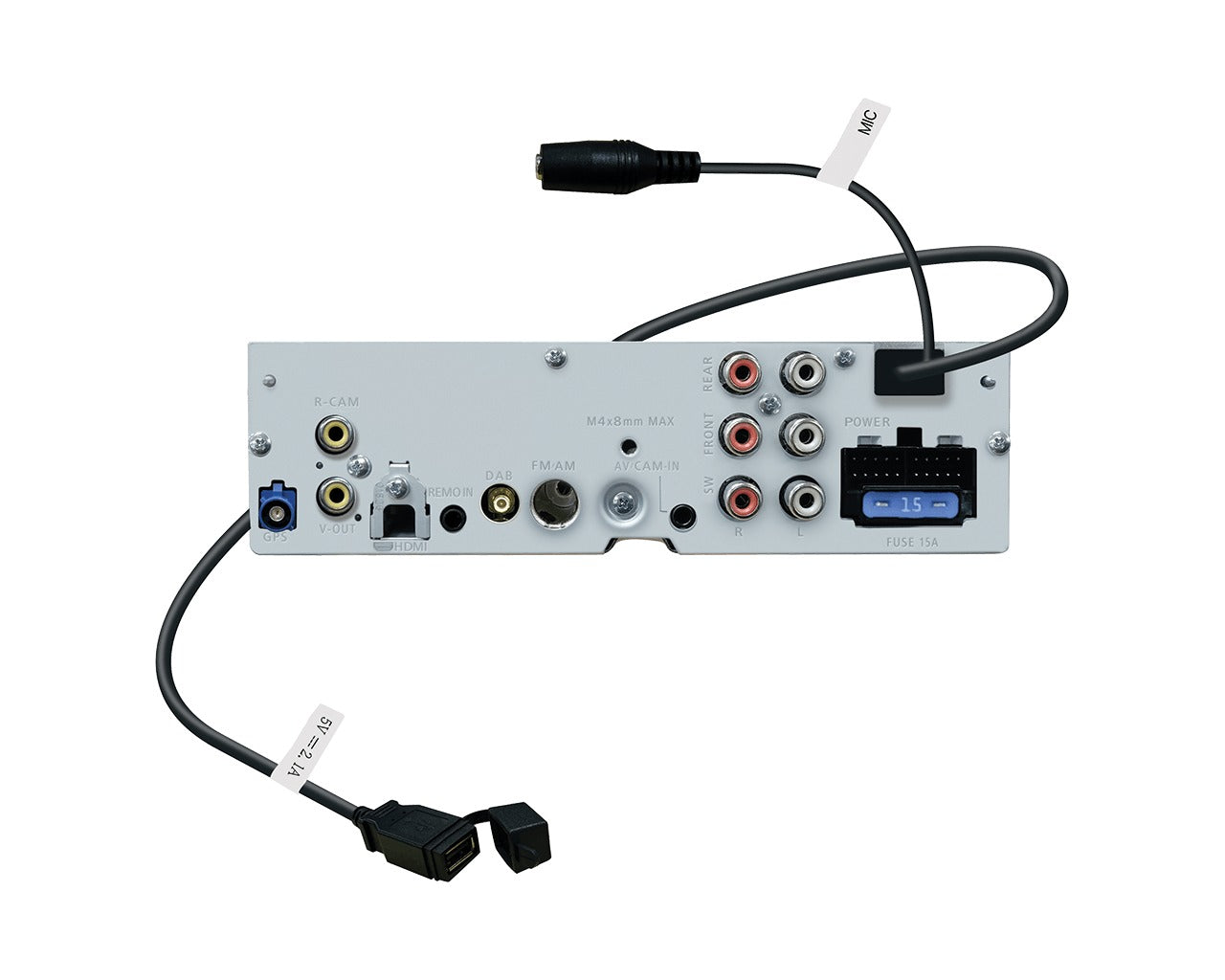

Inputs and Outputs

Audio Inputs and Outputs:

• Pre-Out Terminals - 3 Pairs (Front + Rear + Subwoofer)

• Pre-Out Impedance - Less than 600 ohms

• Pre-Out Level/Impedance - 3.0V/10k ohms

• Audio Output level (mini jacks) - 2V / 25k ohms

• Subwoofer Output with Level/Frequency Control

Video Inputs and Outputs:

• Video Input Level/Impedance - 1.0Vp-p / 75 ohms

• AV Input - mini jack (AV-IN or Camera switchable)

• Video Out - RCA

• Colour System - NTSC/PAL

• Video Output Level/Impedance  1.0Vp-p / 75 ohms

Camera inputs:

• Rear view camera Input

• HD camera compatible input

• Convert AV-input to camera input.

General

• Back Up Memory

• Installer Memory

• GPS Antenna Input

• DAB Antenna Input

• Wireless Remote Control - Ready (RM-RK258 required)

• Wired Steering Remote Control Ready

• Learning Direct OEM Remote

• ISO Connector - 20-pin (New Type) to ISO Wiring harness

• Short Chassis

• Operation Voltage - 12 VDC

• Dimensions Monitor unit (WxHxD) - 240 x 140 x 31mm

• Weight Monitor unit - 0.66 kg

• Dimensions chassis unit (WxHxD)) - 178 x 50 x 120mm

• Weight chassis unit - 0.94 kg

• Weight - 2.44kg
