The JVC KW-M795DBW is a feature-packed step-up model designed for those who want advanced connectivity, high-quality visuals, and versatile installation. With a compact double-DIN short chassis and a crisp 6.92 inch HD capacitive touchscreen, it delivers style, performance, and ease of use in one package.

Features

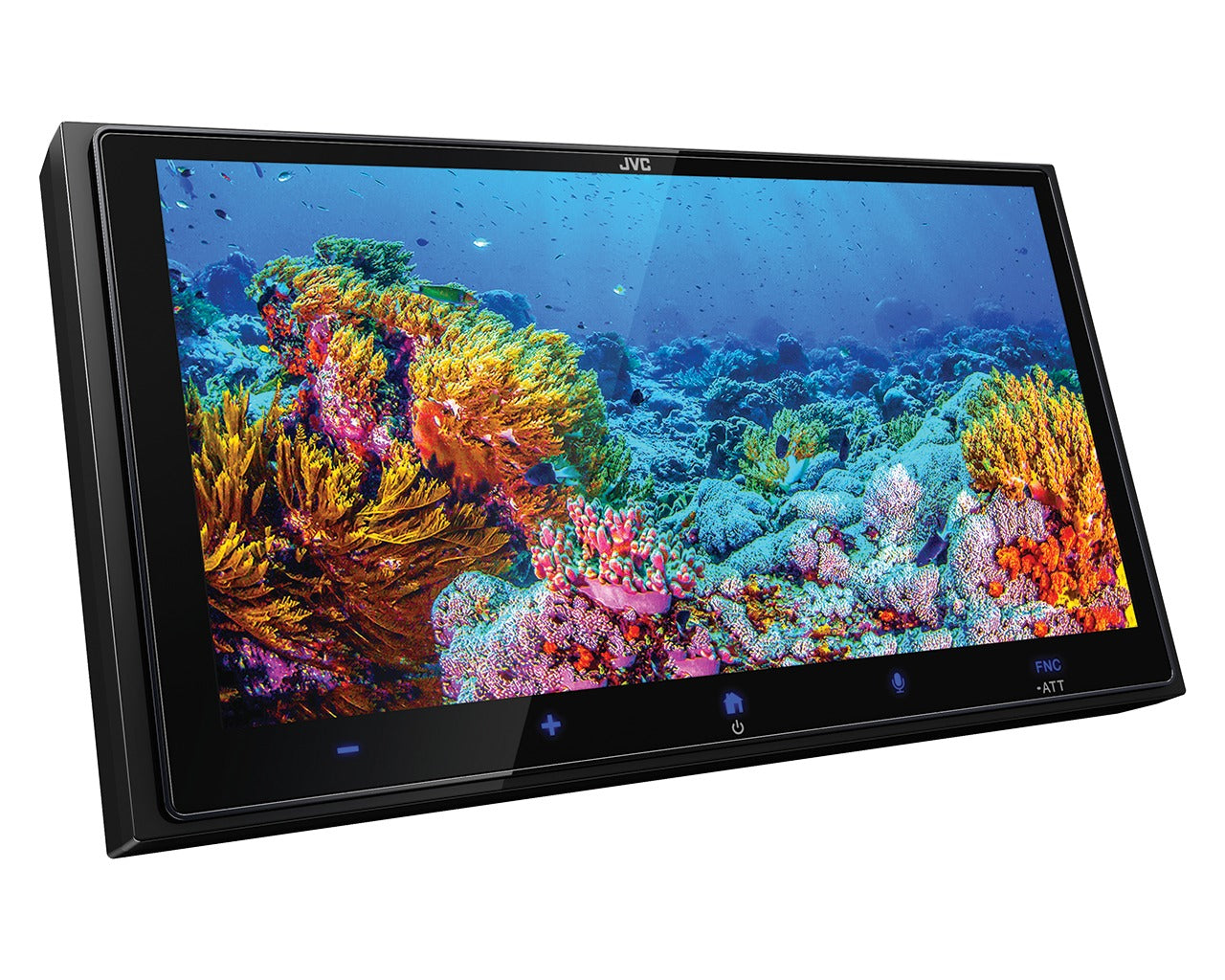

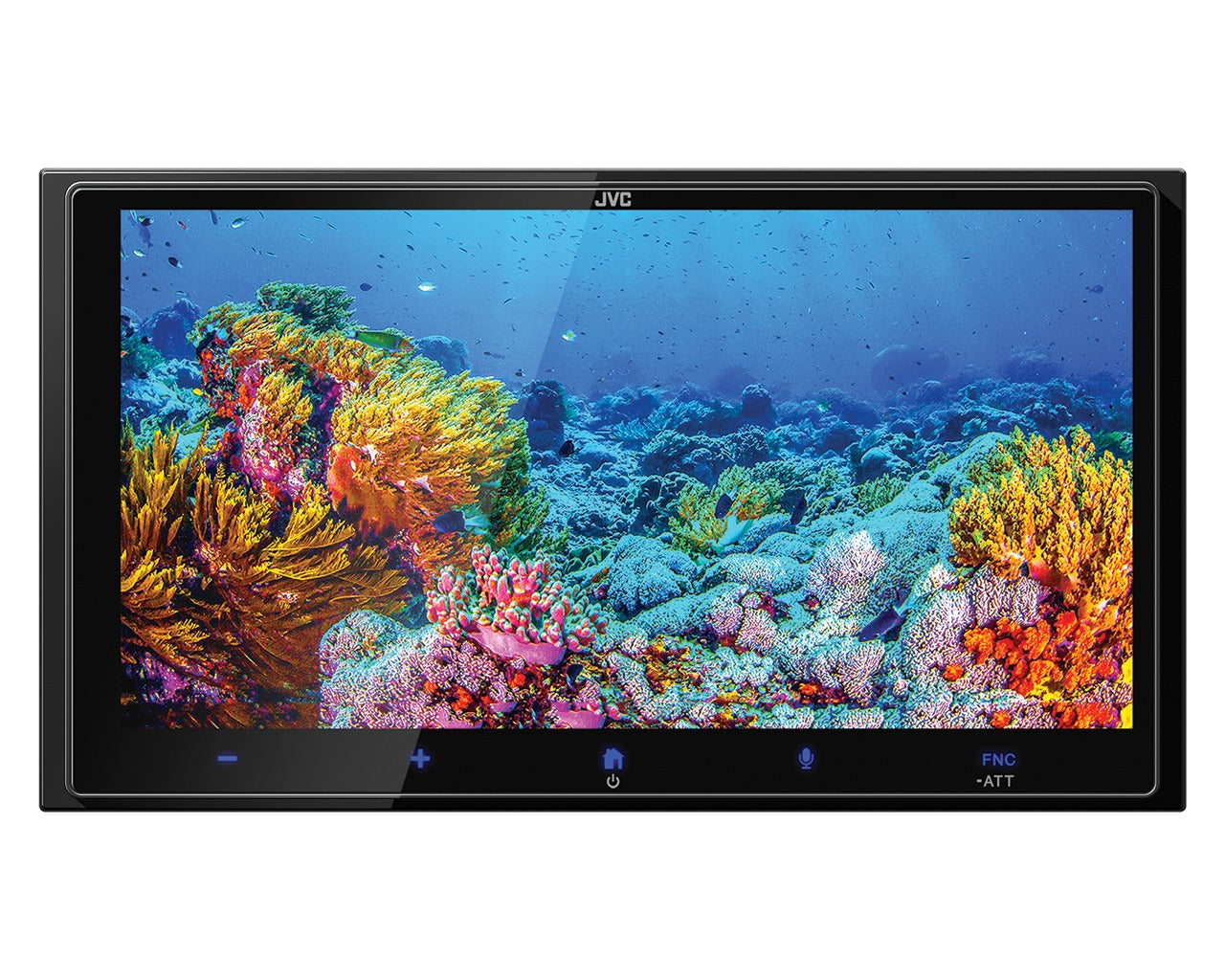

• 6.92" Display with HD LCD screen, sharp & high-contrast images, vivid colors and wide viewing angles.

• Built-in Wi-Fi for easy, wireless connection to a compatible smartphone.

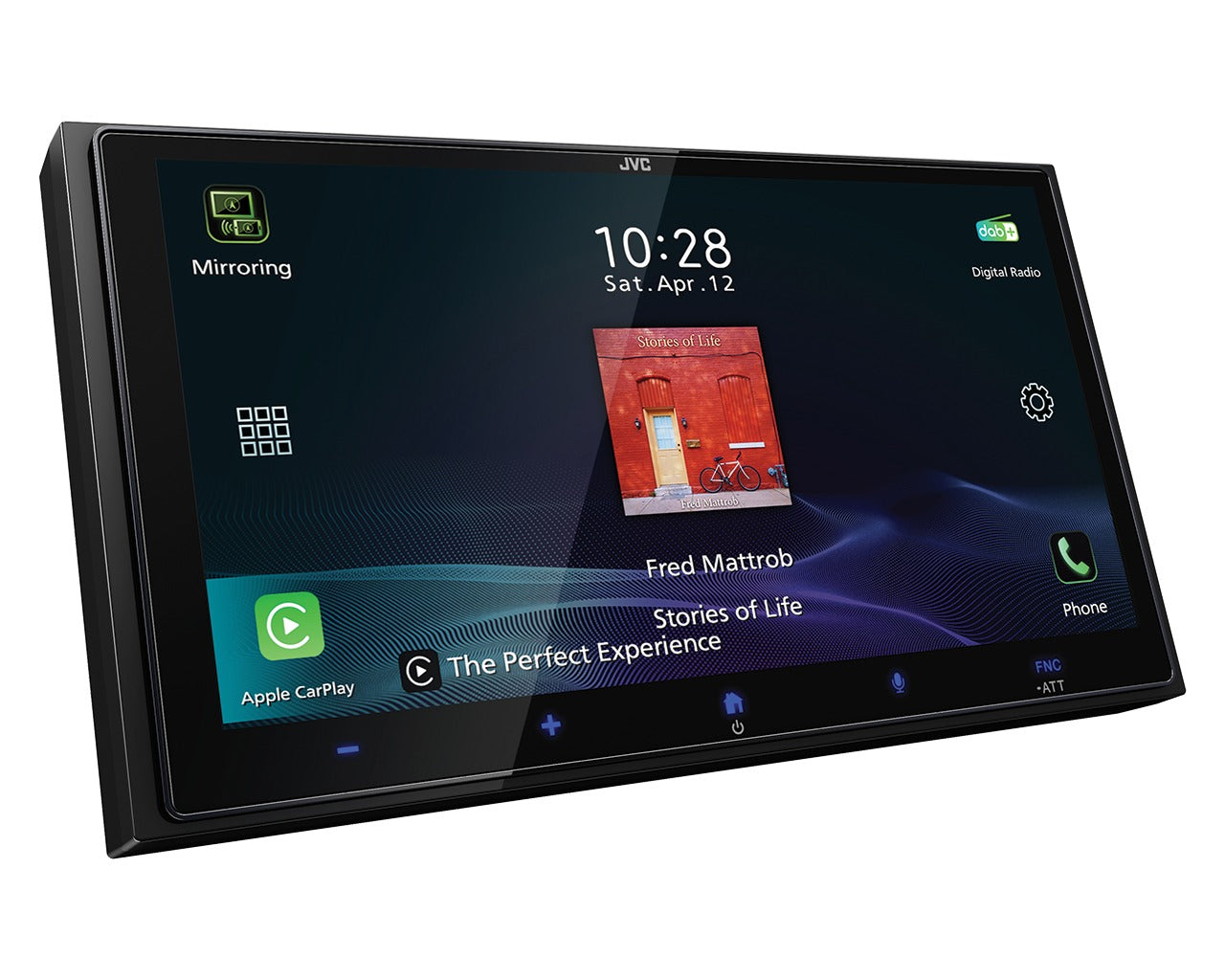

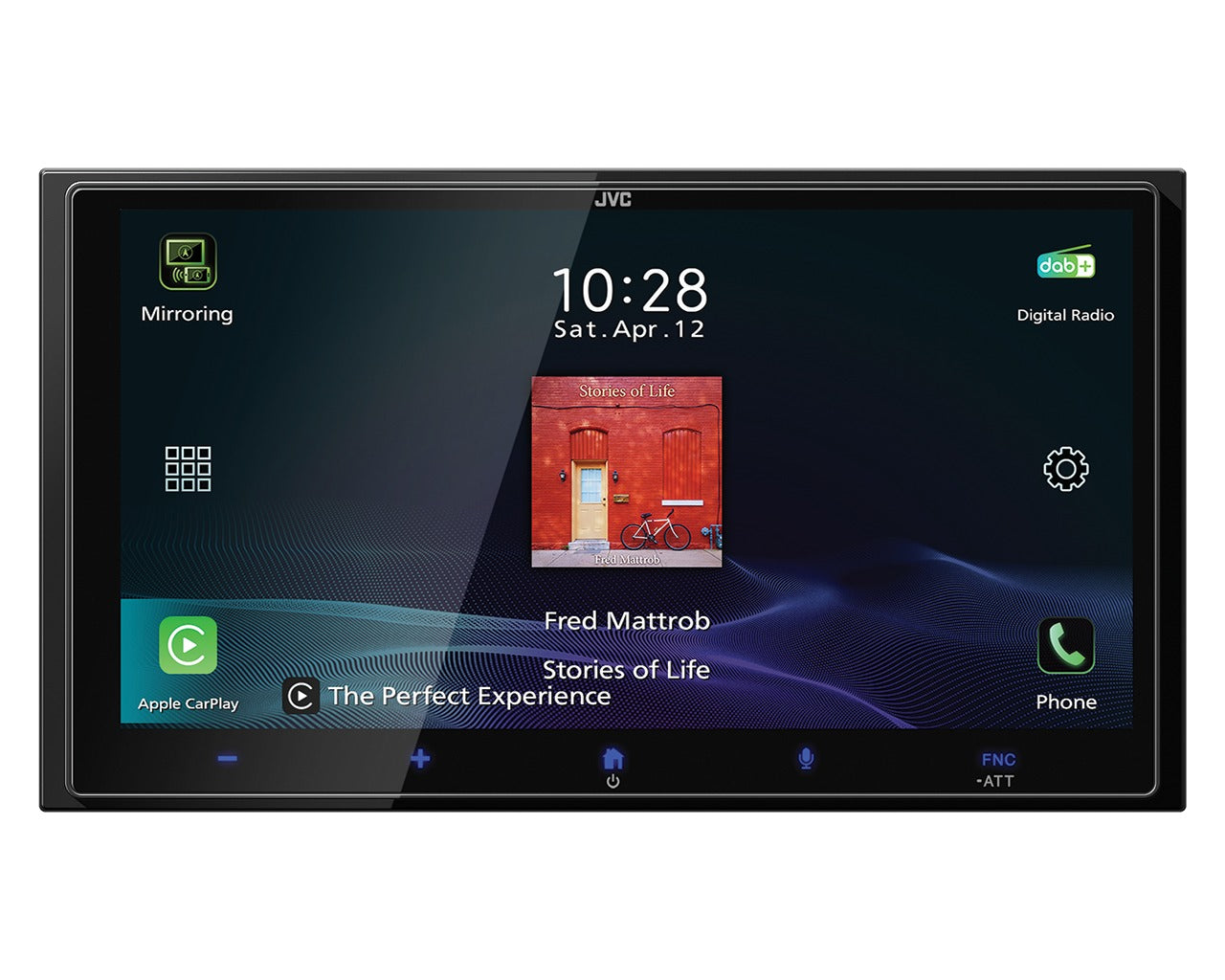

• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.

• Bluetooth(R) wireless technology (*Available functions depend on mobile phone).

• High Speed ​​USB Type-A terminal for your compatible USB-enabled devices. (2.1A Max)

• Playable USB Audio Files: MP3 • WMA • AAC • WAV • FLAC

• Playable USB Video Files: MPEG1/2 • MPEG4 • H.264 • MKV • WMV

• Optimal sound settings with built-in DSP, X'over, DTA, 13-band EQ, ...

• 3 RCA line outs (3.0V) to upgrade your system with power amplifiers to create a more immersive audio experience.

• 1x AV input • 1x Video output • 1x Rear View Camera input • HD camera ready.

MONITOR

• Screen dimensions - 6.92 inches (diagonal)
• High resolution screen - 1280 x 720 px
• Screen type  - Capacitive with Anti-finger Print film
• Screen display system - TN LCD panel
• Screen drive system - TFT active matrix system
• Number of pixels - 1,152,000 (800 x 480 x RGB)
• Effective pixels - 99.99%
• Pixel distribution - RGB striped alignment
• Backlight - LED
• Touch screen
• Gesture Touch Control
• Key illumination Blue
• Dimmer function - Illumination line Sync (Auto/On/Off)
• Customizable graphical user interface (GUI)
• User interface language selection - available languages:
• ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Greek ► Polish ► Czech ► Hungarian

TUNER

DAB TUNER:

• Digital Radio Certification Mark

• Band III frequency range - 174.928MHz ~ 239.2MHz

• DAB-DAB / DAB-FM Auto Switch

• Seamless DAB-FM Blending

FM TUNER:

• Radio Data System (via FM band) - (with Radio Text Plus)

• FM frequency range - 87.5 ~ 108.0MHz (50kHz step)

AM TUNER:

• AM frequency range - 531kHz ~ 1.611kHz (9kHz Frequency Step)

• Number of preset channels - 20 (FM:15, AM:5)

• Tuner preset memory

• Automatic Preset / SSM

ALLOWED FILE TYPES

AUDIO FILES:

• MP3 with ID3 tag

• WMA (Windows Media Audio) with tag

• WAV (Waveform Audio File) with tag

• AAC (Advanced Audio Coding) with tag

• FLAC (Free Lossless Audio Codec) with tag

VIDEO FILES:

• MPEG1/MPEG2 (Moving Picture Experts Group)

• MPEG4 (Moving Picture Experts Group)

• WMV (Windows Media Video)

• H.264 (Advanced Video Coding (AVC))

• MKV (Matroska)

USB

• USB standard - High Speed ​​2.0

• USB port(s) location - at the back

• File system - FAT16 / FAT32 / exFAT

• USB Mass Storage Class (MSC)

• Drive Change Mode at MSC

• TAG information display

• Album cover view

• Search the table of contents

• Alphabetical search

• Search by category

• Search by link

• Random/Repeat play

• Skip numbers

• Timecode display

• Last position memory / resume

BLUETOOTH

• Built-in Bluetooth® [1] - Ver 5.0

• Supported profiles - Multi profile

• Hands-free calling (HFP) - HFP V1.8

• Advanced Audio Distribution Profile (A2DP) - V1.3.2

• Audio/Video Remote Control Profile (AVRCP) - V1.6.2

• Phone Book Access Profile (PBAP)

• Alphabetical search in the phone book

• Serial Port Profile (SPP)

• Two phones permanently connected

• Bluetooth audio Codec - AAC / SBC

• up to 5 paired Bluetooth®

• Automatically register iPhone/Android

• Noise suppression

• Echo cancellation

• Wired microphone included.

Wi-Fi

• Built-in Wi-Fi

• IEEE Standard - 802.11 a/b/g/n/ac

• Frequency band - Dual Band (2.4GHz/5GHz)

ANDROID SUPPORT

Android Auto™ Support:

• Wired (USB) connection

• Connect wirelessly - (WiFi)

IPHONE SUPPORT

CARPLAY:

• Wired (USB) connection

• Connect wirelessly - (WiFi)

AUDIO

• Maximum output power - 4 x 50 W

• Typical output power (< 1%THD) - 22W x 4 (Front & Rear)

• Speaker impedance - 4 Ω ~ 8 Ω

• Output frequency band - 20 Hz ~ 88,000 Hz

• EQUALIZER:

• 13-band graphic equalizer

• Set equalizer curves - Preset x8 + User x4 / Source

• Volume Link EQ

• 3-way X'over

• High/low pass filters

• Digital Sound Processor (DSP)

• Time Alignment (Listening Position)

• Space Enhancement

• Sound Response

• Sound Lift

• LOUDNESS for a well-balanced sound at a low volume level.

• Bass Boost (Hyper Bass System)

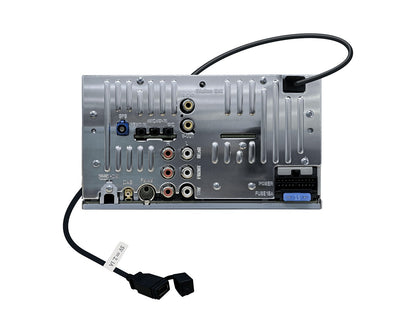

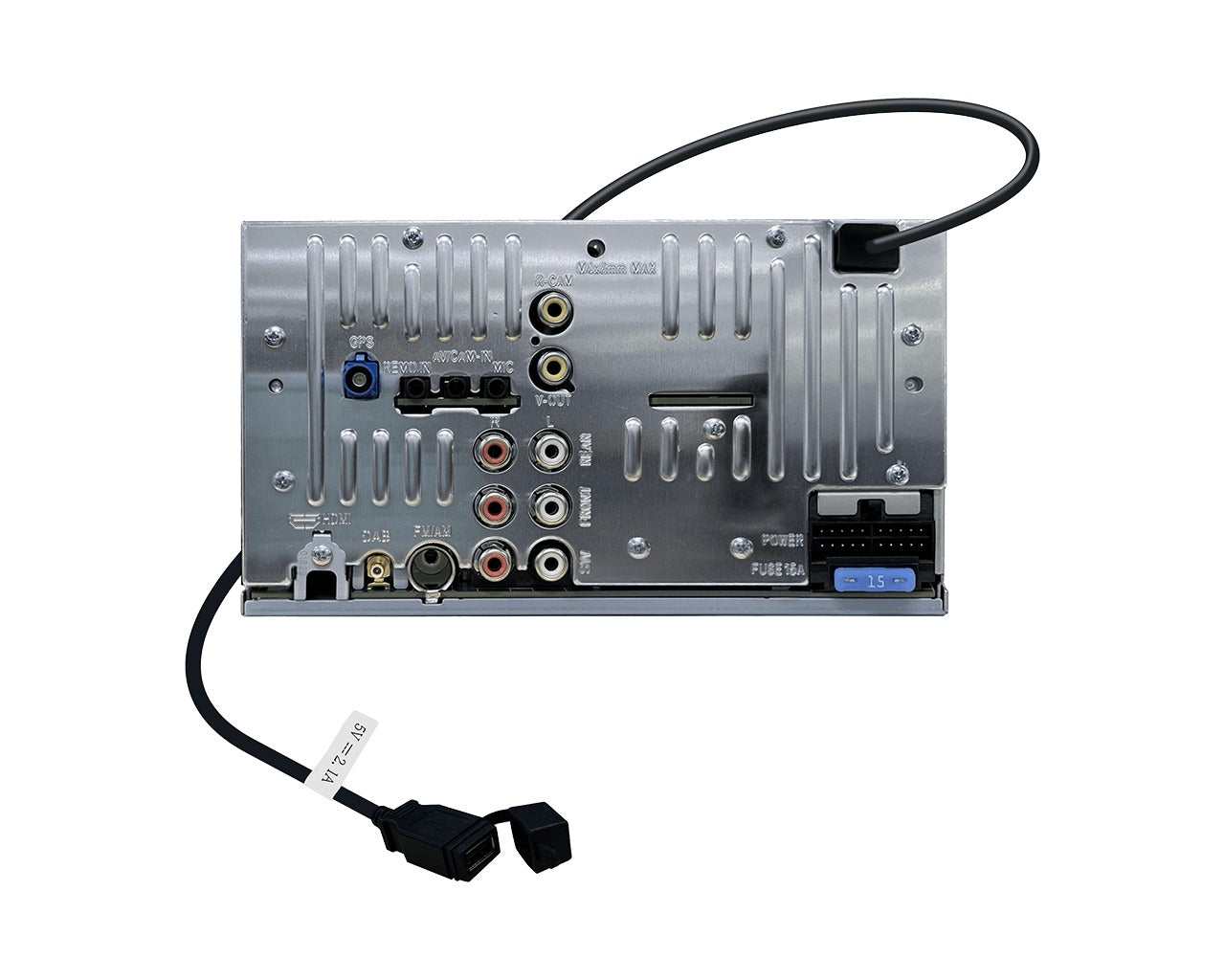

INPUTS/OUTPUTS

AUDIO IN/OUTPUTS:

• Pre-out connections - 3 stereo line outputs (front + rear + subwoofer)

• Line output impedance - Less than 600 ohms

• Pre-Out Output Level / Impedance - 3.0V/10k ohms

• Audio output level (minijack) - 2V / 25k ohms

• Subwoofer output with level/frequency control

VIDEO IN/OUTPUTS:

• Video input level / impedance. - 1.0Vp-p / 75.0 ohm

• Audio/Video input - mini jack (AV-IN or Camera switchable)

• Video output - RCA

• Color system - NTSC/PAL

• Video output level / impedance. - 1.0Vp-p / 75.0 ohm

CAMERA INPUT(S):

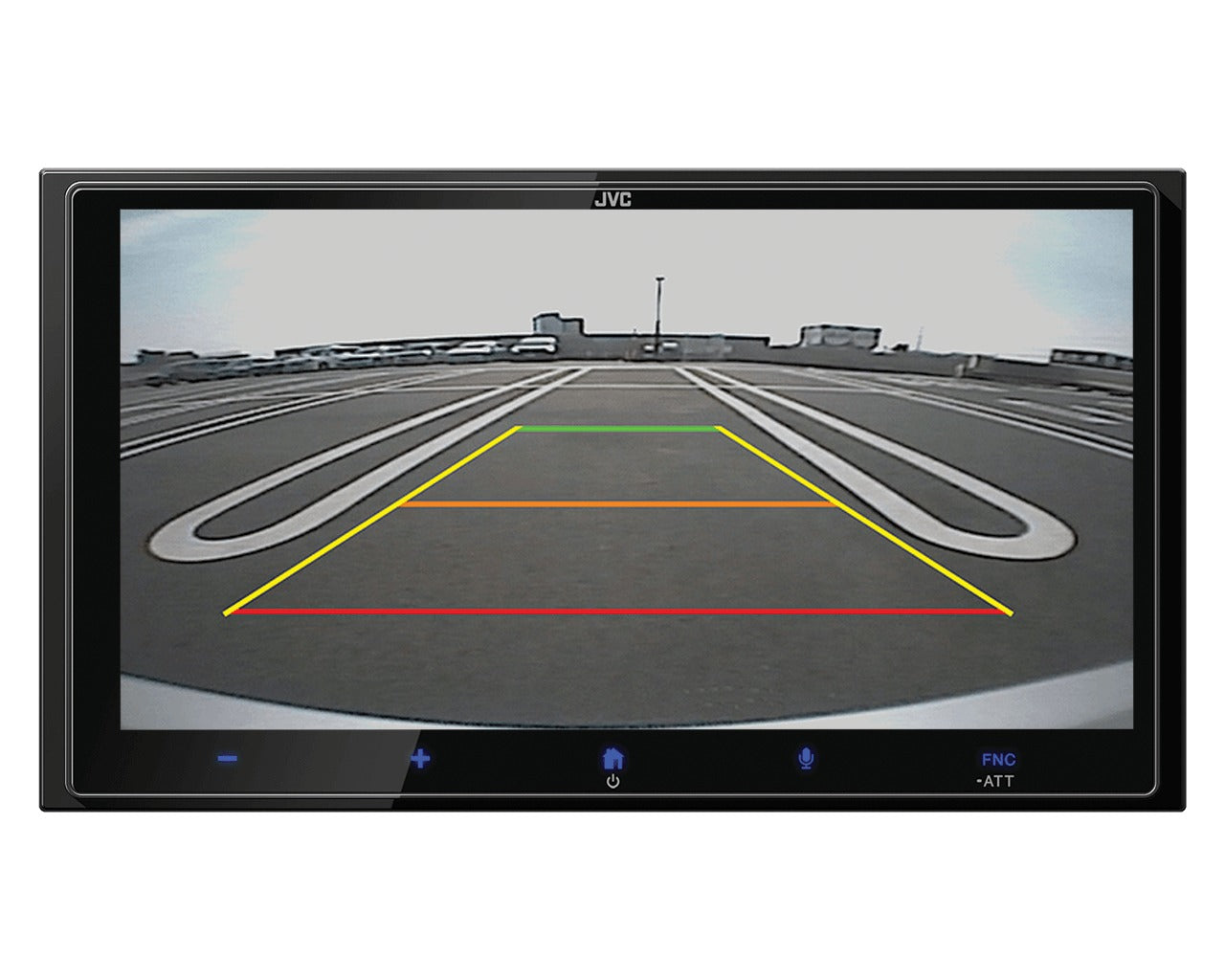

• Rear view camera input

• HD camera compatible input

• Convert AV input to camera input

GENERAL

• Back Up Memory

• Installer Memory

• GPS antenna input

• DAB+ antenna input

• Wireless remote control Compatible - (RM-RK258 required)

• Wired steering wheel remote control prepared

• Teachable Direct OEM Remote

• ISO plug - 20-pin (New Type) to ISO Wiring harness

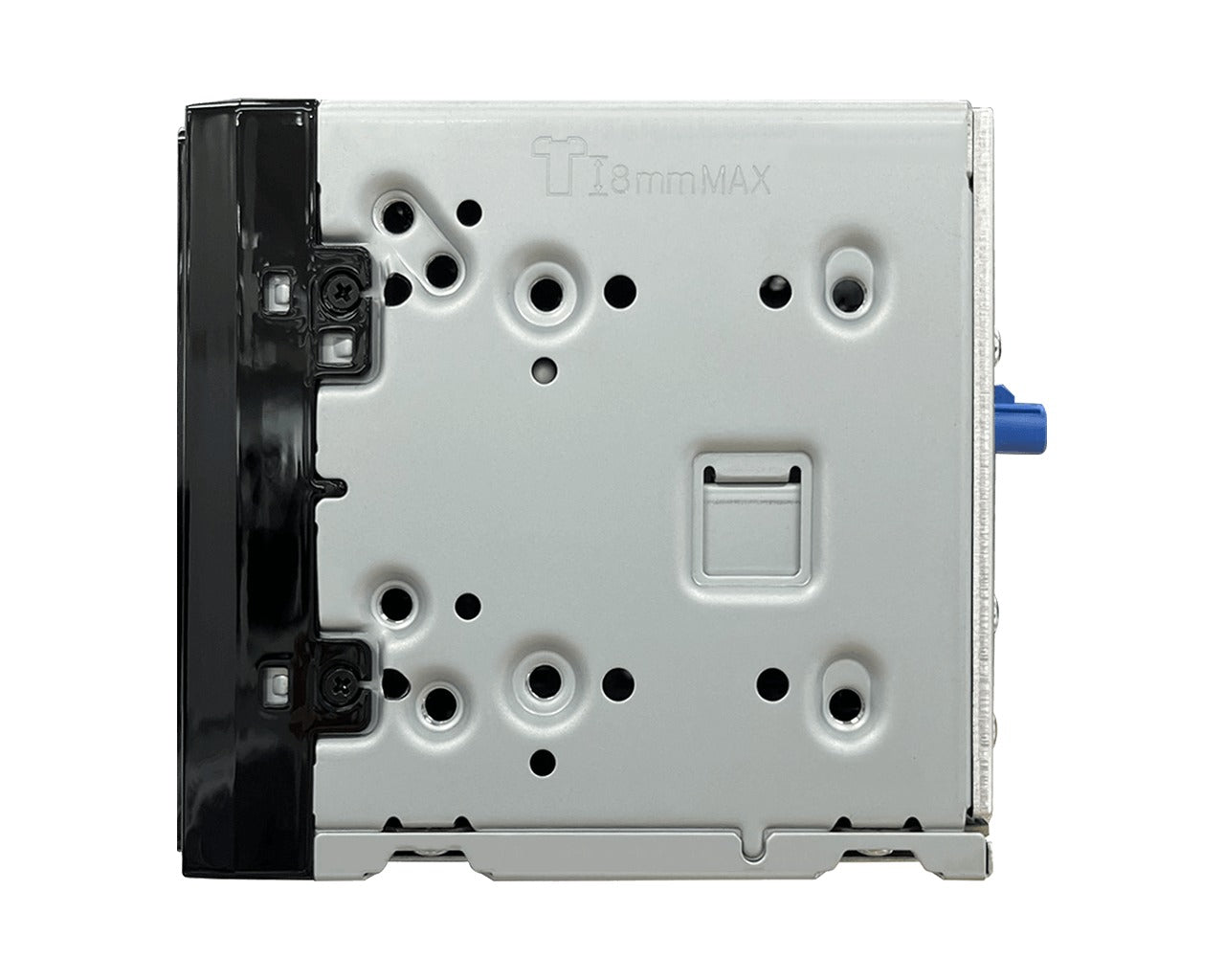

• Short chassis

• Working voltage - 12 VDC

• Dimensions (W x H x D) - 178mm x 100mm x 109mm

• Weight - 1.14 kg
