The KW-M565DBT is the ultimate driving companion for the modern, tech-savvy individual. This state-of-the-art stereo system puts the power of your smartphone at your fingertips, allowing you to access your favorite apps, stream music, and navigate with ease. Say goodbye to fumbling for your phone - the KW-M565DBT offers the freedom of wireless bluetooth connectivity and wired carplay and android auto wih the convenience of voice commands.

Key Features

• Apple CarPlay® & Android Auto™ Ready
• USB Mirroring for iPhone / Android
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Advanced Wireless Bluetooth® Technolgy
• High Speed USB port with up to 2.1A High Current Charging
• Rear View Camera Input with Parking Guidelines
• 2 Preouts 2.5V & Subwoofer Out
• 6.8" WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
• Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
• Short body (86mm) for easy installation in a wide range of cars

Monitor Features

• Screen Size - 6.8 inches (diagonal) wide
• High Definition Monitor - WSVGA (1024 x 600px)
• Touch Panel Type - Capacitive
• Display System - TN LCD panel
• Drive System - TFT active matrix system
• Number of Pixels - 1.843.200 (1024H x 600V x RGB)
• Effective Pixels - 99.99 %
• Pixel Arrangement - RGB striped arrangment
• Back Lighting - LED
• Touch Control
• Key Illumination Colour - Blue
• Dimmer - Manual/Sync (Auto/On/Off)
• Customizable GUI
• Multilanguage Display - 14 languages: English(UK(Default) / English US / Spanish / French / German / Italian / Dutch / Portuguese / Arabic / Hebrew / Greek / Polish / Czech / Hungarian.

Radio Tuner

• DAB+ Tuner
• Digital Radio Certification Mark
• DAB+ Frequency Band III
• 174.928MHz to 239.2MHz
• DAB-DAB / DAB-FM Auto Switch
• Seamless DAB-FM Blending
• ASW Select
• DLS (Dynamic Label)
• Slide Show
• Softlink

FM Tuner:

• Radio Data System (RDS)
• FM Frequency Range - 87.5 ~108.0 MHz (50kHz Step)

AM Tuner:

• AM Frequency Range - 531kHz ~ 1611kHz (9kHz Frequency Step)
• Preset Stations - DAB: 15 / FM: 24 / AM: 12 presets
• Traffic Information - DAB / RDS
• PTY Search - DAB / RDS
• PTY Watch - DAB
• Automatic Preset / SSM (FM only)

Media Playback

Audio Decoder:

• MP3 Compatible with Tag - USB
• WMA Compatible with Tag - USB
• WAV Compatible with Tag - USB
• AAC Compatible with Tag - USB
• FLAC Compatible with Tag - USB

Video Decoder:

• MPEG-1 / MPEG-2 Compatible - USB
• MPEG-4 Compatible - USB
• WMV Compatible - USB
• H.264 Compatible - USB
• MKV Compatible - USB
• JPEG File Playback - USB (For user background only)
• BMP File Playback - USB (For user background only)
• PNG File Playback - USB (For user background only)

USB

• USB Port(s) - x 1
• Location - Rear
• USB Standard - High Speed
• File System - FAT16 / FAT32 / exFAT / NTFS
• USB Mass Storage Class
• Drive Change Mode for Mass Storage Class
• Tag Information Display
• Album Art Display
• List Access
• Category search
• Link Search
• Random / Repeat Play
• Skip
• Time Code Display
• Last Position Memory / Resume
• Digital / Analog Converter (DAC) - 24 bit
• Signal-to-Noise Ratio (S/N) -75 dB
• Max. Power Supply Current - 2.1A

Bluetooth®

• Bluetooth Technology - V 5.0
• Hands Free Call (HFP) - HFP1.8 Wideband Speech
• Advanced Audio Distribution Profile (A2DP) - V1.3
• Audio/Video Remote Control Profile (AVRCP) - V 1.6
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• Secure Simple Pairing (SSP)
• Audio Codec - AAC / SBC
• Noise Canceller
• Echo Canceller
• Built-in BT Microphone

Android Control

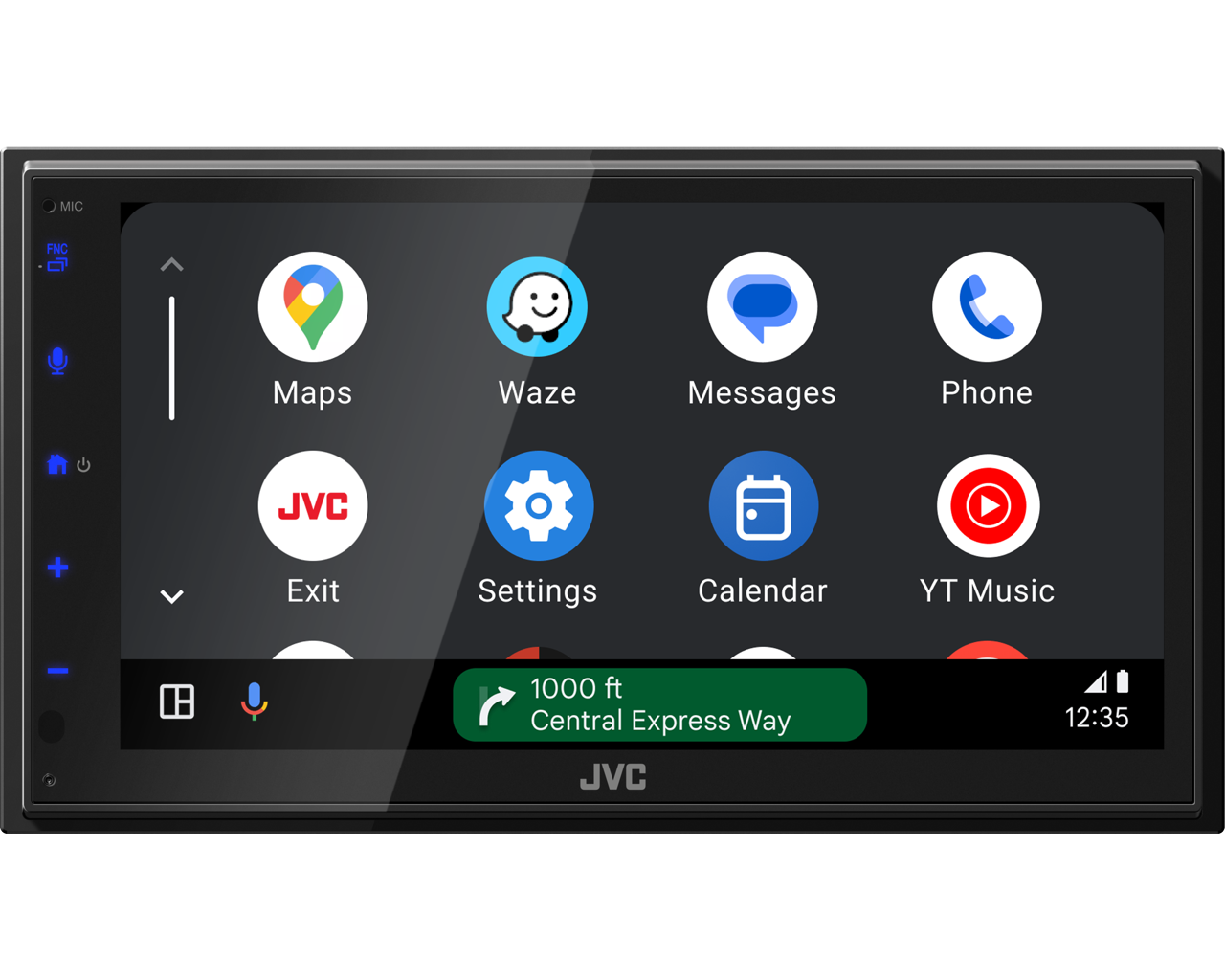

ANDROID AUTO:

• Android Auto wired via USB
• USB mirroring for Android
• Android Music Playback via Bluetooth(R))

iPod/iPhone Control

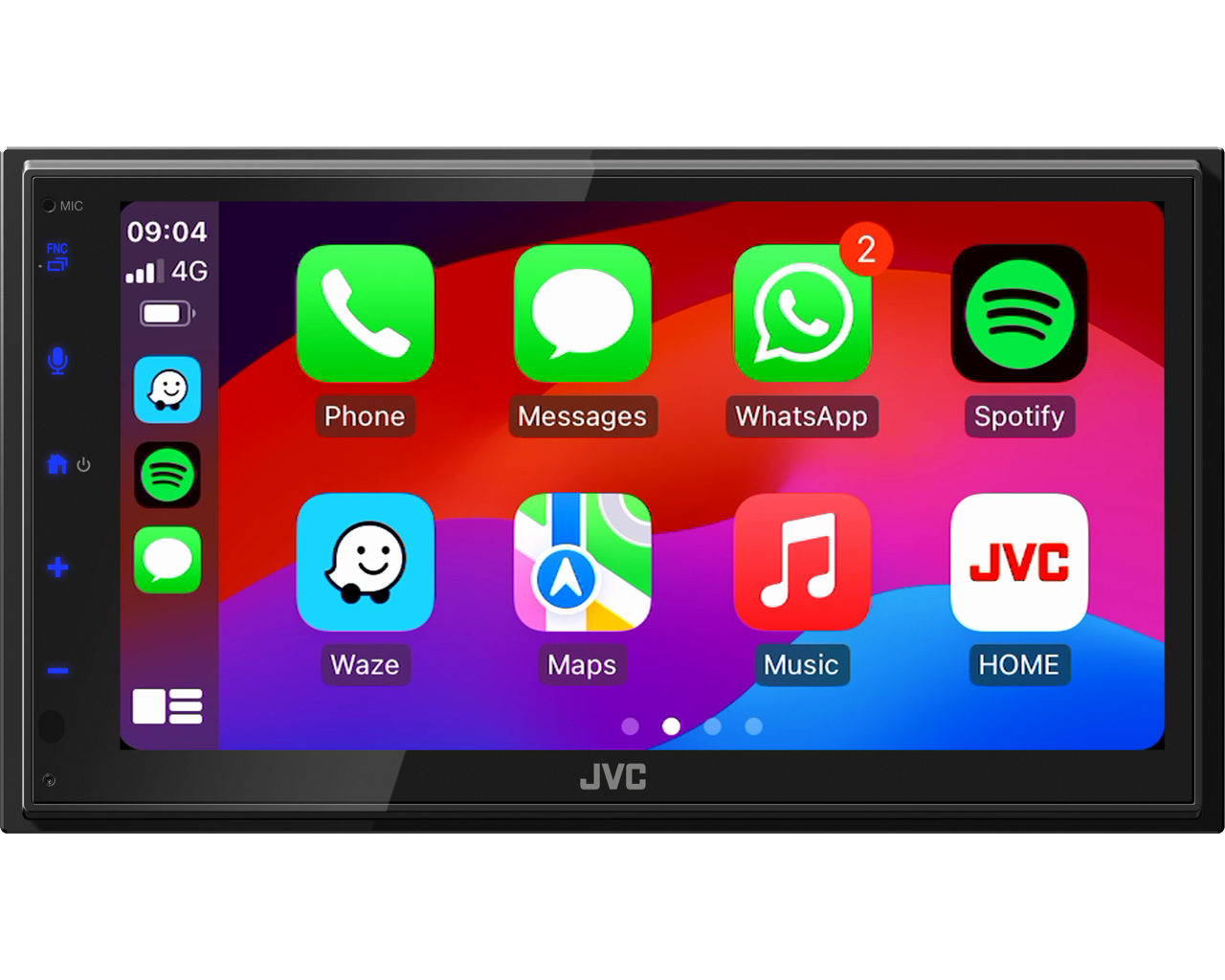

CARPLAY:

• CarPlay wired via USB
• Mirroring for iPhone via USB (Need mirroring App)
• iPhone Music Playback via USB or Bluetooth®

App(s)

• MirrorApp+ via USB
• App Store - https://apps.apple.com/us/app/mirrorapp/id1560645614
• Google Play - https://play.google.com/store/apps/details?id=hk.com.soundmax.mirrorapp&hl=en

Audio

• Maximum Power Output (Front & Rear) - 50W x 4
• Full Bandwidth Power (at less than 1%THD) - 22W x 4
• Speaker Load Impedance - 4 ohms (4 - 8 ohms allowable)
• Output Frequency Band - 20 - 20,000Hz

  EQUALIZER:
• 13-Band Graphic EQ
• Preset EQ - Preset x 7 + User set x 3 / All SRC
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
• Time Alignment
• Loudness Control - (Off/Low/High)
• Bass Boost (Hyper Bass System)

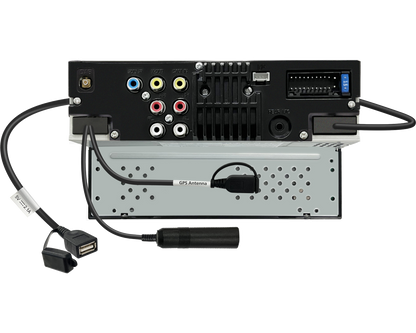

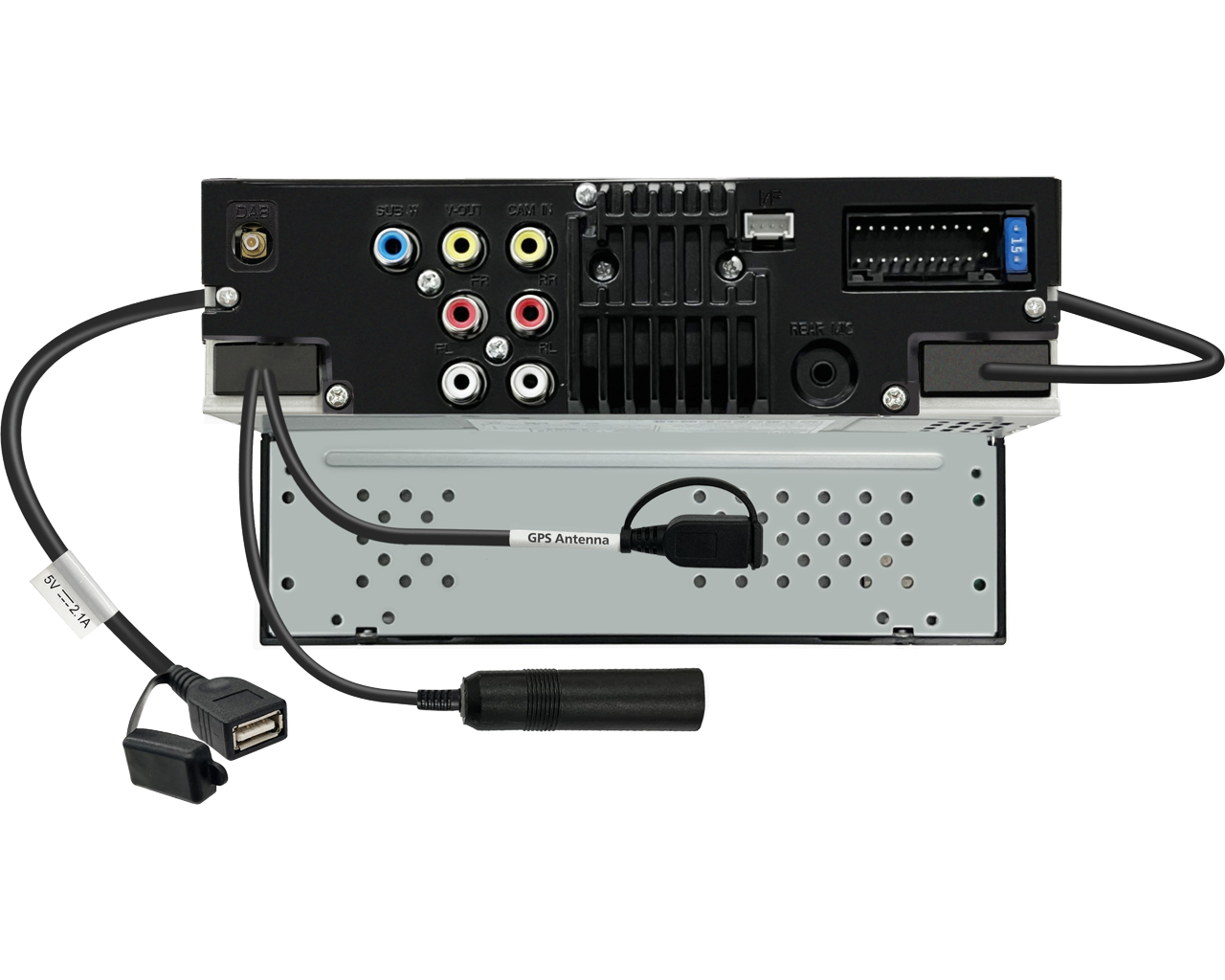

Inputs and Outputs

Audio Inputs and Outputs:

• Pre-Out Terminals
• Front (L+R), Rear (L+R), Subwoofer (mono)
• Pre-Output Level
• 2.5V
• Pre-Out Impedance
• 1,4 kΩ

Video Inputs and Outputs:

• Video Out
• x 1 (V:RCA)
• Colour System
• NTSC/PAL
• Video Output Level/Impedance
• 1Vp-p / 75 ohms

Camera inputs:

• Rear view camera Input

  General
• Back Up Memory
• GPS Antenna Input
• DAB Antenna Input
• Wireless Remote Control Ready
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote - Yes (Resistive protocol only)
• ISO Connector - 22pin to ISO Wiring harness

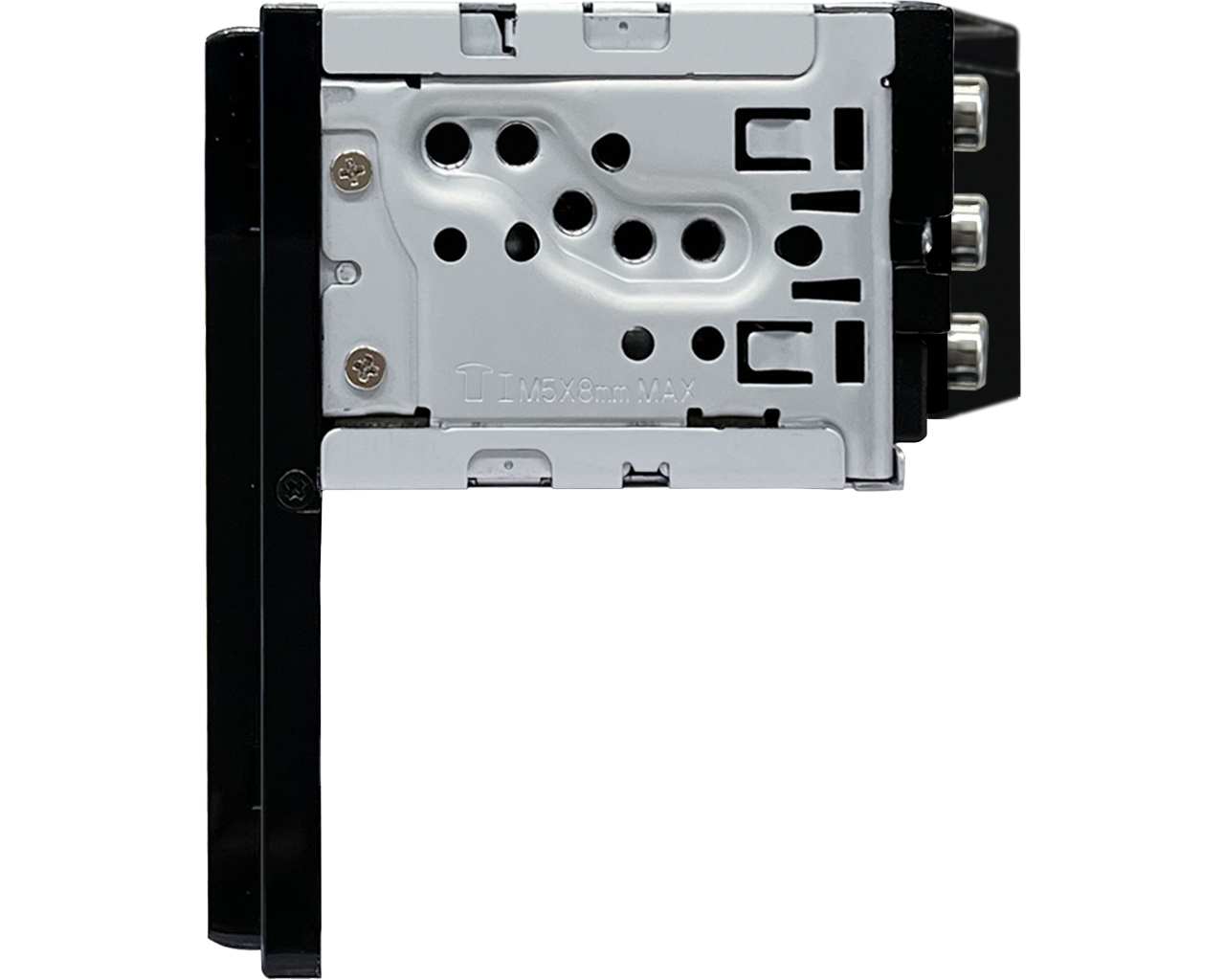

• Short Chassis - (86mm)
• Operation Voltage - 12 VDC
• Installation Size (W x H x D) - 182 x 112 x 86mm
• Weight, inlcuding sleeve and escutcheon - 1.27 kg

Accessories

• 22Pin Molex Connector to ISO Connector lead
• GPS antenna with mounting plate (3,5m cable)
• Extension Parking Cable (2m)

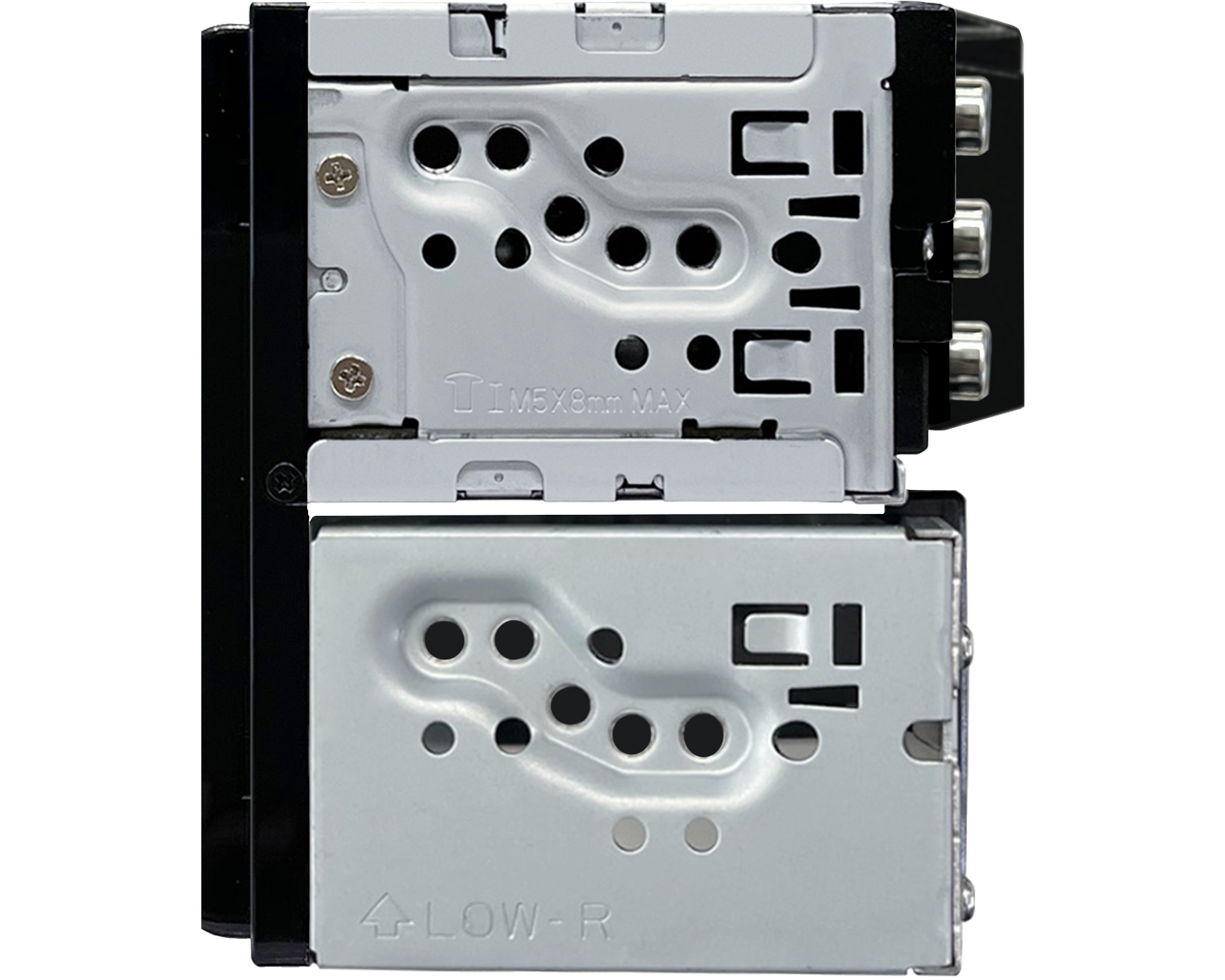

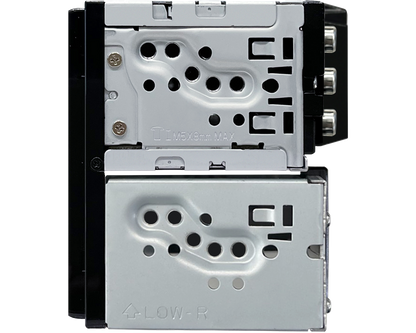

• 2DIN Sleeve & Lever

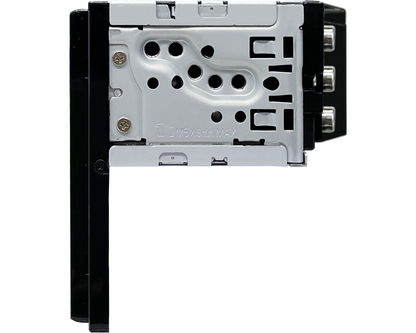

• 1DIN adapter bracket set (pre-mounted)
