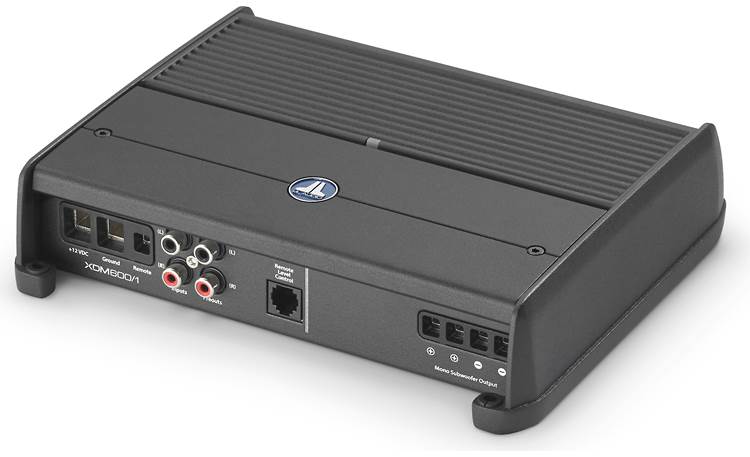

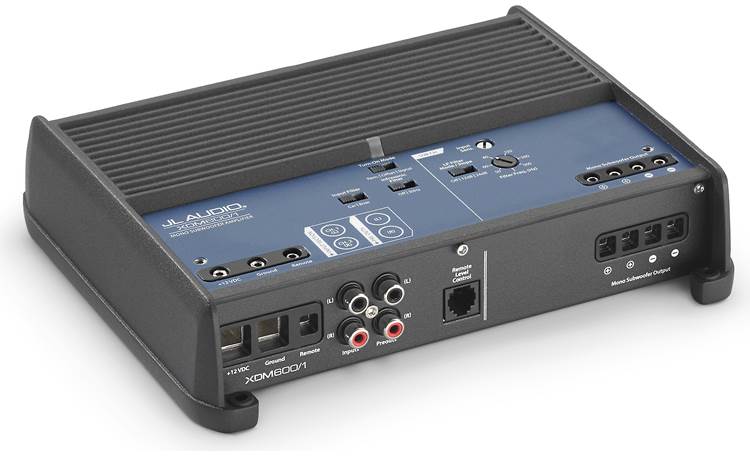

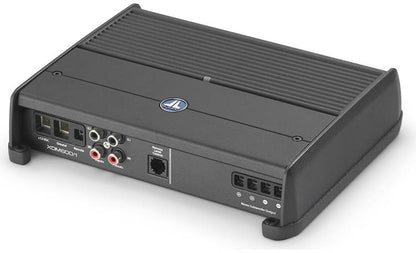

JL Audio XDM600/1 - Mono Car/Marine Amplifier

JL Audio XDM600/1 - Mono Car/Marine Amplifier



Specifications:

  • Rated Power 14.4 V Mono:
  • 600 W RMS @ 2 ohm (14.5V)
  • Rated Power 14.4 V:
  • 400W RMS x 1 @ 4 ohms
  • 600W RMS x 1 @ 2 ohms
  • Rated Power 12.5 V:
  • 300W RMS x 1 @ 4 ohms
  • 500W RMS x 1 @ 2 ohms
  • THD at Rated Power: 1% @ 2 ohm



View full details

Product Description

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).

Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

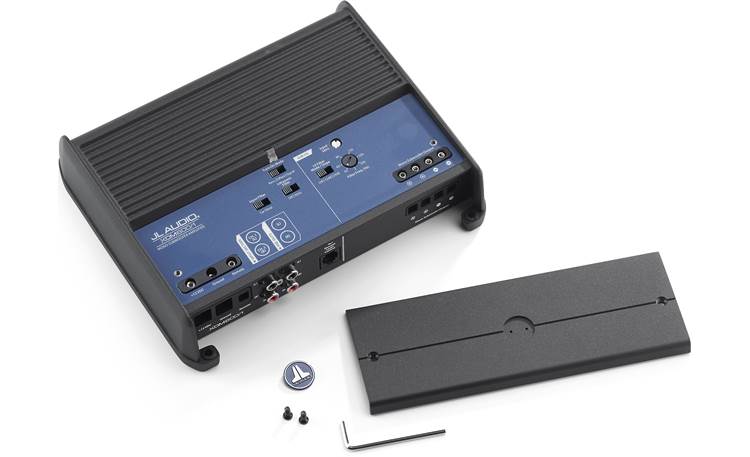

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
