JL-Audio

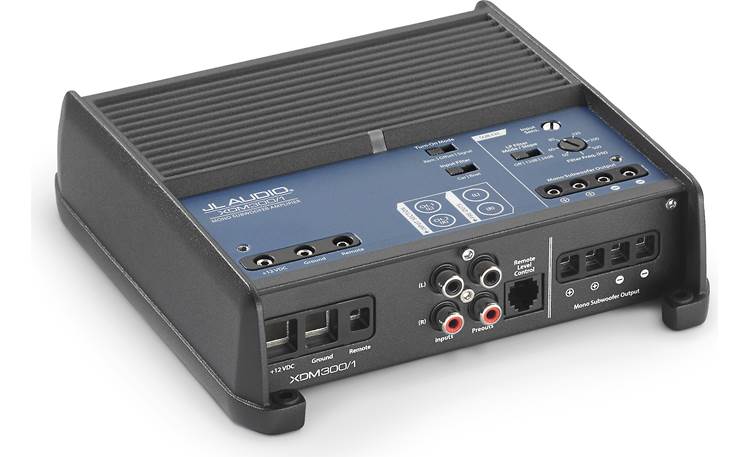

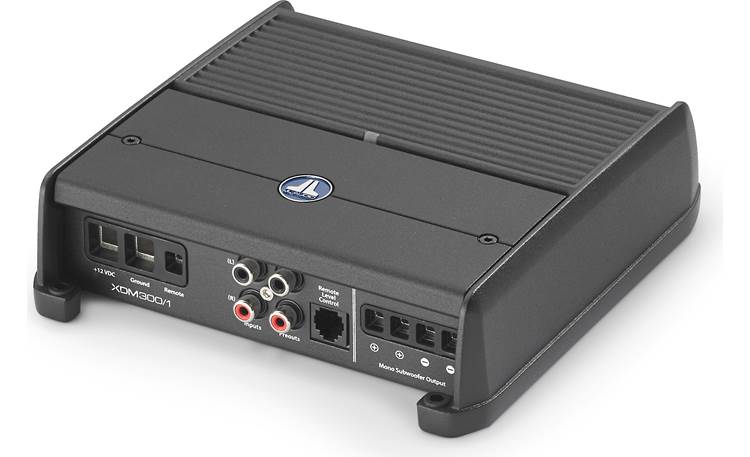

JL Audio XDM300/1 - Mono Channel Car/Marine Amplifier

JL Audio XDM300/1 - Mono Channel Car/Marine Amplifier



Specifications

  • Dual mono speaker output connections: Accept up to 12 AWG wire
  • +12V and Ground connections: Accept up to 4 AWG wire
  • Rated Power: 300 W RMS @ 2 ohm (14.5V)
  • Rated Power 14.4 V:
  • 200W RMS x 1 @ 4 ohms
  • 300W RMS x 1 @ 3 ohms
  • 300W RMS x 1 @ 2 ohms
  • Rated Power 12.5 V:
  • 160W RMS x 1 @ 4 ohms
  • 210W RMS x 1 @ 3 ohms
  • 270W RMS x 1 @ 2 ohms



View full details

Product Description

This little monoblock powerhouse employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in most tight space applications, including small boats, pickups, motorcycles and UTV’s (in a weather-tight compartment).

Designed for car or boat installations, the XDM300/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Targeted specifically for subwoofer applications, the XDM300/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

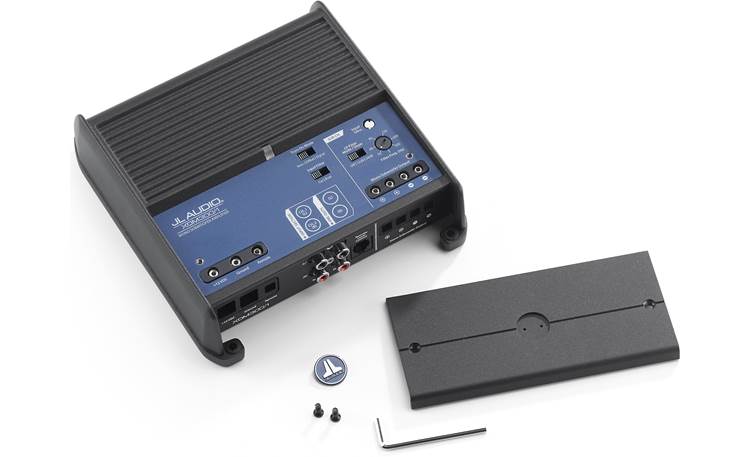

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
