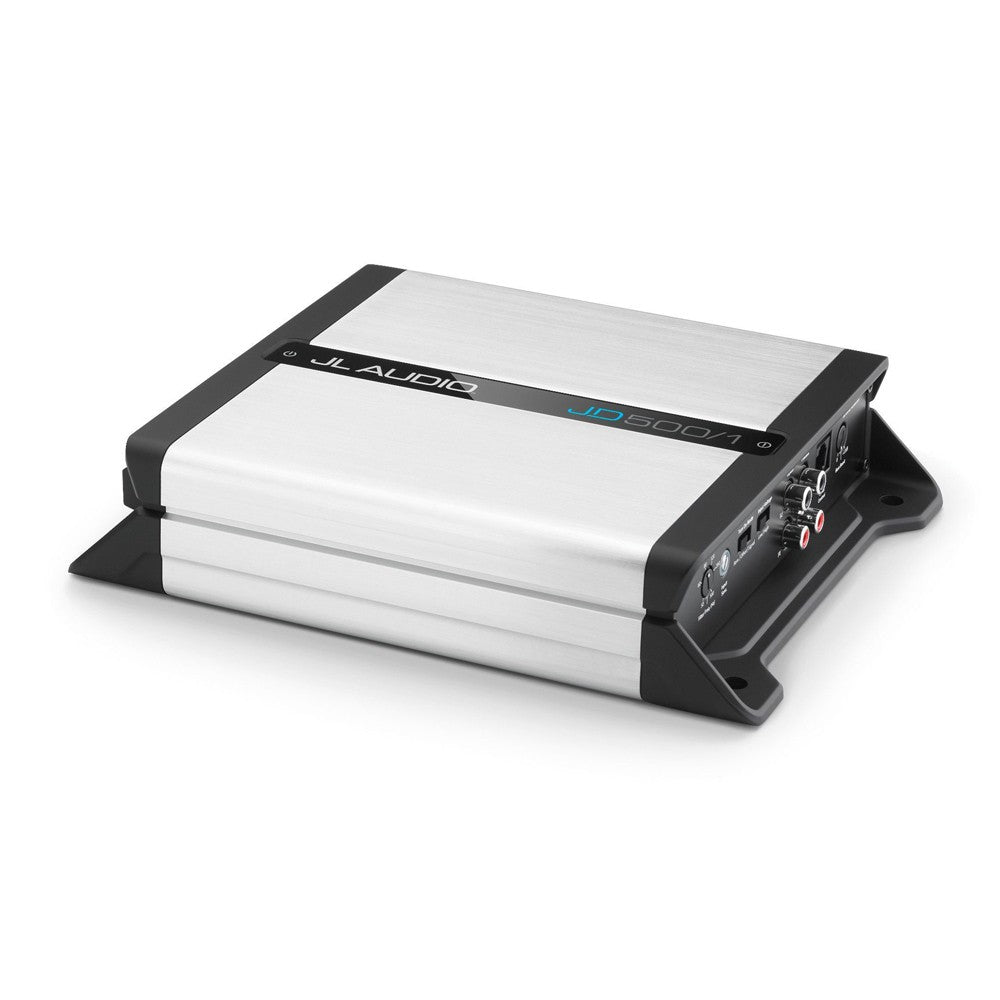

JL Audio JD500/1 - Monoblock Amplifier
JL Audio JD500/1 - Monoblock Amplifier
Features
- Class D Monoblock Subwoofer Amplifier
- Rated Power 14.4 V:
- 250W x 1 @ 4 ohm
- 300W x 1 @ 3 ohm
- 500W x 1 @ 2 ohm
- Dimensions (L x W x H):
- 9.50" x 7.50" x 2.10"
- (242 mm x 190 mm x 53 mm)
- Optional RBC-! bass controller
Product Description
Specification
- Class D Monoblock Subwoofer Amplifier
- Inputs: One Mono Pair RCA Low-Level
- Subwoofer Crossover: 12 dB/octave
- frequency selection from 50 - 500 Hz.
- NexDtm Switching Technology
- Preamp Output: Pass-through Buffered
- Bass EQ: 0 - +12dB @ 45 Hz
- Rated Power 14.4 V:
- 250W x 1 @ 4 ohm
- 300W x 1 @ 3 ohm
- 500W x 1 @ 2 ohm
- THD at Rated Power: 1% @ 2 ohms
- Frequency Response: 7 Hz - 500 Hz +/- 1.0 dB
- Input Range:
- 200mV - 2V RMS (Low-Level)
- 800mVV - 8V RMS (High-Level)
- Dimensions (L x W x H):
- 9.50" x 7.50" x 2.10"
- (242 mm x 190 mm x 53 mm)
- Optional RBC-! bass controller
