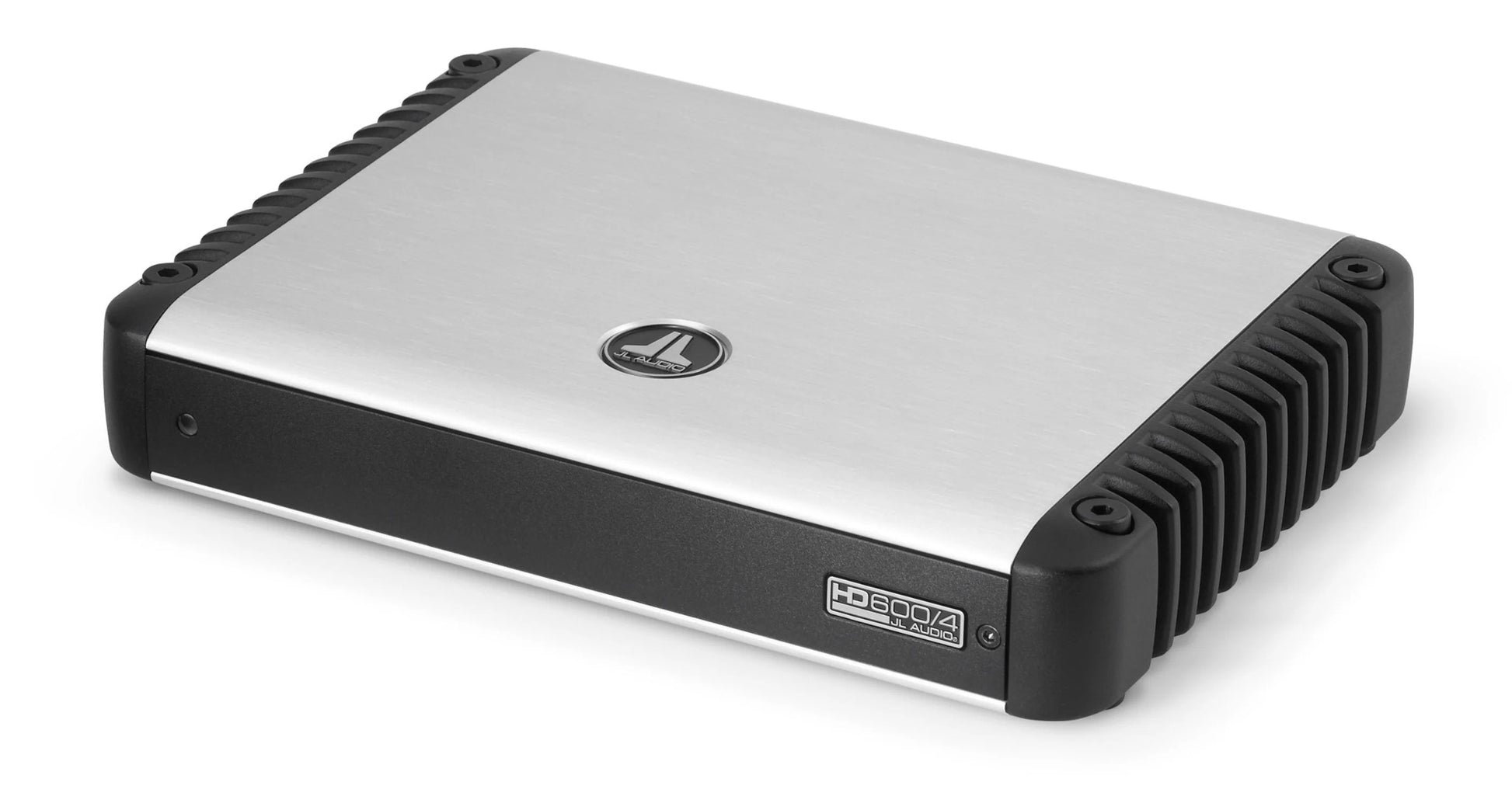

This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω150 W RMS x 4
@ 3 Ω150 W RMS x 4
@ 2 Ω150 W RMS x 4
@ 1.5 Ω150 W RMS x 4
Bridged @ 8 Ω 300 W RMS x 2
Bridged @ 4 Ω 300 W RMS x 2

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 150 W RMS x 4
@ 3 Ω 150 W RMS x 4
@ 2 Ω 150 W RMS x 4
@ 1.5 Ω 150 W RMS x 4
Bridged @ 8 Ω 300 W RMS x 2
Bridged @ 4 Ω 300 W RMS x 2

General Specifications

• Frequency Response 6 Hz - 30 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω >300 / 50 Hz
• Damping Factor @ 2 Ω >150 / 50 Hz
• THD+N @ Rated Power<0.03% @ 4 Ω per Ch.

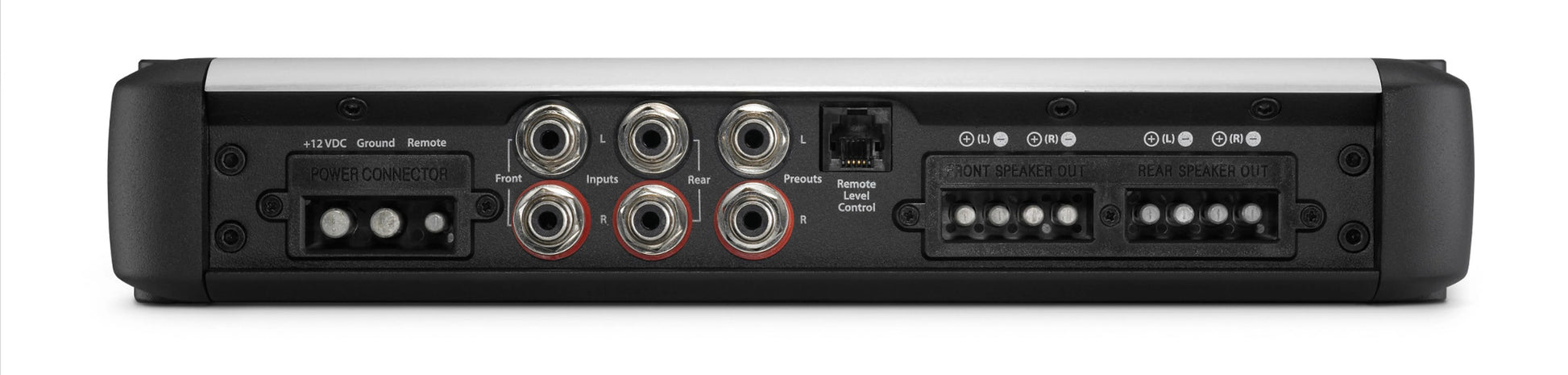

• Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
• Min.Copper Power / Ground Wire Gauge 4 AWG wire
• Fuse Rating 50 A (AFS, AGU or MaxiFuse™)

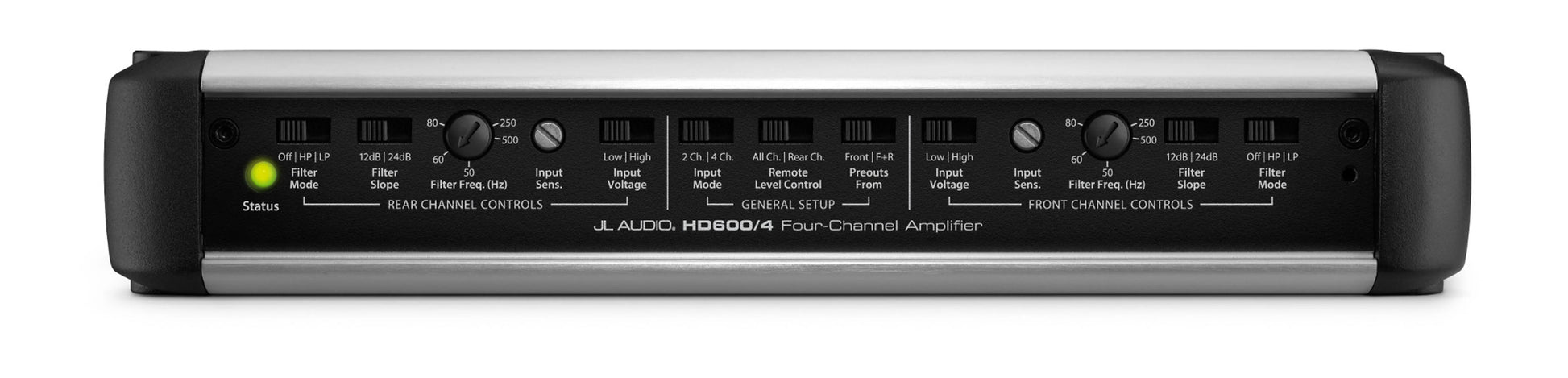

Signal Processing

• Filter Mode(s) Low-Pass or High-Pass
• Filter Slope(s) 12/24 dB/octave
• Filter Frequency Range 50 Hz - 500 Hz
• Detented, Calibrated Filter Freq. Potentiometers Yes
• Filter Defeat Function Yes
• Remote Level Control Optional (HD-RLC)
• Remote Level Modes 2 or All Channels
• Channel Input Mode Switch Yes (2/4 ch.)
• Pass-Through Preamp Output Buffered
• Source Channel Selection for PreOuts Yes

Physical Specifications

• Height (H) 1.93 in / 49 mm
• Width (W) 10.74 in / 273 mm
• Depth (D) 7.85 in / 199 mm
