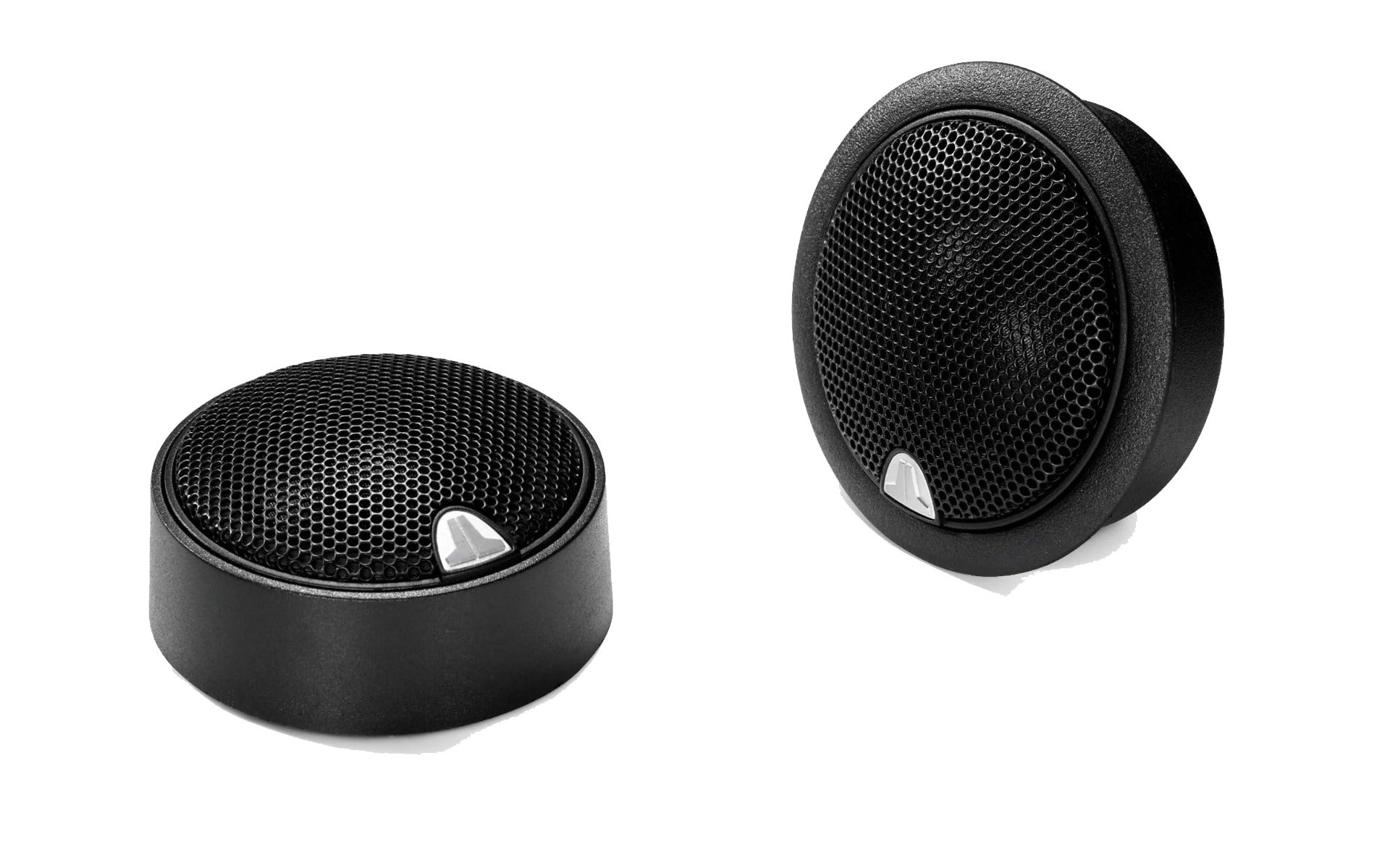

The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems.

Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C5-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.

Sonic character: Clean and Powerful

Sold as a pair.

Specification

• Continuous Power Handling (RMS) 75 W
• Peak Music Power* 225 W
• Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
• System Efficiency 90.0 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 4 kHz - 25 KHz ± 3 dB
• Flush Mount Fixture Diameter (A1) 2.12 in / 54 mm
• Surface Mount Fixture Diameter (A2) 1.93 in / 49 mm
• Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
• Flush Mount Mounting Depth (C) 0.71 in / 18.0 mm
• Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
• Surface Mount Tweeter Frontal Protrusion (D2) 0.95 in / 24 mm
