JL Audio C1-075CT - 0.75" Component Tweeter Pair with Crossovers
JL Audio C1-075CT - 0.75" Component Tweeter Pair with Crossovers

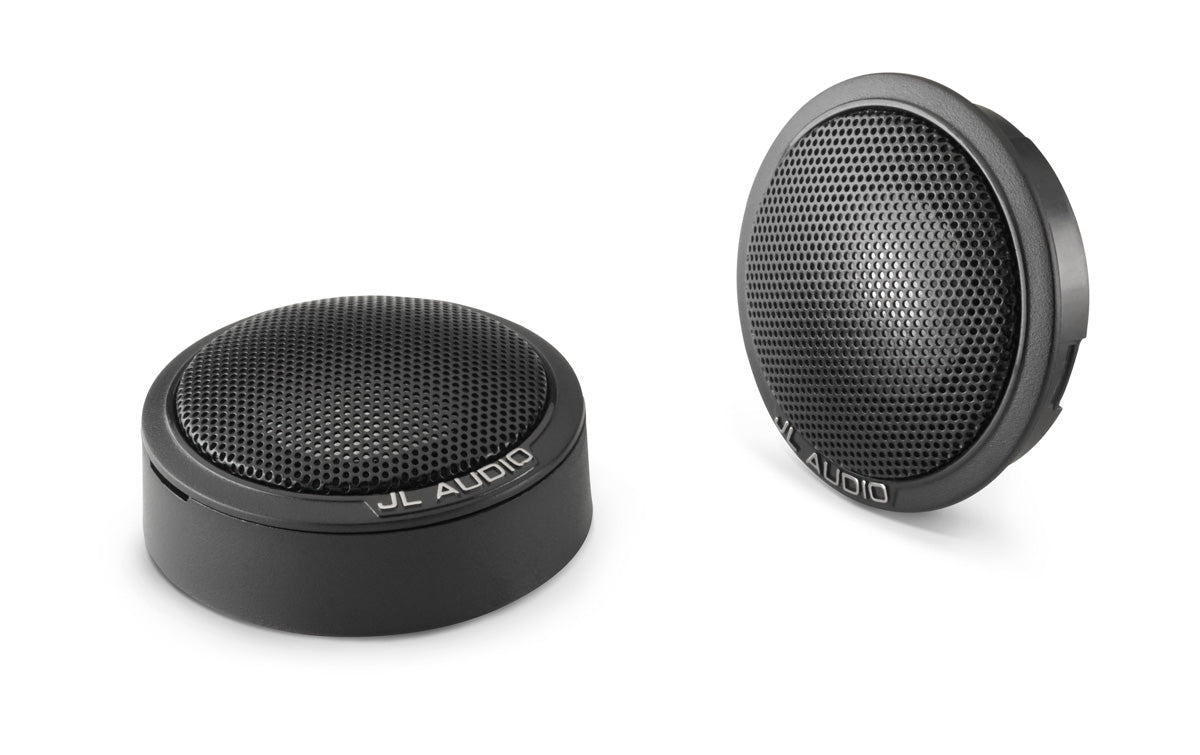

C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminium domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 – 24 kHz.
Product Description

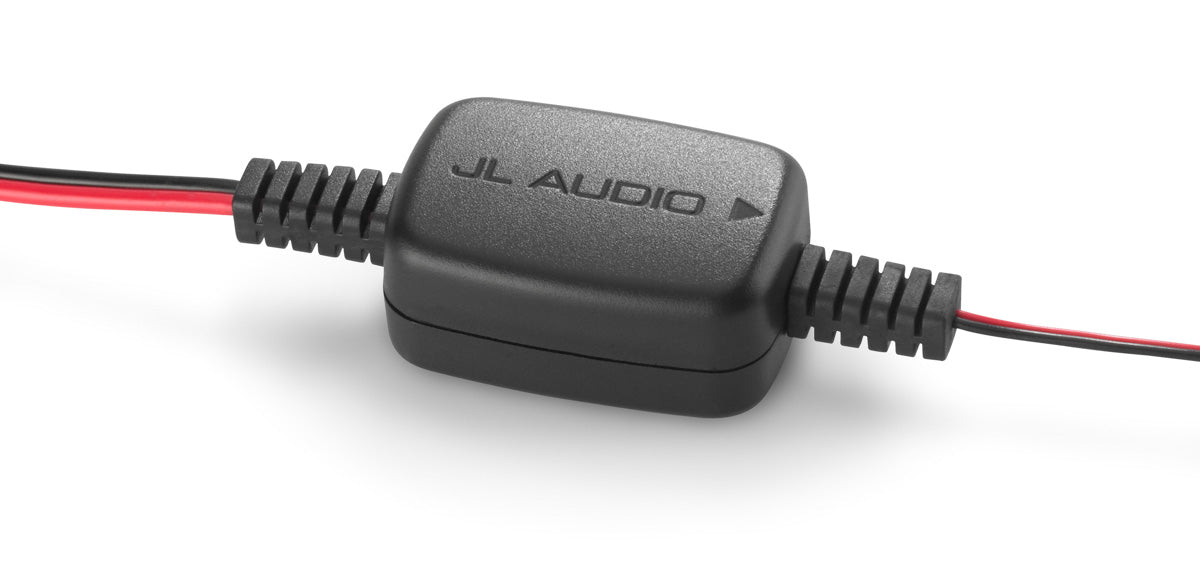

The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
General Specifications
- Continuous Power Handling (RMS) 50 W
- Peak Music Power* 150 W
- Recommended Amplifier Power (RMS) 20 - 50 W / Ch.
- System Efficiency 91.0 dB @ 1 W / 1 m
- System Nominal Impedance 6 Ω
- System Frequency Response 4 kHz - 24 KHz ± 3 dB
- *With supplied crossover
Tweeter Physical Specifications
- Flush Mount Fixture Diameter (A1) 1.67 in / 42 mm
- Surface Mount Fixture Diameter (A2) 1.71 in / 43 mm
- Flush Mount Mounting Hole Diameter (B) 1.46 in / 37 mm
- Flush Mount Mounting Depth (C) 0.40 in /10 mm
- Flush Mount Tweeter Frontal Protrusion (D1)0.23 in / 6 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.76 in / 19 mm
Crossover Physical Specifications
- Width (W) 1.96 in / 50 mm
- Depth (D) 1.34 in / 34 mm
- Height (H) 0.90 in / 23 mm
