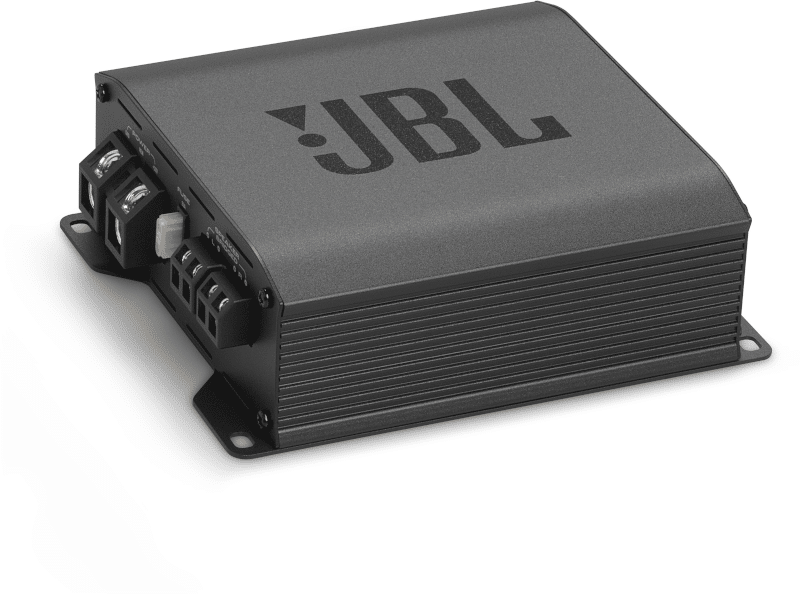

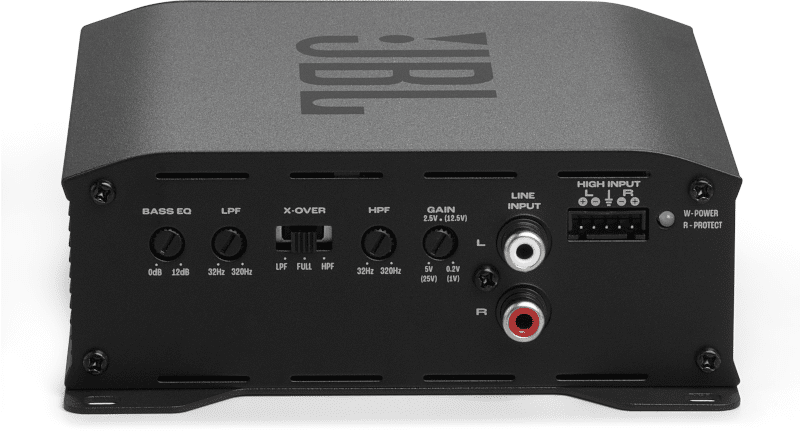

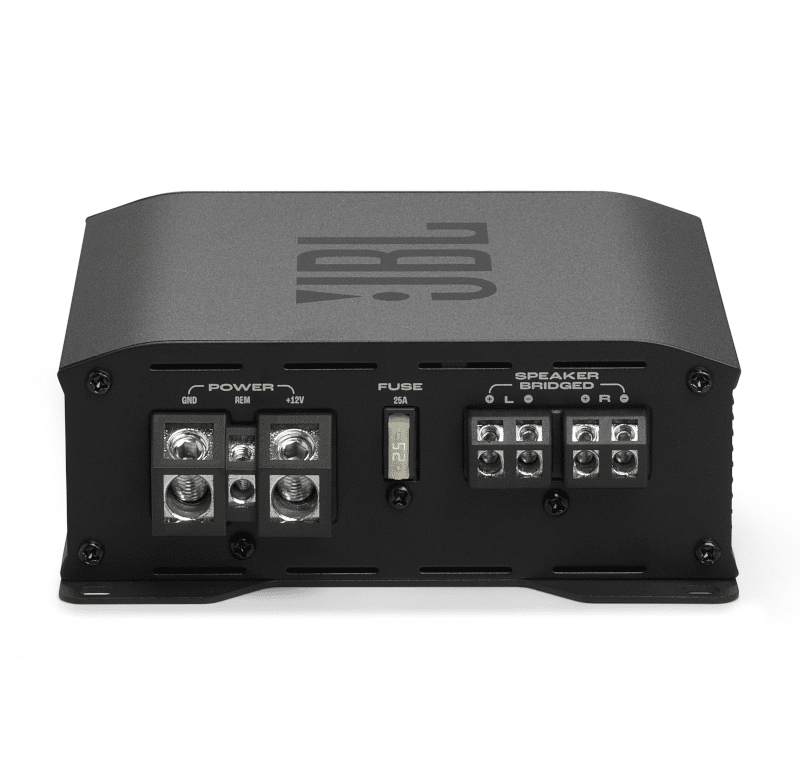

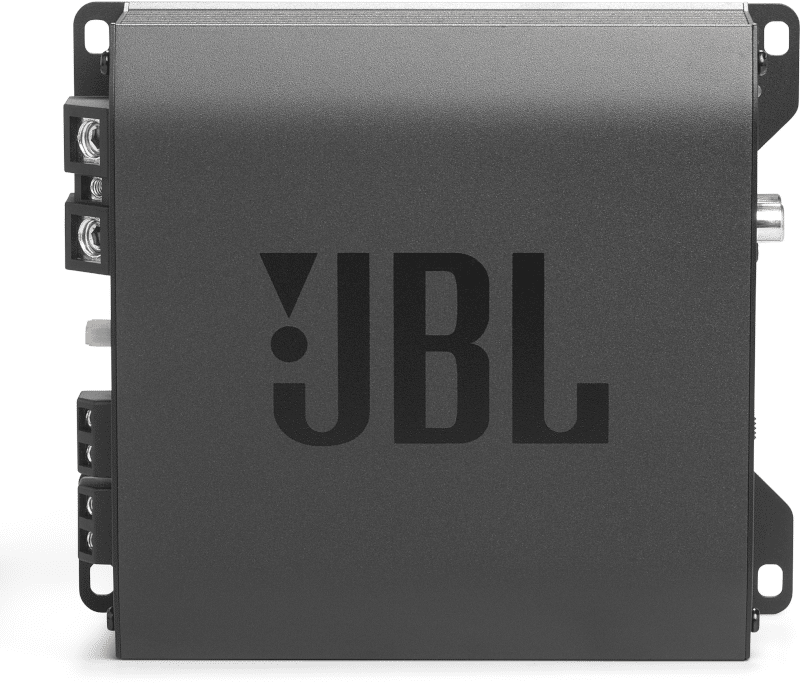

JBL Stage GT80021 - 2 Channel Class D Amplifier
JBL Stage GT80021 - 2 Channel Class D Amplifier
The JBL STAGE GT Series high-performance Class-D amplifiers are available in four-, two-, and one-channel models, suitable for a wide range of system configurations. Featuring advanced engineering, these amplifiers optimize performance for the ultimate listening experience. JBL STAGE GT amplifiers are easy to install and offer remarkable reliability.
Product Description
The JBL Stage GT 80021 is a class-D amplifier that is suitable for versatile configurations in your vehicle. Whether it is two speakers or a subwoofer: this amplifier delivers reliable power, adjustable filters and compact installation.
Specifications
- Maximum power: 800W peak
- RMS power: 130W x 2 @ 2 ohm / 80W x 2 @ 4 ohm / 260W x 1 @ 4 ohm (bridged)
- Frequency response: 20Hz – 20kHz ±1dB
- Total Harmonic Distortion (THD+N): 1%
- Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
- Adjustable bass EQ: 0–12dB at 45Hz
- High/Low-pass filters: 32Hz – 320Hz (adjustable)
- Protection: against short circuit, over/under voltage and overheating
- Supply voltage: 9V – 16V
- Fuse: 1x 25A
- Dimensions: 156.9mm x 49.5mm x 132.5mm
- Weight: 1061g
What’s in The Box
- 1 x amplifier
- 2 x spare fuse
- 1 x high-level input cable
- 4 x fixing screw with washer
- 2 x Allen keys
- 2 x JBL stickers
- 1 x QR code for the user manual
- 1 x safety sheet
