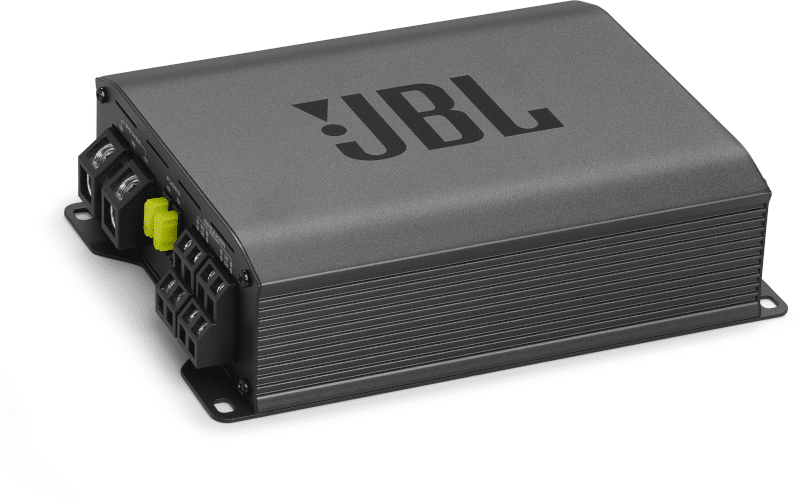

JBL Stage GT60041 - 4 Channel Class D Speaker Subwoofer Amplifier 1240W
JBL Stage GT60041 - 4 Channel Class D Speaker Subwoofer Amplifier 1240W
The JBL STAGE GT Series high-performance Class-D amplifiers are available in four, two and one-channel models, suitable for a wide range of system configurations. Featuring advanced engineering, these amplifiers optimize performance for the ultimate listening experience. JBL STAGE GT amplifiers are easy to install and offer remarkable reliability.
Product Description
The JBL Stage GT 60041 is a class-D amplifier that is suitable for versatile configurations in your vehicle. Whether it is four speakers or a combination with a subwoofer: this amplifier delivers reliable power, adjustable filters and compact installation.
Specifications
-
Maximum power: 1240W peak
-
RMS power: 90W x 4 @ 2 ohm / 65W x 4 @ 4 ohm / 180W x 2 @ 4 ohm (bridged)
-
Frequency response: 20Hz – 20kHz ±1dB
-
Total Harmonic Distortion (THD+N): 1%
-
Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
-
Adjustable bass EQ: 0–12dB at 45Hz
-
High/Low-pass filters: 32Hz – 320Hz (adjustable)
-
Protection: against short circuit, over/under voltage and overheating
-
Supply voltage: 9V – 16V
-
Fuses: 2x 20A
- Dimensions: 132.5mm x 186.9mm x 49.5mm (W x L x H)
- Weight: 1.33kg
What's in the box?
-
1x JBL Stage GT 60041 amplifier
-
2x Spare fuse
-
2x High-level input cable
-
4x Mounting screw with washer
-
2x Allen key
-
2x JBL sticker
-
1x QR code for manual
-
1x Safety Instruction
