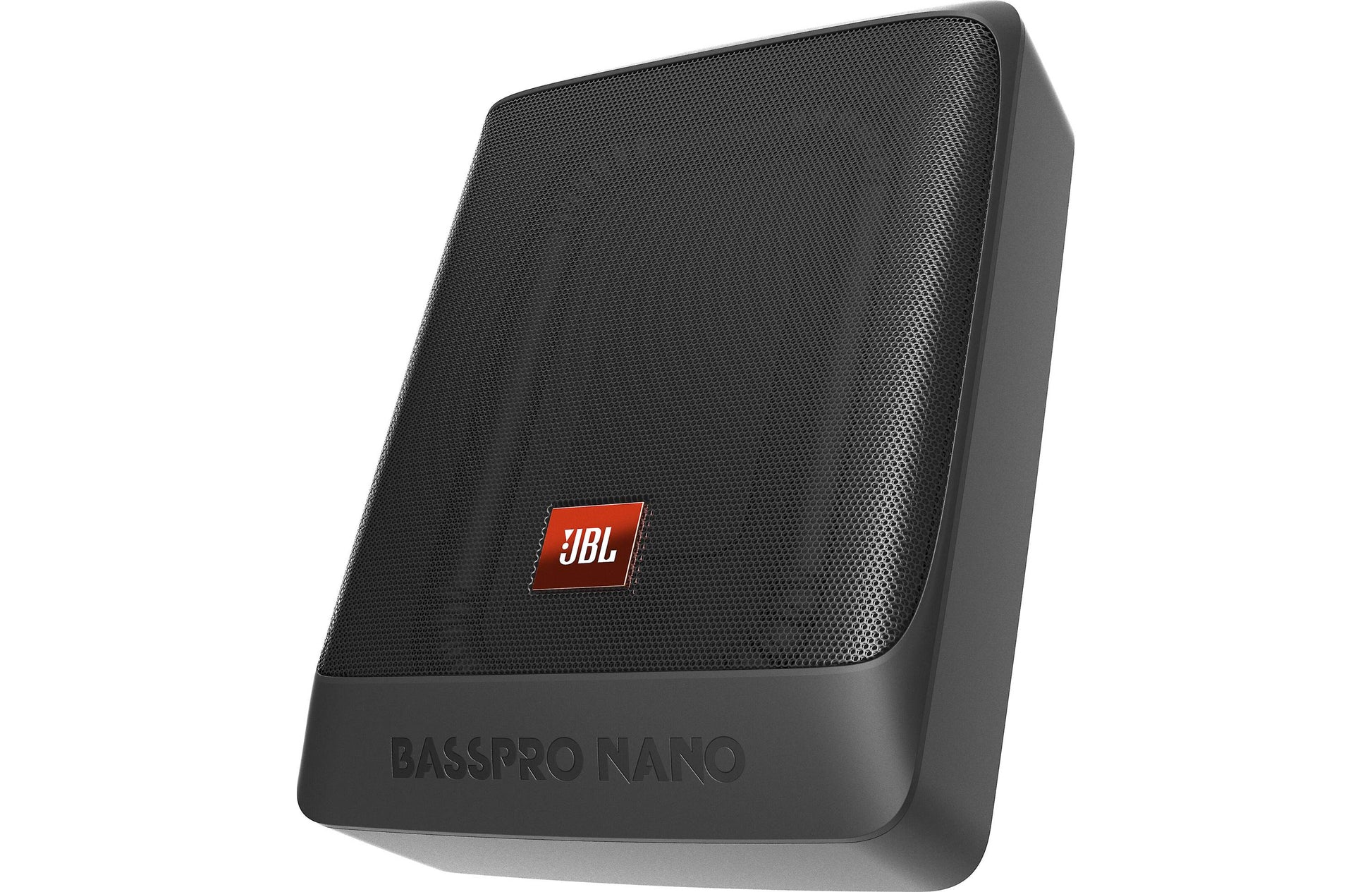

Big Bass, Small Space

JBL BassPro Nano delivers bumping bass and takes up little space. The on-board 100Wrms amplifier has been performance matched to subwoofer to deliver the amount of clear, tight bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance

The BassPro Nano employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminium Enclosure Design

The rugged all-die-cast aluminium enclosure design in anodized textured matte black not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control

Bass Volume Remote control is included to let you adjust the sound from the driver’s seat.

Specifications

• Driver Complement: 6" x 8" (152mm x 203mm) Subwoofer
• Amplifier Power: 100Wrms; 200W Max
• Frequency Response: 30Hz – 150Hz
• Fuse: 15A Maximum
• Current Draw: 13A
• Quiescent Current Draw: <600mA
• Input Sensitivity: 0.1V – 4.0V Low-Level Input; 0.25V – 10V High-Level Input
• Crossover Frequency: 50Hz – 150Hz Crossover Slope: 12dB/octave
• Bass Boost: 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H): 10-1/4" x 7-11/16" x 2-15/16" (260.0mm x 195.0mm x 74.6mm)
• Weight: 7.78 lbs (3.53kg)

What’s in the box

• 1x Under seat subwoofer
• 14x Screws
• 4x Small metal plate

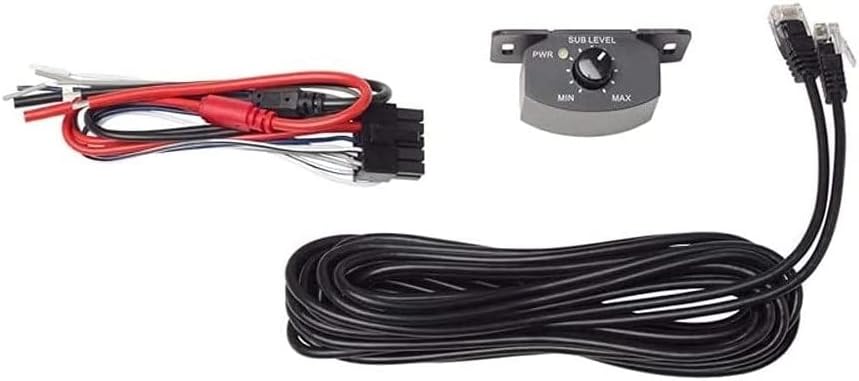

• 1x Wiring harness
• 1x Bass volume remote control (with cable)
• 1x 15A Fuse
