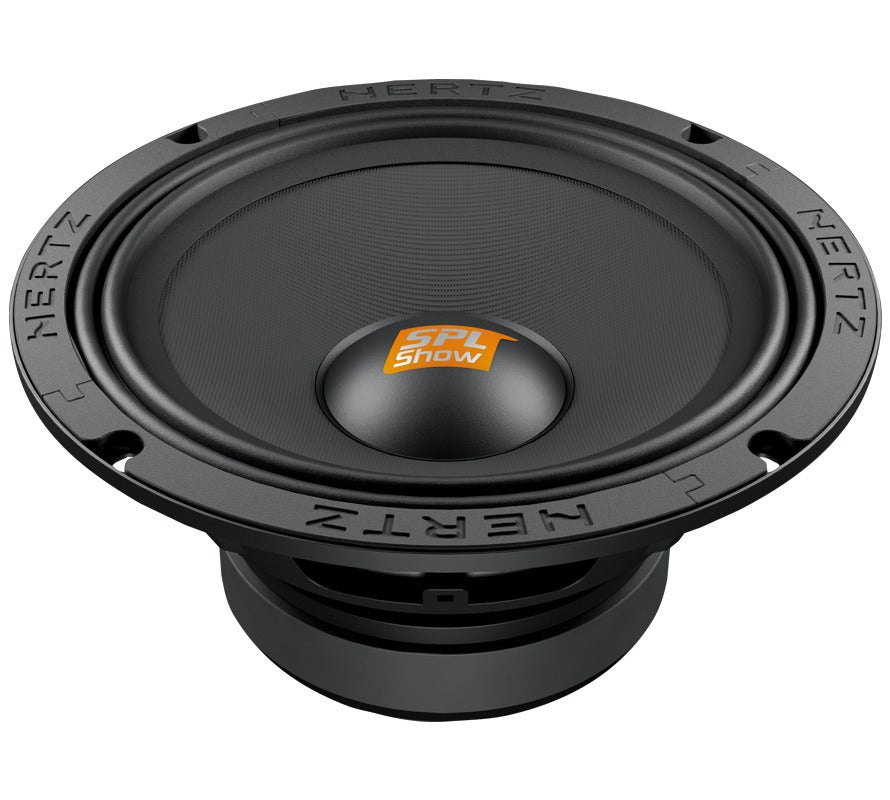

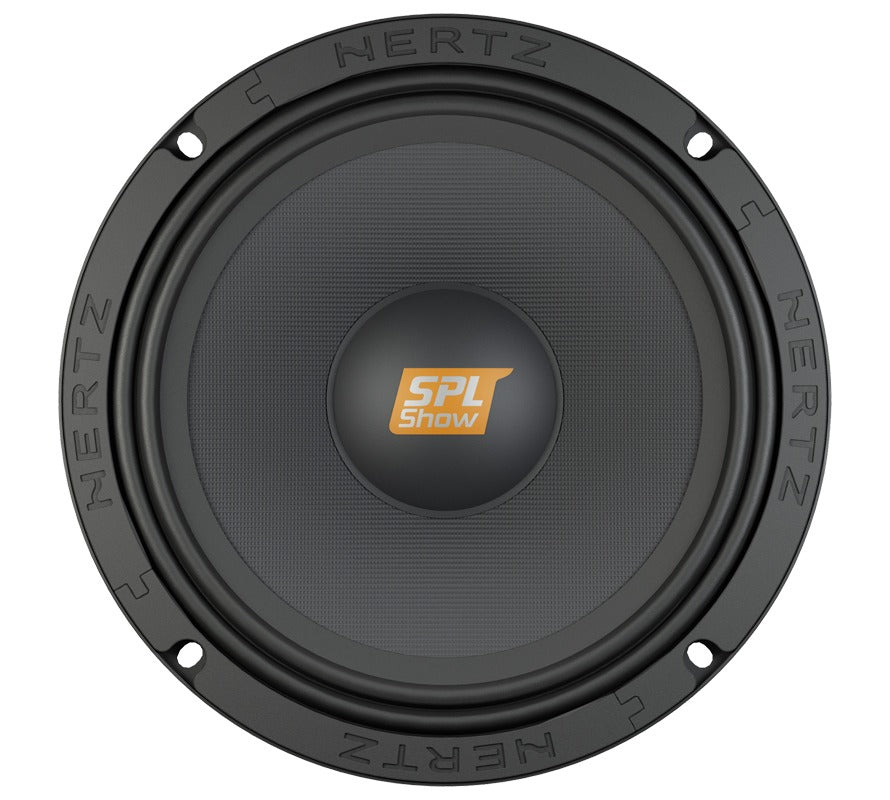

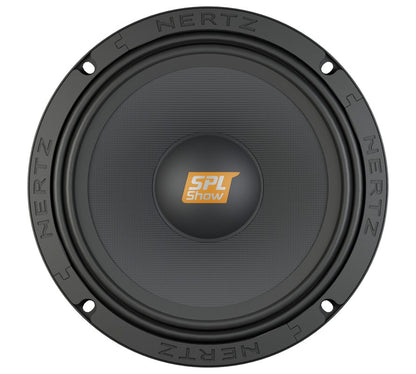

The SV 200.1 midbass is designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances.

Technical Specs

• Component - SPL Midrange

• Size mm (in.) - 200 (8)

• Power Handling - 200W Continuous

• Power Handling - 500W Peak

• Impedance - 4 Ohm

• Voice Coil Ø - 38 (1.5)

• Frequency Response - 100Hz ÷ 9Khz

• Magnet size D x d x h mm (in.) - 80 x 50 x 6 (3.15 x 1.97 x 0.24)

• Weight of one speaker kg (lb.) - 1,2 (2.65)

• Magnet - High density flux ferrite

• Cone - Ultra light pressed paper

• Sold as a pair

Electro-Acoustic Specs

• D mm - 168
• Xmax mm - 1,5
• Re Ohm - 3,3
• Fs Hz - 120
• Le mH - 0,06
• Vas I - 7,5
• Mms g - 16,5
• Cms mm/N - 0,12
• BL T*m - 8,8
• Qts - 0,52
• Qes - 0,55
• Qms - 7,4
• Spl dB - 100
