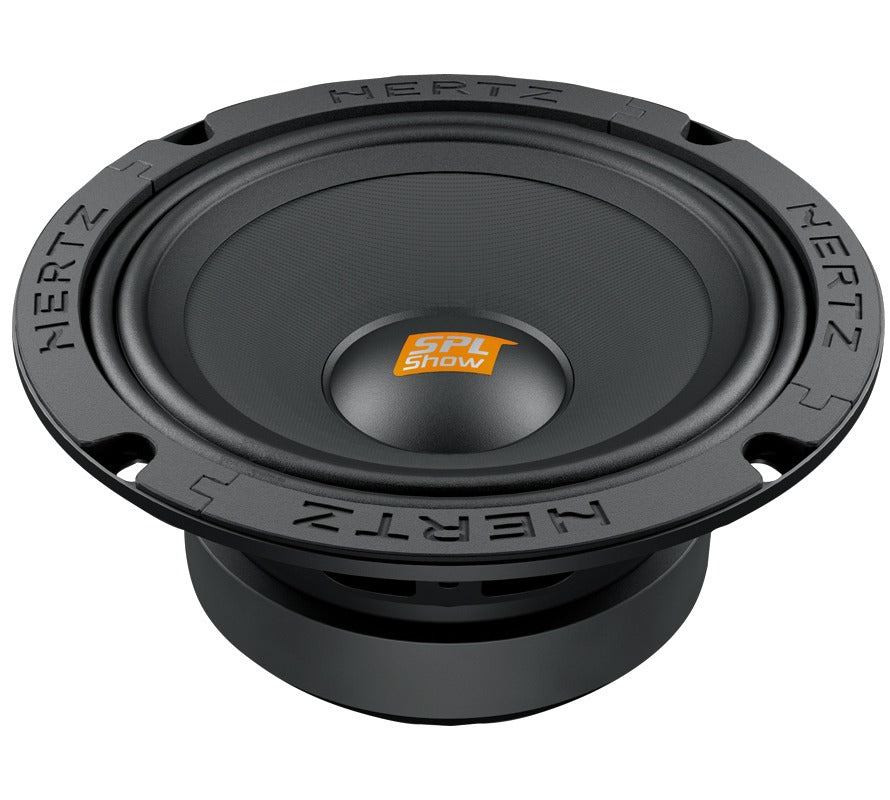

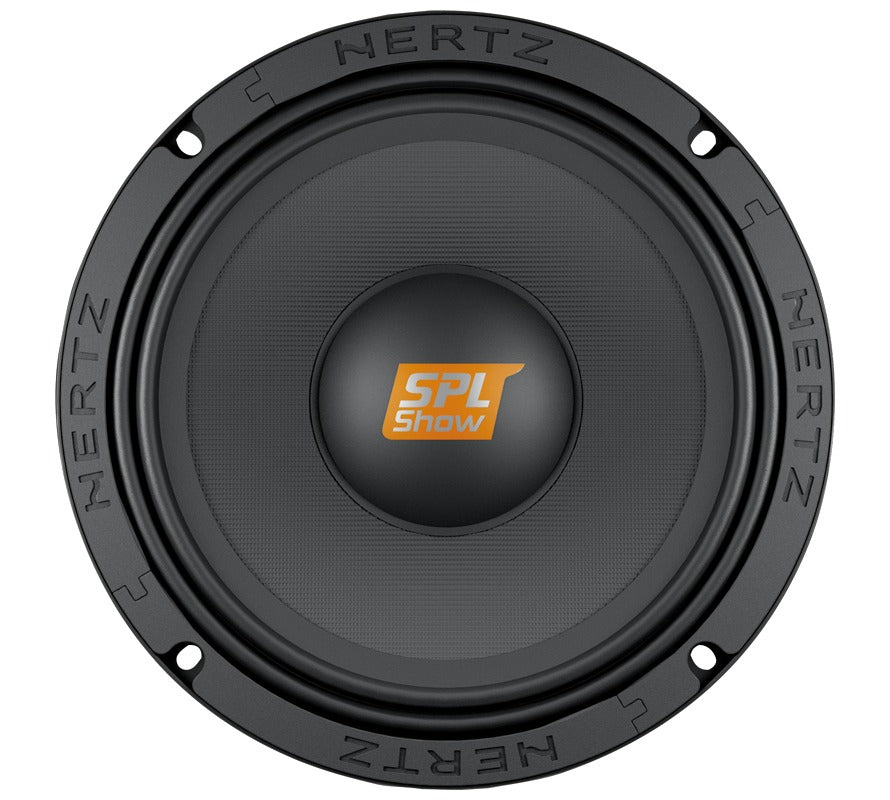

The SV 165.1 mid-bass can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances.

Technical Specs

• Component - SPL Midrange

• Size mm (in.) - 165 (6.5)

• Power Handling - 150W Continuous

• Power Handling - 400W Peak

• Impedance - 4 Ohm

• Voice Coil Ø - 38 (1.5)

• Frequency Response - 100Hz ÷ 10Khz

• Magnet size D x d x h mm (in.) - 110 x 45 x 20 (4.3 x 1.8 x 0.8)

• Weight of one speaker kg (lb.) - 1,85 (4)

• Magnet - High density flux ferrite

• Cone - Ultra light pressed paper

• Sold as a pair

Electro-Acoustic Specs

• D mm - 128

• Re Ohm - 3,2

• Fs Hz - 110

• Le mH - 0,26

• Vas I - 4,65

• Mms g - 10,4

• Cms mm/N - 0,2

• BL T*m - 6,5

• Qts - 0,5

• Qes - 0,55

• Qms - 5,53

• Spl dB - 97
