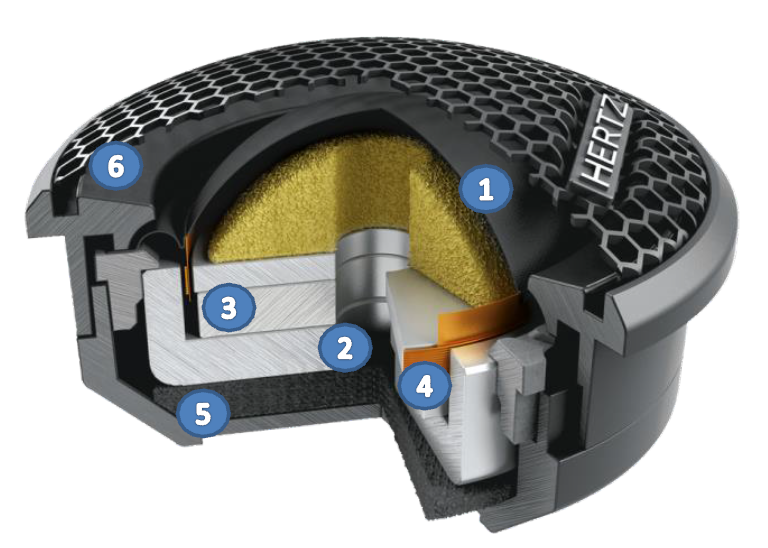

The MP 25.3 car audio tweeters, featuring Tetolon dome and 25 mm voice coil, provides a very wide, linear frequency response. Thanks to its “Center Tuning Duct”, positioned in the center of the powerful Neodymium magnetic circuit, exchange of air between dome and rear load chamber is ensured, fine-tuning the acoustics to perfection.

Technical Specs

• Component - Tweeter

• Size mm (in.) - 29 (1.14)

• Power Handling - 120W Peak

• Power Handling - Peak Note - (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)

• Impedance - 4 Ohm

• Voice Coil Ø - 25 (1)

• Frequency Response - 1.4Khz ÷ 22.5Khz

• Magnet size D x d x h mm (in.) - 24.5 x 6 x 3.5 (0.96 x 0.24 x 0.14)

• Weight of one speaker kg (lb.) - 0.07 (0.14)

• Magnet - Neodymium

• Dome - Tetolon

Electro-Acoustic Specs

• D mm - 29

• Re Ohm - 3,9

• Fs Hz - 1200

• Le mH - 0,02

• Vas I

• Mms g - 0,17

• Cms mm/N - 0,1

• BL T*m - 1,6

• Qts - 0,55

• Qes - 1,98

• Qms - 0,57

• Spl dB - 91
