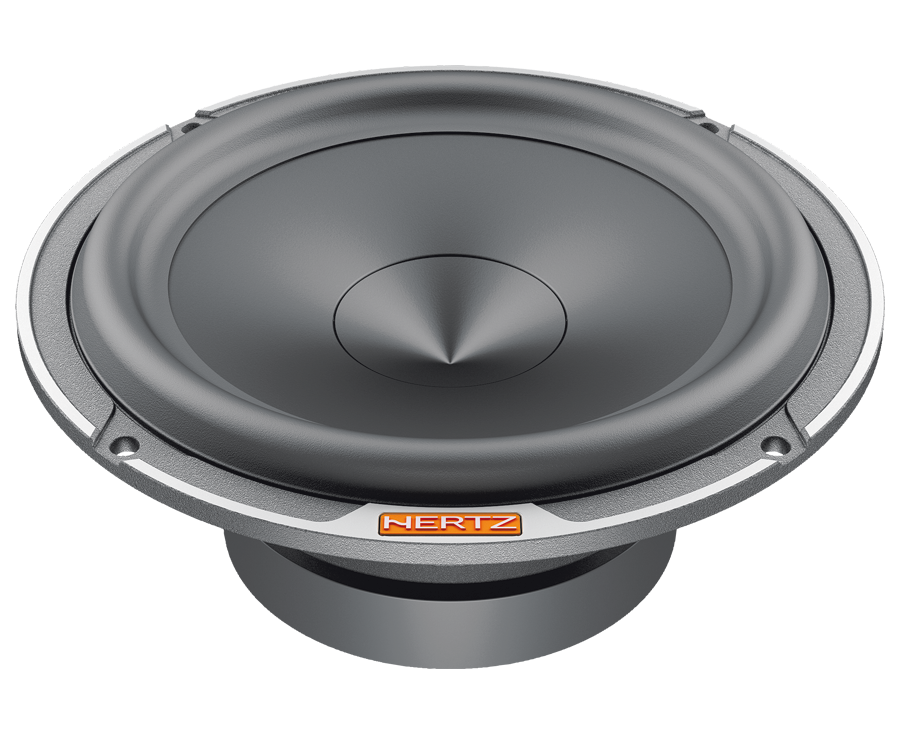

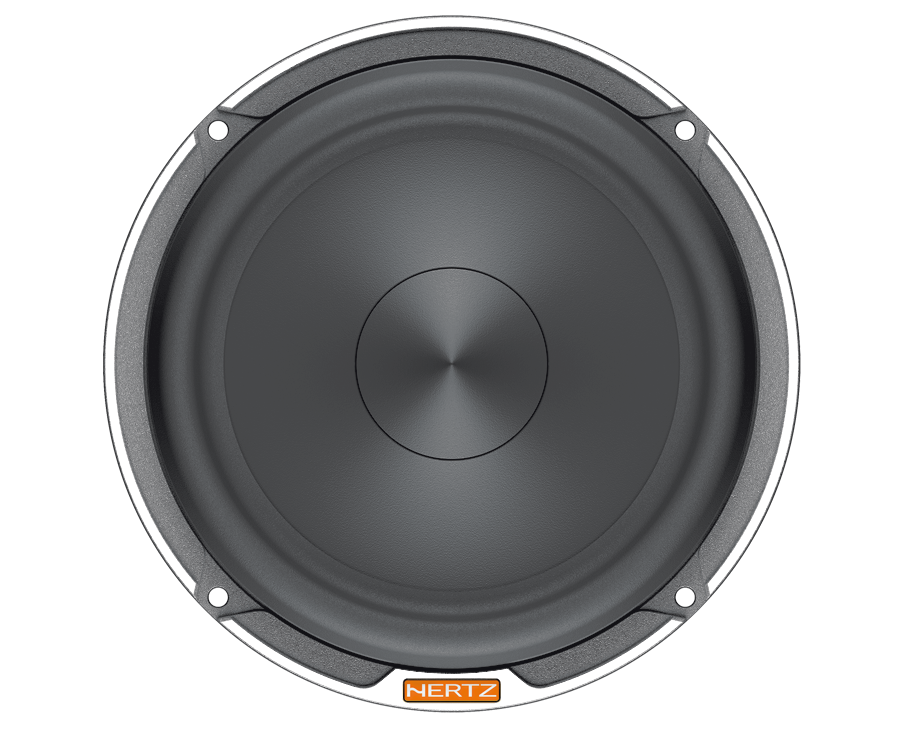

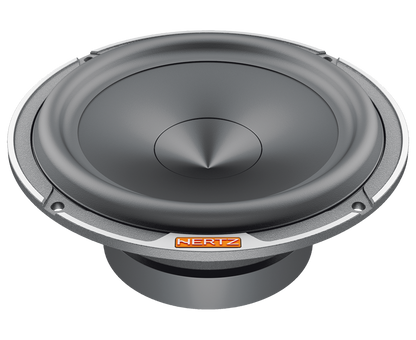

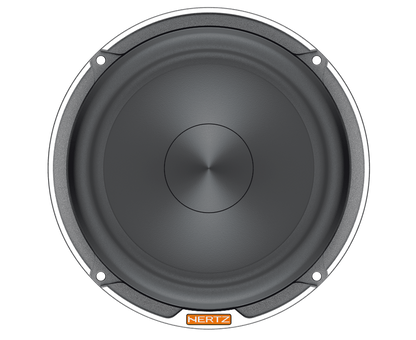

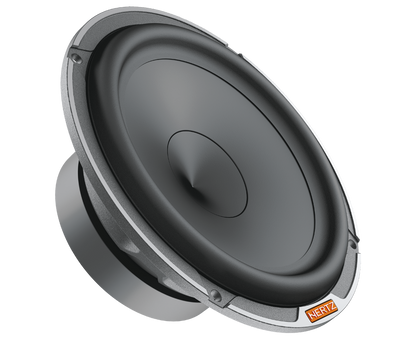

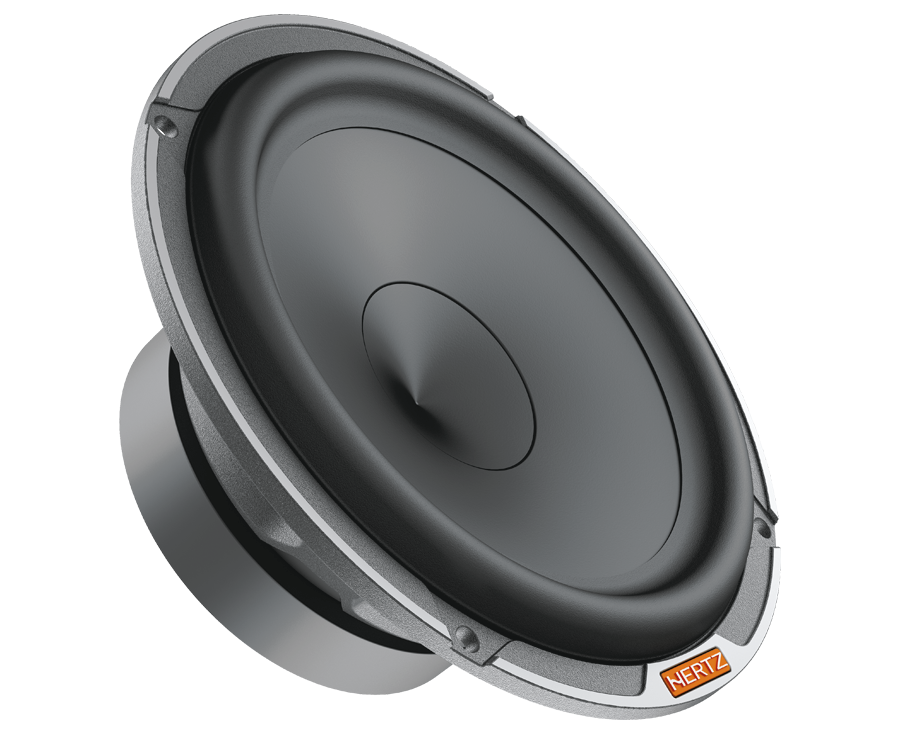

The MP 165P.3 woofers electro-acoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The voice coil with a generous 14 mm height, has a nominal 3 Ω impedance in addition to an increased power handling.

Technical Specs

• Component - Woofer
• Size mm (in.) - 165 (6.5)
• Power Handling - 100W Continuous
• Power Handling - 200W Peak
• Impedance - 3 Ohm
• Voice Coil Ø - 25 (1)
• Frequency Response - 45Hz ÷ 4,5Khz
• Magnet size D x d x h mm (in.) - 95 x 45 x 17 (3.74 x 1.77 x 0.67)
• Weight of one speaker kg (lb.) - 1.2 (2.65)
• Magnet - High density flux ferrite
• Cone - Pressed-pulp cone with cotton fibers
• Xmech mm (in.) - ±7.5 (0.3)

Electro-acoustic Specs

• D mm - 132
• Re Ohm - 2,6
• Fs Hz - 75
• Le mH - 0,28
• Vas I - 8
• Mms g - 15,1
• Cms mm/N - 0,3
• BL T*m - 5,45
• Qts - 0,56
• Qes - 0,63
• Qms - 5,2
• Spl dB - 94
