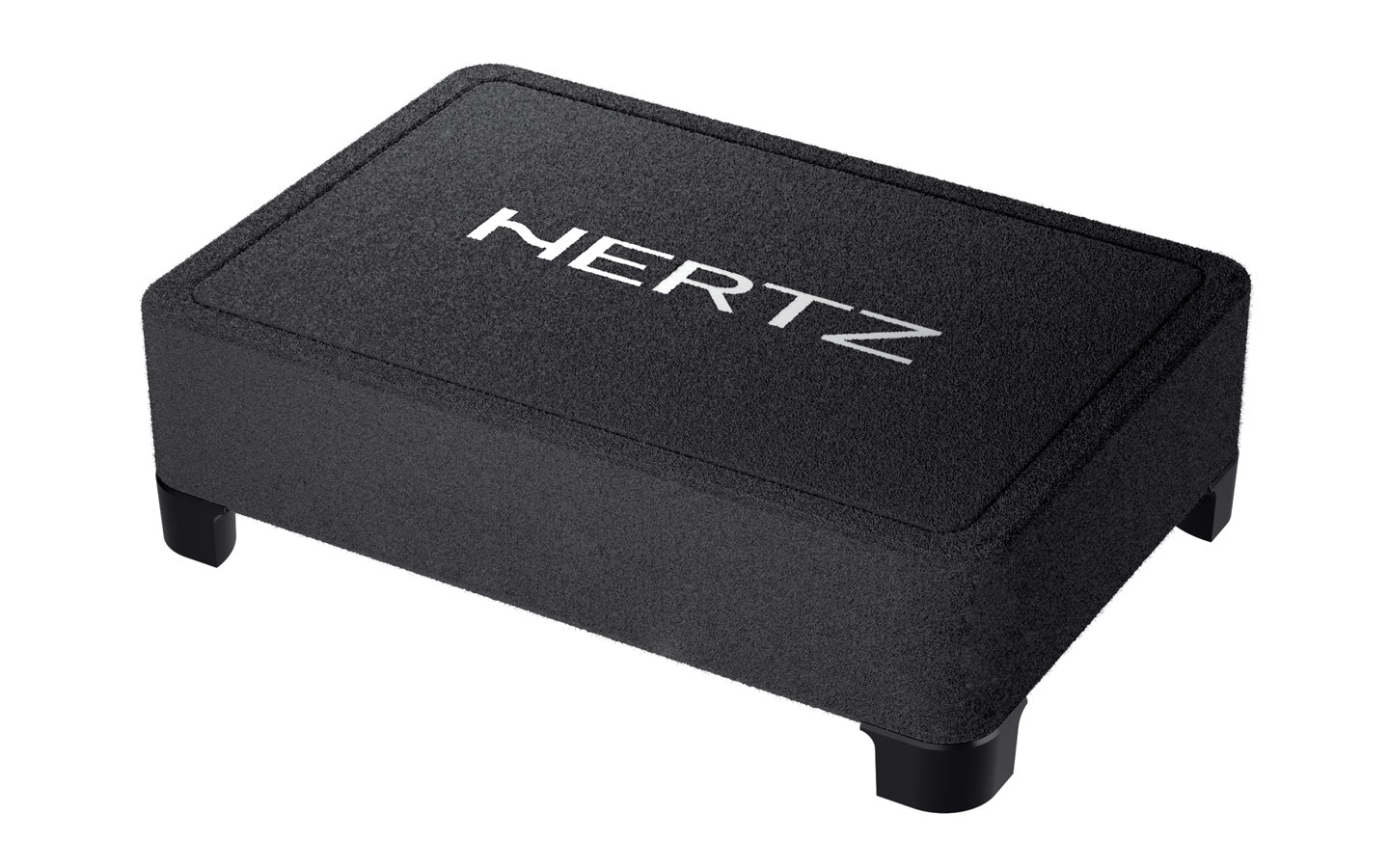

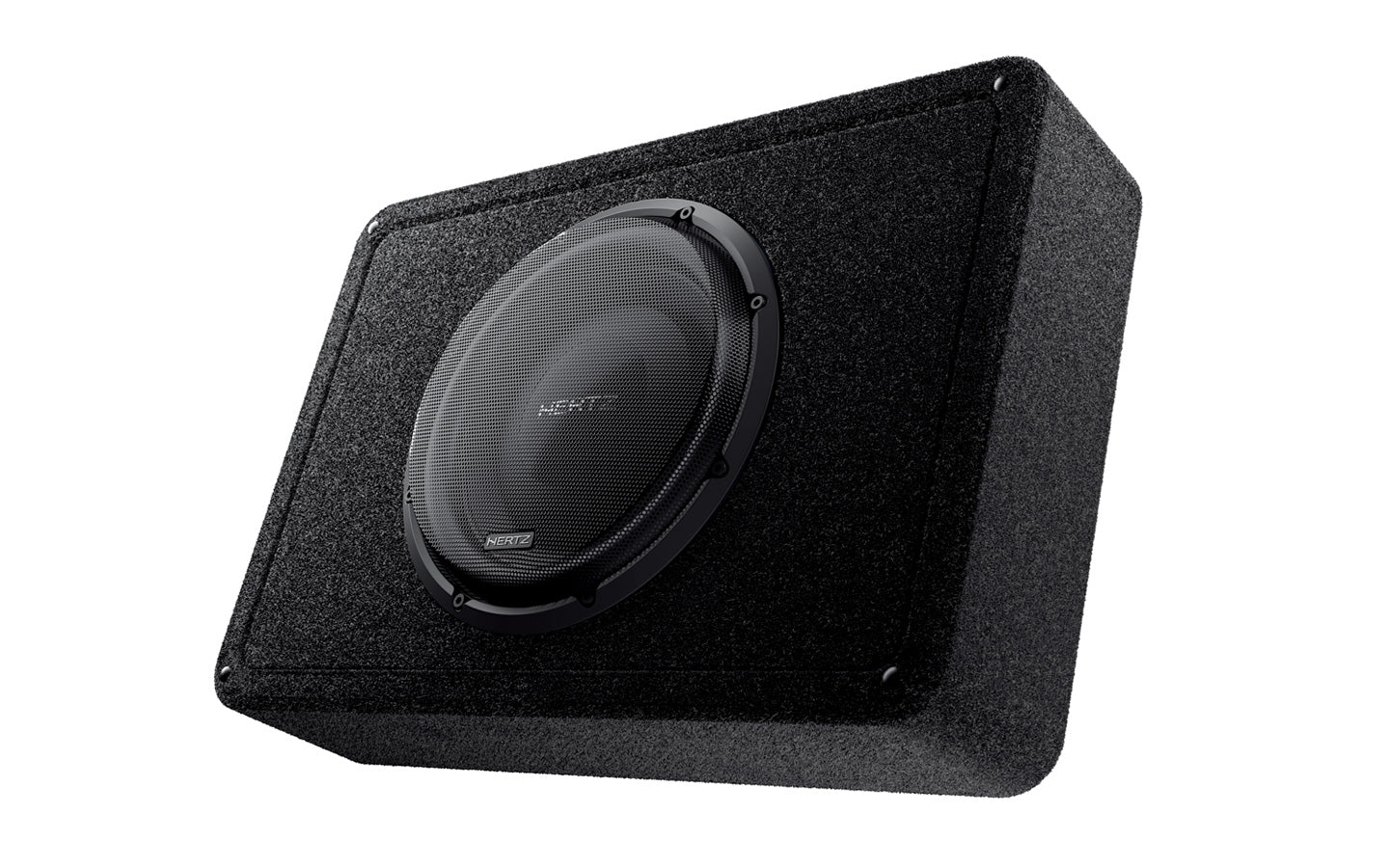

The MPBX 300 S2 ultra-shallow sealed enclosure is specifically optimized to deliver all the MPS 300 S2 subwoofer performances. The enclosure structure features incomparable robustness thanks to 15 mm (0.59 in.) wood thickness. Internal sound-absorbing material virtually increases the box's volume and reduces acoustic resonances.

Technical Specs

• Size mm (in.) - 300 (12)



• Power Handling - 500W Continuous



• Power Handling - 1000W Peak



• Impedance - 2 Ohm



• Voice Coil Ø - 38 (1.5)



• Frequency Response - 25Hz - 400Khz



• Magnet size D x d x h mm (in.) - 134 x 55 x 36 (6.28 x 2.17 x 1.42)



• Weight of one component kg (lb.) - 10,8 (23.8)



• Magnet - High density flux ferrite



• Cone - Polypropylene



• Xmech mm (in.) - 20



• Depth mm (in.) - 118 (4.65)



• Voice Coil Type - Single

Enclosure

• Ultra-shallow sealed enclosure specifically optimized to deliver all the MPS 300 S2 subwoofer performance
• 15 mm (0.59 in.) wood thickness for incomparable robustness

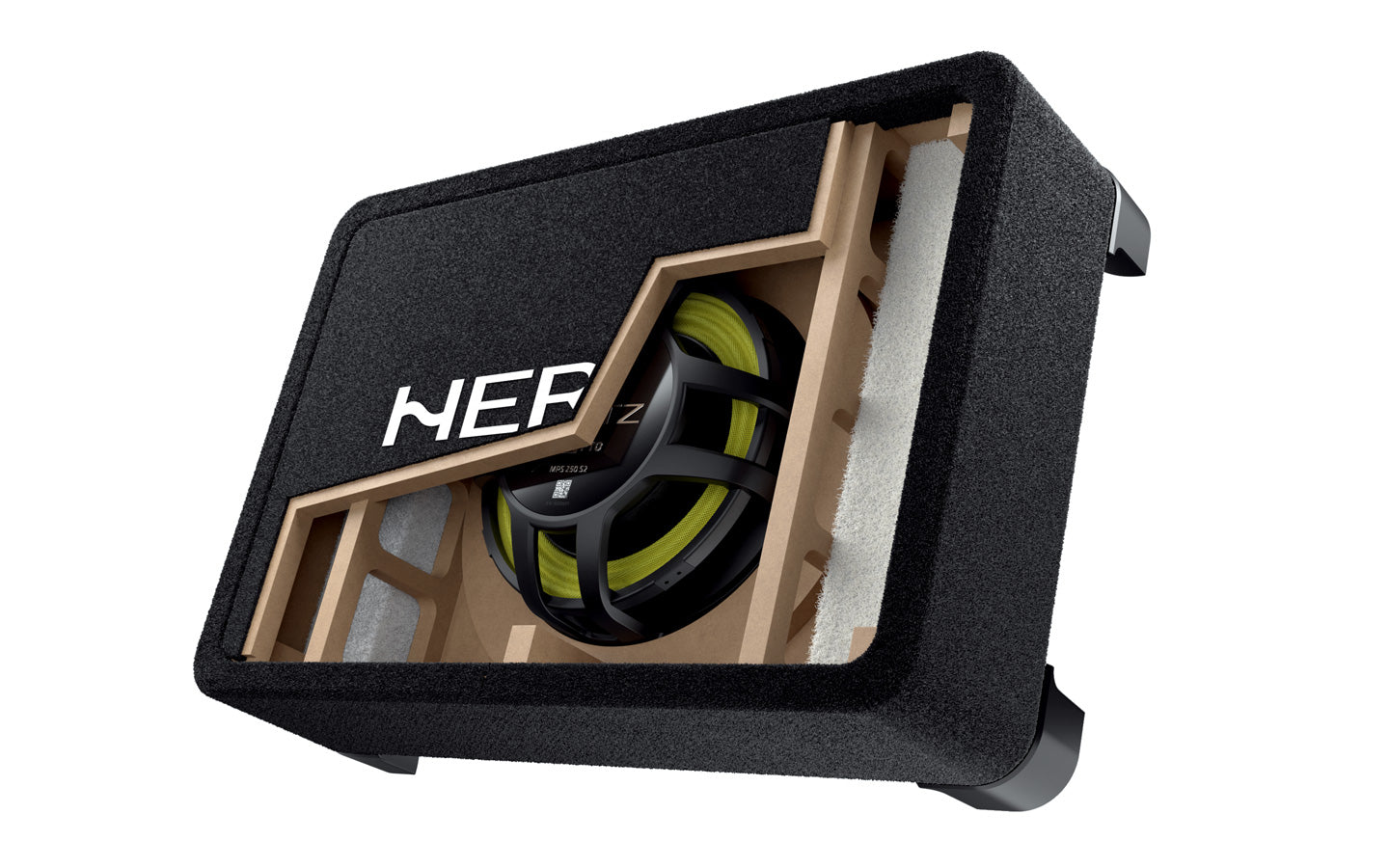

• Panel-to-panel internal bracing with solid corners to minimize resonances
• Round corners to ease the placement
• Internal sound-absorbing material virtually increases the box’s volume and reduces acoustic resonances
•  2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing install to obtain more punch and definition
• SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release

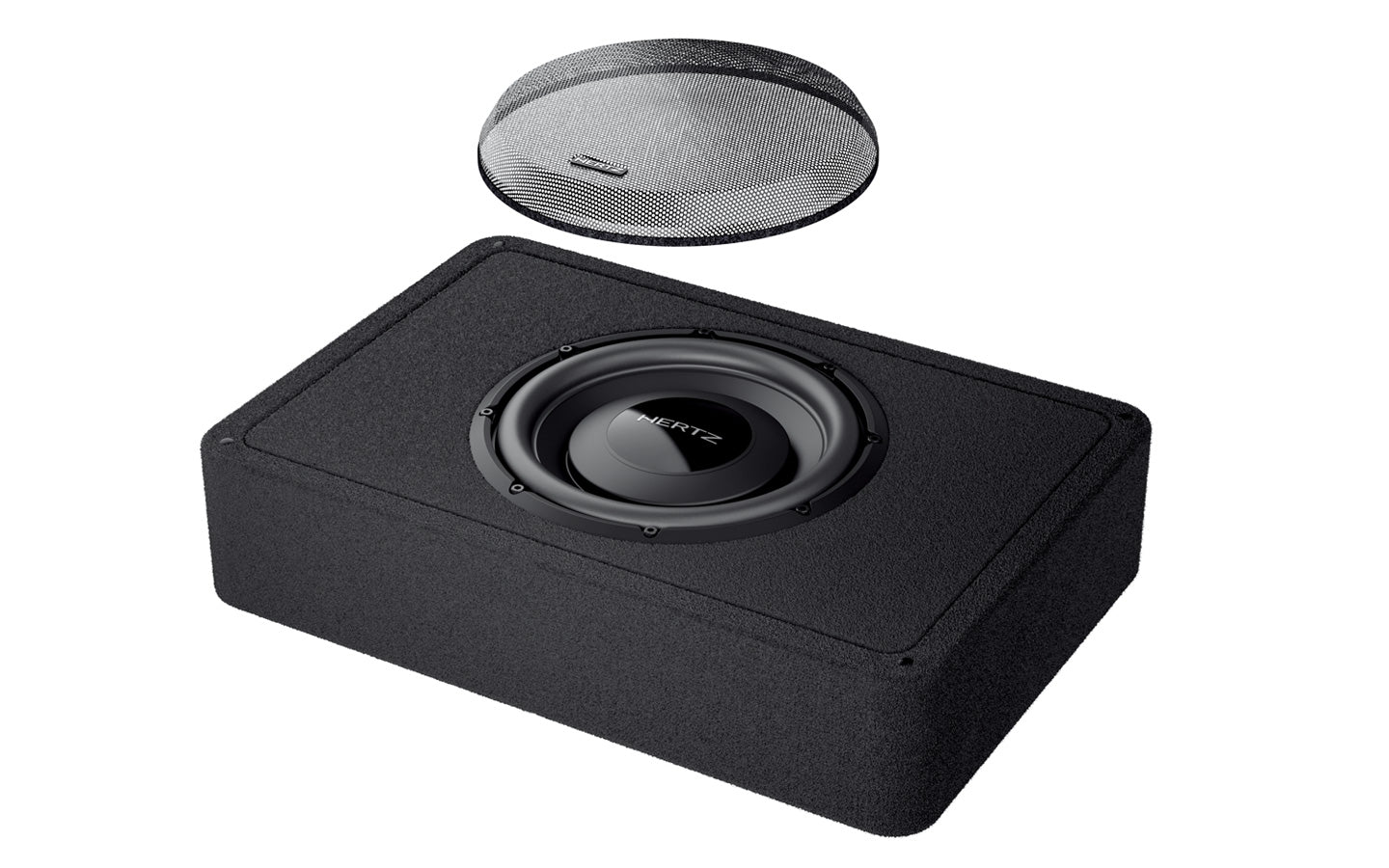

• Robust screw-less mesh grille included featuring adjustable logo position suitable for reverse install
• EID: Scan, Discover, Identify
