165 (6.5) mm (in.) | 85 (3.25) mm (in.) | Coax | 100 W | 4 Ohm

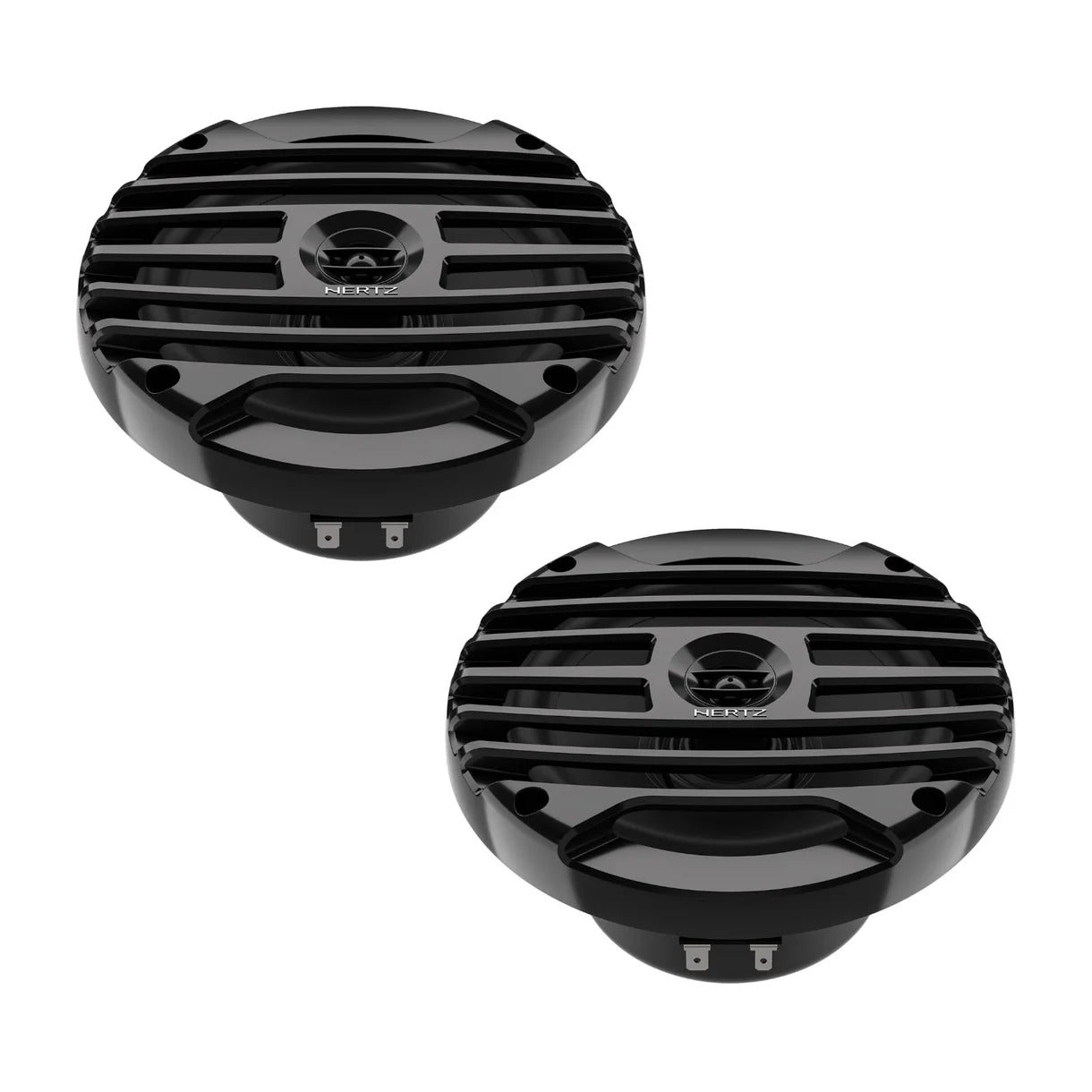

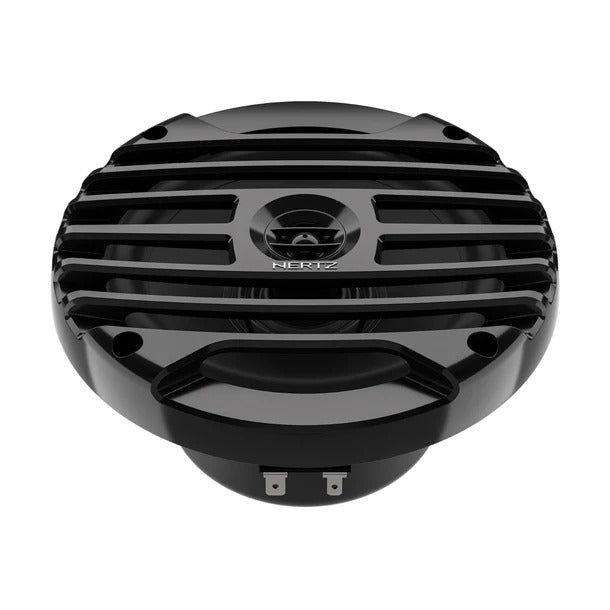

The HEX 6.5 M-C-O combines timeless marine design with the rugged performance expected from Hertz Marine. Featuring a Marine Total Black grille, this speaker adds a sleek, modern touch to any vessel while ensuring long-lasting protection in the harshest marine environments.

Features

• Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
• High efficiency tweeter designed with FEM simulation to maximize off-axis emission, typical of in-boat install.
• Sound-transparent mesh grille with twist and lock locking system, providing an elegant style and a rock-solid protection.
• Woofer with 25 mm (1”) voice coil fine-tuned for infinite baffle application featuring silicone insulated lead-wire for durability.
• Sealed built-in crossover with resettable solid-state tweeter protection circuit.
• Nickel-plated corrosion resistant terminals.

Specification

• COAX
• Size mm (in.)  165 (6.5)
• Power Handling - Continuous W 50
• Power Handling - Peak W 100
• Impedance - Ohm 4
• Depth mm (in.) 85 (3.25)
• Woofer Voice Coil Ø mm (in.) 25 (1)
• Tweeter Voice Coil Ø mm (in.) 13 (0.5)
• Frequency Response Hz 50 ÷ 23k
• Woofer Magnet size D x d x h mm (in.) 85 x 32 x 15 (3.35 x 1.26 x 0.59)
• Tweeter Magnet size D x h mm (in.) 12,9 x 2 + 11 x 1,9 (0.51 x 0.08 + 0.43 x 0.07)
• Weight of one speaker kg (lb.) 1 (2.2)
• Woofer Magnet High density flux ferrite
• Tweeter Magnet Neodymium
• Cone Polypropylene with UV inhibitors
• Dome PEI
• Xmech mm (in.)±4,8 (0.19)
