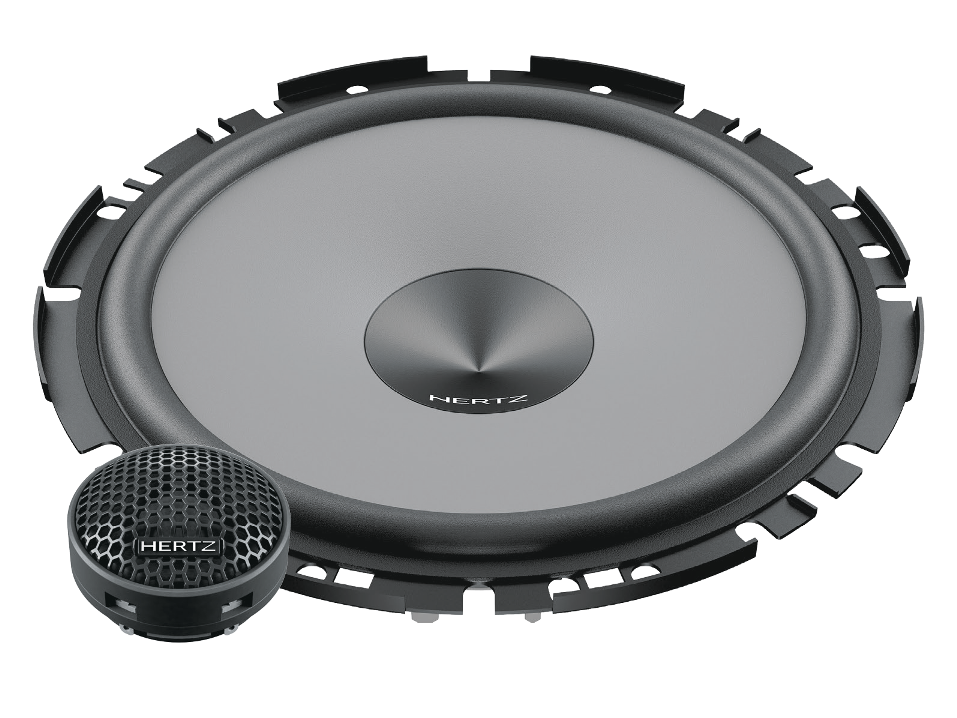

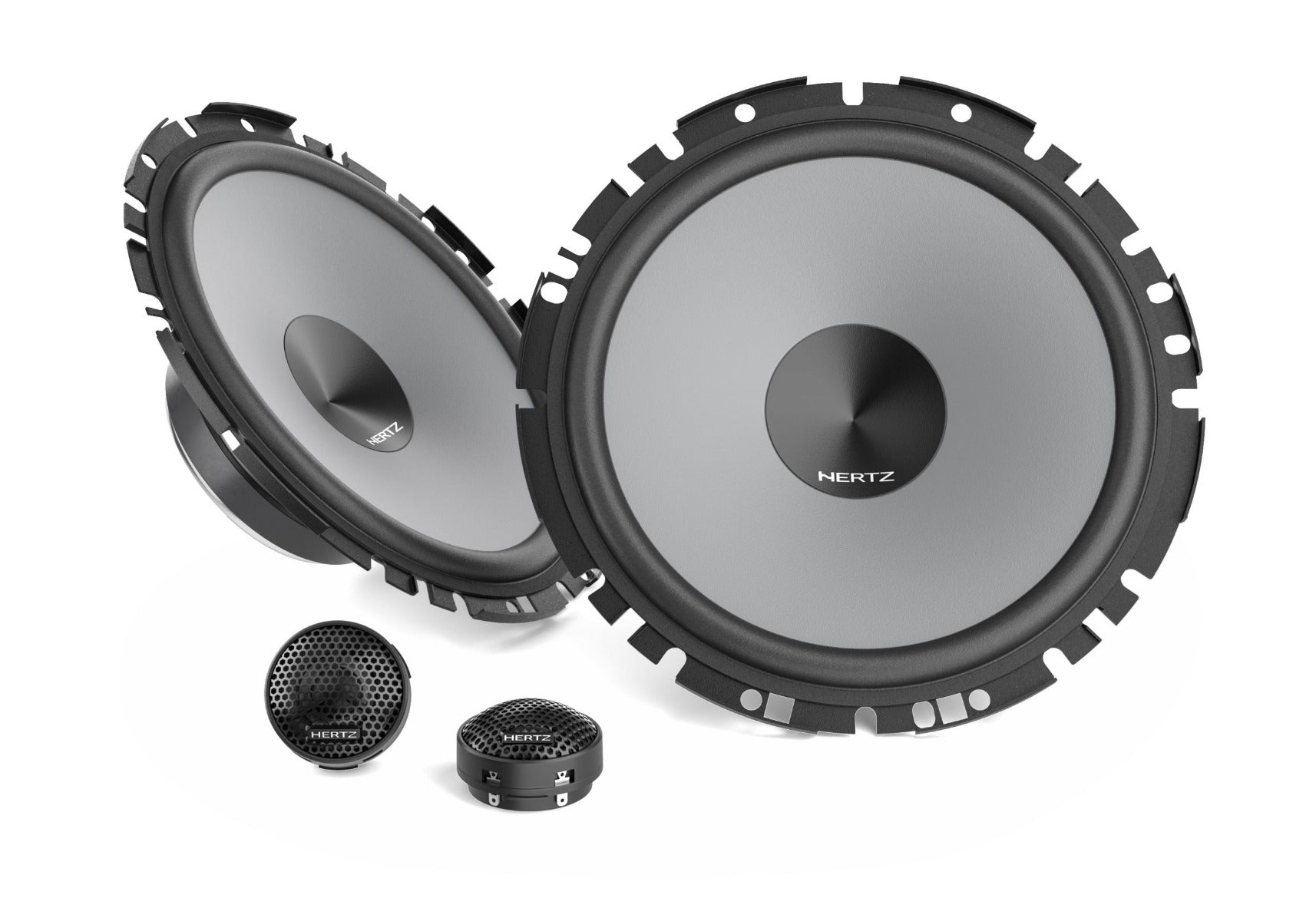

The K 170 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.7” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.

Specifications

• Power Handling - 280W Peak
• Power Handling - 70W Continuous
• Impedance - 4Ω
• Frequency response - 55Hz ÷ 23k
• Sensitivity dB SPL - 93,5
• Voice coil Ø mm (in.) - 25
• Woofer size mm (in.) - 170 (6.7)
• Tweeter size mm (in.) - 24 (0.9)
• Woofer magnet - High density flux ferrite
• Tweeter magnet - Neodymium Woofer
• cone - Water-repellent pressed paper
• Tweeter - dome PEI
• Crossover type - 6 dB/Oct tweeter
• Crossover cut off

• Crossover Type - 6 dB/Oct tweeter integrated



• Weight of one component - Tweeter kg (lb) - 0,53 (1.17)



• Weight of one component - Crossover kg (lb) - 0,03 (0.07)
